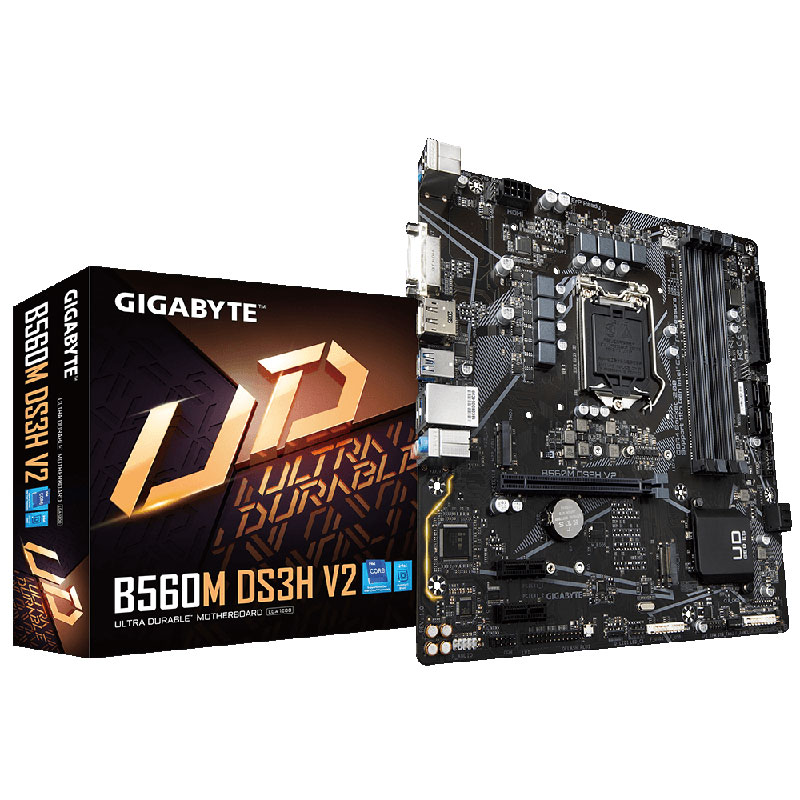

Gigabyte B560M DS3H V2 MicroATX Motherboard

£64.00
(£76.80 inc VAT)
List price: £78.00
Supports RGB and Digital RGB
Short description:

Dual Channel DDR4 Comet / Rocket Lake

LGA1200, B560 Chipset MicroATX

55498
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

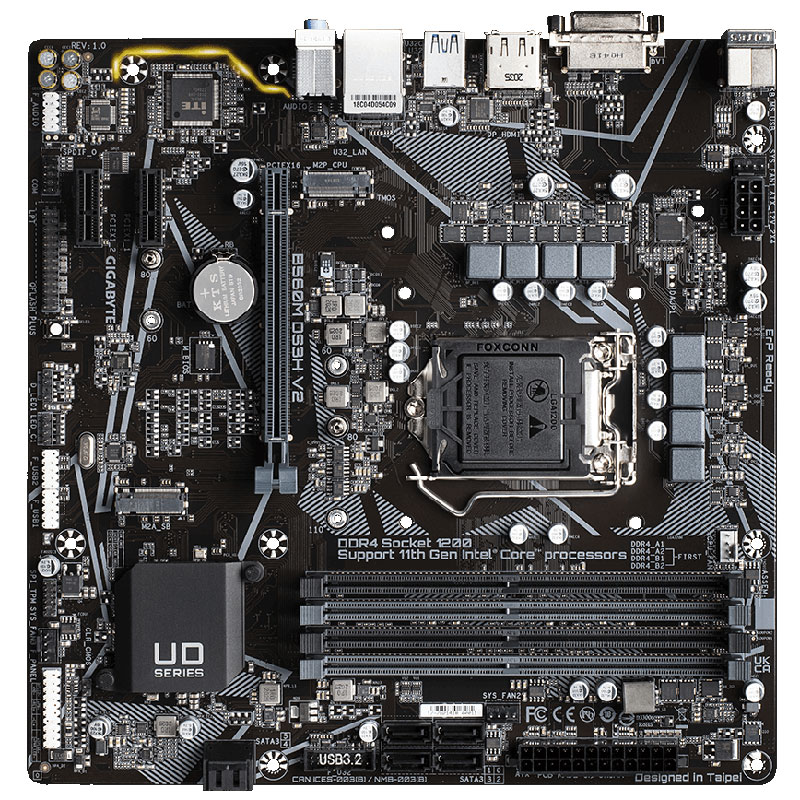

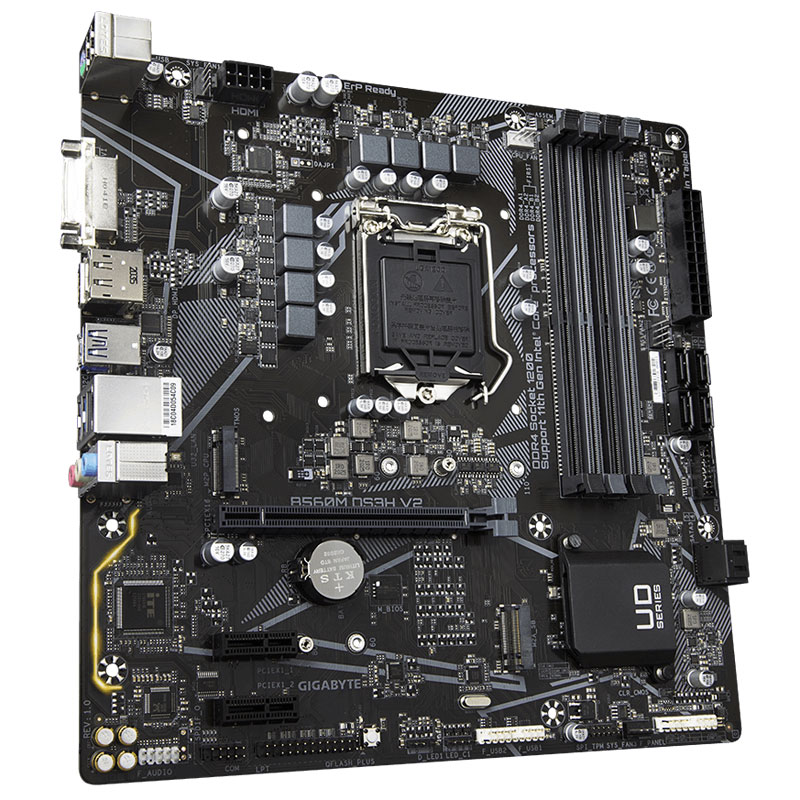

Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus

    • Supports 11th and 10th Gen Intel®  Core™ Series Processors
    • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
    • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
    • Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
    • USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
    • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
    • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
    • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
    * Actual support may vary by CPU.
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
CPU Socket Support for: (Full CPU Support List)
11th Generation Intel® Core™ i9/i7/i5 processors
10th Generation Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors*

* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
Chipset Intel® B560 Express Chipset
Memory Architecture 4 x 288-pin DDR4 DIMMs (Dual Channel)
Capacity 128GB (32GB single DIMM capacity)
Speed 11th Generation Intel® Core™ i9/i7/i5 processors: Up to 5333 (O.C.) MHz
10th Generation Intel® Core™ i9/i7 processors: Up to 2933 MHz
10th Generation Intel® Core™ i5/i3, Pentium®, and Celeron® processors: 2666 MHz
Extras Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Slots -
PCI-Express x16 1 x PCI-E x16 - Your graphics card should use this slot.
    (This slot conforms to PCI Express 4.0 standard - supported by 11th Generation processors only)
PCI-Express x4 -
PCI-Express x1 2 x PCI Express x1 slots
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Multi-GPU -

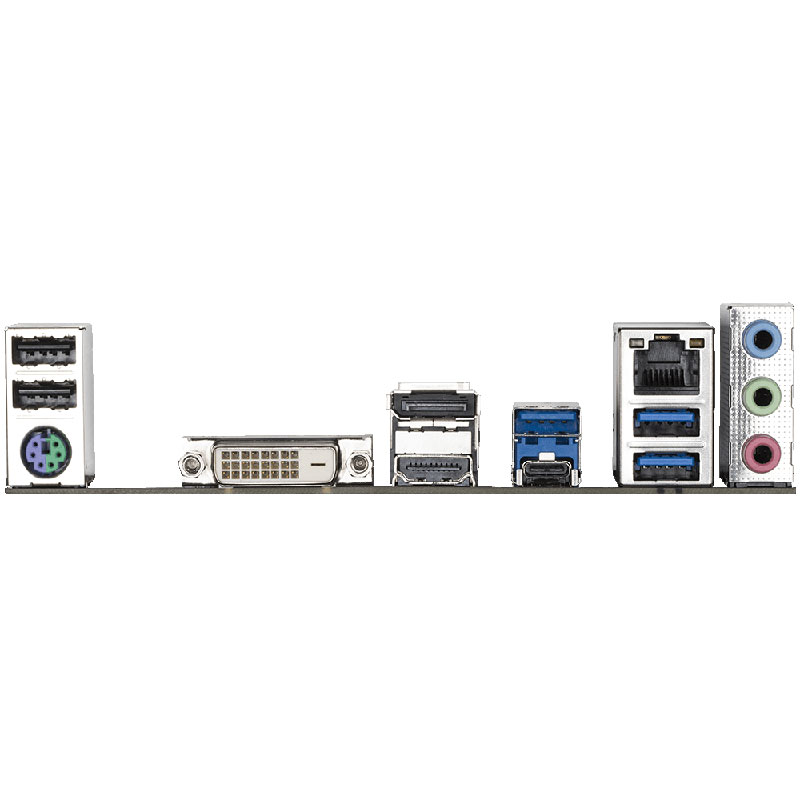

USB External 1 x USB 3.2 Gen1 Type-C® port - Chipset
3 x USB 3.2 Gen1 ports - Chipset
2 x USB 2.0/1.1 ports - Chipset Hub
Internal 2 x USB 3.2 Gen 1 - Chipset (1 header - Type A Front Panel Style)
4 x USB 2.0/1.1 - Chipset (2 headers)
Audio Realtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Graphics
Integrated Graphics Processor-Intel® HD Graphics support

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DisplayPort 1.2, supporting a maximum resolution of 4096x2304@60 Hz
* When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)
LAN 1 x Realtek® GbE LAN chip (1000/100 Mbit)
Wireless -
SATA Ports 6 x SATA 6Gb/s port(s)
Note: Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
SATA Express -
M.2 Socket CPU:
  1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)
Chipset:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
Intel® Optane™ Memory Ready
Note: Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Lighting 1 x Addressable LED strip header
1 x RGB LED strip header
Fan Headers 1 x CPU fan header
3 x system fan headers
PSU Connectors 24pin + 8pin AUX

 Find the full list of features at www.gigabyte.com.

Form Factor:
MicroATX / uATX
GTIN:
4719331823719
MPN:
B560M DS3H V2

Motherboards

Chipset:
Intel B560
M.2 Ports:
2
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
2
SATA Ports:
6
Socket Type:
LGA1200 10th Gen
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+ −
