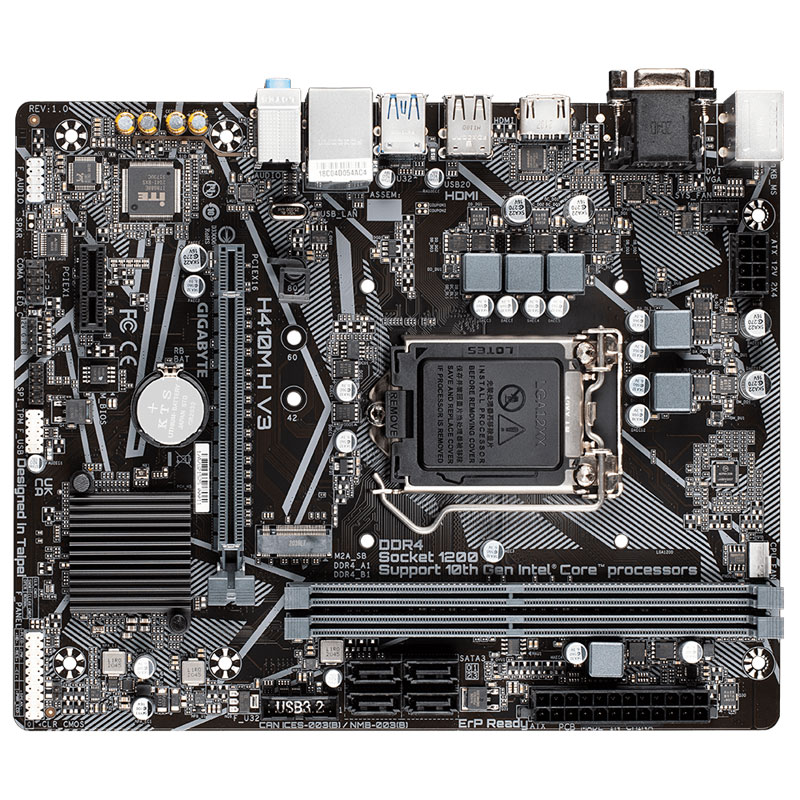

Gigabyte H410M H V3 MicroATX Motherboard

£43.00
(£51.60 inc VAT)
List price: £56.40
Supports RGB
Short description:

Dual Channel DDR4 Comet Lake

LGA1200, H410 Chipset MicroATX

55496
+
Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Intel® Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, Anti-Sulphur Resistor, Smart Fan 5



Features

  • Supports 10th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • GIGABYTE Gaming GbE LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulphur Resistors Design



Specifications

Form Factor Micro ATX Form Factor; 226mm x 185mm
CPU Socket Support for 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron processors in the LGA1200 package
L3 cache varies with CPU
Chipset Intel® H410 Express Chipset
Memory Architecture 2 x 288-pin DDR4 DIMMs (Dual Channel)
Capacity 64GB (32GB single DIMM capacity)
Speed Intel® Core™ i9/i7 processors: Up to 2933 MHz
Intel® Core™ i5/i3/Pentium®/Celeron® processors: Up to 2666 MHz
Extras Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Slots -
PCI-Express x16 1 x PCI Express 3.0 x16 slot, running at x16
PCI-Express x4 -
PCI-Express x1 1 x PCI Express 3.0 x1 slot
Multi-GPU -

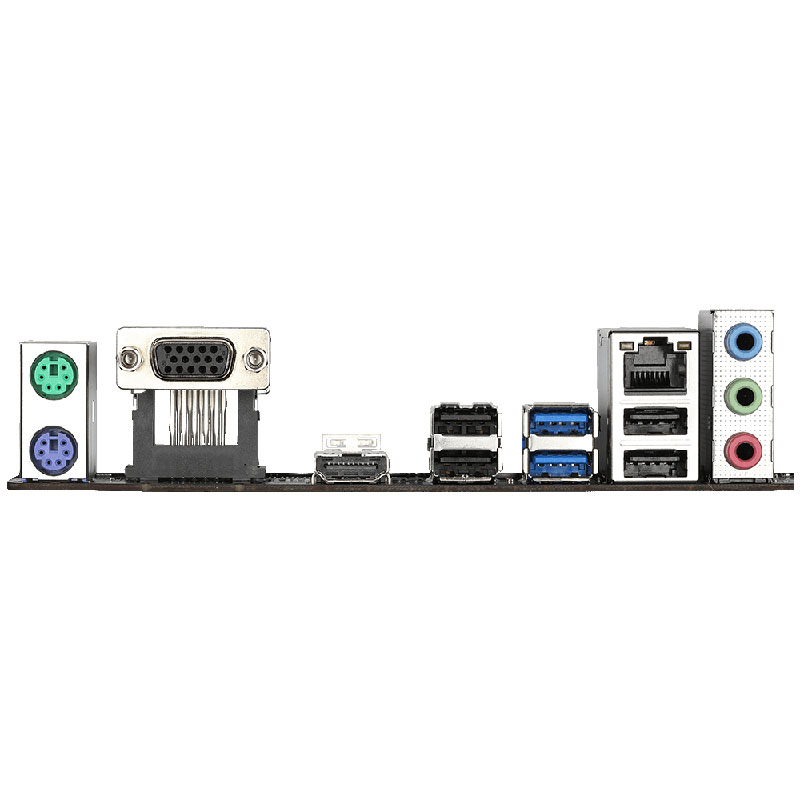

USB Ports 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Audio Realtek® Audio CODEC
High-Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
(Graphics specifications may vary depending on CPU support.)
LAN Gigabit Ethernet Chip (1 Gbps/100 Mbps)
Wireless -
SATA Ports 4 x SATA 6Gb/s connectors
SATA Express -
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
Lighting 1 x RGB LED strip header
Fan Headers 1 x CPU fan header
1 x system fan header
*All fan headers are subject to support AIO_Pump, Pump, and high-performance fan with the capability of delivering up to 2A/12V @ 24W.
PSU Connectors 24pin + 8pin AUX

Find the full list of features at www.gigabyte.com

Form Factor:
MicroATX / uATX
Availability:
in stock
Condition:
new
GTIN:
4719331823542
MPN:
H410M H V3

Motherboards

Chipset:
Intel H410
M.2 Ports:
1
Memory Slots:
2
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
1
SATA Ports:
4
Socket Type:
LGA1200 10th Gen
Wireless Support:
Lighting Headers:
Supports RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+
