- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

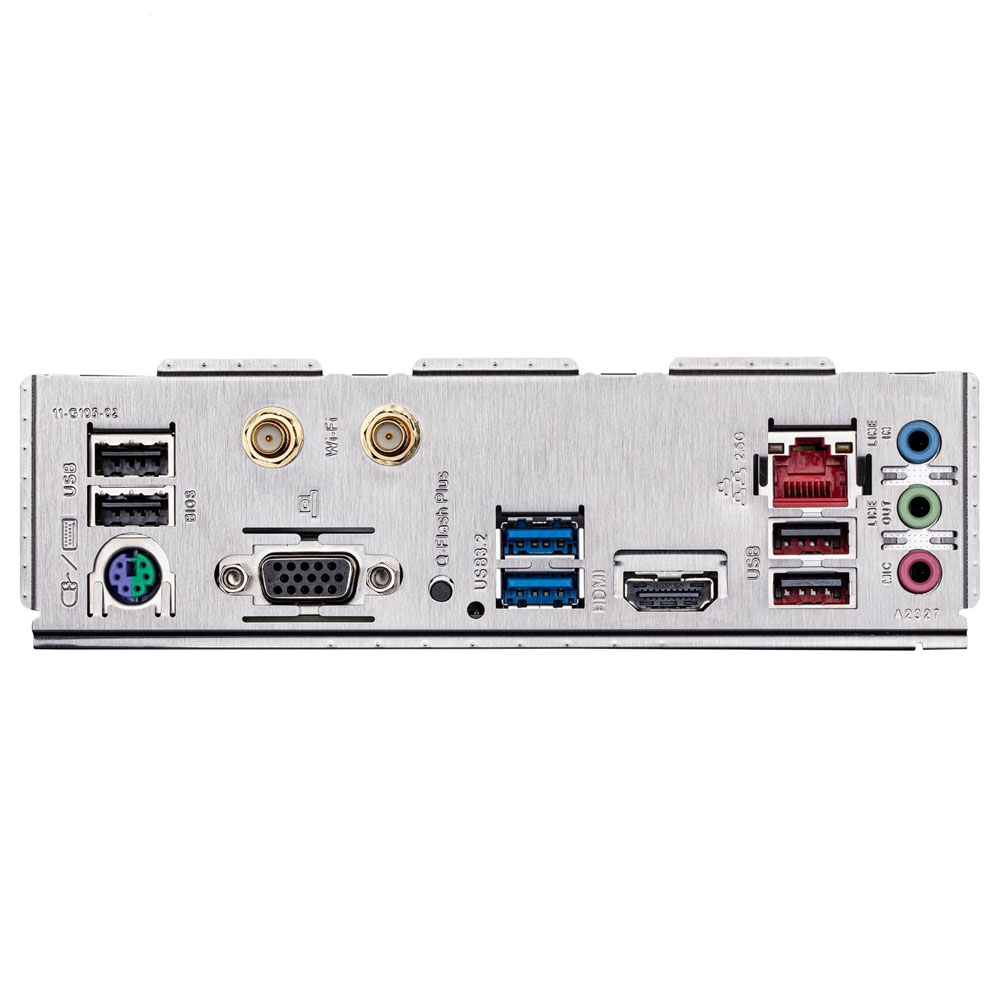

- Extended Connectivity：HDMI , D-sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification
| Form Factor | MicroATX Form Factor; 24.4cm x 22.5cm | |
| CPU Socket | Supports AMD Socket AM5 Ryzen™ Series Processors - CPU Support | |
| Chipset | AMD B650 | |
| Memory | Architecture | 2 x DDR5 DIMMs (Dual Channel) non-ECC, un-buffered |
| Capacity | 128GB (64GB single DIMM capacity) | |
| Speed | Up to 6400Mhz(OC) | |
| Extras | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| PCI Slots | 0 | |
| PCI-Express x16 | 1 x PCIe 4.0 x16 Slot (PCIXE16), supports x16 speed | |
| PCI-Express x4 | 0 | |
| PCI-Express x1 | 1 x PCIe 3.0 x16 Slot (PCIEX1), supports x1 speed | |
| Multi-GPU | - | |
| USB | External | - 2 x USB 3.2 Gen1 Ports (2 from CPU) - 4 x USB 2.0 Ports |
| Internal | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Headers (Support 2 USB 3.2 Gen1 ports) |
|
| Audio | - Realtek Audio Codec - Up to 7.1 Supported |
|
| Graphics |
Integrated AMD graphics on processor (Actual support may vary by CPU)
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| LAN | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Realtek) | |
| Wireless | - Wi-Fi - Wi-Fi 6E RTL8852CE - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band with extended 6GHz band support - Supports Bluetooth 5.3 |
|
| Storage Interfaces | CPU | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs |
| Chipset | 4 x SATA3 6.0 Gb/s Connectors | |
| Notes | Supports RAID 0, 1, 10 for NVME SSD and SATA devices | |
| Lighting | - 2 x addressable LED strip headers - 1 x RGB LED strip header |
|
| Fan Headers | - 1 x CPU fan header - 2 x system fan headers |
|
| PSU Connectors | - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector |
|
Find the full list of features at www.gigabyte.com
Form Factor:
MicroATX / uATX
BTF / Stealth Support:
GTIN:
4719331867942
MPN:
B650M GAMING WIFI6E
Motherboards
Chipset:
AMD B650
M.2 Ports:
1
Memory Slots:
2
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
1
SATA Ports:
4
Socket Type:
AM5
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
