- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification
| Form Factor | MicroATX Form Factor; 24.4cm x 24.4cm | |
| CPU Socket | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors | |
| Chipset | AMD B650 | |
| Memory | Architecture | 4 x DDR5 DIMMs (Dual Channel) non-ECC, un-buffered |
| Capacity | 128GB (32GB single DIMM capacity) | |
| Speed | Up to 6400Mhz(OC) | |
| Extras | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| PCI Slots | 0 | |
| PCI-Express x16 | 1 x PCIe 4.0 x16 Slot (PCIXE16), supports x16 speed | |
| PCI-Express x4 | 0 | |
| PCI-Express x1 | 1 x PCIe 3.0 x16 Slot (PCIEX1), supports x1 speed | |
| Multi-GPU | - | |

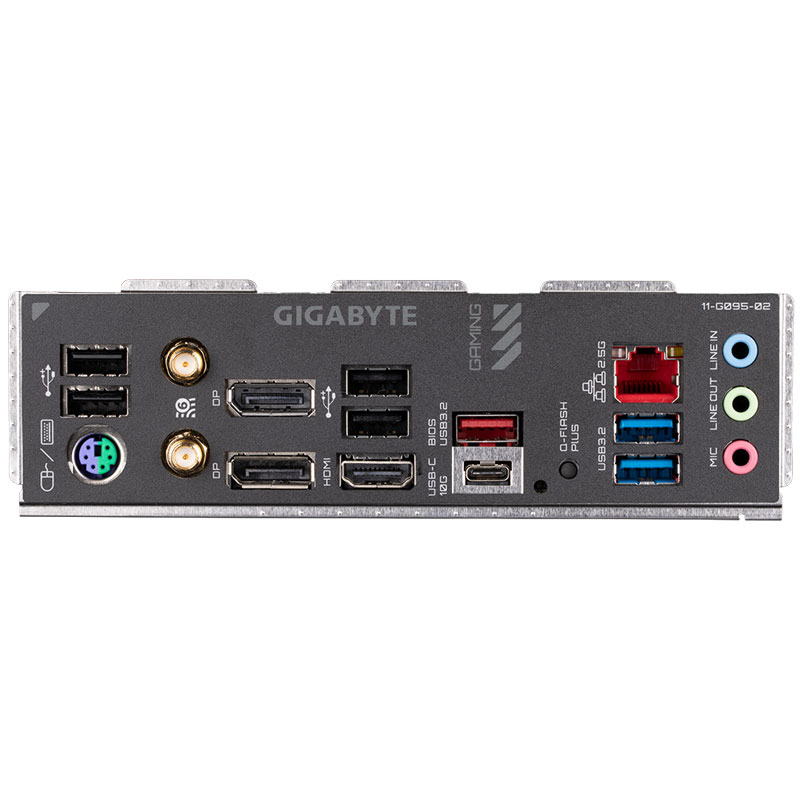

| USB | External | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 3 x USB 3.2 Gen1 Ports (2 from Chipset, 1 from CPU) - 4 x USB 2.0 Ports |
| Internal | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Headers (Support 2 USB 3.2 Gen1 ports) - 1 x USB 3.2 Gen2 Header Type-C (10 Gb/s) (Supports 1 port) |
|
| Audio | - Realtek Audio Codec - Up to 7.1 Supported |
|
| Graphics |
Integrated AMD graphics on processor (Actual support may vary by CPU)
- 2 x DisplayPort 1.4, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI 2.1 max. resolution up to 4K 60Hz |
|
| LAN | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Realtek) | |
| Wireless | - Wi-Fi - chipset subject to change with PCB Revisions, check with us if needed to confirm model - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band with extended 6GHz band support - Supports Bluetooth 5.2 |
|
| Storage Interfaces | CPU | 2 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 |
| Chipset | 4 x SATA3 6.0 Gb/s Connectors | |
| Notes | Supports RAID 0, 1, 10 for NVME SSD and SATA devices | |
| Lighting | - 1 x RGB LED Header - 1 x Addressable LED Headers |
|
| Fan Headers | - 1 x CPU fan header - 3 x system fan headers |
|
| PSU Connectors | - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector |
|
Find the full list of features at www.gigabyte.com
Form Factor:
MicroATX / uATX
GTIN:
4719331849375
MPN:
B650 AORUS ELITE AX
Motherboards
Chipset:
AMD B650
M.2 Ports:
3
Memory Slots:
4
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
3
PCI Express 1x:
0
SATA Ports:
4
Socket Type:
AM5
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
