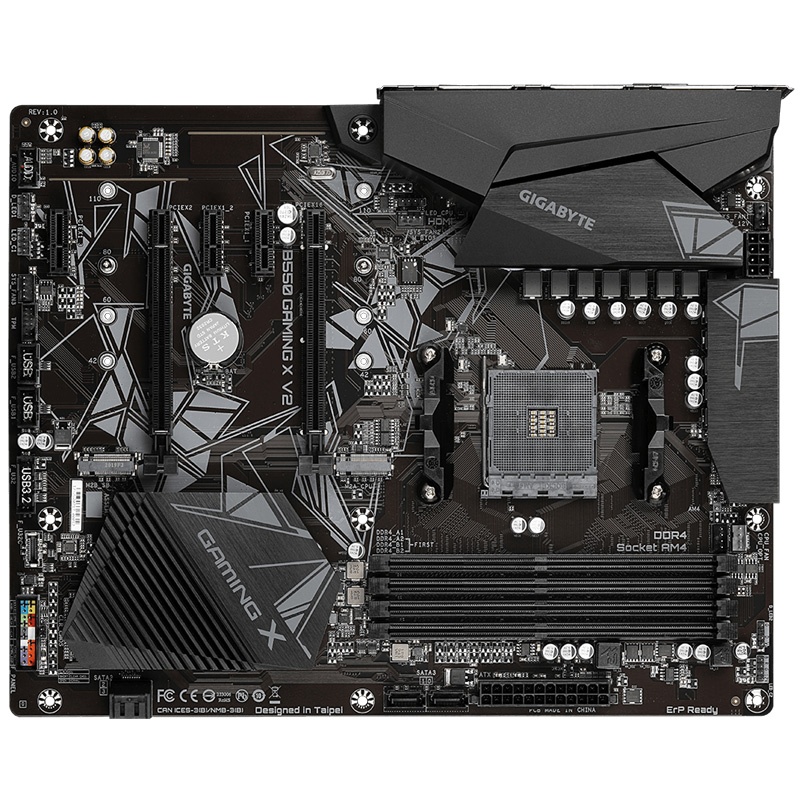

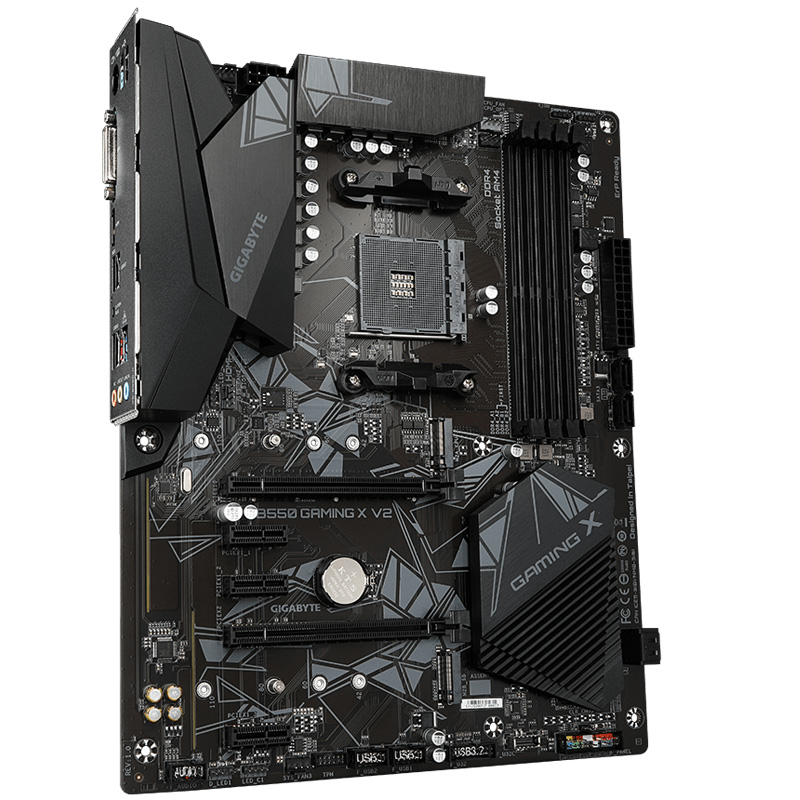

AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, Realtek GbE LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- Realtek GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
| Form Factor | ATX Form Factor; 30.5 x 24.4cm |
| CPU Socket | AM4 for AMD Ryzen Processors - CPU Support |
| Chipset | AMD B550 |
| Memory Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory, Dual Channel |
| Memory Speed | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules |
| PCI Slots | 0 |
| PCI-Express 16x | 1 x PCIe 4.0* / 3.0 x16, running at x16 1 x PCIe 3.0 x16 , running at x2 *Note: 3rd Generation processors required for PCI 4.0 |
| PCI-Express 4x | - |
| PCI-Express 1x | 3 x PCI Express x1 slot |
| Multi-GPU | - |

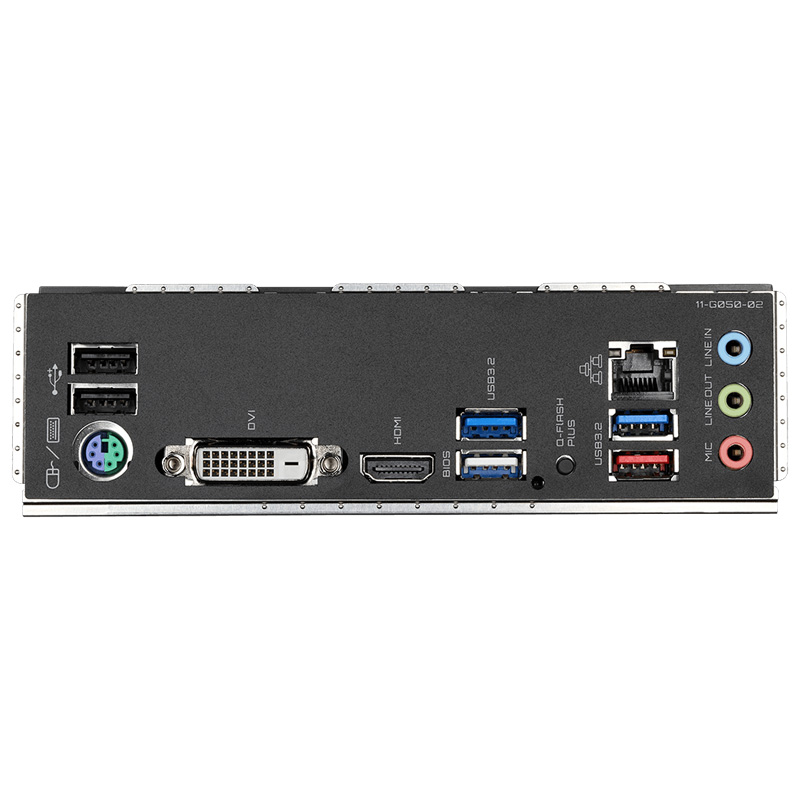

| USB Ports | Available on the back panel: 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports Available through internal USB header: 1 x USB Type C Gen 1 Internal Header 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Graphics | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. (Supported processors only eg APU series or Ryzen with Vega 'G') |
| LAN | 1 x Realtek GbE LAN chip (10/100/1000 Mbit) |
| Wireless | - |
| SATA Ports | 4 x SATA 6Gb/s port(s) |
| SATA Express | - |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs |
| Lighting | 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header |
| Fan Headers | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers |
| PSU Connectors | 24pin + 8pin AUX |
10+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
B550 motherboard use a 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x4 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.
*3rd Gen Ryzen procesors only
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
Q-Flash Plus - Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Form Factor:
ATX
GTIN:
4719331810702
MPN:
B550 GAMING X V2
Motherboards
Chipset:
AMD B550
M.2 Ports:
2
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
2
PCI Express 1x:
3
SATA Ports:
4
Socket Type:
AM4
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
