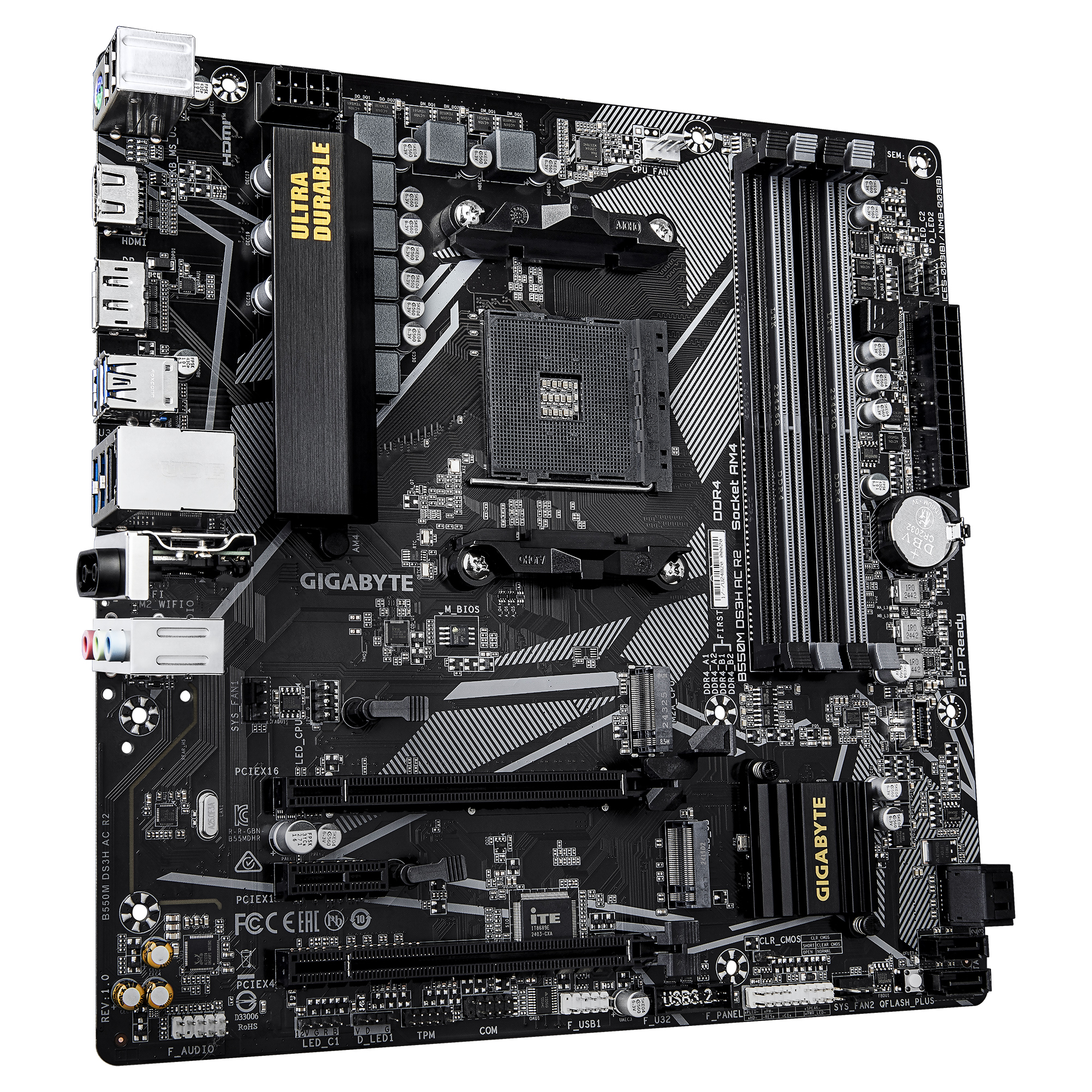

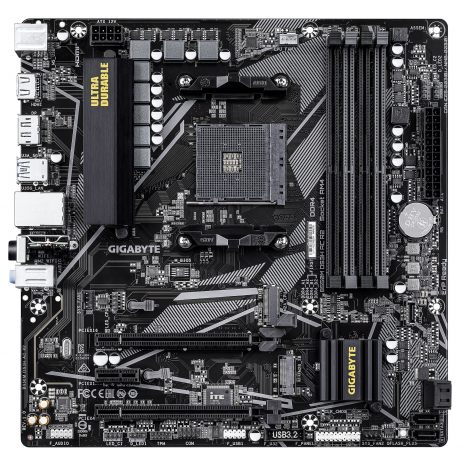

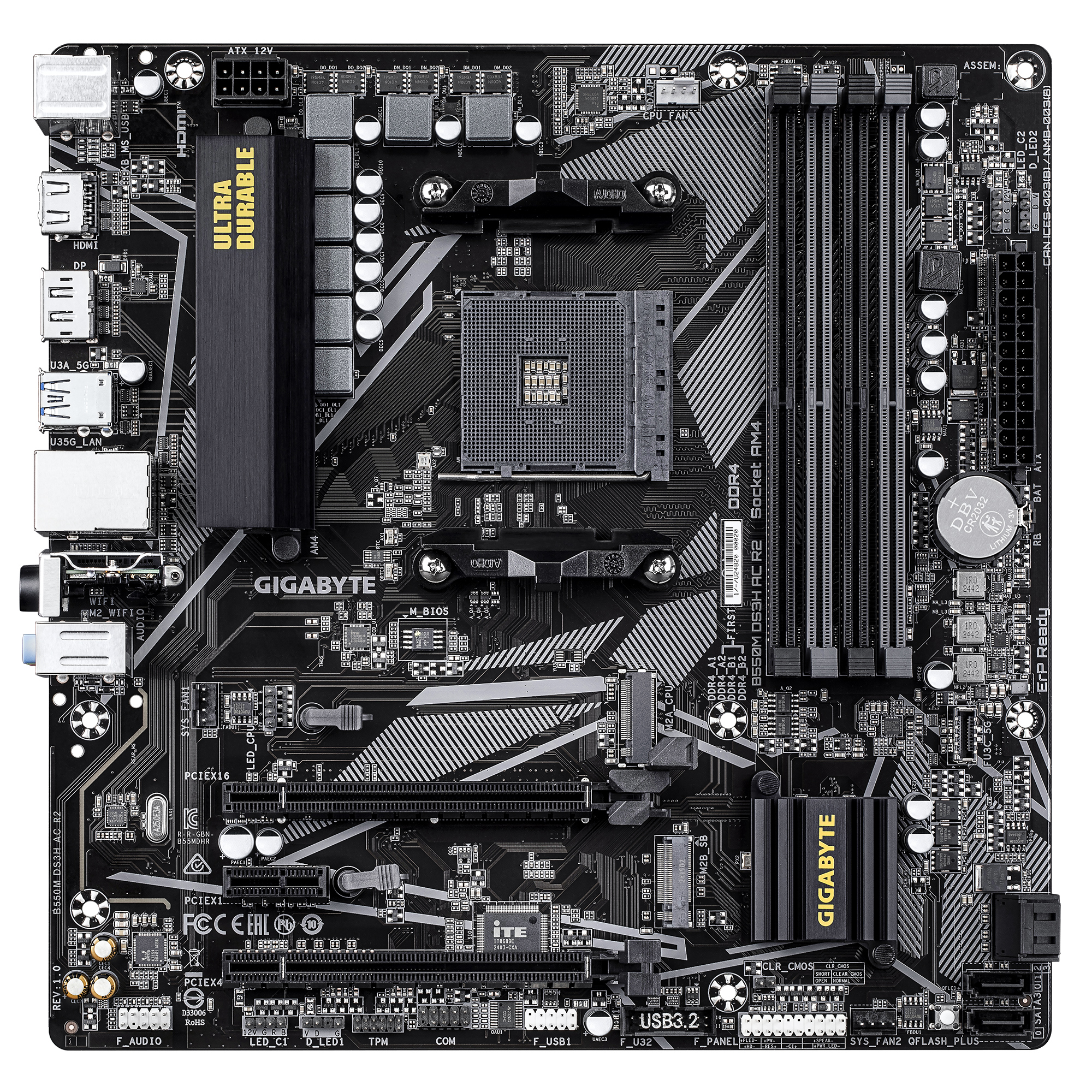

Gigabyte B550M DS3H AC R2 AM4 MicroATX Motherboard

£78.00
(£93.60 inc VAT)
Wireless Support
Supports RGB and Digital RGB
Short description:

B550 Chipset
Includes Wifi Support

55619
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info
Key Features
  • AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors.
  • Digital 5+3 phases VRM solution.
  • Dual Channel DDR4: 4 x DIMMs
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch: PCIe slots with Quick Release Design
  • Ultra-Fast Storage:2 x M.2 slots, including PCIe 4.0 x1
  • Efficient Thermal:VRM Thermal Armor Advanced
  • Fast Networking:GbE LAN and Wi-Fi 5
  • Extended Connectivity:HDMI, Displayport
  • PCIe UD Slot:PCIe 4.0 x16 slots with 10X strength for graphics card and Better Heat dissipation effect
Form Factor MicroATX Form Factor; 24.4cm x 21.5cm
CPU Socket AM4 for Ryzen / Ryzen 2 (CPU Support)
Chipset AMD B550
Memory Slots 4 x DDR4, up to 128GB, Dual Channel
Memory Speed DDR4 2133-4733 Non-ECC
PCI Slots 0
PCI-Express 16x 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 4.0 standard, supported by Ryzen 3000 and 5000 Series processors.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(This slot conforms to PCI Express 3.0 standard)
PCI-Express 4x * See Above
PCI-Express 1x 1 x PCIe 3.0 x1
Multi-GPU -

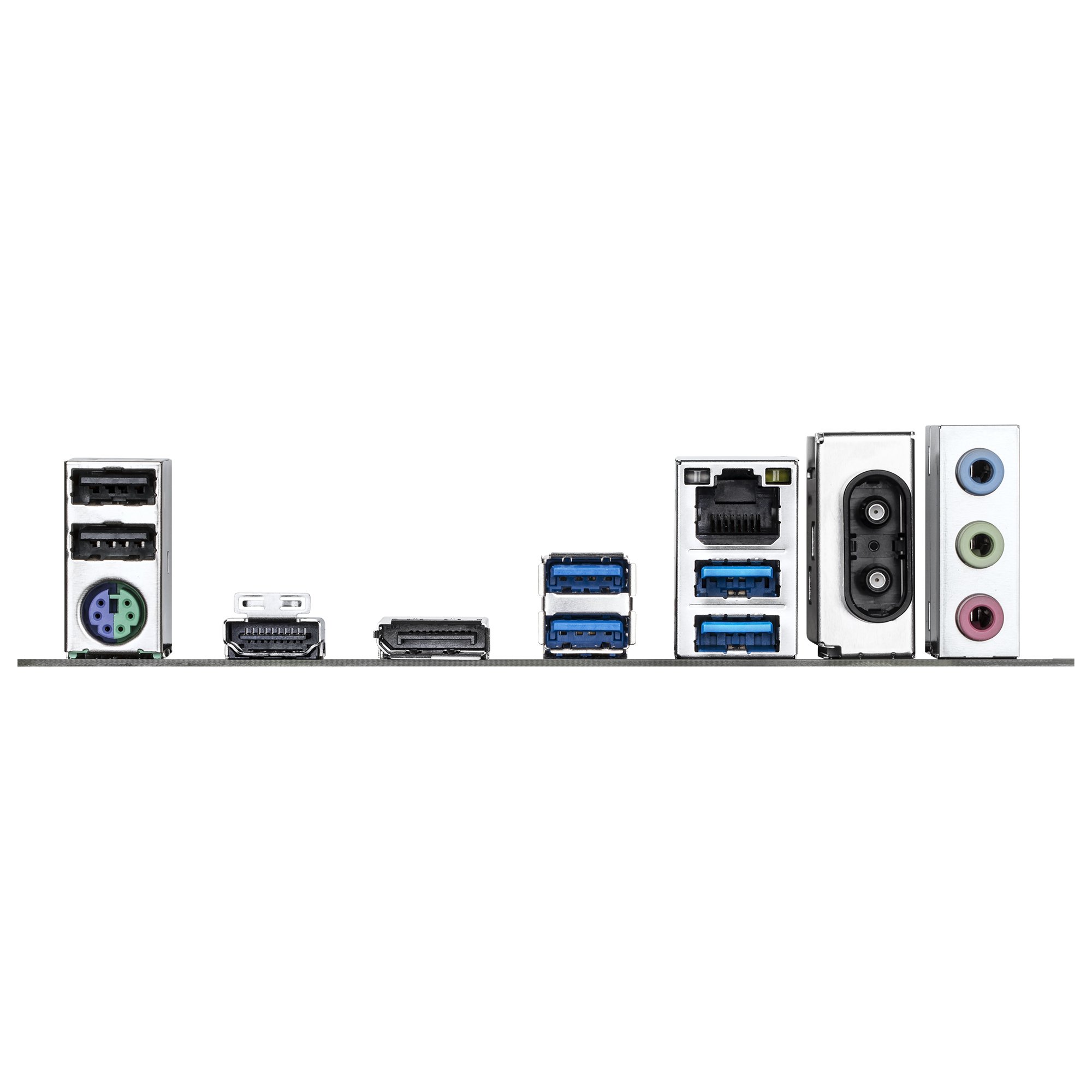

USB Ports External:
- 4 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
Internal:
- 1 x USB 2.0 Headers (Support 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Headers (Support 2 USB 3.2 Gen1 ports)
- 1 x USB 3.2 Gen1 Header Type-C (5 Gb/s) (Supports 1 port)
Audio Realtek® AL1220 codec High Definition Audio 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Graphics 1 x HDMI 2.1,
1 x DisplayPort 1.4
(Supported processors only eg APU series or Ryzen with Vega 'G')
LAN 1 x Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Realtek® Wi-Fi RTL8821CE
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.0
- Support for 11ac wireless standard
SATA Ports 4 x SATA 6Gb/s port(s)
SATA Express -
M.2 Socket

1‎ x M.2 connector (M2A_CPU) integrated in the CPU, supporting Socket 3 M key, type 2260/2280/22110 SSDs capable of supporting at PCIe 4.0
1 x M.2 connector (M2B_SB) integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSD, PCIe 3.0
Lighting 2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
Fan Headers 1 x CPU fan header
2 x system fan header
PSU Connectors 24pin + 8pin AUX

See more details here - https://www.gigabyte.com/Motherboard/B550M-DS3H-AC-R2#kf
Form Factor:
MicroATX / uATX
BTF / Stealth Support:
GTIN:
4719331869908
MPN:
B550M DS3H AC R2

Motherboards

Chipset:
AMD B550
M.2 Ports:
2
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
2
SATA Ports:
4
Socket Type:
AM4
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+ −
