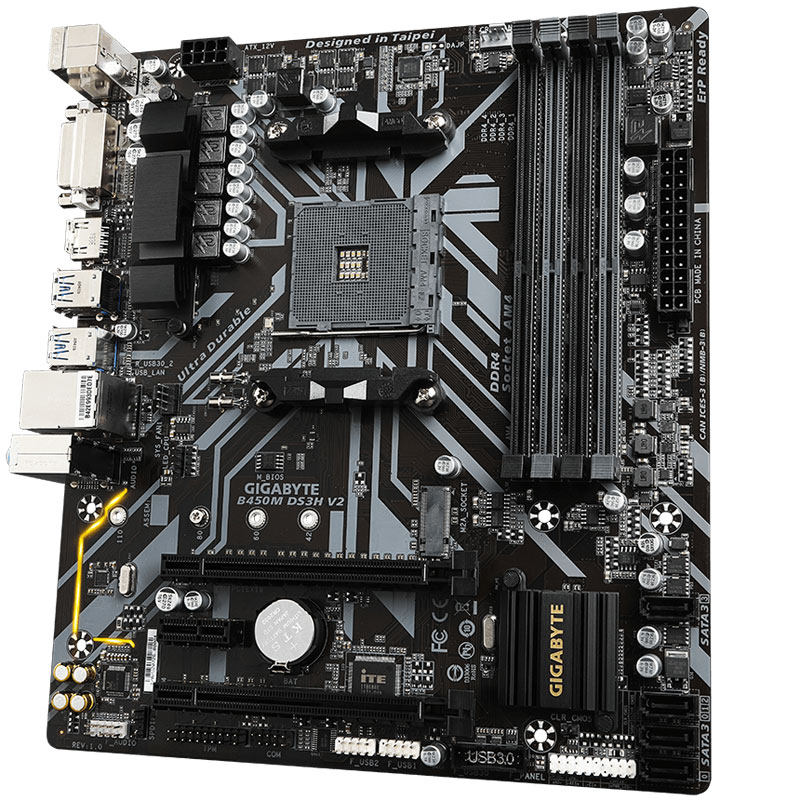

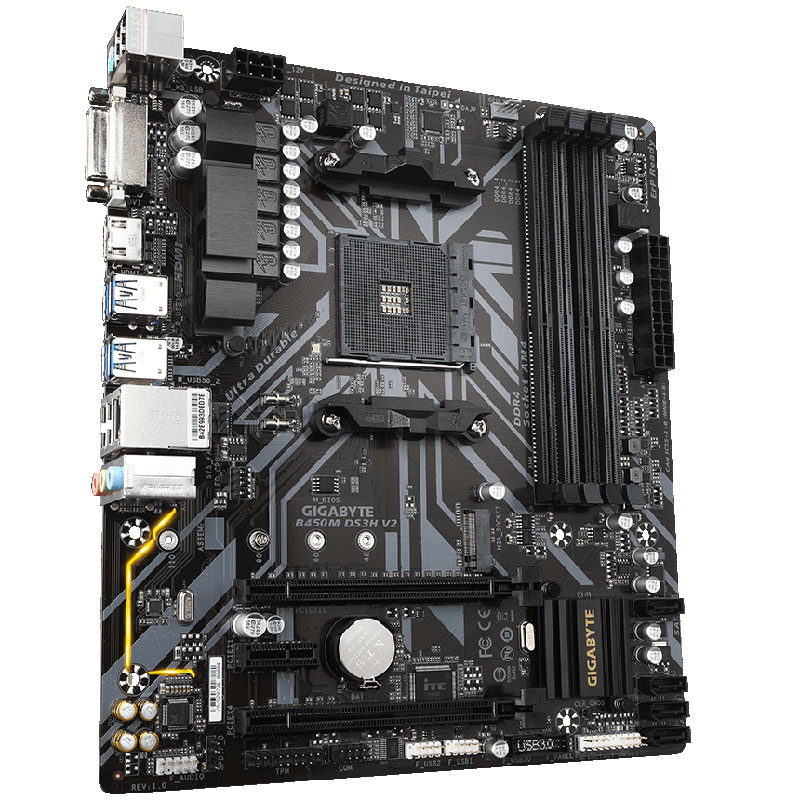

AMD B450 Ultra Durable Motherboard with Digital VRM Solution, GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, RGB LED Strip Header, CEC 2019 Ready
- Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Feature Digital VRM Solution with Low RDS(on) MOSFETs
- HDMI, DVI-D Ports for Multiple Display
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- RGB Fusion supports RGB LED Strips in 7-Colors
- Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- CEC 2019 Ready, Save Power with a Simple Click
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| CPU Socket | AM4 for Ryzen 3, 2 and 1 (CPUs Supported) |
| Chipset | AMD B450 |
| Memory Slots | 4 x DDR4, up to 128GB, Dual Channel |
| Memory Speed | DDR4 2133-3600 Non-ECC |
| PCI Slots | 0 |
| PCI-Express 16x | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| PCI-Express 4x | 0 |
| PCI-Express 1x | 1 x PCIe 2.0 x1 |
| Multi-GPU | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |

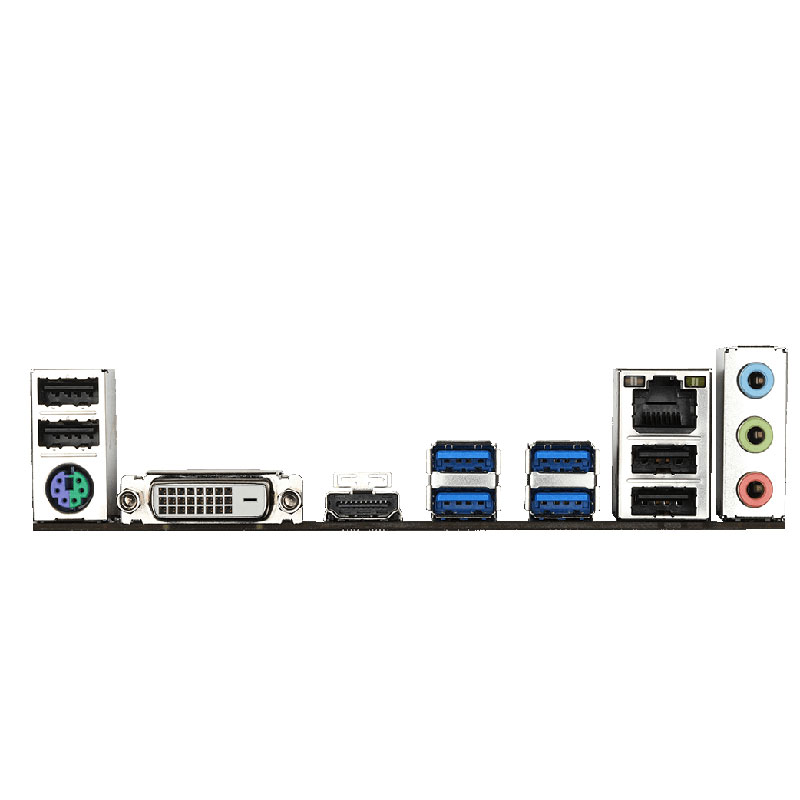

| USB Ports | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| Graphics | 1 x HDMI 2.0, 1 x DVI-D Outputs (Supported processors only eg APU series or Ryzen with Vega 'G') |
| LAN | 1 x Realtek® GbE LAN chip (1000/100 Mbit) |
| Wireless | - |
| SATA Ports | 4 x SATA 6Gb/s port(s) |
| SATA Express | - |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) |
| Lighting | 1 x CPU cooler LED strip/RGB LED strip header |
| Fan Headers | 1 x CPU fan header 1 x system fan header |
| PSU Connectors | 24pin + 8pin AUX |
Form Factor:
MicroATX / uATX
Condition:
new
GTIN:
4719331810832
MPN:
B450M S2H V2
Motherboards
Chipset:
AMD B450
M.2 Ports:
1
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
2
PCI Express 1x:
1
SATA Ports:
4
SLI / Crossfire Support:
Crossfire Support
Socket Type:
AM4
Wireless Support:
Lighting Headers:
Supports RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
