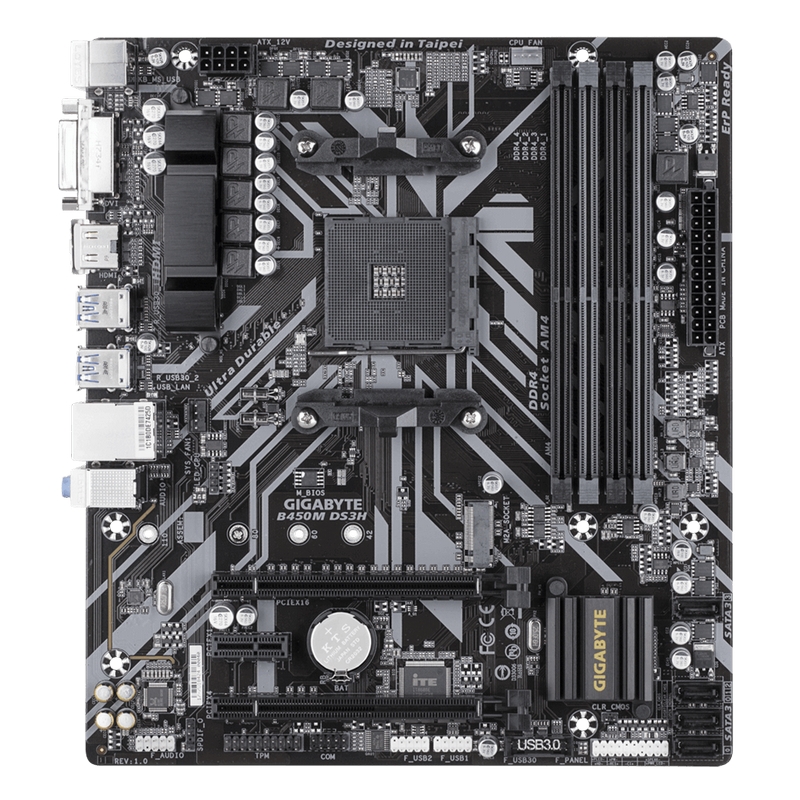

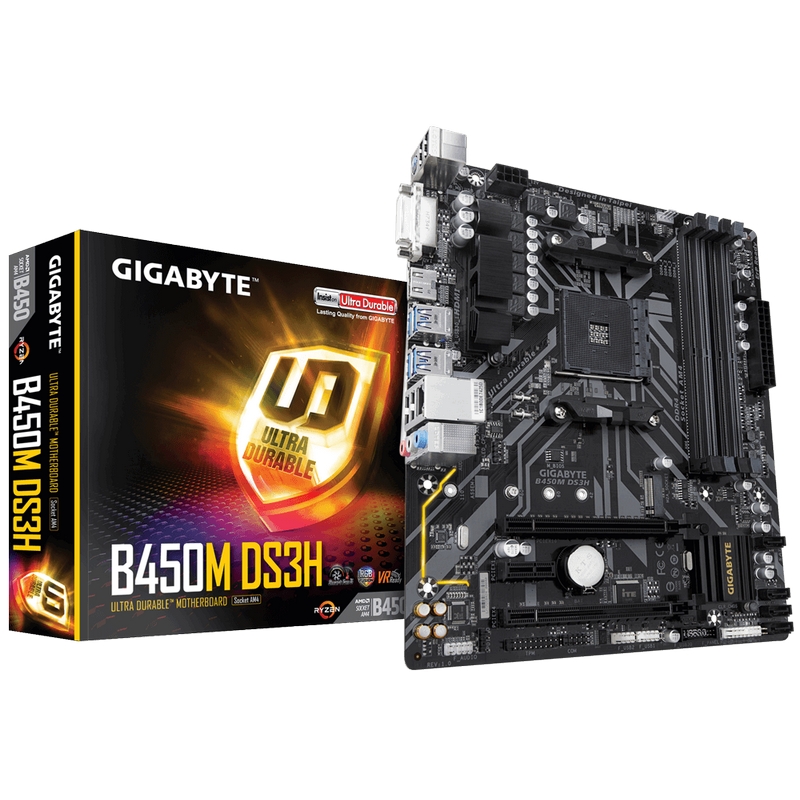

Gigabyte B450M DS3H AM4 MicroATX Motherboard

£44.00
(£52.80 inc VAT)
List price: £74.40
Crossfire Support
Supports RGB
Short description:

B450 Chipset

55402
+
Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info
AMD B450 Ultra Durable Motherboard with Realtek® GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor, CEC 2019 ready

Form Factor MicroATX Form Factor; 24.4cm x 21.5cm
CPU Socket AM4 for Ryzen / Ryzen 2 (CPU Support)
Chipset AMD B450
Memory Slots 4 x DDR4, up to 64GB, Dual Channel
Memory Speed DDR4 2133-3200 Non-ECC
PCI Slots 0
PCI-Express 16x 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI-Express 4x 0
PCI-Express 1x 1 x PCIe 2.0 x1
Multi-GPU Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB Ports Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Graphics 1 x HDMI 2.0, 1 x DVI-D Outputs (Supported processors only eg APU series or Ryzen with Vega 'G')
LAN 1 x Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless -
SATA Ports 4 x SATA 6Gb/s port(s)
SATA Express -
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Lighting 1 x CPU cooler LED strip/RGB LED strip header
Fan Headers 1 x CPU fan header
1 x system fan header
PSU Connectors 24pin + 8pin AUX
  • Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • HDMI, DVI-D Ports for Multiple Display
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB Fusion supports RGB LED Strips in 7-Colors
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • CEC 2019 Ready, Save Power with a Single Click
Form Factor:
MicroATX / uATX
GTIN:
04719331803827
MPN:
B450M DS3H

Motherboards

Chipset:
AMD B450
M.2 Ports:
1
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
2
PCI Express 1x:
1
SATA Ports:
4
SLI / Crossfire Support:
Crossfire Support
Socket Type:
AM4
Wireless Support:
Lighting Headers:
Supports RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+
