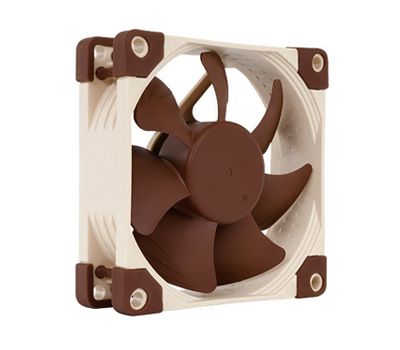

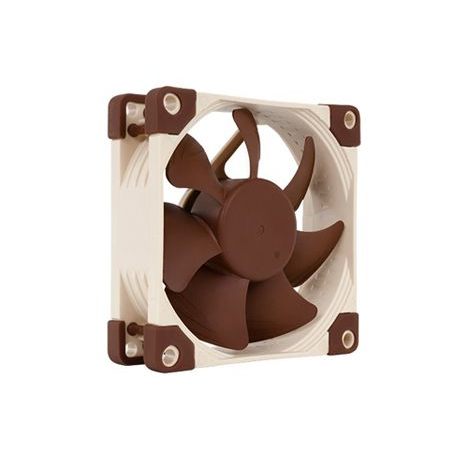

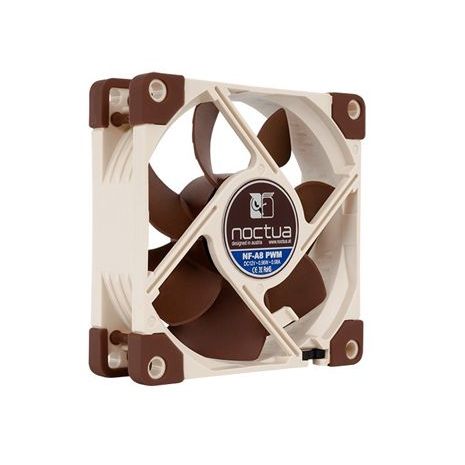

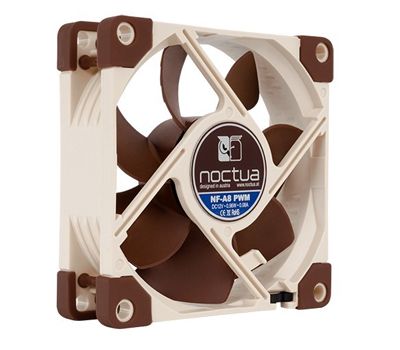

Noctua 80mm Fan NF-A8 FLX

£9.67
(£11.60 inc VAT)
List price: £13.80
Short description:

RPM : 1200 / 1650 / 2000 rpm

Noise : Up to 16.1dBA

25228
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The FLX version provides 2000/1650/1200rpm speed settings via the supplied Low-Noise Adaptors in order to provide full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

Size
80x80x25 mm
Mounting hole spacing
71,5x71,5 mm
Connector
3-Pin
Bearing
Blade Geometry
Rotational Speed (+/- 10%)
2000 RPM
Rotational Speed with L.N.A. (+/- 10%)
1650 RPM
Rotational Speed with U.L.N.A. (+/- 10%)
1200 RPM
Acoustical Noise
16,1 dB(A)
Acoustical Noise with L.N.A.
12,9 dB(A)
Acoustical Noise with U.L.N.A.
7,9 dB(A)
Static Pressure
1,96 mm H?O
Static Pressure with L.N.A.
1,40 mm H?O
Static Pressure with U.L.N.A.
0,74 mm H?O
Max. Input Power
0,84 W
Max. Input Current
0,07 A
Voltage
12 V
MTBF
> 150.000 h

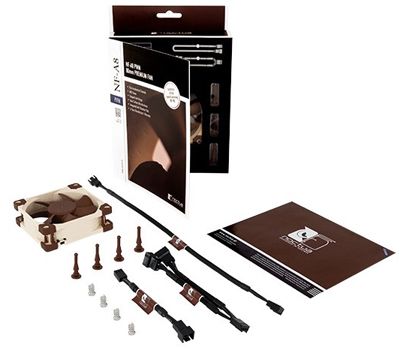

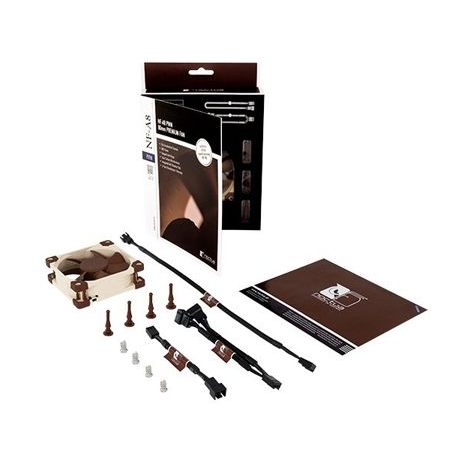

Scope of Delivery
  • Low-Noise Adaptor (L.N.A.)
  • Ultra-Low-Noise Adaptor (U.L.N.A.)
  • 3:4-Pin Adaptor
  • 30cm Extension Cable
  • 4 Vibration-Compensators
  • 4 Fan Screws
Warranty
6 years
FAN Specification

Succeeding the award-winning NF-R8

Succeeding the award-winning NF-R8

Noctua's NF-R8 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 80mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A8 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.

Flow Acceleration Channels

Flow Acceleration Channels

The NF-A8 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

SSO2 Bearing

SSO2 Bearing

The NF-A8 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A8 remarkably quiet even at very close distances.

3 speed settings for full flexibility

3 speed settings for full flexibility

Providing 2000, 1650 and 1200 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A8 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.

Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.

6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A8 features an MTBF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.


Connector Type:
3-pin
GTIN:
4716123315483
MPN:
NF-A8 FLX

Case Fans

Airflow:
50cfm
Blade Colour:
Brown
Fan Size:
80mm
LED Lighting:
None
Noise Level:
16dB(A)

New features

Manufacturer:
Noctua
+
