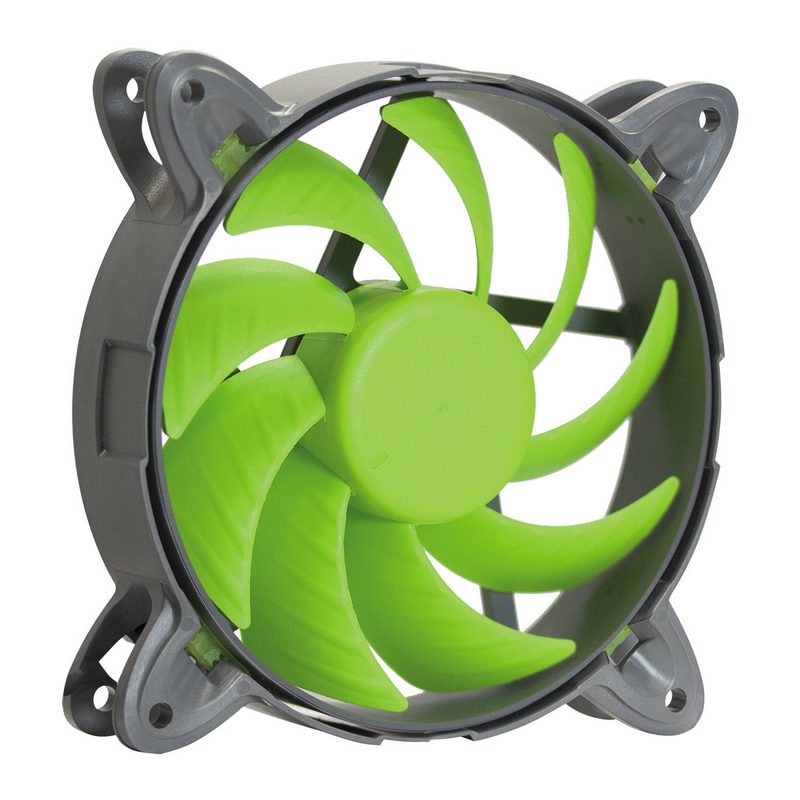

Ready for deployment: The Nanoxia SPECIAL N.N.V. PWM 120 PWM. Equipped with a 4-pin PWM connector for automatic speed control. The fan rotates at 400 - 1,650 rpm and thus offers a very wide control range. In this case, an airflow of up to 89.4 m³ / h is generated with a maximum noise level of 24.6 dB (A) *.
Welcome to the “fan” club of a real revolution! Let us tell you a story: Once upon a time there was a company who developed vibration absorbing fans to be used for heating car seats. So for a long time, these small fans were locked in car seats, suffering in silence, until one day we realised their potential and freed them from their hot and dark environment. Upon being set free, they were able to grow and become stronger. They now fulfil their destiny as Special N.N.V. fans in your PC! We’ve upgraded the fan chassis and the technology and put our ultra-cool task force named “German Silent Force” into service!

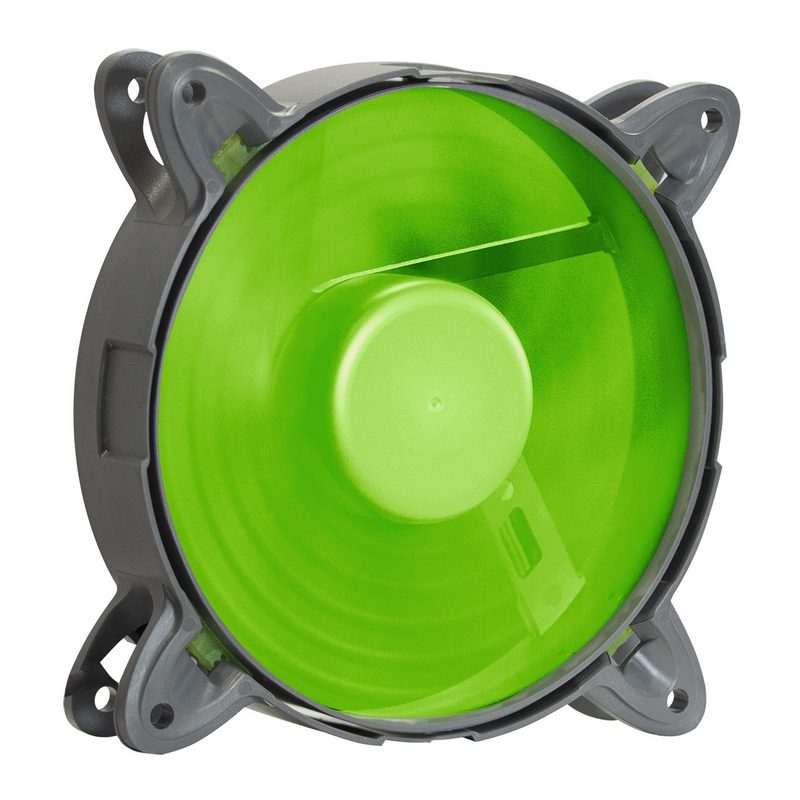

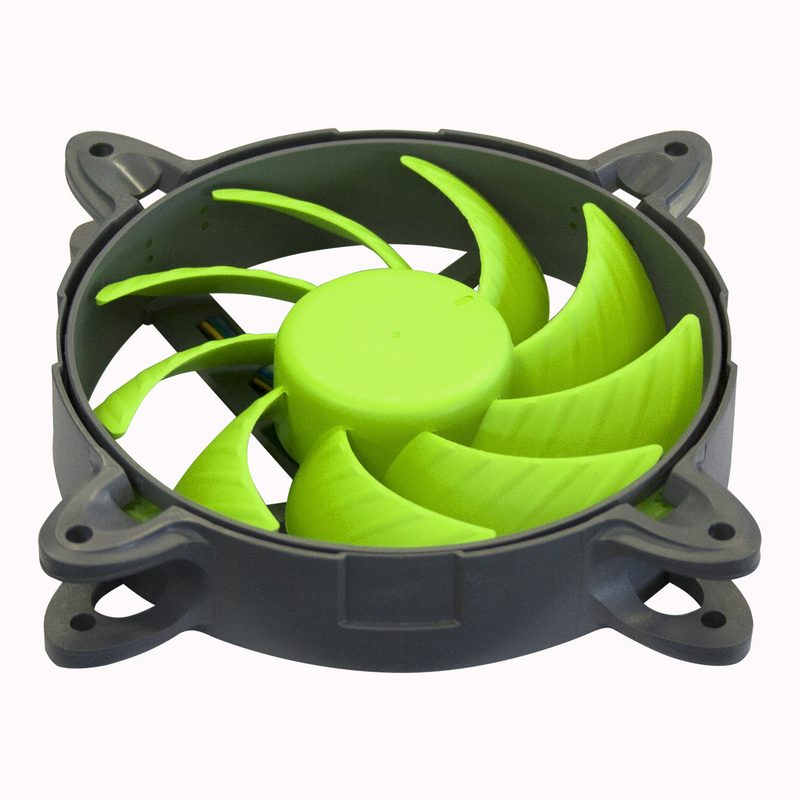

Thanks to the patented technology, we are offering the first virtually vibration-free PC fan in the world. And this is how it works: We are using the two decoupled fan frames. The outer frame offers mounting points to install the fan inside a PC or on a CPU-cooler. The inner frame, which is decoupled from the outer ring by four rubber dampeners, holds the fan motor and the rotor.
Another special feature is the proven fluid dynamic bearing, which is both robust and durable. Due to this special bearing the fan has a non-existent mechanical wear, resulting in a fan that will stay silent during its lifetime.
And it just keeps running… an additional fantastic feature of the Special N.N.V. series are the perfectly balanced rotor and fan blades. Combined with the wear-resistant fluid dynamic bearing it guarantees the fan a very long life expectancy.
Perfect control included: The fan speed is controlled by the motherboard via the 4-pin PWM connector. The fan electronic permanently and automatically evaluates the signal and regulates the fan speed accordingly. With the very linear control range of the fan it is astonishingly silent running and hardly perceptible during operations.

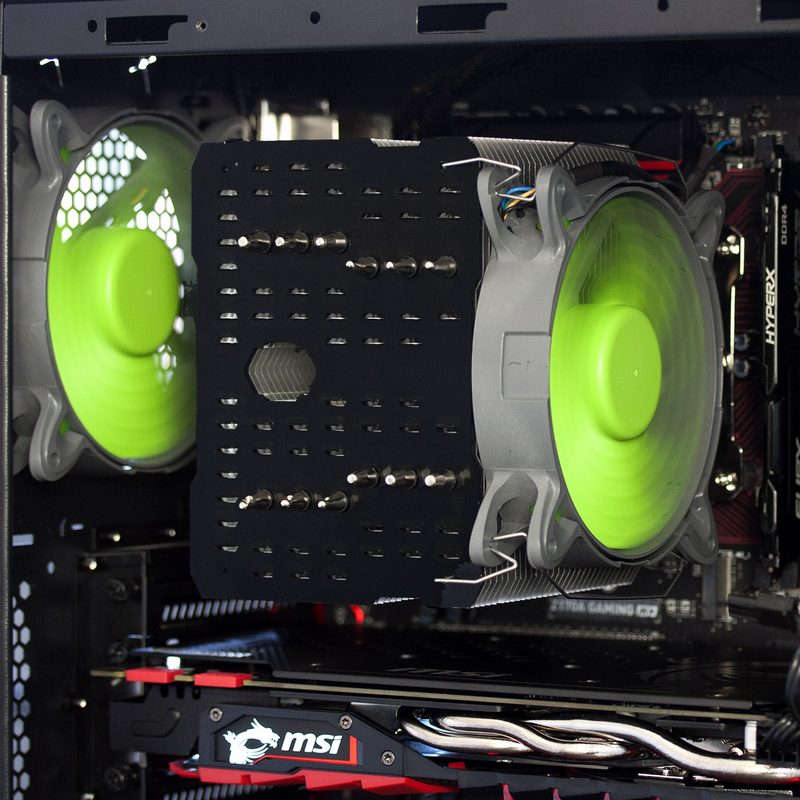

The Special N.N.V. Fan 120 PWM is the ideal candidate when you are looking for a particularly quiet and effective PWM fan for a CPU cooler or a radiator.
* The sound pressure was measured according to CNS 8753 from a distance of 1 meter at 12 volts in a low-reflection room.
|Model: Special N.N.V. Fan 120 - PWM|
|Manufacturer Number: NXNNV120-P|
|Order Number: 200300443|
|Size: 120 x 120 x 25 mm|
|Rotation Speed: 400 - 1,650 rpm|
|Voltage Range: 7 - 13.2 V|
|Rated Current: 0.11 A|
|Rated Power: 1.32 W|
|Airflow: 52.6 CFM|
|Acoustical Noise: 24.6 dB(A)|
|Static Pressure: 1.38 mm-H²O|
|Bearing: Fluid Dynamic|
|Connector: 4-Pin PWM|
