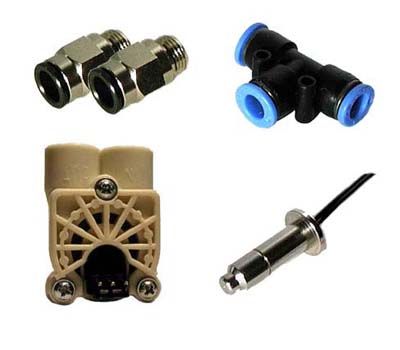

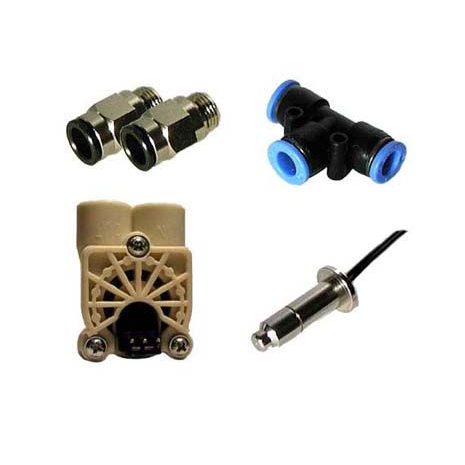

In cooperation with KTC Cooling we have developed an extension set for watercooling solutions. With the analog sensor hub you can connect very thin analog sensors and Push-in water temperature probes. With the T-Flow flowmeter you can automatically monitor liquid speed and you can define temperature and liquid speed limits, which lead to an emergency switch-off.
With the T-Flow we offer a flowmeter with a good measuring range at low pressure losses. You can connect up to 2 flowmeters. To improve measurement results you can choose in the T-Balancer software different measurement ranges. For the T-Flow the range "4sec" applies.
modell: plastic, white
jet: 3.3 mm
impulse per litre: 509 (with software calibratible)
maximum flow: 6 l/min
magnets: Ceramic Sr Fe O
temperature range: -10?C to +65?C
connection: 3Pin-Molex (female)
Water temperature probe Push-In
This water temperature probe is a Push-In system. You can push it into a t-piece or into the compensation tank. A sensitive analog sensor is embedded in the plug. Up to 6 water temp probes can be connected to the T-Balancer.
The plug is made of either nickel, bronze or aluminium to ensure an optimal heat conductivity.
The sensor has a 30cm cable.
Push-In T-piece for the implementation of a Push-in water temp probe.
Compatible: polyurethan-soft (PUR-W), Polyurethan (PUR)
