The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build
- L-shape design tailored for dual chamber cases
- 80 PLUS Gold efficiency
- PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals
- Detachable USB hub with 4 internal usB 2.0 headers and 6 PWM headers, offered in 1200W and 1000W
- Removable magnetic fan dust filter
- Built with German top-end, industrial-grade EPCOS capacitors
- Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors

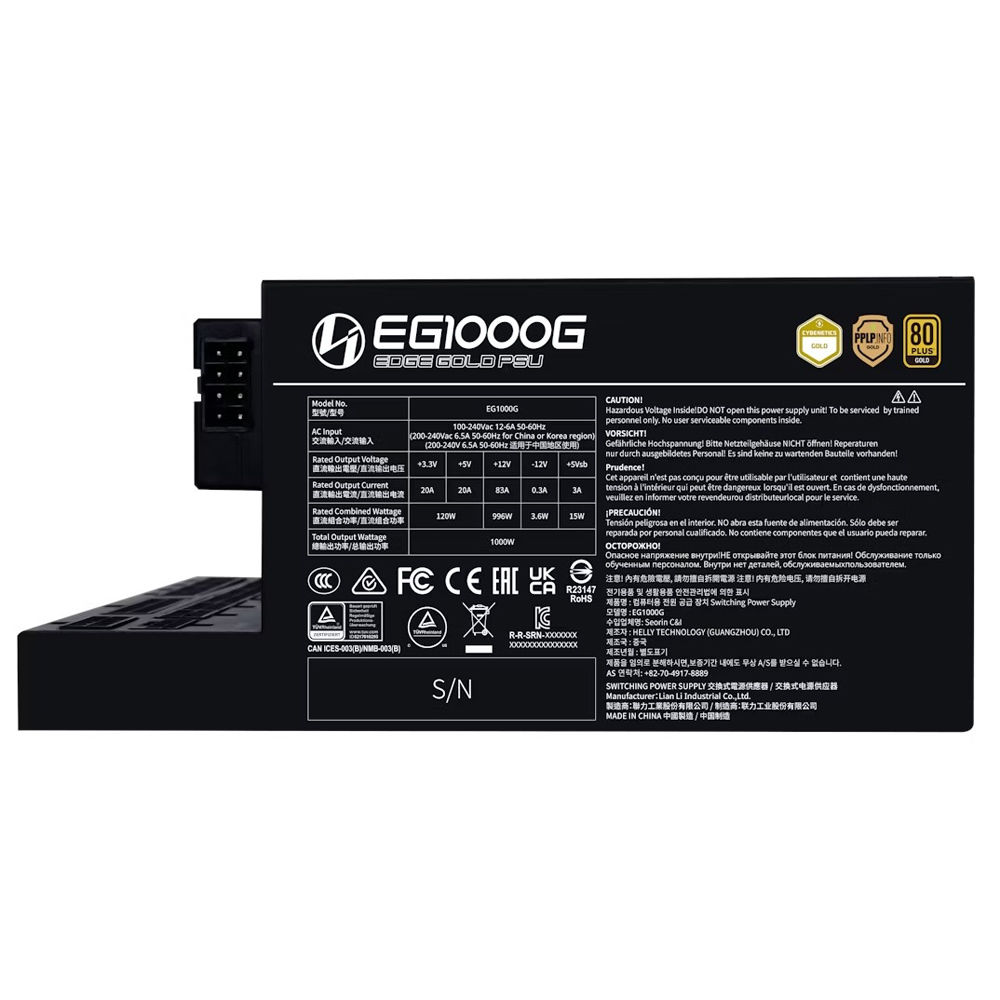

Specifications
| Dimensions | W | D | H | ||
| 150mm | 182mm | 86mm | |||
| ATX Spec |
ATX v3.1
|
||||
| Efficiency | 80 PLUS Gold 92-94% Efficiency | ||||
| Fan | Fanless up to 400W Consumption Max 46dBA at full load |
||||
| Connectors | Molex | Floppy | SATA | ||
| 4 | 0 | 12 | |||
| PCI-E | M.board | AUX | |||
| 5 x 6/8 Pin and 1 x 12V-2x6 |
20/24 | 1 x 8 Pin 1 x 4/8 Pin |
|||
| Output Current | +3.3v | +5v | +12v | ||
| 25A | 25A | 83.3A | |||
| -12v | -5vsb | 12v Rails | |||
| 0.8A | 3A | 1 | |||
| +3.3v & 5v Power | 120W Combined | ||||
| +12v Power | 1200W | ||||
| -12v Power | Not Specified | ||||
| +5vsb Power | Not Specified | ||||
| Total Power | 1200W | ||||
| Input Voltage | 100-240V | ||||
| Modular | Fully Modular | ||||

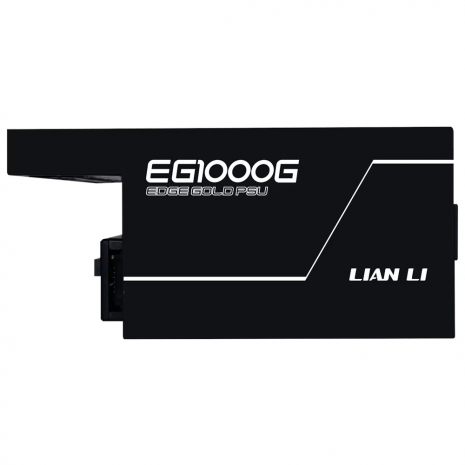

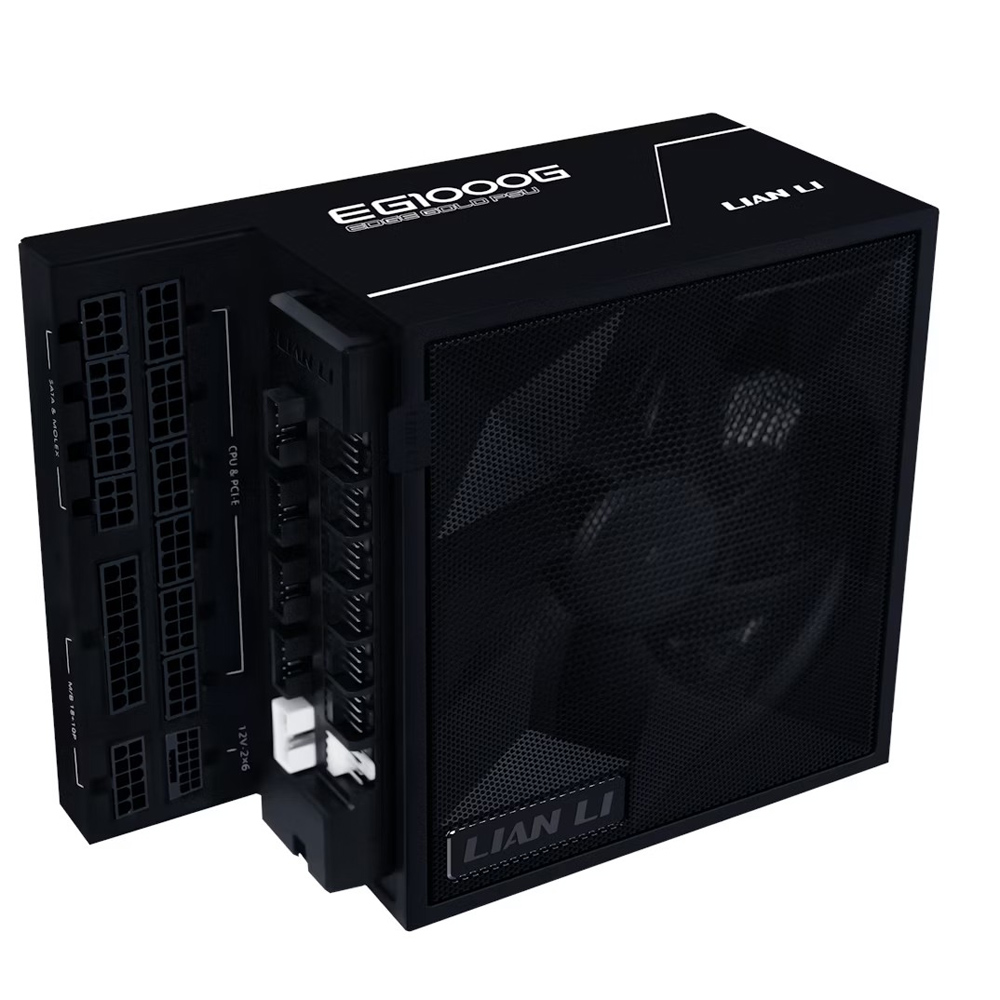

INNOVATIVE L-SHAPE DESIGN
Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
MODULAR USB & FAN PWM HUB – EDGE HUB
The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.
Fan PWM Hub
6 extended 4-pin fan connectors, each rated at 2A, to meet the demands of multi-fan setups.
USB Hub
4 ports support up to 7 downstream USB connections with a total 2.5A output, with Port 1 providing one USB signal and Ports 2, 3, and 4 each supporting two signals via 1-to-2 splitter cables, making it ideal for RGB controllers and other USB devices.
Edge PSU Connector
Remove the cap and attach the hub directly to the Edge PSU for power.
Magnetic Design
Integrated magnets allow easy placement and accessibility inside the case.
Independent Power Supply
Connect the hub to a PCIe 8-PIN cable for independent operation.
Connect Edge Hub to Edge Gold PSU
Place the hub inside the case
MOTHERBOARD SIGNAL CONNECTION
Sync fan speed by connecting the fan 3-PIN to 3-PIN cable.
Offers two options for motherboard USB signal connection to accommodate different configurations.
USB type-A
USB-USB
MAGNETIC DUST FILTER
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.
CONVENIENT CABLE MANAGEMENT
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU’s L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.
LONGER CABLE REACH FOR VERSATILE BUILDS
The Edge Gold PSU features new cables that are even longer, making it ideal for dual-chamber or regular tower chassis, enhancing flexibility and ensuring optimal cable management for all kinds of builds with ease.
Edge Platinum PSU
Edge Gold PSU
Edge Platinum PSU features shorter cables for dual-chamber chassis, while Edge Gold PSU includes extended cables for regular tower chassis.
COOL IN SILENCE
Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.
STABLE DUAL COLOR PCIE5.1 CONNECTOR
LIAN LI’s in-house R&D designed a high-quality 12V-2×6 dual-color connector featuring alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.
Dual-color shell for confirming secure connections
Added gold plating to prevent short circuits
Soldered wire and terminal connection for current stability
Increased copper thickness to 0.25mm for lower contact resistance

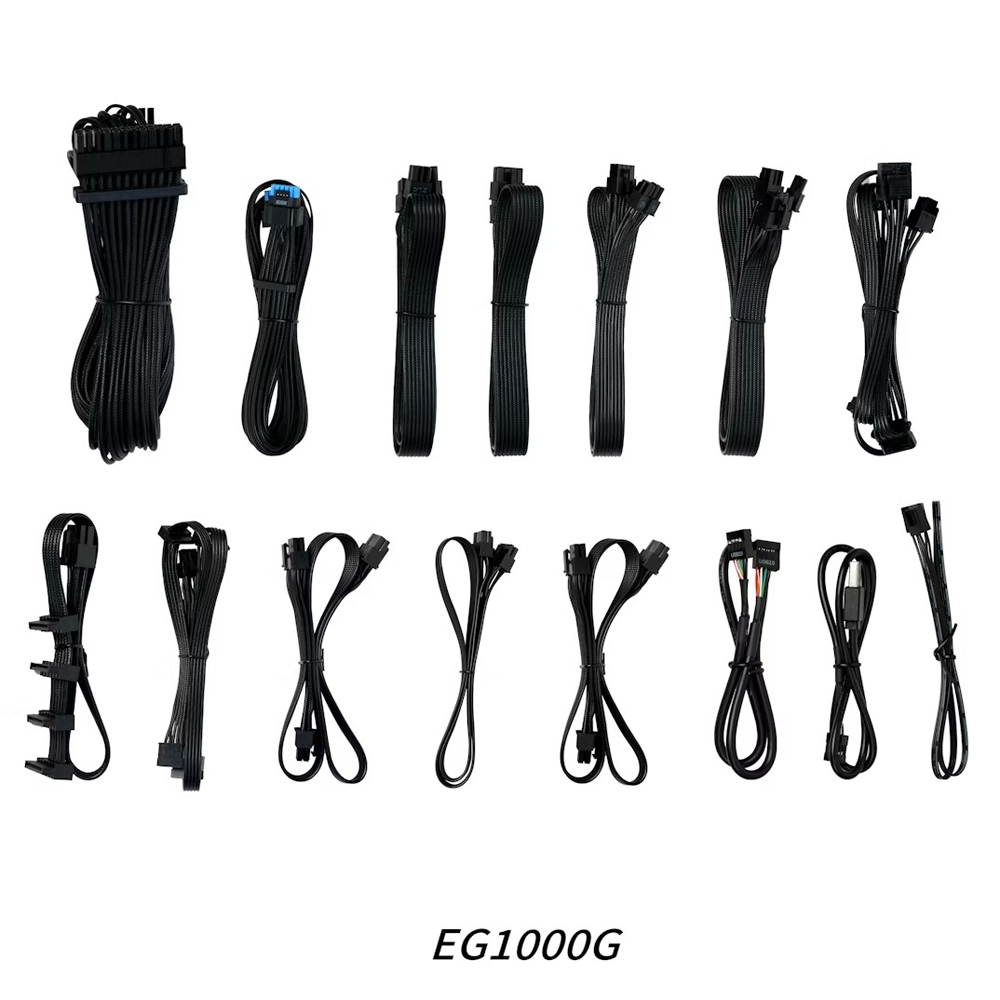

BRAIDED-TEXTURE SLEEVED CABLES FOR A CLEAN BUILD
The PSU comes equipped with all cables featuring a braided texture. The 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.
INDUSTRIAL GRADE CAPACITORS
The EDGE Gold PSU integrates the German EPCOS capacitors or same level Japanese capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.
