Gigabyte Intel® Z690 GAMING X Motherboard with 16*+1+2 Twin Hybrid Phases Digital Power Design, DDR5 XTREME MEMORY Design, PCIe 5.0 Design, Fully Covered Thermal Design, 4 x PCIe 4.0 M.2 with Enlarged Thermal Guard, 2.5GbE LAN, 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen2x2 TYPE-C®, RGB FUSION 2.0, Q-Flash Plus
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
Key Features
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- 16*+1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS* and Tantalum Polymer Capacitor
- DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
- SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
* 8+8 phases parallel power design
* DrMOS maximum current capacity is based on VCORE Phase.
Specification
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
|---|---|---|
| CPU Socket | 12th Generation Intel® Core™, Pentium®️, Gold and Celeron®️ processors | |
| Chipset | Intel® Z690 Express Chipset | |
| Memory | Architecture | 4 x DDR5 DIMMs (Dual Channel) |
| Capacity | 128GB (32GB single DIMM capacity) | |
| Speed | 12th Generation Intel® Core™, Pentium®️, Gold and Celeron®️ processors: Up to 6000(O.C.) MHz | |
| Extras | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| PCI Slots | - | |
| PCI-Express x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
|
| PCI-Express x4 | - | |
| PCI-Express x1 | - | |
| Multi-GPU | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies | |
| USB | External | 1 x USB 3.2 Gen 2x2 Type-C® port - Chipset 2 x USB 3.2 Gen 2 Type-A ports (red) - Chipset 3 x USB 3.2 Gen 1 Type-A ports (blue) - Chipset 4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs |
| Internal | 1 x USB 3.2 Gen 2 Type-C®️ port - Chipset 2 x USB 3.2 Gen 1 Type-A ports (blue) - Chipset 4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs |
|
| Audio | Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High-Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
|

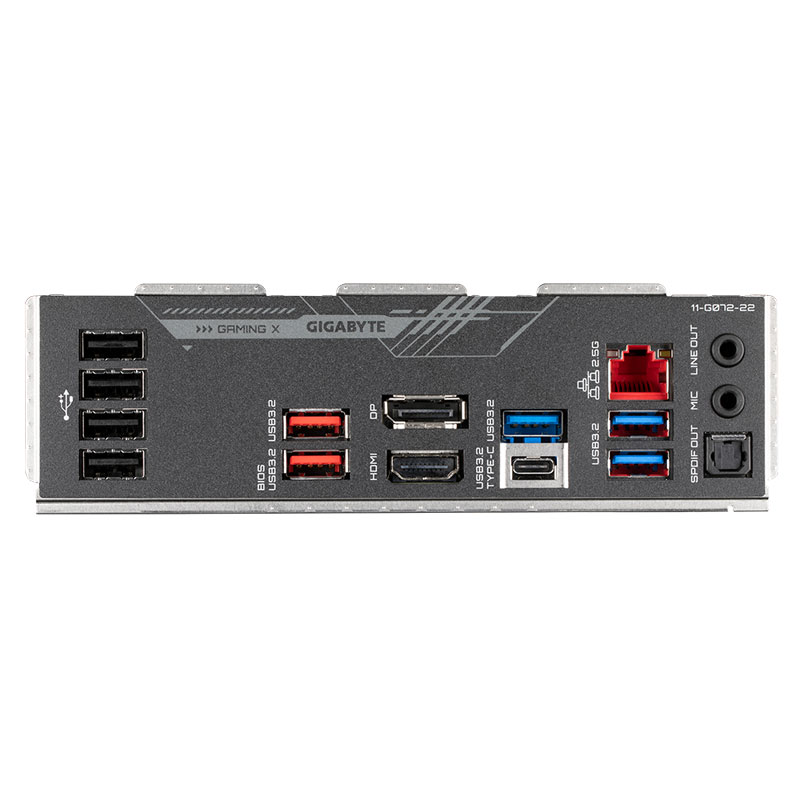

| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
|
| LAN | 1 x Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | - | |
| Storage Interfaces | CPU | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset | 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors |
|
| Notes | Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|
| Lighting | 2 x addressable LED strip headers 2 x RGB LED strip headers |
|
| Fan Headers | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header |
|
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
|
Find the full list of features at www.gigabyte.com
Form Factor:
ATX
MPN:
Z690 GAMING X DDR5
Motherboards
Chipset:
Intel Z690
M.2 Ports:
4
Memory Slots:
4
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
3
PCI Express 1x:
0
SATA Ports:
6
SLI / Crossfire Support:
Crossfire Support
Socket Type:
LGA1700
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
