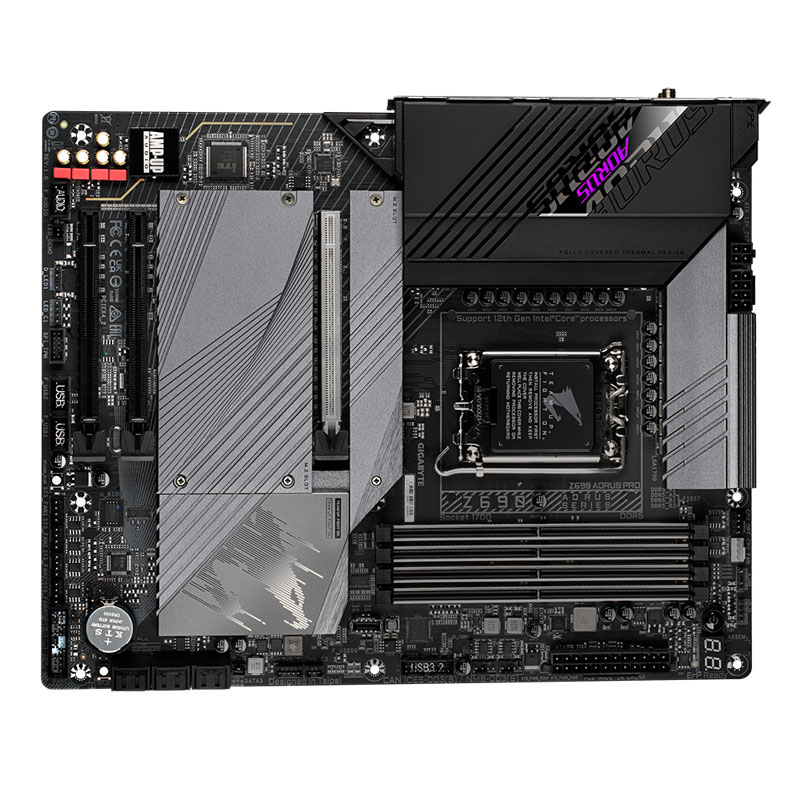

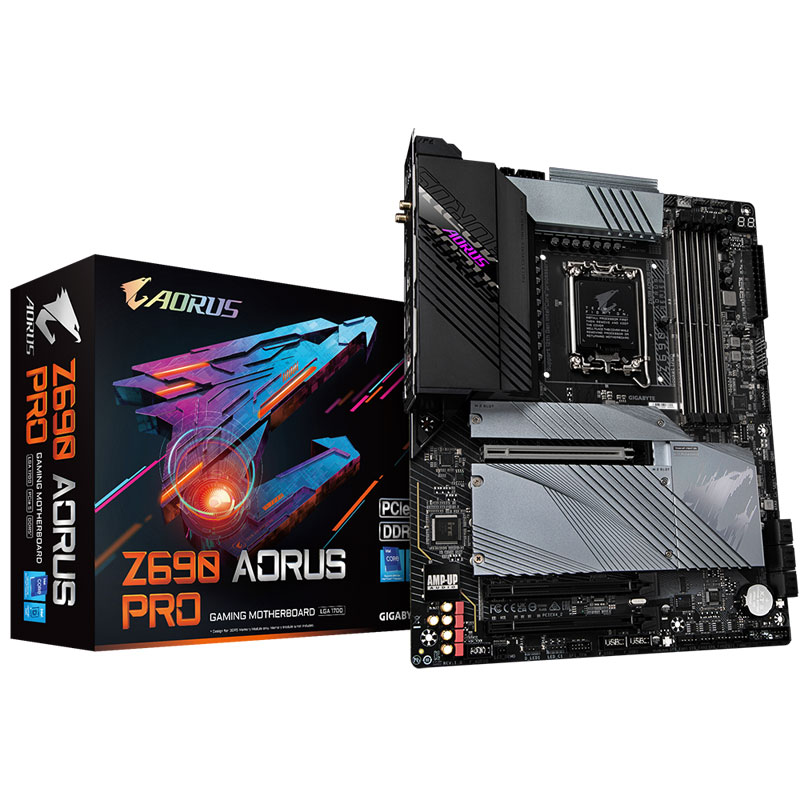

Gigabyte Intel® Z690 AORUS PRO Motherboard
Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake’s performance in all its gaming glory.
Key Features
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- 16+1+2 Direct Digital VRM Design with 90A Power Stage* and Tantalum Polymer Capacitor
- DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
- Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard
- SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specification
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| CPU Socket | 12th Generation Intel® Core™ i9/i7/i5 processors | |
| Chipset | Intel® Z690 Express Chipset | |
| Memory | Architecture | 4 x DDR5 DIMMs (Dual Channel) |
| Capacity | 128GB (32GB single DIMM capacity) | |
| Speed | 12th Generation Intel® Core™ i9/i7/i5 processors: Up to 6200(O.C.) MHz | |
| Extras | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| PCI Slots | - | |
| PCI-Express x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) - Graphics card should use this slot! (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
|
| PCI-Express x4 | - | |
| PCI-Express x1 | - | |
| Multi-GPU | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies | |

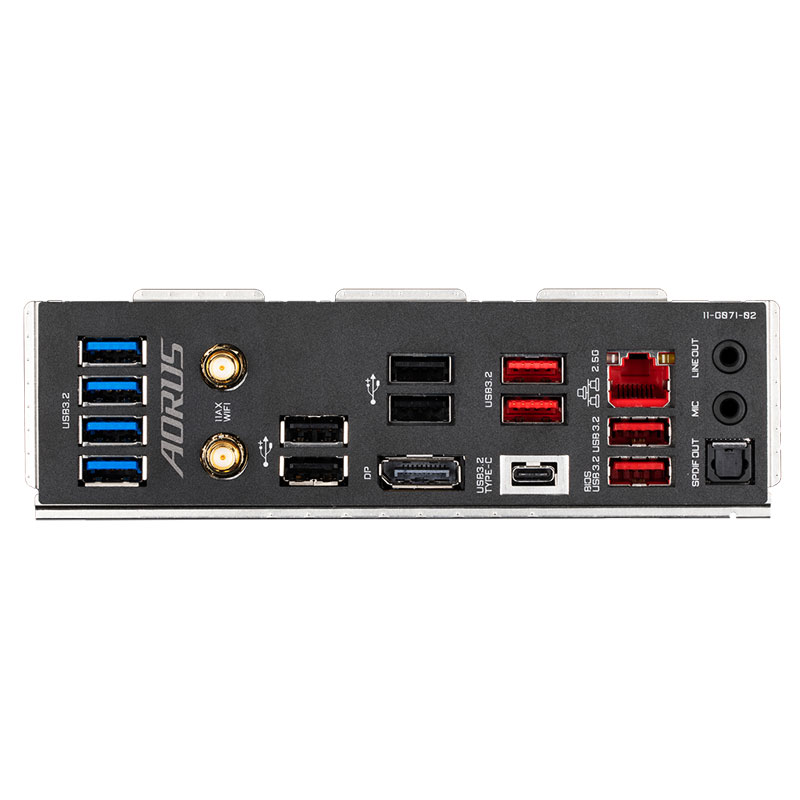

| USB | External | 1 x USB 3.2 Gen 2x2 Type-C® port - Chipset 4 x USB 3.2 Gen 2 Type-A ports (red) - Chipset 4 x USB 3.2 Gen 1 Type-A ports (blue) - Chipset + 2 USB 3.2 Gen 1 Hubs 4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs |
| Internal | 1 x USB 3.2 Gen 2x2 Type-C®️ port - Chipset 2 x USB 3.2 Gen 1 Type-A ports (blue) - Chipset+2 USB 3.2 Gen 1 Hubs 4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs |
|
| Audio | Realtek® ALC4080 CODEC High-Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
|
| Graphics |
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
|
| LAN | 1 x Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Wi-Fi a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band Bluetooth 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
|
| Storage Interfaces | CPU | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) 6 x SATA 6Gb/s connectors |
|
| Notes | Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|
| Lighting | 2 x addressable LED strip headers 2 x RGB LED strip headers |
|
| Fan Headers | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers |
|
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
|
Find the full list of features at www.gigabyte.com
Form Factor:
ATX
GTIN:
4719331827564
MPN:
Z690 AORUS PRO
Motherboards
Chipset:
Intel Z690
M.2 Ports:
4
Memory Slots:
4
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
3
PCI Express 1x:
0
SATA Ports:
6
SLI / Crossfire Support:
Crossfire Support
Socket Type:
LGA1700
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
