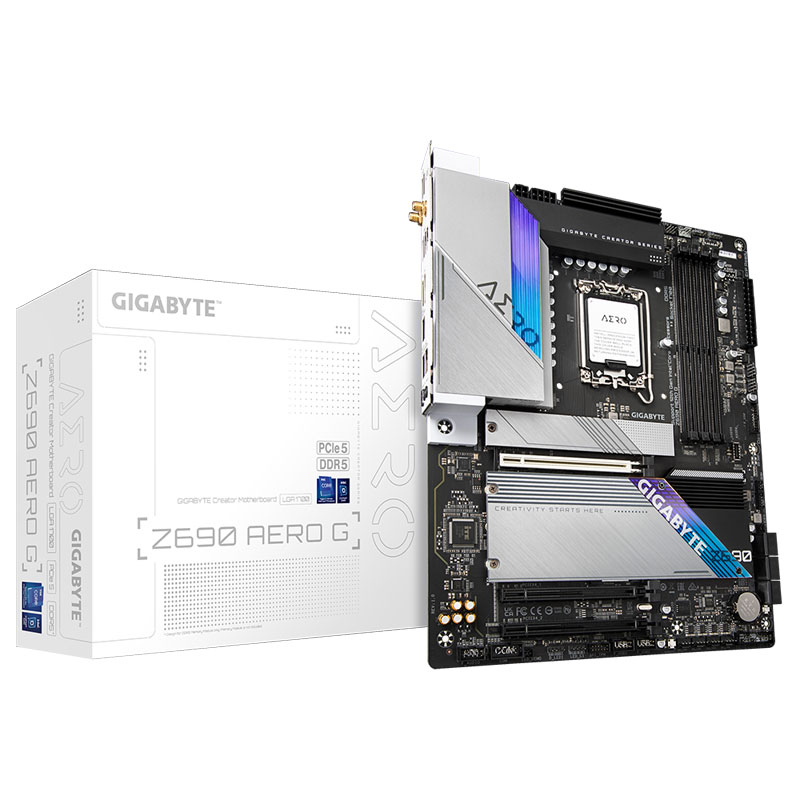

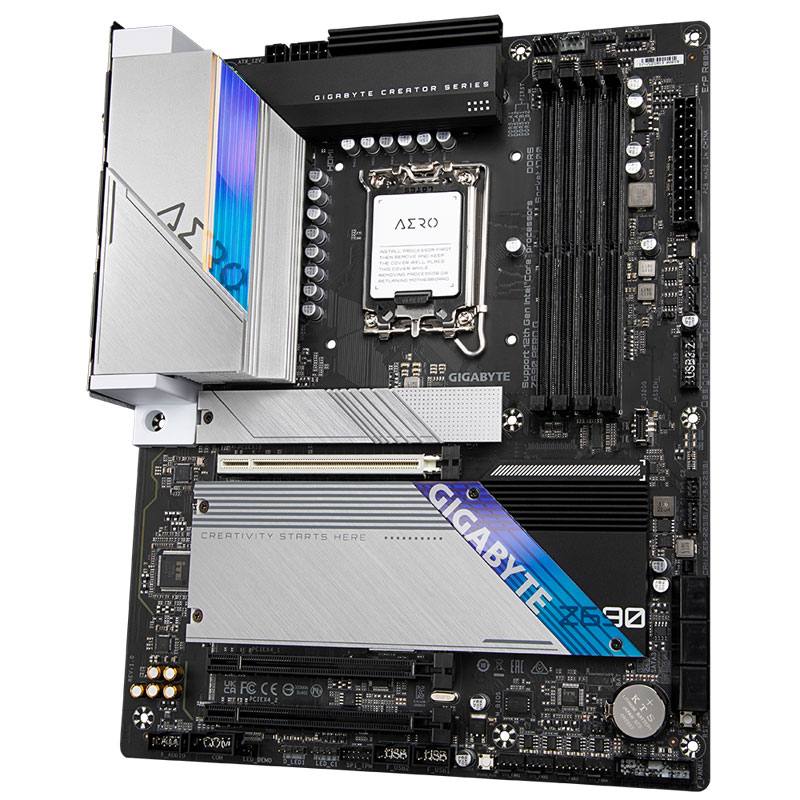

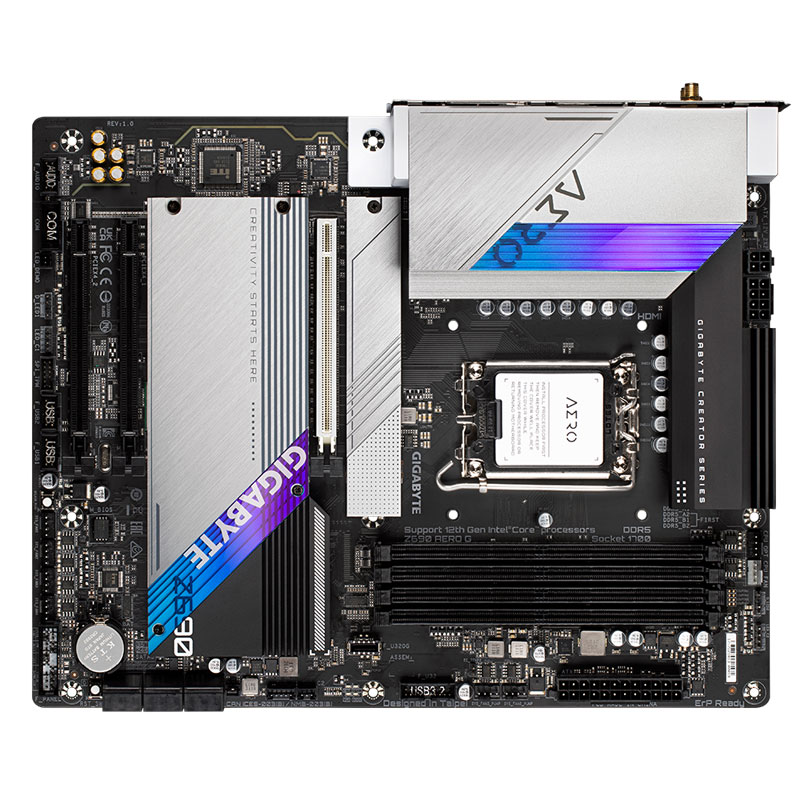

Gigabyte Intel® Z690 Creator Motherboard with unique VisionLINK I/O design, Next Gen Memory DDR5, WIFI6 802.11ax and Intel® 2.5GbE LAN, PCIe 5.0 x16 slot, 4 x NVMe PCIe 4.0 x4 M.2 Connectors, USB 3.2 Gen 2x2 Type-C®
AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.
Key Features
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage
- Go further without more cables by VisionLINK I/O design
- Brings a speed network experience with Intel® 2.5GbE LAN
- WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal
- No Hassle Connection with front USB 3.2 Gen 2x2 Type-C®
- 4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
- Advanced thermal architecture design for the better thermal dissipation
- Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
Specification
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
|---|---|---|
| CPU Socket | 12th Generation Intel® Core™, Pentium®️, Gold and Celeron®️ processors | |
| Chipset | Intel® Z690 Express Chipset | |
| Memory | Architecture | 4 x DDR5 DIMMs (Dual Channel) |
| Capacity | 128GB (32GB single DIMM capacity) | |
| Speed | 12th Generation Intel® Core™, Pentium®️, Gold and Celeron®️ processors: Up to 5800(O.C.) MHz | |
| Extras | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| PCI Slots | - | |
| PCI-Express x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
|
| PCI-Express x4 | - | |
| PCI-Express x1 | - | |
| Multi-GPU | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies | |

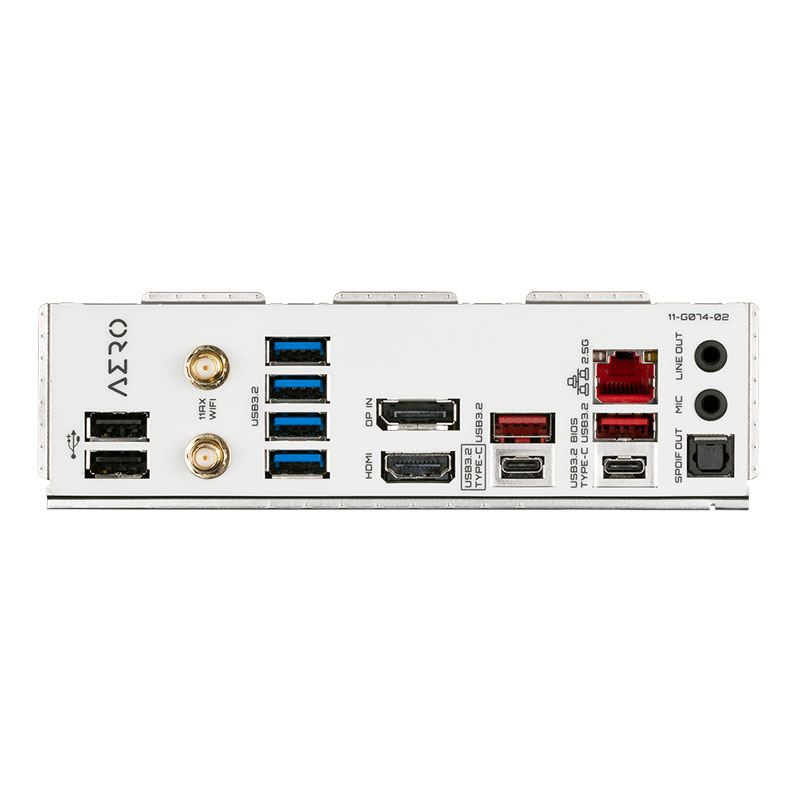

| USB | External | 1 x USB 3.2 Gen 2x2 Type-C® port - Chipset 1 x USB 3.2 Gen 1 Type-C®️ port - Chipset 2 x USB 3.2 Gen 2 Type-A ports (red) - Chipset 4 x USB 3.2 Gen 1 Type-A ports (blue) - Chipset + USB 3.2 Gen 1 Hub 2 x USB 2.0/1.1 ports - Chipset |
| Internal | 1 x USB 3.2 Gen 2x2 Type-C®️ port - Chipset 2 x USB 3.2 Gen 1 Type-A ports (blue) - Chipset 4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs |
|
| Audio | Realtek® ALC4080 CODEC High-Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
|
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.) |
|
| LAN | 1 x Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Wi-Fi a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band Bluetooth 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
|
| Storage Interfaces | CPU | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset | 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors |
|
| Notes | Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|
| Lighting | 2 x addressable LED strip headers 2 x RGB LED strip headers |
|
| Fan Headers | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers |
|
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
|
Find the full list of features at www.gigabyte.com
Form Factor:
ATX
GTIN:
4719331829902
MPN:
Z690 AERO G
Motherboards
Chipset:
Intel Z690
M.2 Ports:
4
Memory Slots:
4
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
3
PCI Express 1x:
0
SATA Ports:
6
Socket Type:
LGA1700
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
