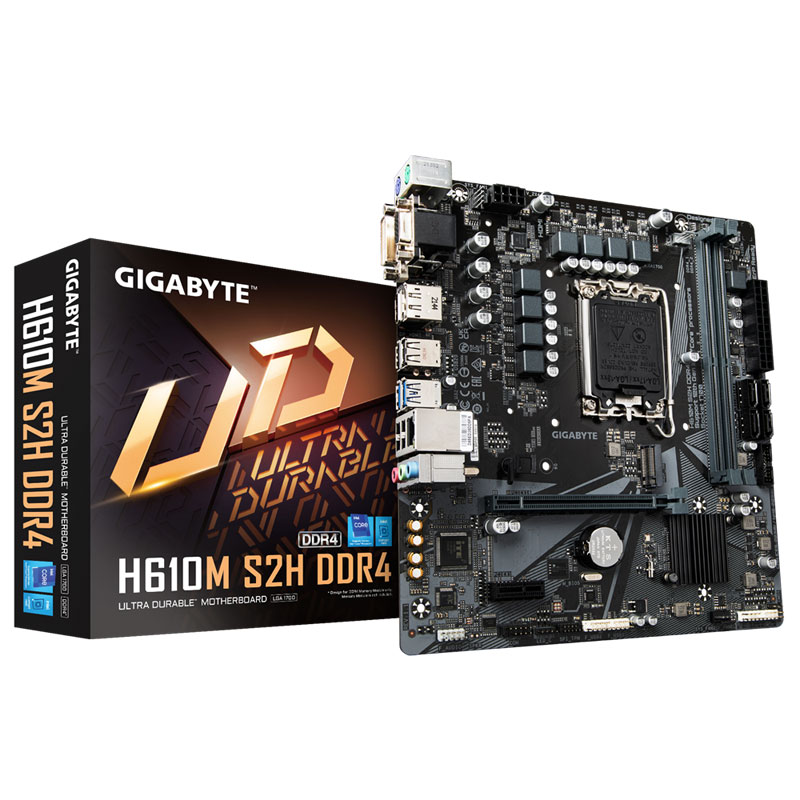

Gigabyte H610M S2H DDR4 MicroATX LGA1700 Motherboard

£66.00
(£79.20 inc VAT)
Supports RGB
Short description:

Dual Channel DDR4 Alder Lake

LGA1700, H610 Chipset MicroATX

55514
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

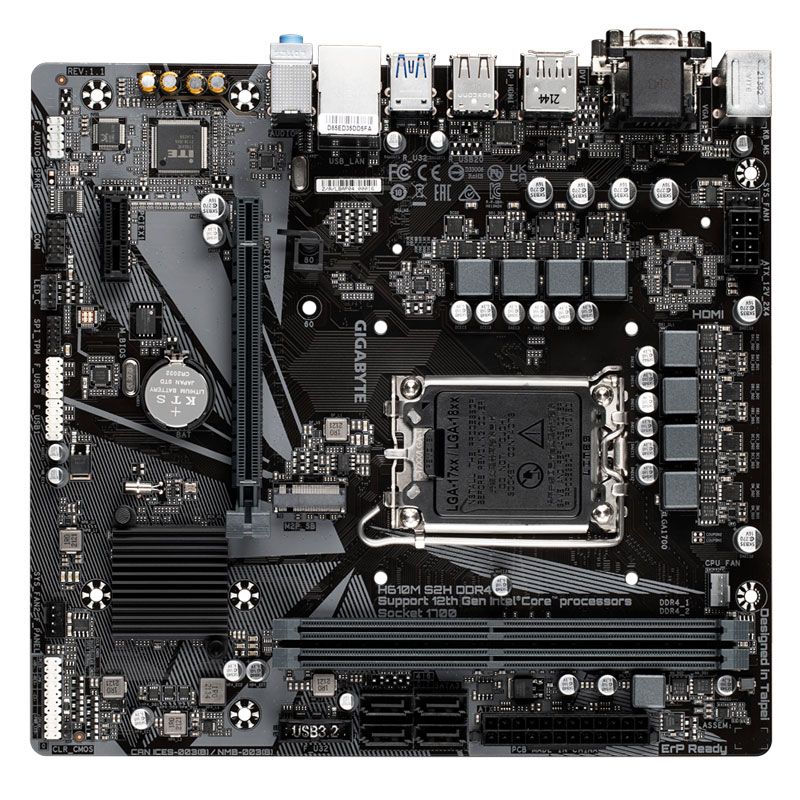

Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Realtek Gaming LAN, HDMI / DVI-D/ D-Sub Ports for Multiple Display , Anti-Sulfur Resistor,  Smart Fan 6

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • GIGABYTE Gaming LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • HDMI / DVI-D / D-Sub Ports for Multiple Display
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
* Actual support may vary by CPU.

Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
CPU Socket LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors CPU Support
Chipset Intel® H610 Express Chipset
Memory Architecture 2 x 288-pin DDR4 DIMMs (Dual Channel)
Capacity 64GB (32GB single DIMM capacity)
Speed Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
Extras Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Slots -
PCI-Express x16 1 x PCI-E x16 - (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
PCI-Express x4 -
PCI-Express x1 1 x PCI Express x1 slots     (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Multi-GPU -

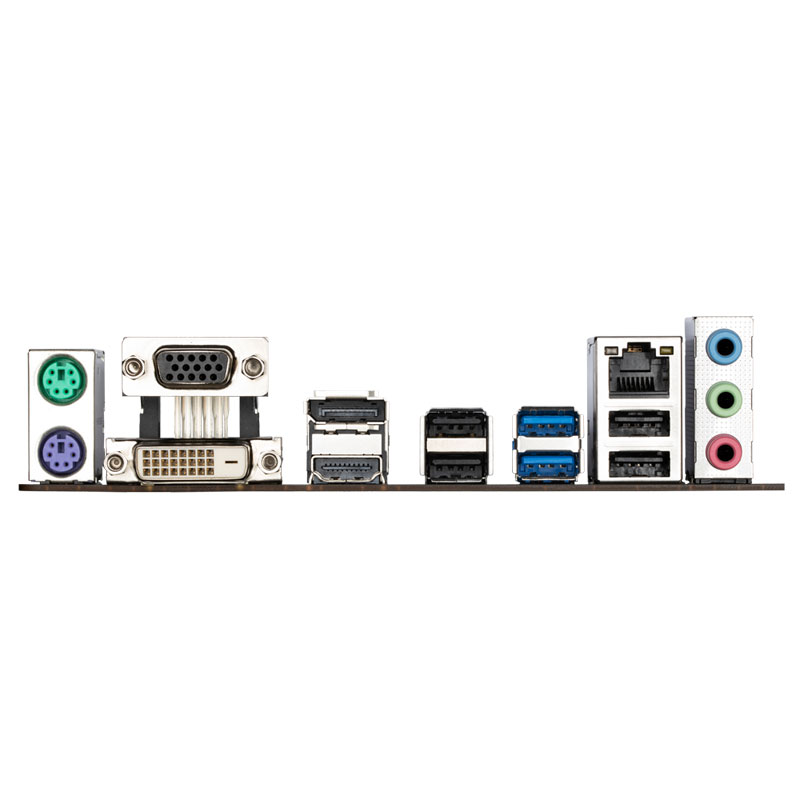

USB External 2 x USB 3.2 Gen1 ports - Chipset
4 x USB 2.0/1.1 ports - Chipset
Internal 2 x USB 3.2 Gen 1 - Chipset (1 header - Type A Front Panel Style)
4 x USB 2.0/1.1 - Chipset Hub (2 headers)
Audio Realtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Graphics
Integrated Graphics Processor-Intel® HD Graphics support

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support - only available on CPUs without 'F' in the model name.)
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Wireless -
SATA Ports 4 x SATA 6Gb/s port(s)
SATA Express -
M.2 Socket Chipset:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
Lighting 1 x RGB LED strip header
Fan Headers 1 x CPU fan header
2 x system fan headers
PSU Connectors 24pin + 8pin AUX

 Find the full list of features at www.gigabyte.com.

Form Factor:
MicroATX / uATX
GTIN:
4719331830427
MPN:
H610M S2H DDR4

Motherboards

Chipset:
Intel H610
M.2 Ports:
1
Memory Slots:
2
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
1
SATA Ports:
4
Socket Type:
LGA1700
Wireless Support:
Lighting Headers:
Supports RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+ −
