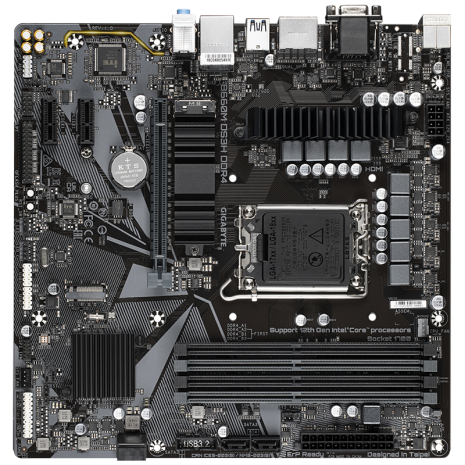

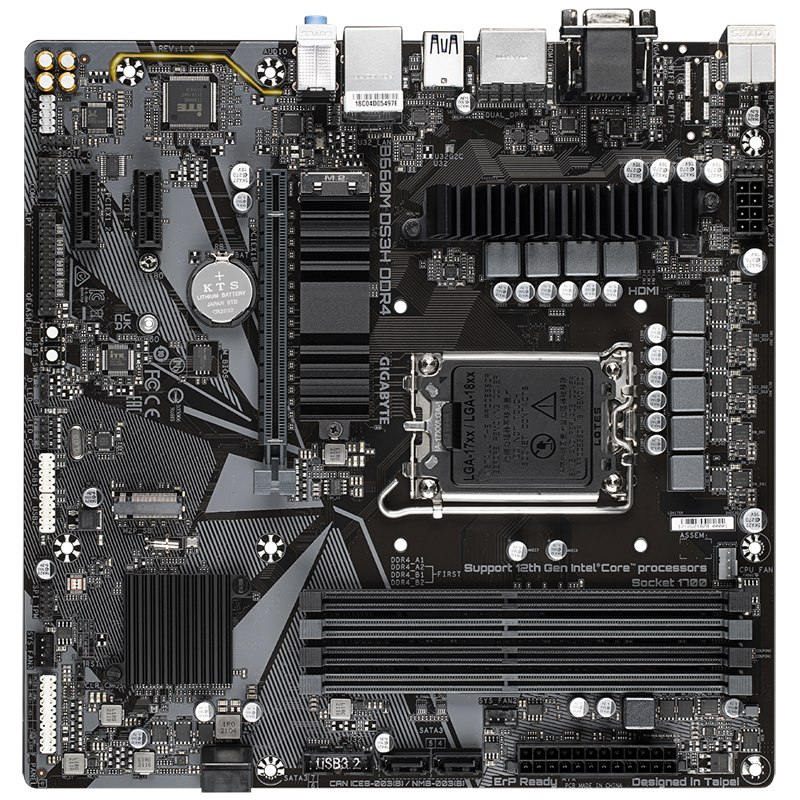

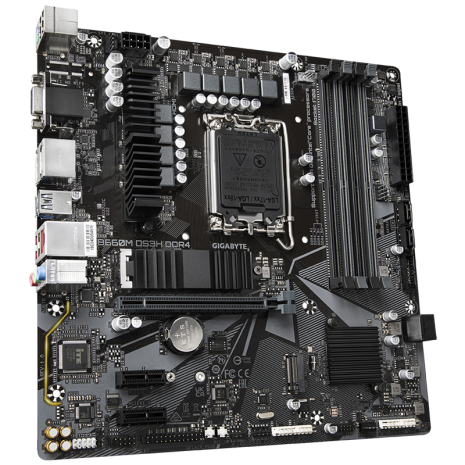

Gigabyte B660M DS3H DDR4 MicroATX LGA1700 Motherboard

£85.00
(£102.00 inc VAT)
Supports RGB and Digital RGB
Short description:

Dual Channel DDR4 Alder Lake

LGA1700, B660 Chipset MicroATX

55511
+
Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Intel® B660 Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, Rear USB 3.2 Gen 2 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
  • Fast 2.5 GbE LAN with Bandwidth Management​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
  • Rear SuperSpeed USB 3.2 Gen 2 TYPE-C® for Fast and Versatile Connections ​​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
CPU Socket LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
Chipset Intel® B660 Express Chipset
Memory Architecture 4 x 288-pin DDR4 DIMMs (Dual Channel)
Capacity 128GB (32GB single DIMM capacity)
Speed Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
Extras Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Slots -
PCI-Express x16 1 x PCI-E x16 - Your graphics card should use this slot.
    (This slot conforms to PCI Express 4.0 standard - supported by 11th Generation processors only)
PCI-Express x4 -
PCI-Express x1 2 x PCI Express x1 slots
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Multi-GPU -

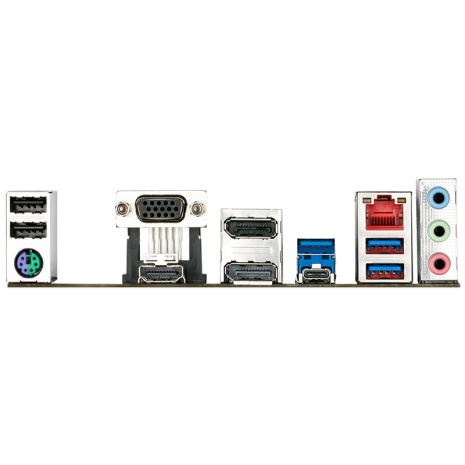

USB External 1 x USB 3.2 Gen2 Type-C® port - Chipset
3 x USB 3.2 Gen1 ports - Chipset
2 x USB 2.0/1.1 ports - Chipset
Internal 2 x USB 3.2 Gen 1 - Chipset (1 header - Type A Front Panel Style)
4 x USB 2.0/1.1 - Chipset Hub (2 headers)
Audio Realtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Graphics
Integrated Graphics Processor-Intel® HD Graphics support

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.

(Graphics specifications may vary depending on CPU support - only available on CPUs without 'F' in the model name.)
LAN 1 x Realtek® 2.5 GbE LAN chip (2500/1000/100 Mbit)
Wireless -
SATA Ports 4 x SATA 6Gb/s port(s)
SATA Express -
M.2 Socket CPU:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P_SB)
Intel® Optane™ Memory Ready
Note: Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Lighting 1 x Addressable LED strip header
1 x RGB LED strip header
Fan Headers 1 x CPU fan header
3 x system fan headers
PSU Connectors 24pin + 8pin AUX

 Find the full list of features at www.gigabyte.com.

Form Factor:
MicroATX / uATX
GTIN:
4719331830328
MPN:
B660M DS3H DDR4

Motherboards

Chipset:
Intel B660
M.2 Ports:
2
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
2
SATA Ports:
4
Socket Type:
LGA1700
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+
