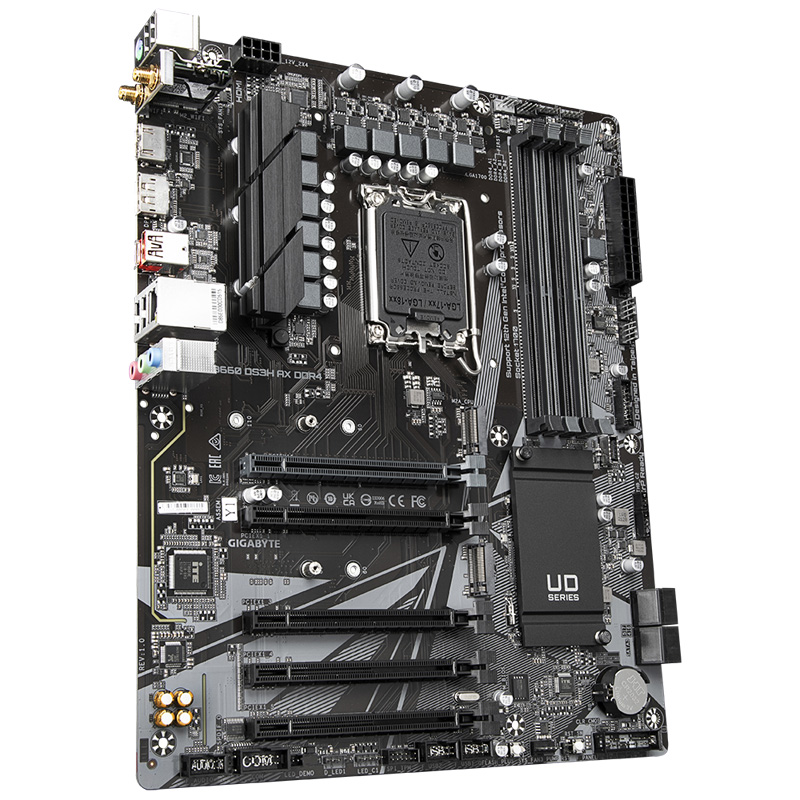

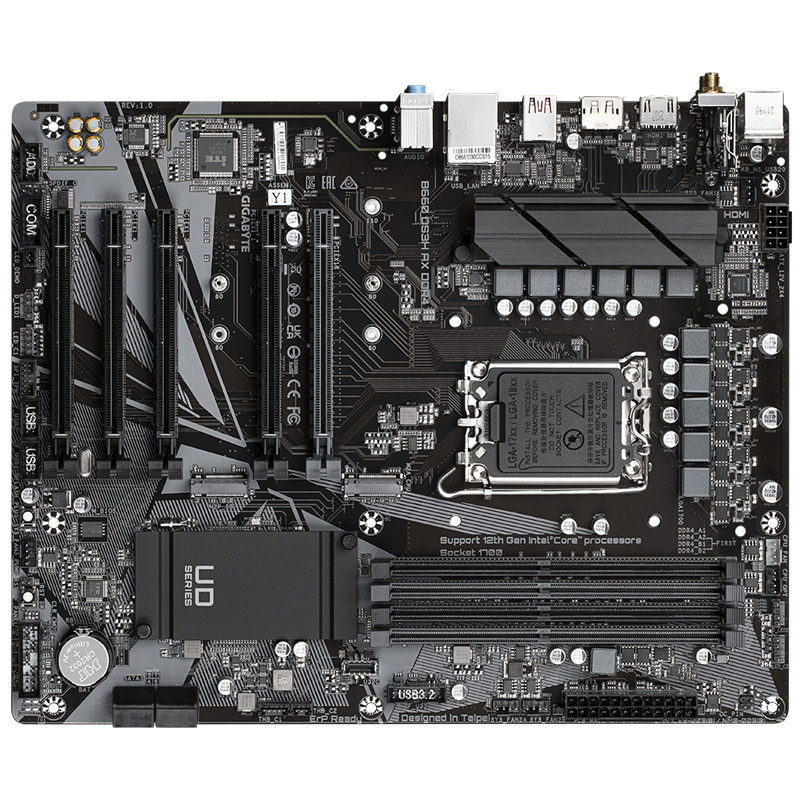

Gigabyte B660 DS3H AX DDR4 ATX LGA1700 Motherboard

£127.50
(£153.00 inc VAT)
Wireless Support
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support
Short description:

Dual Channel DDR4 Alder Lake

LGA1700, B660 Chipset ATX, Includes Wifi

55530
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Intel® B660 Motherboard with 8+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, Gaming LAN, WIFI 6 802.11ax​, Rear USB 3.2 Gen 2x2 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 8+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
  • WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna​
  • GIGABYTE Gaming LAN with Bandwidth Management​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​​
  • Rear SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds​​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​
Form FactorATX Form Factor; 30.5cm x 24.4cm
CPU SocketLGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors or 13th Gen with BIOS Update - CPU Support
ChipsetIntel® B660 Express Chipset
MemoryArchitecture4 x 288-pin DDR4 DIMMs (Dual Channel)
Capacity128GB (32GB single DIMM capacity)
SpeedSupport for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
ExtrasSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Slots-
PCI-Express x161 x PCI-E x16 - Your graphics card should use this slot.
    (This slot conforms to PCI Express 4.0 standard - supported by 11th Generation processors only)

4 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
(The PCIEX1 slots conform to PCI Express 3.0 standard.)
PCI-Express x4-
PCI-Express x1(see above)
Multi-GPU-

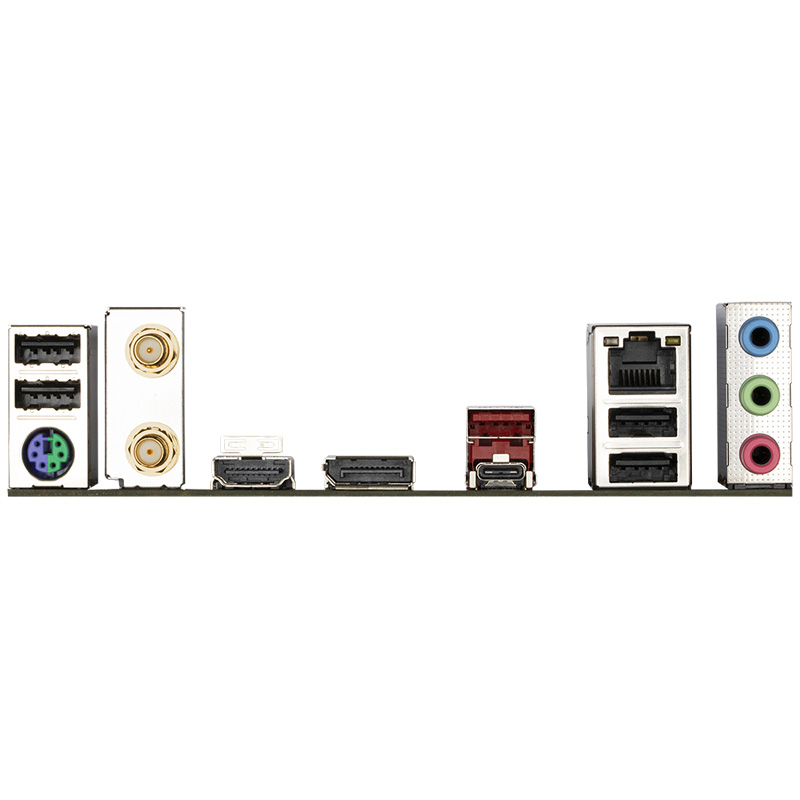

USBExternal1 x USB 3.2 Gen2x2 Type-C® port - Chipset
1 x USB 3.2 Gen 2 Type A Port
4 x USB 2.0/1.1 ports - Chipset
Internal1 x USB 3.2 Gen 1 Type C Port
2 x USB 3.2 Gen 1 - Chipset (1 header - Type A Front Panel Style)
4 x USB 2.0/1.1 - Chipset Hub (2 headers)
AudioRealtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Graphics
Integrated Graphics Processor-Intel® HD Graphics support
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support - only available on CPUs without 'F' in the model name.)
LAN1 x Realtek® GbE LAN chip (1000/100 Mbit)
Wireless
AMD Wi-Fi 6E RZ608 (MT7921K)
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
SATA Ports4 x SATA 6Gb/s port(s)
SATA Express-
M.2 SocketCPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Intel® Optane™ Memory Ready
Note: Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Lighting2 x addressable LED strip headers
2 x RGB LED strip headers
Fan Headers1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
PSU Connectors24pin + 8pin AUX

 Find the full list of features at www.gigabyte.com.

Form Factor:
ATX
GTIN:
4719331833381
MPN:
B660 DS3H AX DDR4

Motherboards

Chipset:
Intel B660
M.2 Ports:
2
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
4
SATA Ports:
4
Socket Type:
LGA1700
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+ −
