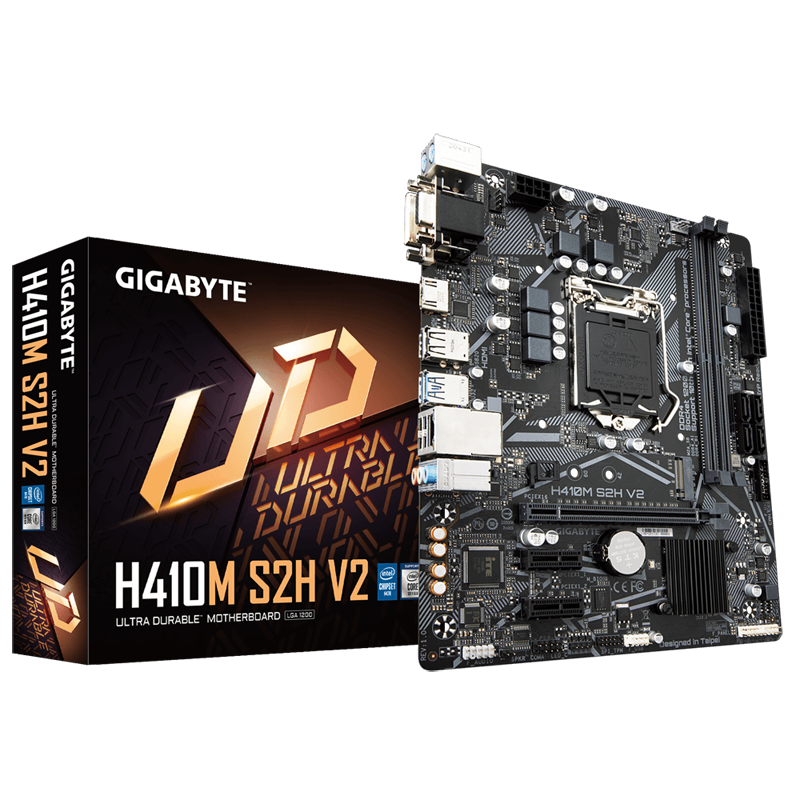

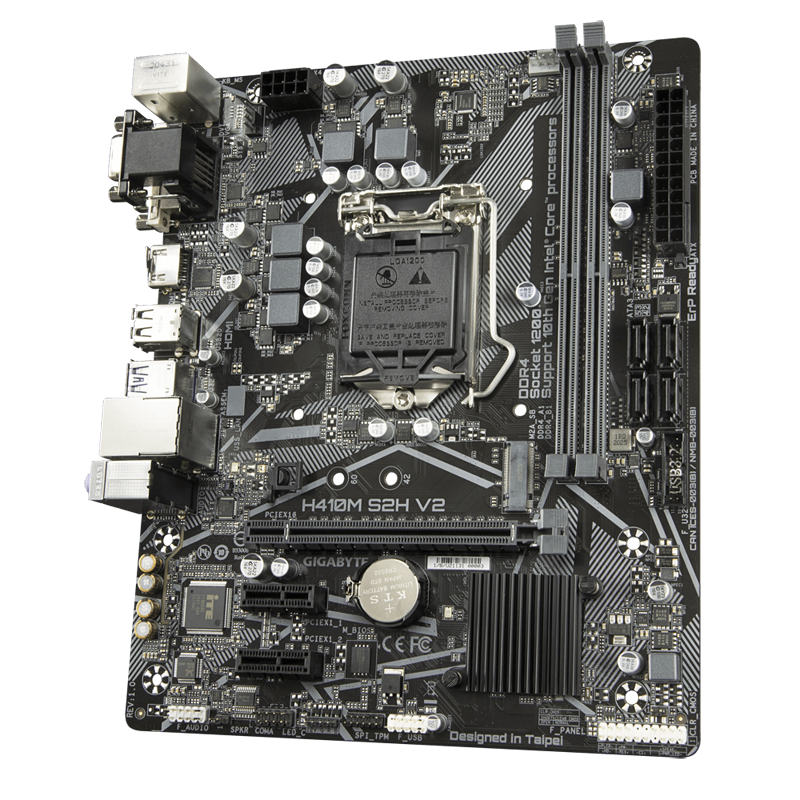

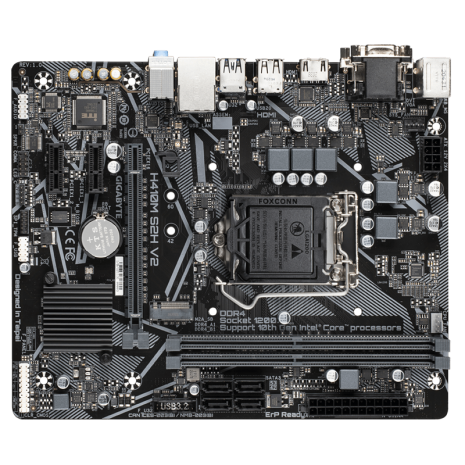

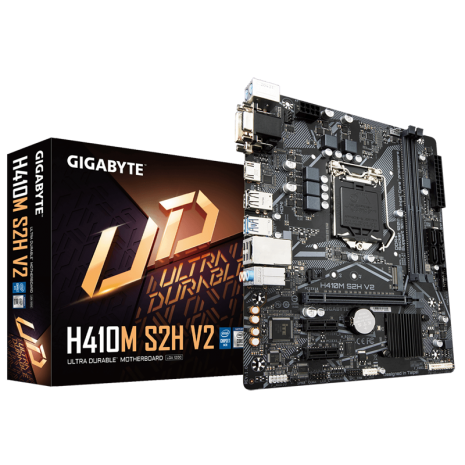

Gigabyte H410M S2H V2 MicroATX Motherboard

£50.00
(£60.00 inc VAT)
Supports RGB
Short description:

Dual Channel DDR4 Comet Lake

LGA1200, H410 Chipset MicroATX

55490
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info
Intel® Ultra Durable Motherboard with Intel® GbE LAN, PCIe Gen3 x4 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5
  • Supports 10th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software

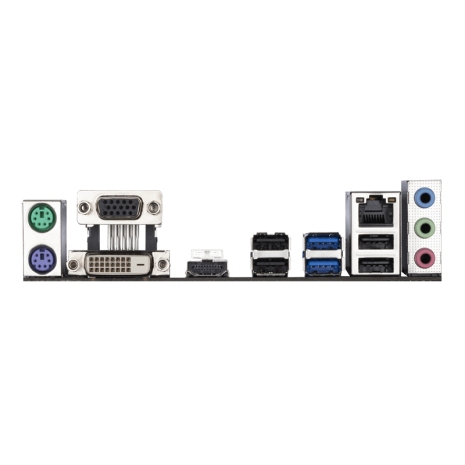

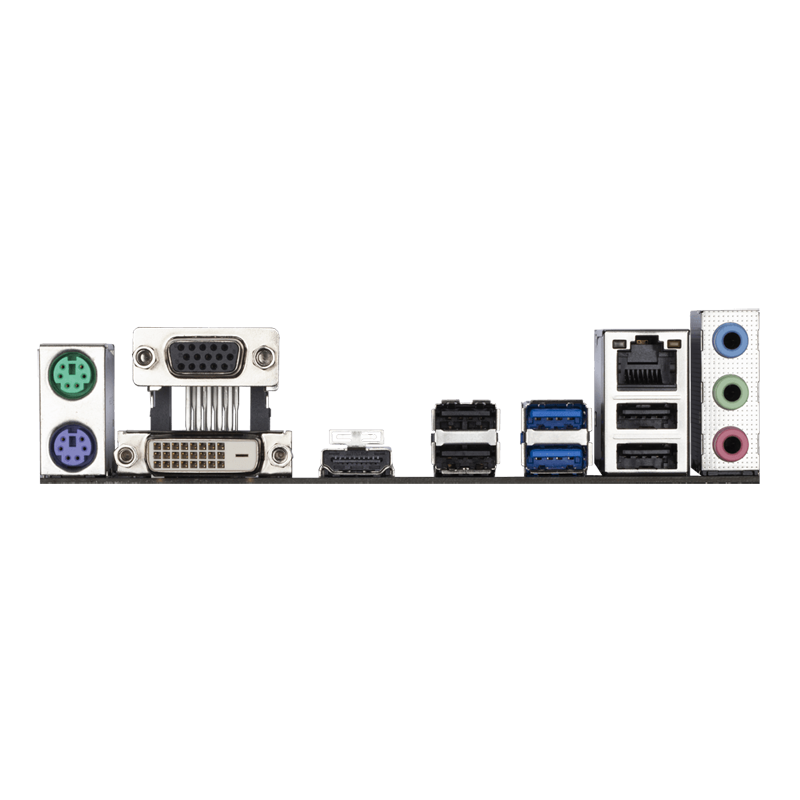

  • HDMI /DVI-D/D-Sub Ports for Multiple Display
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
Form Factor Micro ATX Form Factor; 24.4cm x 21.0cm
CPU Socket LGA1200 package: (Full CPU Support List)
  • Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
Note: Does not support 11th Gen CPUs
Chipset Intel® H470 Express Chipset
Memory Architecture 2 x 288-pin DDR4 DIMMs (Dual Channel)
Capacity 64GB (32GB single DIMM capacity)
Speed 10th Generation Intel® Core™ i9/i7 processors: Up to 2933MHz
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Up to 2666MHz
Extras Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Slots -
PCI-Express x16 1 x PCI-E x16 - Your graphics card should use this slot.
    (The PCIe x16 slot conforms to PCIe 3.0 standard.)
PCI-Express x4 -
PCI-Express x1 2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 3.0 standard.)
Multi-GPU -
USB Ports External 2 x USB 3.2 Gen 1 - Chipset
4 x USB 2.0/1.1 - Chipset
Internal 2 x USB 3.2 Gen 1 - Chipset (1 header)
2 x USB 2.0/1.1 - Chipset (1 headers)
Audio Realtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port*, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160@30 Hz
LAN Intel® GbE LAN chip (1 Gbit/100 Mbit)
Wireless -
SATA Ports 4 x SATA 6Gb/s port(s) - Chipset
SATA Express -
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Lighting 1 x RGB LED strip header
Fan Headers 1 x CPU fan header
1 x system fan headers
PSU Connectors 24pin + 8pin AUX

 Find the full list of features at www.gigabyte.com.

Form Factor:
MicroATX / uATX
GTIN:
4719331815370
MPN:
H410M S2H V2

Motherboards

Chipset:
Intel H410
M.2 Ports:
1
Memory Slots:
2
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
2
SATA Ports:
4
Socket Type:
LGA1200 10th Gen
Wireless Support:
Lighting Headers:
Supports RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+ −
