Alphacool NexXxoS GPX ATI RX 480 M01 Waterblock with Backplate

(£71.99 inc VAT)
Short description:

G1/4 Fittings - does not include Connectors.
Waterblock for Reference RX 480 Cards


With the new NexXxoS GPX coolers Alphacool is again a step ahead! Optimum performance and quality in a new cooling design for a great price!

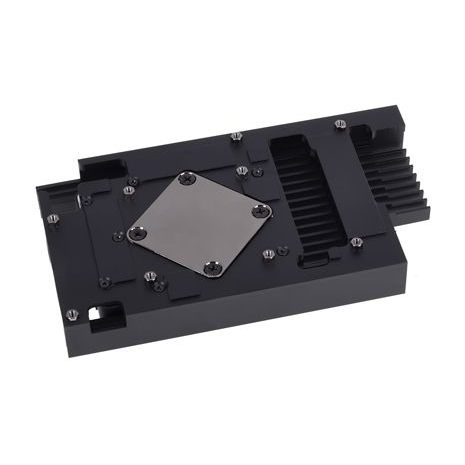

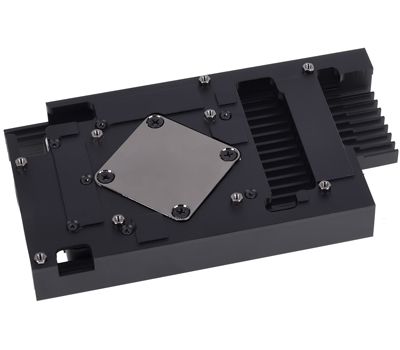

A new sophisticated injection system means the GPU is actively cooled. All other chips are sufficiently cooled by the passive cooler which is also in contact with the watercooling block for extra efficiency.

The patented technology “Philips structure” from the Alpha NexXxoS XP in 2004, was further developed improving the base plate. The Fins and channel structure has been further refined. The fins are now 0.5 x 0.5 mm and 2.5 mm high. This enables a very large and rapid heat transfer from the copper to the coolant.

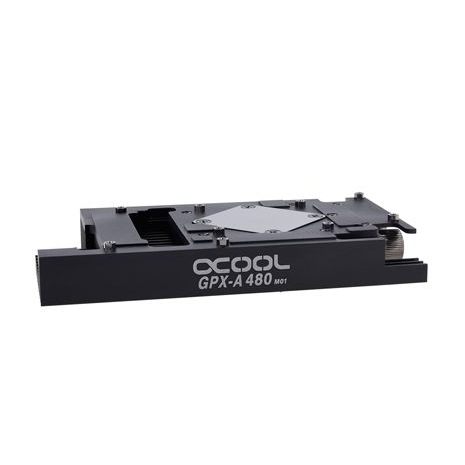

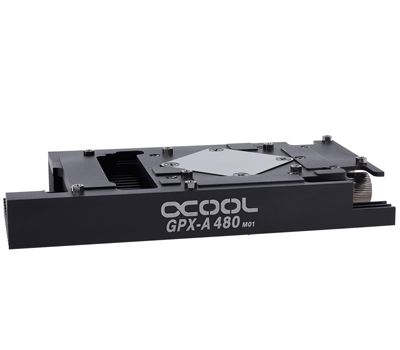

SLI mode: The inlet and outlet are positioned of easy use in SLI mode. Up to four graphics cards can also be connected with the Alphacool GPX SLI connector.

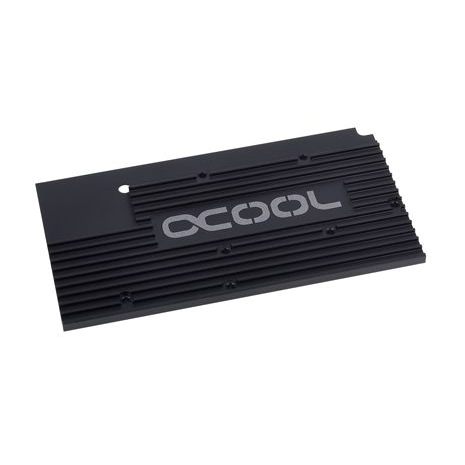

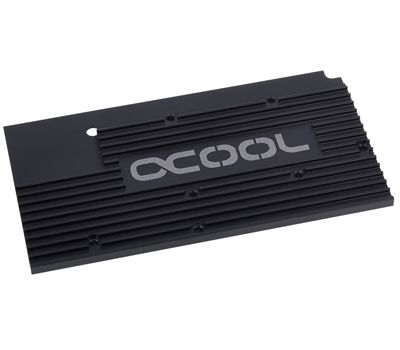

Back plate: The GPX range always Includes a back plate which uses small passive fins to cool rear of the graphics card.

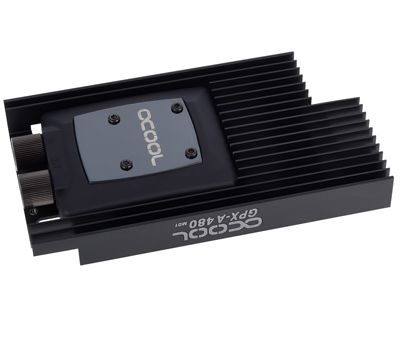

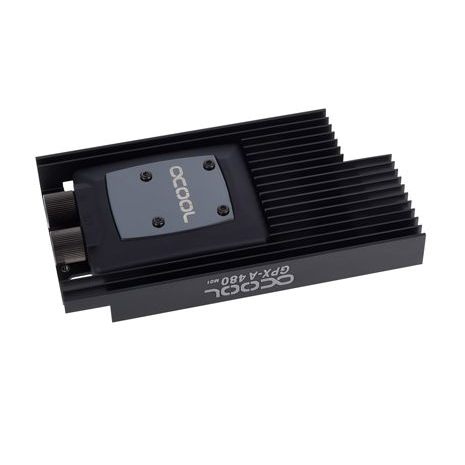

Cooling fins: The passive front plate cooling uses 18mm deep cooling fins that cover the rest of the graphics card completely.

Graphics card not included


  • MSI Radeon RX 480, 8GB GDDR5, HDMI, 3x DisplayPort (V803-862R)
  • ASUS Radeon RX 480 RX480-8G 8GB GDDR5 (90YV09Z0-U0NA00)
  • GIGABYTE Radeon RX 480 8GB GDDR5 (GV-RX480D5-8GD-B)
  • HIS Radeon RX 480 8GB GDDR5 (HS-480R8FSNR)
  • MSI Radeon RX 480 8GB GDDR5 (V803-862R)
  • PowerColor Radeon RX 480 4GB GDDR5 (AXRX 480 4GBD5-M3DH)
  • PowerColor Radeon RX 480 8GB GDDR5 (AXRX 480 8GBD5-M3DH)
  • Sapphire Radeon RX 480 4GB GDDR5 (21260-01)
  • Sapphire Radeon RX 480 8GB GDDR5 (21260-00)
  • XFX Radeon RX 480 Black Edition 8GB GDDR5 (RX-480M8BBA6)
  • XFX Radeon RX 480 Core Edition 4GB GDDR5 (RX-480M4BFA6)
  • XFX Radeon RX 480 Core Edition 8GB GDDR5 (RX-480P8LFB6)
  • XFX Radeon RX 480 XXX OC 8GB GDDR5 (RX-480M8BFA6)

Scope of delivery:

  • 1x VGA cooler
  • 1x Back plate
  • Thermal pads
  • Thermal Compound
  • mounting material

configurator for VGA cooler.

The installation manual can be downloaded here

compatibility list ATI
