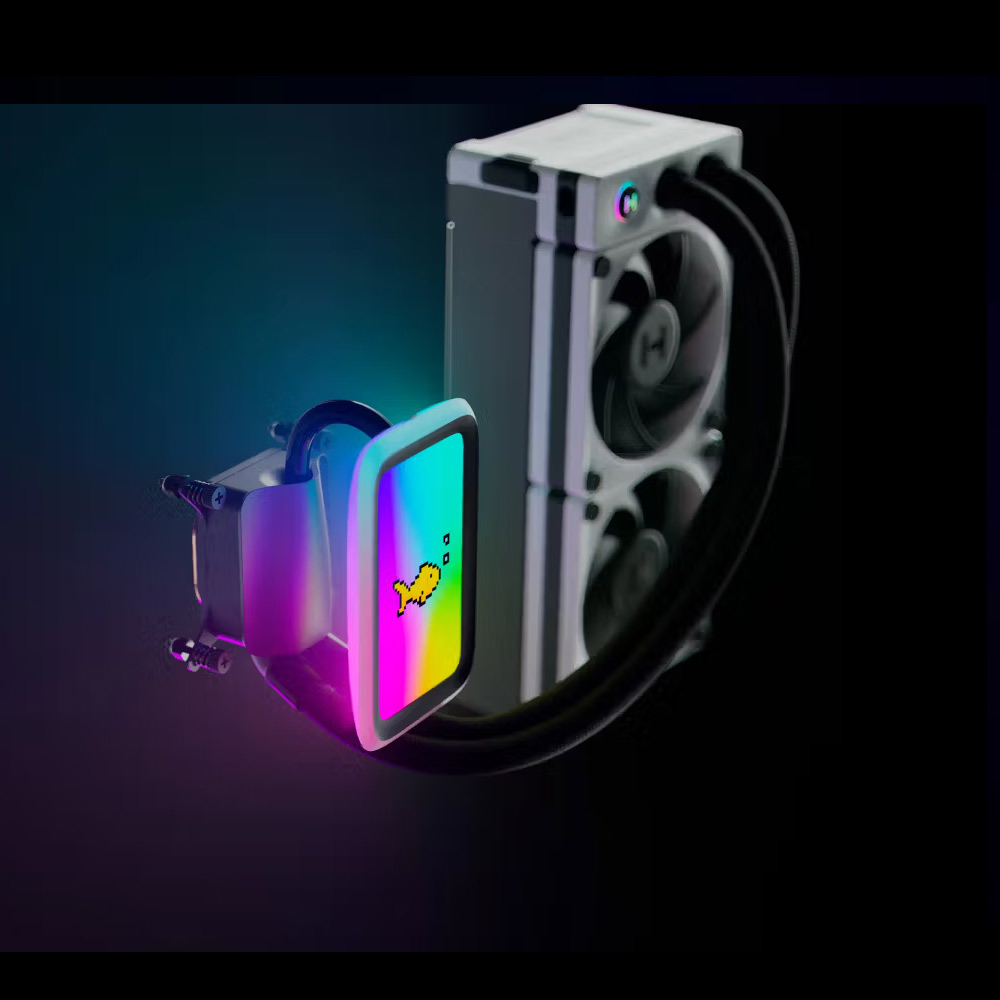

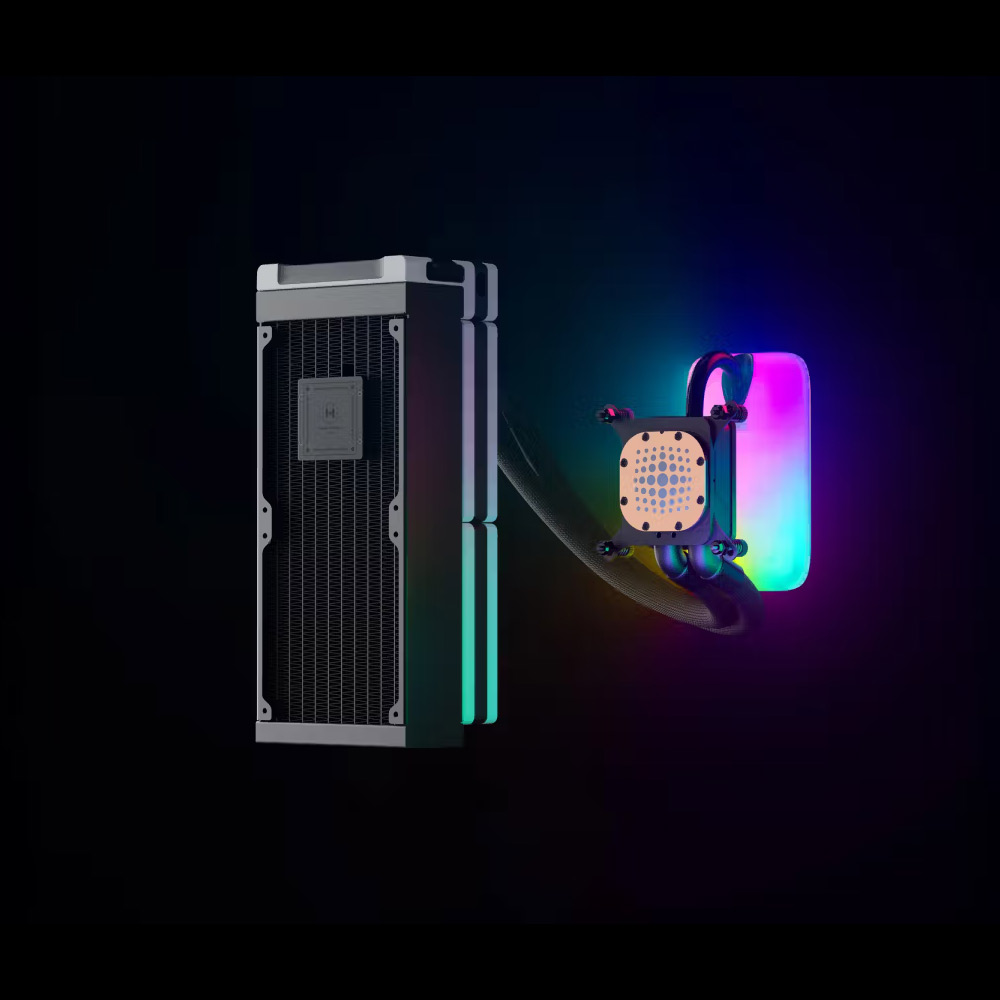

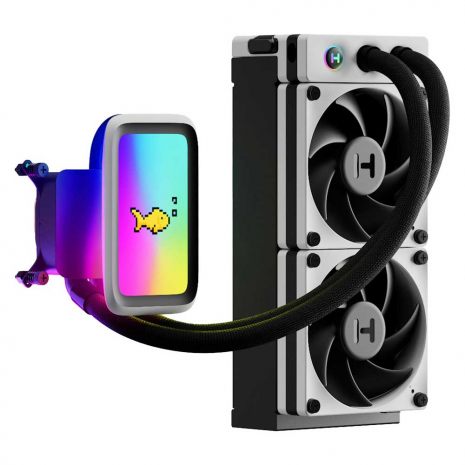

Hyte THICC Q60 240mm Liquid CPU Cooler with 5" LCD Display

£170.00
(£204.00 inc VAT)
Short description:

Intel - LGA115x, LGA1200, LGA1700

AMD - AM4, AM5

26331
1
+ −
Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Why We Made This

  • Cooling unlocks potential
  • Performance over patents
  • Cables are just super gross, so we got rid of like all the cables
  • THICC: Technology Harnessing Innovative Chonk for Cooling
  • Dropping temps like Country Riddim at a Four Tet show
  • “People turn the TV on, it looks just like a window”



Product Features


5” Ultraslim IPS Display
720 x 1280 resolution, 60Hz refresh rate, and 300 nits of brightness for an incredibly crisp and smooth visual experience delivered to your physical world with real life depth

42-Pixel qRGB Array
Brings your system to life, deeply soaking it in mesmerizingly saturated color

Double-Hinged Floating Spout
Rises above and takes aim at your attention with 90 degrees of adjustable swivel

Dual Harmonic Pumps
Adjustable 2,000 - 4,500 RPM circulate liquid with silenced acoustics and groundbreaking efficiency, effortlessly taming even the hottest of CPUs

Ginormous Heat Exchanger
240mm smol and 52mm THICC, this short king cuts above the competition with class leading thermal performance, utilizing a parallel dual-pass design to maximize both cooling capacity and efficiency

32mm THICC FP12 Fans
Dynamic adjustable 0 - 3,000 RPM fan speed with Fiberglass reinforced Liquid Crystal Polymer supercharges the fan blades, delivering a monstrous 105.8 CFM airflow and 8.14 mm-H2O static pressure

Nexus Link Primary Node
Utilizes HYTE’s revolutionary new digital hardware interface for sequential lighting and cooling control with both thermal and positioning sensor data over a single cable, capable of supporting up to 34 devices across 2 channels with Nexus Link AmpScale

Luxury Product Experience
Full compatibility across a range of AMD and Intel sockets, concealed cable harness for a clean look, seamless OTA updates, and 6-year warranty for piece of mind

TECH SPECS

Weight

5.1 lbs

CPU Compatibility

Intel Socket LGA 1851, 1700, 1200, 115X, 2011*, 2066* - AMD Socket AM5, AM4, TR4* - *Optional brackets, please contact support

Heat Exchanger Dimensions

120 x 288 x 52 mm

Heat Exchanger Material

Aluminum

Heat Exchanger Technology

Parallel Dual Pass

Cold Plate Dimensions

56 x 56 x 1.5 mm

Cold Plate Material

Copper

Cold Plate Technology

Micro-Skived Fin

Magnetic Interchangeable Cold Plate Cover

Anodized Aluminum

Tube Length

400 mm

Tube Material

CIIR Rubber with Nylon Sleeving

Total CPU Block + LCD Screen Height

105 mm

Fans

THICC FP12 x 2

Fan Dimensions

120 x 120 x 32 mm

Fan Speed

0 – 3,000 RPM

Air Flow

105.8 CFM

Static Pressure

8.14 mm-H2O

Noise Level

<10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor

Bearings

Fluid Dynamic Bearing

Fan Blade Material

Fiberglass Reinforced Liquid Crystal Polymer (LCP)

Fan Frame Material

Polycarbonate

Fan Connector

Nexus Link Type-M

Nexus-Link Channels

1x Type-C, 1x Type-M

Maximum Devices – Single Channel

18

Maximum Devices – All Channels

34

Maximum Current – Single Channel

8A/12V

Maximum Current – All Channels

15A/12V

Maximum PSU Power Draw

Up to 180W depending on the number of connected Nexus Link devices

LCD Size

5 Inches

LCD Mounting Orientation

Portrait Only

LCD Resolution

720 x 1280 (293 PPI)

LCD Panel Type

IPS

LCD Hinge

Double-Hinged Floating Spout

LCD Refresh Rate

60 Hz

LCD Brightness

300 nits

Bias Lighting

42-Pixel qRGB Array

Logo Lighting

4-Pixel qRGB Array

Pump RPM

2,000 – 4,500 RPM

Pump Bearing

Ceramic

Pump Impeller Diameter

24 mm

Coolant Operation Temperatures

-10 to 60 C

Processor

Quad-Core 64-bit ARM Cortex

Speed

1.3 GHz

RAM

2GB DDR4 @2666 MT/s

Storage

32GB eMMC

Graphics Engine

500 MHz

Co-Processor

32-Bit ARM Cortex-M4

Input Connections

USB 2.0 Header, PWM, 6-Pin PCIe Power

Included Accessories

Intel Mounting Kit + AMD Mounting Kit + Fan Screws

Thermal Paste

Yes, Pre-Applied

Nexus Powered

Yes

Warranty

6 years

Sku

FAN-HYTE-Q60-BW

GTIN:
1220000350649
MPN:
FAN-HYTE-Q60-BW

CPU Coolers

CPU Cooler Colour:
White
CPU Cooler Fan Quantity:
2
CPU Cooler Fan Size:
120mm
CPU Cooler Lighting:
ARGB Lighting
CPU Cooler Socket:
  • AMD AM4 / AM5
  • Intel LGA115x
  • Intel LGA1200
  • Intel LGA1700
CPU Cooler Style:
AIO Liquid Cooler

New features

Manufacturer:
HYTE
+ −
