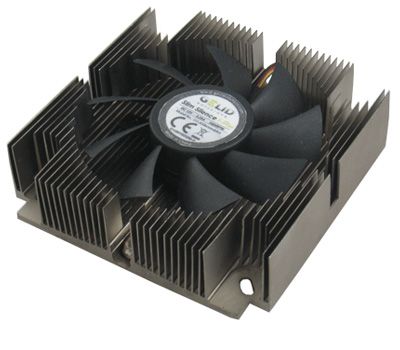

Compact Heatsink Design for Mini ITX, Micro ATX, ATX*, HTPC, Pannel PC,
Car PC & 1U server
Maximum heatsink height of 28mm only to fit most of the slim low profile case
without any conflict to the chassis
Overall Dimensions | W | D | H |
93.5mm | 95mm | 28mm | |
Weight | 246g | ||

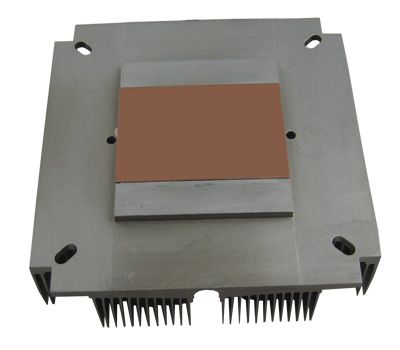

Heatsink Material | Copper Base, Aluminium Fins | ||
Dissipation Area | |||

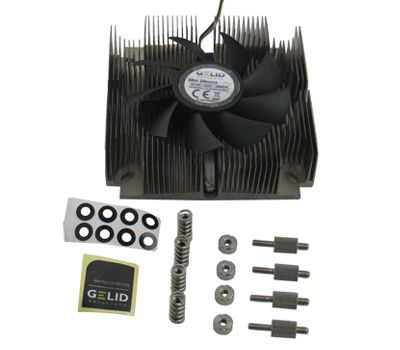

Mounting Type | Bolt through | ||
CPU Sockets | Intel LGA775 / 1150 / 1155 / 1156 / 1200 | ||
Fan Size | 75 x 15mm | ||
Fan rpm | 1200-2600rpm | ||
Fan Noise | 15 - 27.8 dBA | ||
Fan Airflow | 25.8cfm (Max) | ||
Fan Connector | 4pin PWM | ||
Thermal Grease | Pre-Applied GC-2 |
Intel Socket: 775/1155/1156

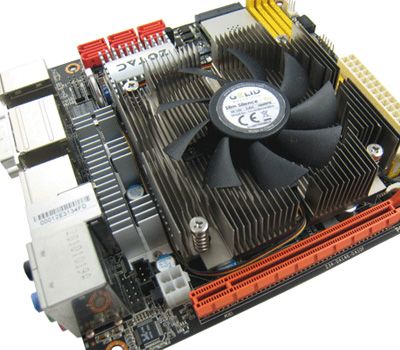

CPU: Conroe-L (TDP 35W), E series Celeron (TDP 65W max), Dual-Core (TDP 65W max), Core 2 Duo (TDP 65W max), Core i3/i5 (TDP 82W max) with good case ventilation Supports motherboard types: Mini ITX, Micro ATX, ATX* *Please check installation manual and size restriction drawing. All brands and trademarks are the property of their respective owners. Compact Heatsink Design for Mini ITX, Micro ATX, ATX, HTPC, Panel PC, Car PC & 1U server Maximum heatsink height of 28mm only to fit most of the slim low profile case without any conflict to the chassis Integrated 75mm frameless fan with ball bearing and PWM control to minimize noise level while providing sufficient air flow for CPU cooling during loading & to provide long life service under high temperature environment. Enables more efficient & quicker heat transfer from core to aluminium fins |
