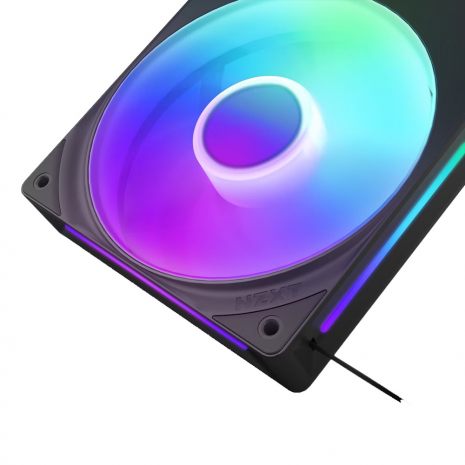

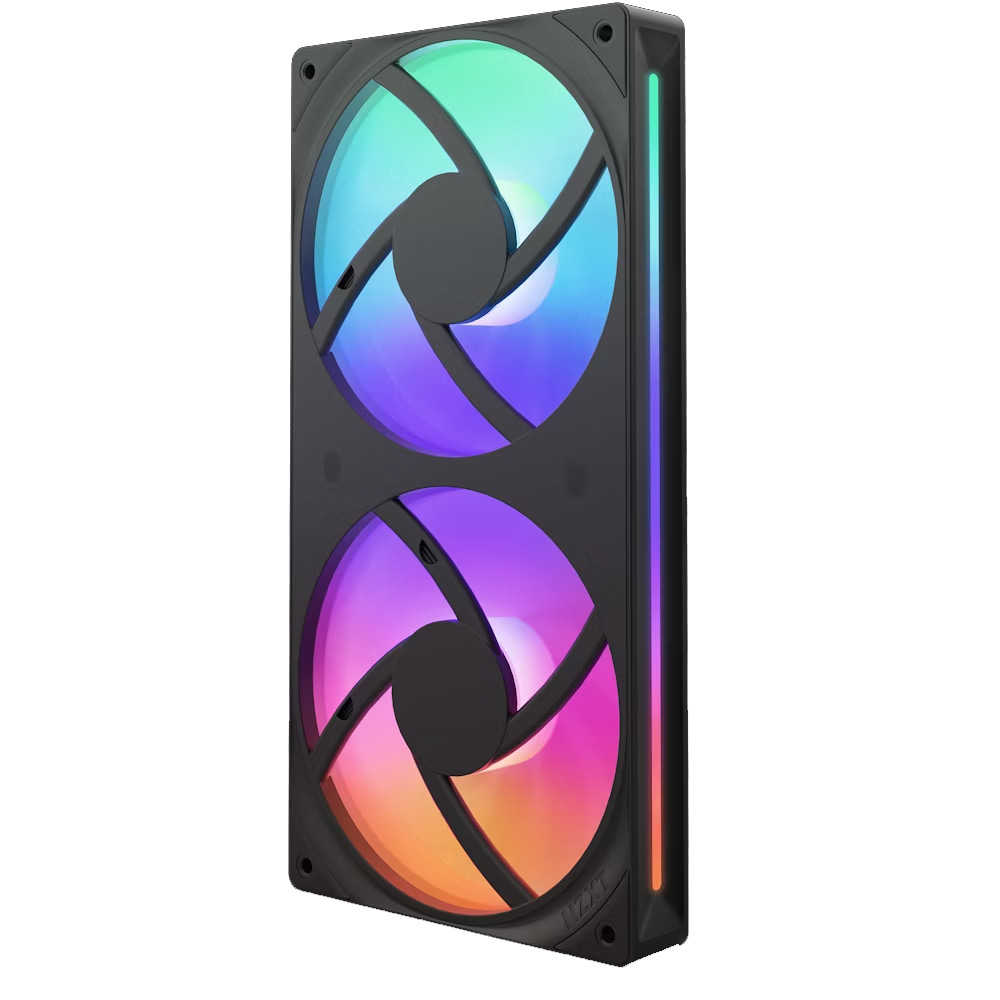

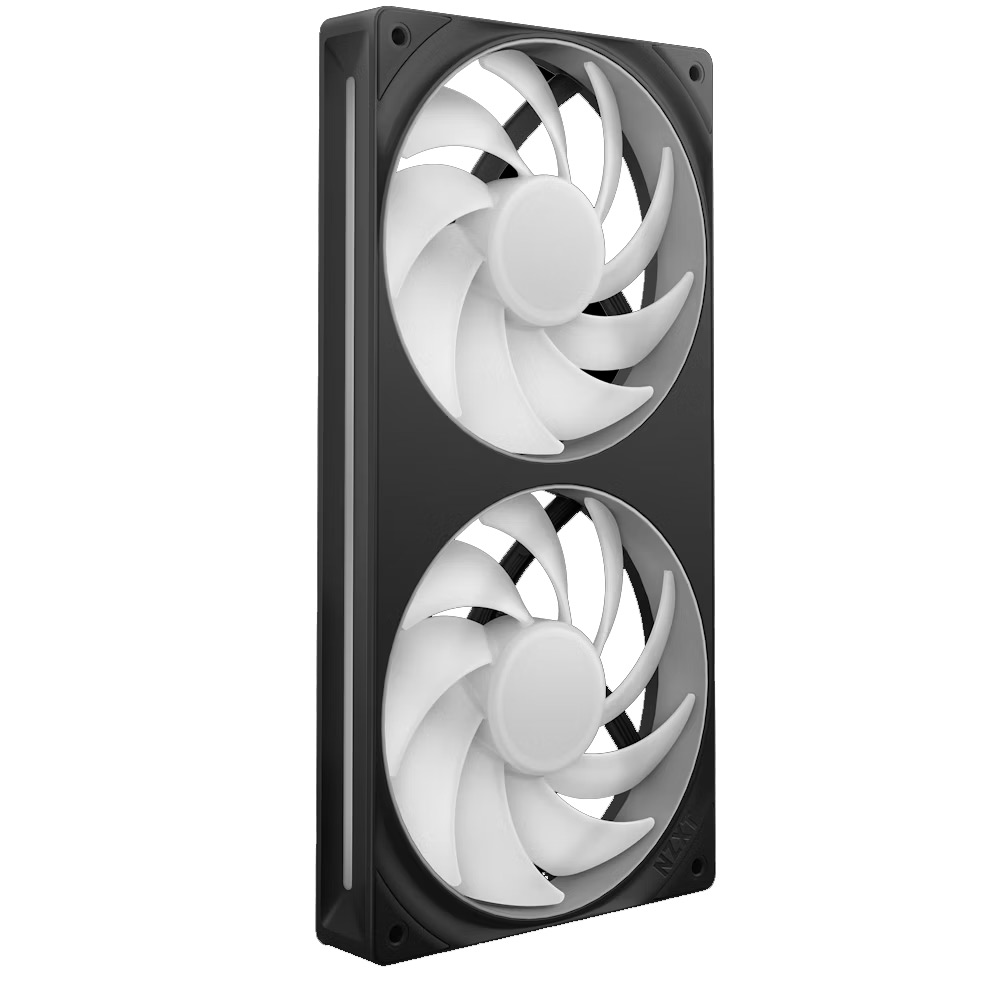

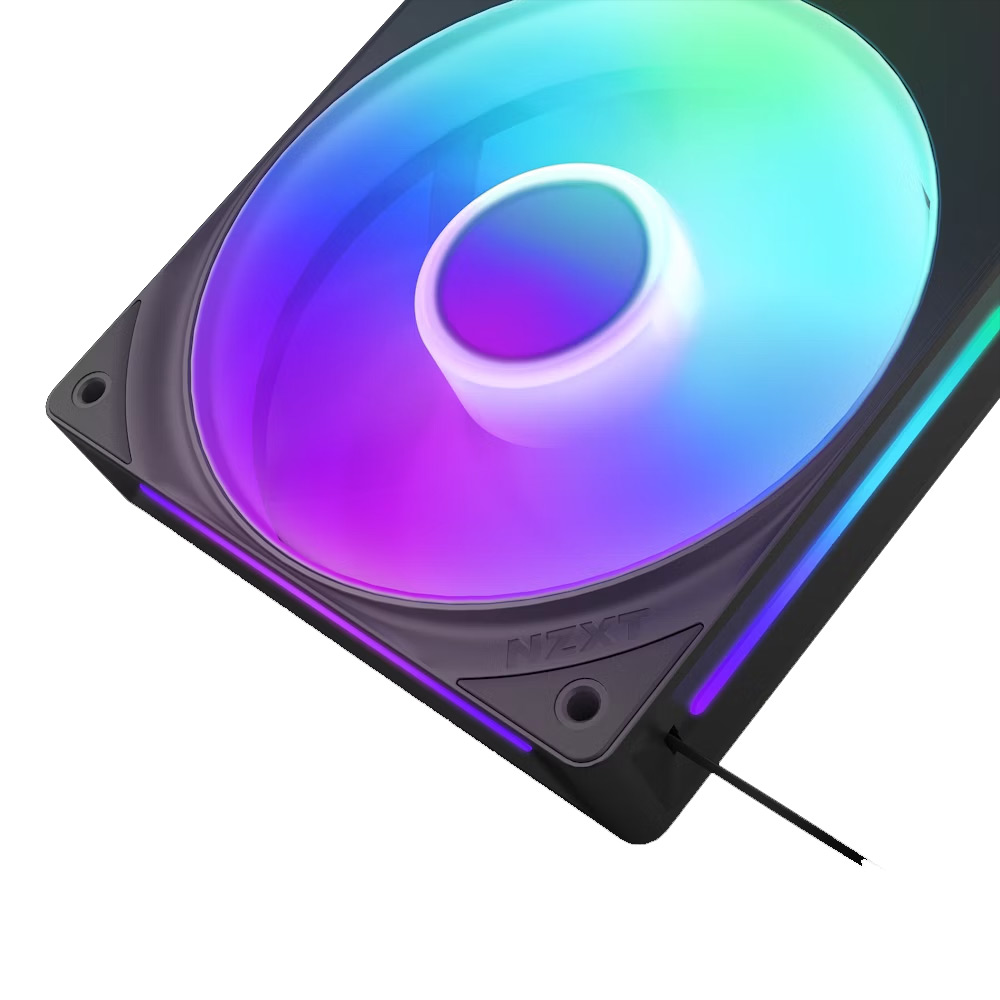

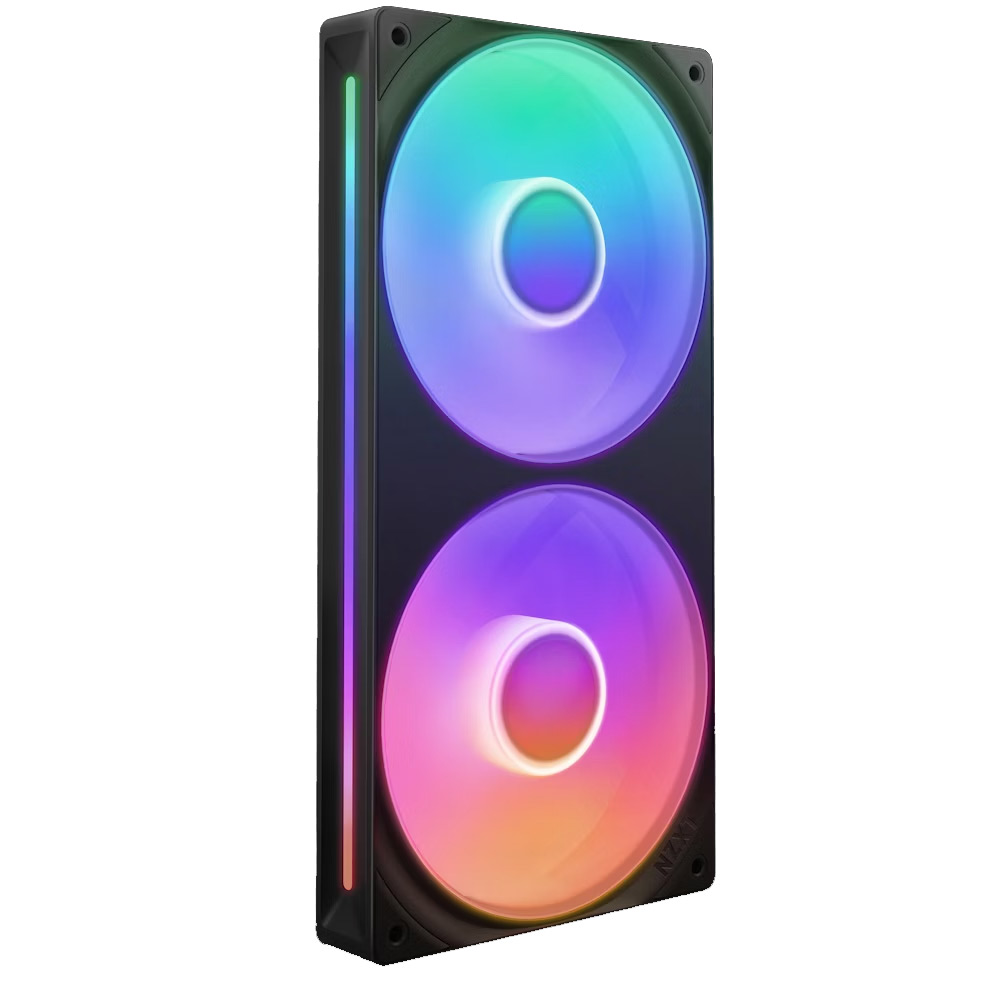

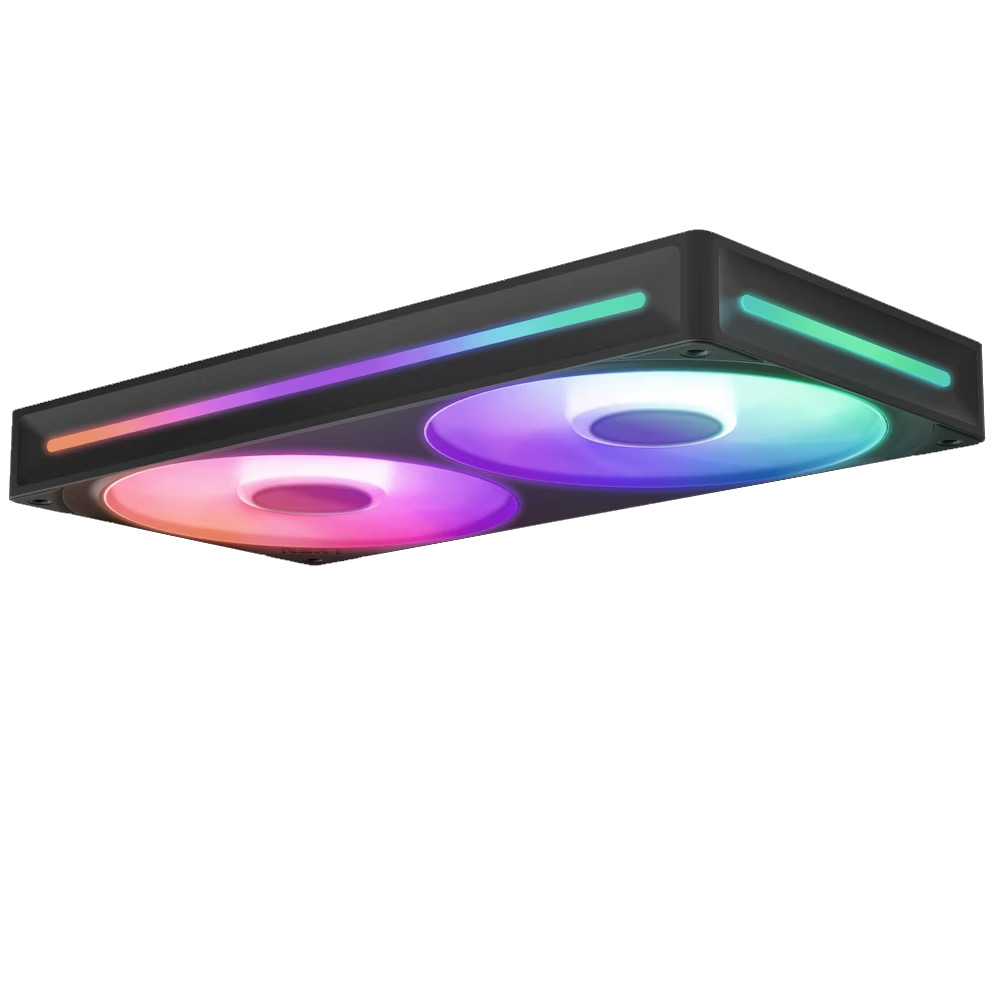

NZXT F240 RGB Core 240mm Uni-body Fan Black (2 x 120mm Fans)

NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.

• Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fans.
• Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.
• Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust.
• Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan.
• Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals.
• PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise.
• Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed.
• Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately).

Inside the Box

• RGB Core Fan1

• Mounting Screws4

• Splitter Cable1

Versatile Connectivity

Optimal Performance

Blade design boosts static pressure to push air through tight spaces with superior airflow.

Fluid Dynamic Bearings

Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.

Radiant RGB Lighting

8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.

PWM Control

Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.

*Requires PWM connection to motherboard or controller (sold separately)

Silent Operation

Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.

*Requires an NZXT controller or NZXT motherboard, each sold separately.

Do More with CAM

Control fan speeds, personalize lighting effects, and sync with other NZXT products*.

*Requires an NZXT controller or NZXT motherboard, each sold separately.

Dimensions

• Height:240 mm

• Width:120 mm

• Depth:26 mm

Fans

• Speed:500 - 2,400 ± 250 RPM per fan

• Airflow:75.12 CFM per fan

• Static Pressure:3.3 mm H₂O per fan

• Noise:30.00 dBA per fan

• Power Consumption:12V DC, 0.56A, 6.72W / 5V DC, 0.45A, 2.25W

• Bearing:Fluid Dynamic Bearing

• Output LED:8 LEDs per Fan

• Connector:8-pin for PWM & RGB

• Cable Length:1 x 600 mm

• Material:Plastic, Rubber, PCB

• Life:60,000 Hours

Cable

• Splitter Cable Connections & Cable Length:4-pin PWM Fan Cable (1 x 300 mm) / 5V RGB & 4-pin NZXT RGB Cable (1 x 100 mm)
