- Controlled with L-Wireless Controller for improved user experience.
- L-Wireless Sync supported for seamless lighting synchronization with all LIAN LI wireless products.
- 28mm thickness for improved airflow and static pressure.
- New UNI FAN interlocking system for simplified cable management.
- Features individually controllable dual lighting zones on fan blades and side strips for personalized lighting effects.
- Full software control via L-Connect 3.
- Standard and reverse blade options for varied installation layouts.
- Fluid Dynamic Bearing (FDB) for low noise operation and longer product life span.

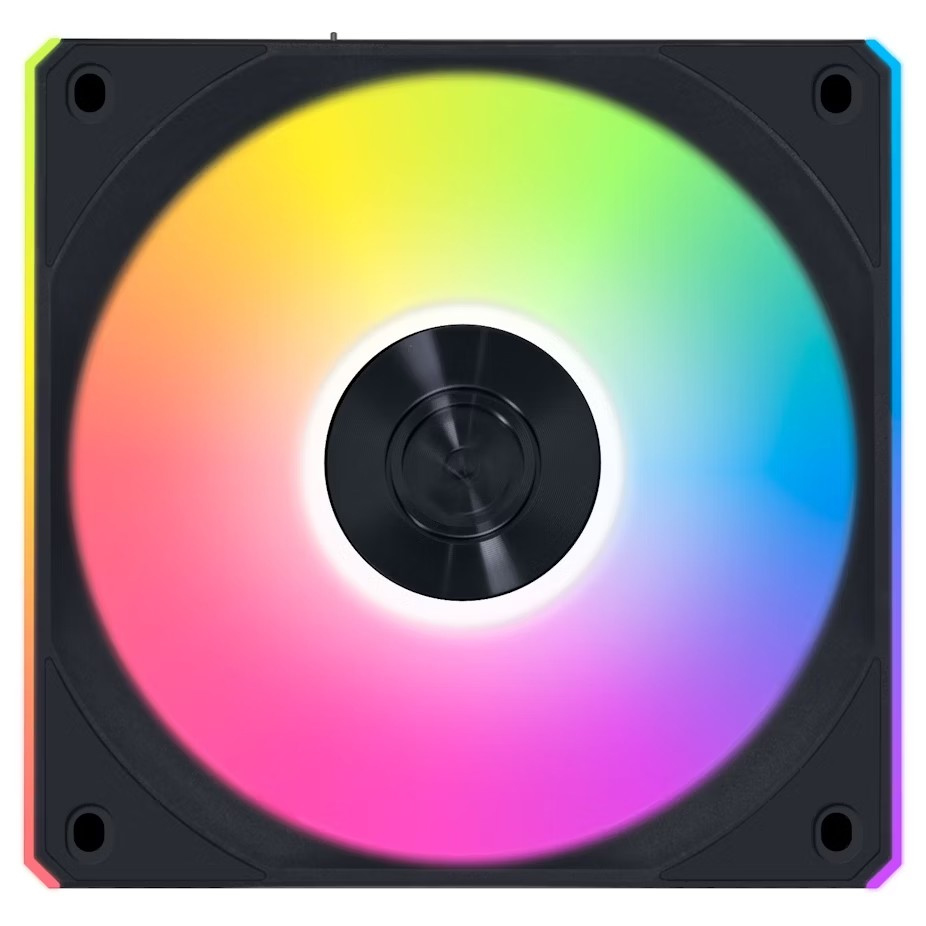

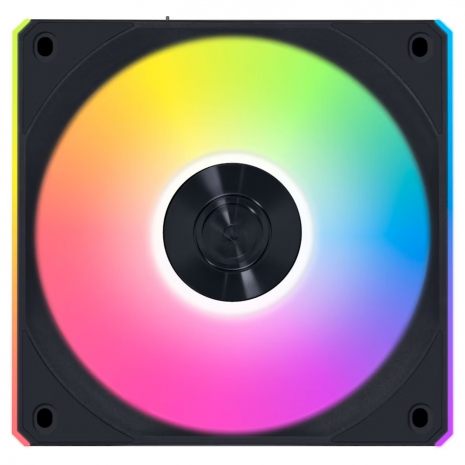

DUAL-ZONE LIGHTING FOR RGB
Independently control the fan blades and side strips to create layered lighting effects that elevate the build’s visual impact.
REFINED DETAIL,
STYLE IN EVERY SPIN
An aluminum nameplate is at the center of CL wireless fan, adding a touch of elegance and elevating the overall build quality, and also making the setups look as powerful as it performs.

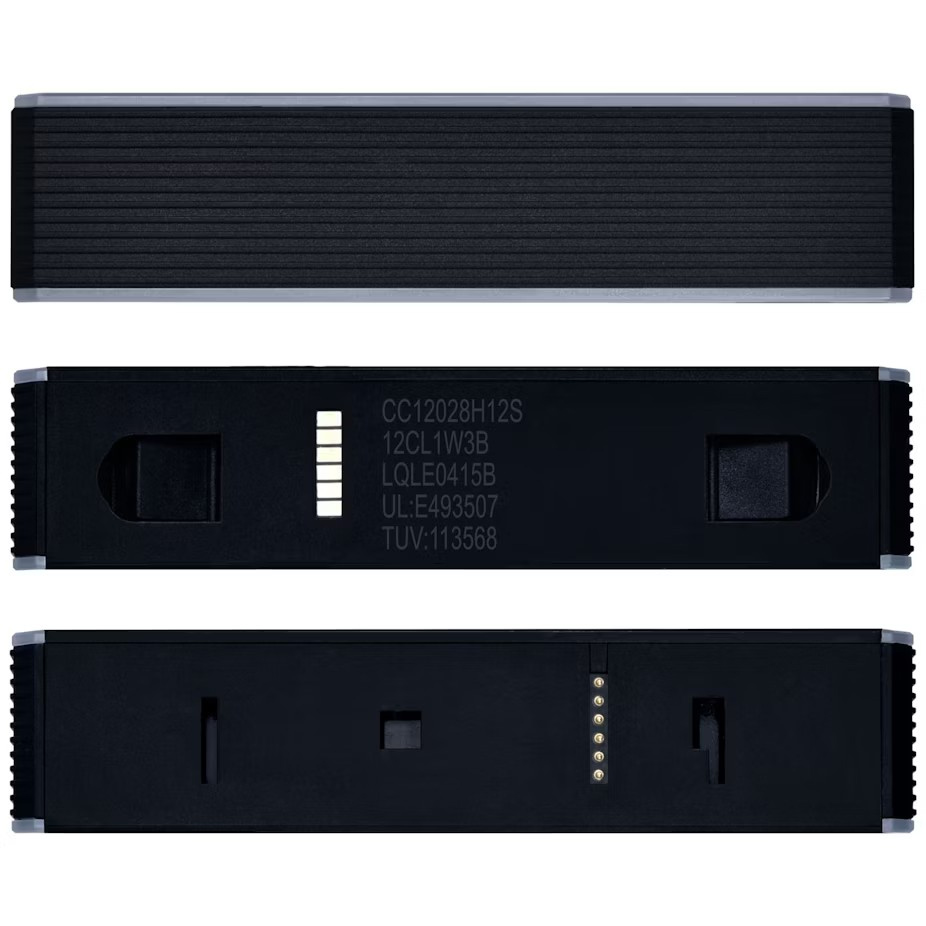

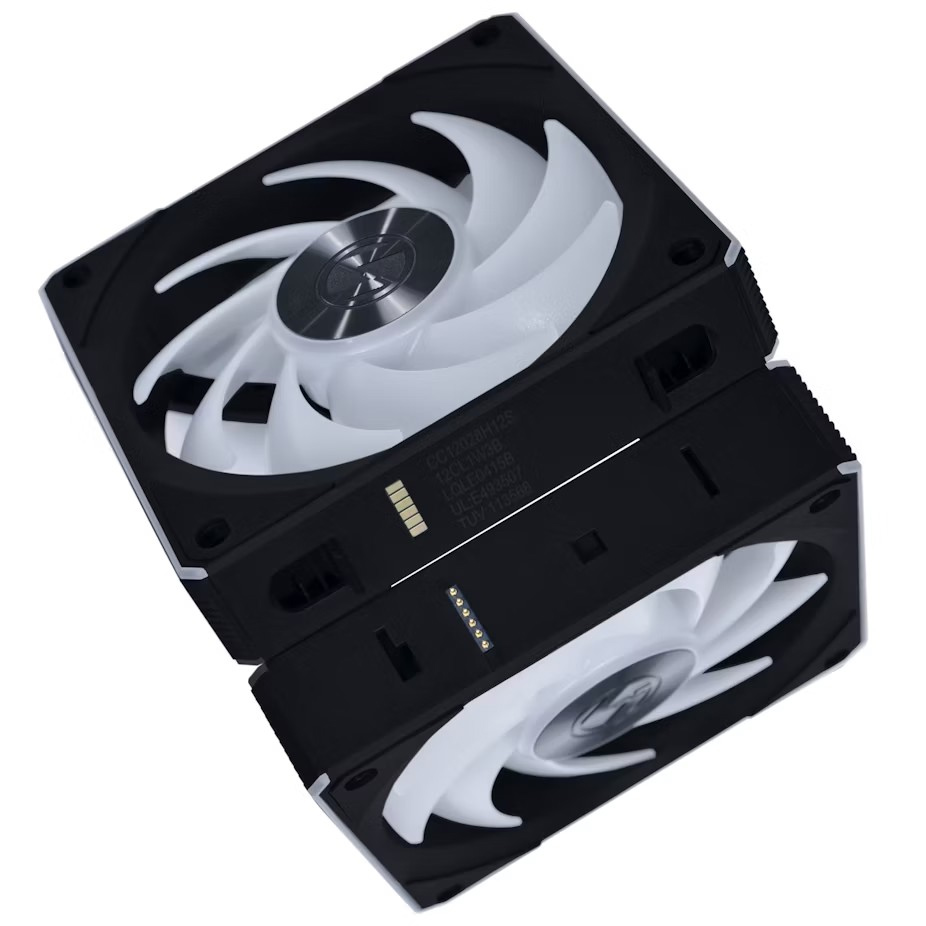

NEW TOOL-FREE INTERLOCKINGFOR EFFORTLESS INSTALLATION
Experience the next-gen installation with an updated push-to-connect design that requires no screws, no hassle,and delivers clean, secure chaining in seconds.
Fan Connection Demo
Fan Separation Demo
BALANCED PERFORMANCE WITH QUIET OPERATION
Equipped with FDB and available in standard or reverse blades, CL Wireless delivers strong airflow and pressure while keeping noise to a minimum.
INTEGRATED PWM RECEIVER FOR STABLE AND CLEAN POWER DELIVERY
Equipped with a 4-pin main header for automatic PWM detection and a 2-pin tail header for additional power, the UNI FAN CL Wireless ensures reliable 12V operation from the motherboard. Cable length can be adjusted using the built-in organizer, while custom cable combs keep wiring tidy.
L-WIRELESS SYNC CONTROLLER FOR UNIFIED WIRELESS CONTROL
Manage fan speed and lighting across up to 10 device groups with a single 2.4GHz USB dongle-seamlessly syncing UNI FANs, AIOs, STRIMERs, and more for a truly cable-free setup.
SPECIFICATIONS
| PRODUCT NAME | UNI FAN CL Wireless |
|---|---|
| MODEL | 12CL1W1B |
| COLOR | BLACK |
| NUMBER OF FANS | 1 |
| CONTROLLER | No |
| FAN DIMENSION | 120x120x28mm |
| MATERIAL | PBT / PC / Aluminum |
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) |
| FAN SPEED | 0,250~2150 RPM |
| MAX. AIR PRESSURE | 2.52 mmH2O (Maximum) |
| MAX. AIRFLOW | 77.34 CFM (Maximum) |
| ACOUSTIC NOISE | 29.8 dBA (Maximum) |
| BEARING TYPE | FDB |
| LOCKED CURRENT | ≧ 50mA |
| OPERATIONAL VOLTAGE | DC12V & 5V |
| START-UP VOLTAGE | DC 6.0V |
| INPUT CURRENT | 180mA (Fan) / 600mA (LED) |
| INPUT POWER | 5.16W |
| WARRANTY | 3 years |
