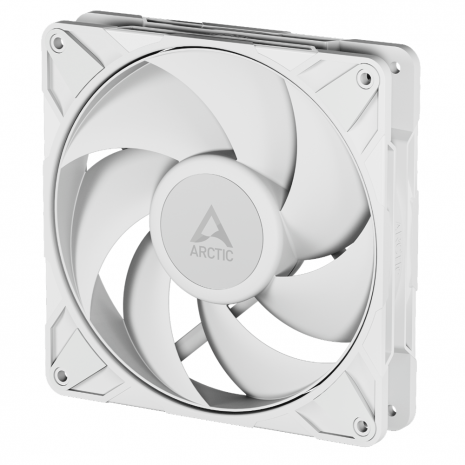

Arctic P14 PRO PST Pressure Optimised 14cm PWM Case Fan White ACFAN00317A

£7.50
(£9.00 inc VAT)
Short description:
140mm Case Fan
25425
5
+ −

For shippable items by DPD courier:

Note, we do not mail all items - typically the components categories and some peripheral categories are not shipped. Put a postcode in the shipping info tab below to confirm if shipping options are available, but some items may be pickup from our shop in Ayr only.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

P14 Pro PST 140 mm PWM Fan with Cable Splitter

  • Fan Speed: 400-2500 rpm (PWM controlled), 0 rpm below 5% PWM
  • Airflow: 110 cfm | 186 m3/h
  • Static Pressure: 5.2 mmH2O
  • Fan Bearing: Fluid Dynamic Bearing
  • Cable Length: 400 mm + 80 mm Daisy-Chain Cable
  • Connector: 4-Pin Fan Plug + 4-Pin Socket

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.


Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Automated Two-Plane Balancing

An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power - Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) - ideal for quiet, powerful cooling.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.


6-Year Warranty - Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn't just a promise - it's a testament to our confidence in their durability.


Fan Speed: 400-2500 rpm
Airflow: 110 CFM/  186 m³/h
Static Pressure: 5.2 (mm/H2O)

Control Type: PWM
Connector: 4-Pin- Connector with 4-pin Socket for Pass-thru
Fan Bearing: Fluid Dynamic Bearing

Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current: 0.35 A
Cable Lenght: 400 mm + 80mm Daisy Chain

Length: 140 mm
Width: 140 mm
Height: 27 mm
Weight: 242 g
Connector Type:
  • 4-pin PWM
GTIN:
4895265000416
MPN:
ACFAN00317A
Fan Flow:
Normal Direction

Case Fans

Airflow:
110cfm
Blade Colour:
White
Fan Size:
140mm
LED Lighting:
None

New features

Manufacturer:
Arctic Cooling
+ −
