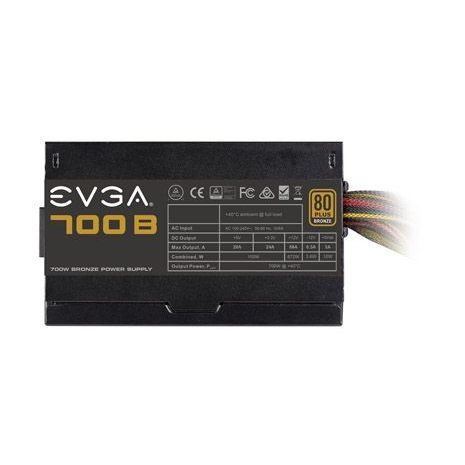

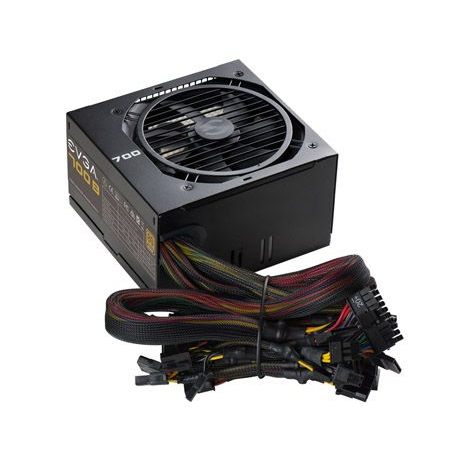

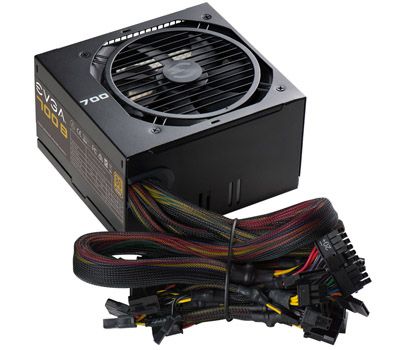

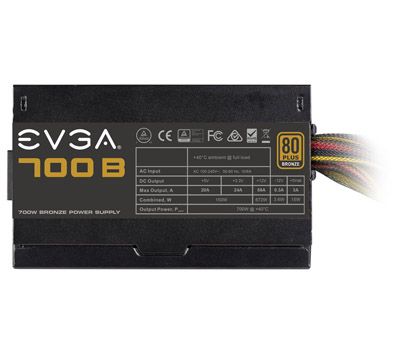

EVGA 700B Bronze Power Supply

£53.00
(£63.60 inc VAT)
Short description:
700W ATX Power Supply, 80Plus Bronze
100-B1-0700-K3
16205
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Dimensions W D H
150mm 140mm 86mm
ATX Spec
Effiency 80Plus Bronze
(85% Typical)

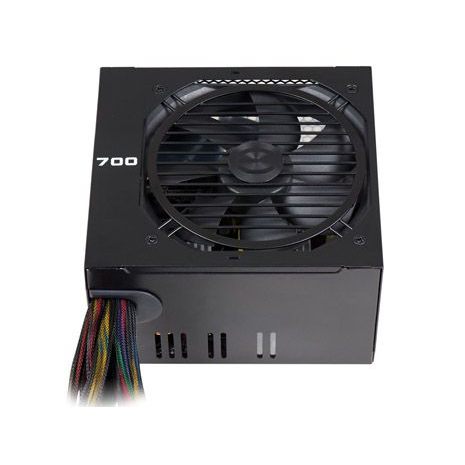

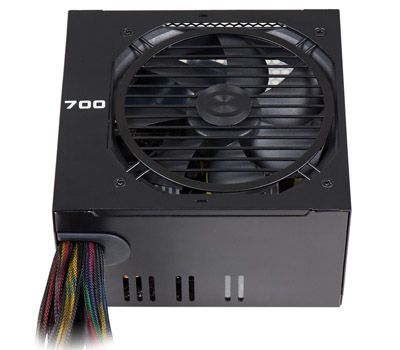

Fan 120mm Sleeve Bearing Fan

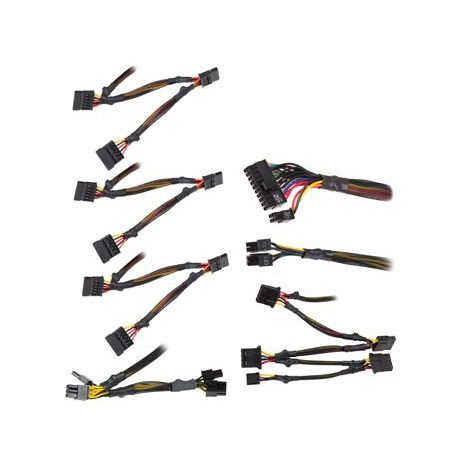

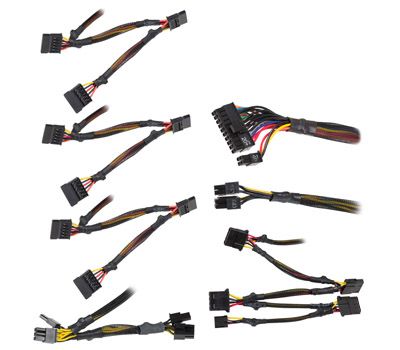

Connectors Molex Floppy SATA
3 1 Adapter 9
PCI-E M.board AUX
2 x 6/8 Pin 20/24 1 x 4/8 Pin
Output Current +3.3v +5v +12v
24A 20A 56A
-12v -+5vsb 12v Rails
0.3A 3A 1
+3.3v & 5v Power 150W
+12v Power 672W
-12v Power 3.6W
+5vsb Power 15W
Total Power 700W
Input Voltage 100-240v Auto
Modular No
Motherboard Cable Lengths ATX = 55cm, EPS = 60cm
  • High Amperage Single-Rail design for maximum power and efficiency
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 3 Year Warranty
Form Factor:
ATX
Depth / Length:
140mm
ATX12V Connections:
8 pin
Cable Configuration:
Fixed Cables
Efficiency:
80 Plus Bronze (88%)
GTIN:
4250812408655
MPN:
100-B1-0700-K3
PCI-E Connections:
2 x 6/8pin
SATA Power:
9
Wattage:
700W

New features

Manufacturer:
EVGA
+
