Dimensions | W | D | H | ||
150mm | 140mm | 86mm | |||
ATX Spec | ATX v2.3 / EPS12V 2.91 | ||||
Effiency | 80Plus Bronze | ||||
Fan | 120mm Sleeve Bearing Fan | ||||
Connectors | Molex | Floppy | SATA | ||
3 | 1 | 4 | |||
PCI-E | M.board | AUX | |||
1 x 6/8 Pin | 20/24 | 4 / 8 Pin | |||
Output Current | +3.3v | +5v | +12v | ||
20A | 20A | 37.4A | |||
-12v | -+5vsb | 12v Rails | |||
0.8A | 3A | 1 | |||
+3.3v & 5v Power | 110W | ||||
+12v Power | 448.8W | ||||
-12v Power | 9.6W | ||||
+5vsb Power | 15W | ||||
Total Power | 450W | ||||
Input Voltage | 100-240v Auto | ||||
Modular | Yes | ||||
Motherboard Cable Lengths |
CX Series Modular power supply units are an excellent choice for basic system builds and desktop PC computer upgrades, offering high reliability, low noise, and the flexibility of modular cabling.

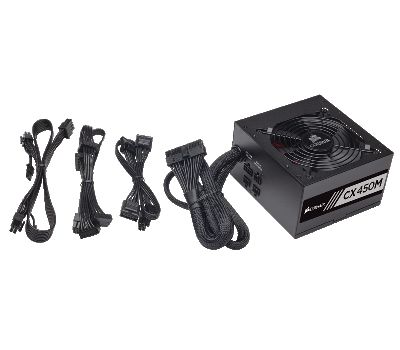

The modular cabling system lets you use only the cables you need. You get to save space and reduce clutter for a cleaner-looking build and improved airflow.
CX Series Modular is built and tested to strict standards for trouble-free installation and smooth operation.
The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.
Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the CX Series Modular, because you need confidence and reliability regardless of your build budget.
Since the peripheral power cables aren?t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC?s case where they can add to the clutter and interfere with airflow.
Once you?ve installed a PSU, you shouldn?t have to think about it. Employing a thermally controlled fan makes the CX Series Modular quieter at idle, and the large diameter reduces noise even when you?re pushing your system hard.
