Dimensions | W | D | H | ||
150mm | 140mm | 86mm | |||
ATX Spec | ATX v2.4 | ||||
Effiency | 80Plus Bronze - Typically 85% | ||||
Fan | 120mm Low Noise | ||||
Connectors | Molex | Floppy | SATA | ||
3 | 1 | 6 | |||
PCI-E | M.board | AUX | |||
2 x 6/8Pin | 20/24 | 4 / 8 Pin | |||
Output Current | +3.3v | +5v | +12v | ||
20A | 20A | 45.8A | |||
-12v | -+5vsb | 12v Rails | |||
0.3A | 3A | 1 | |||
+3.3v & 5v Power | 110W | ||||
+12v Power | 550W | ||||
-12v Power | 3.6W | ||||
+5vsb Power | 15W | ||||
Total Power | 550W | ||||
Input Voltage | 100-240V | ||||
Modular | Yes |

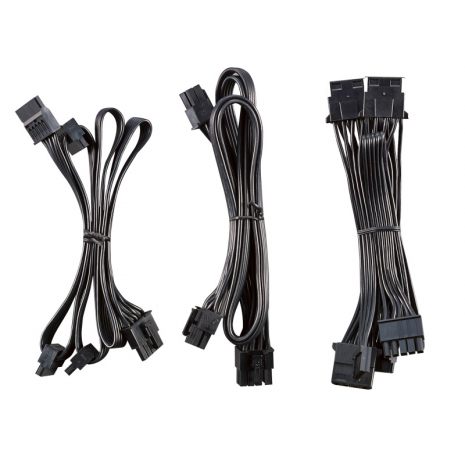

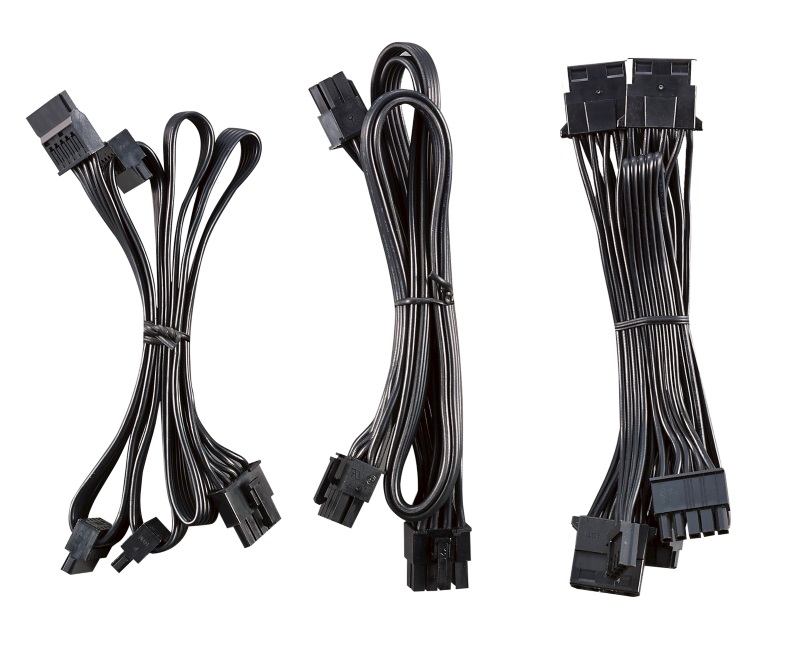

The MasterWatt is an 80 Plus Bronze power supply with an innovative semi-fanless mode. Under 15% load,the MasterWatt fan remains idle,offering zero dBA. When demand for power increases,a gradual fan curve provides measured cooling with little to no noise at any output level. Dual forward / DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance,MasterWatt is equipped with 16 AWG power cables,which reduces resistance,thereby increasing efficiency.
Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.
MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.
