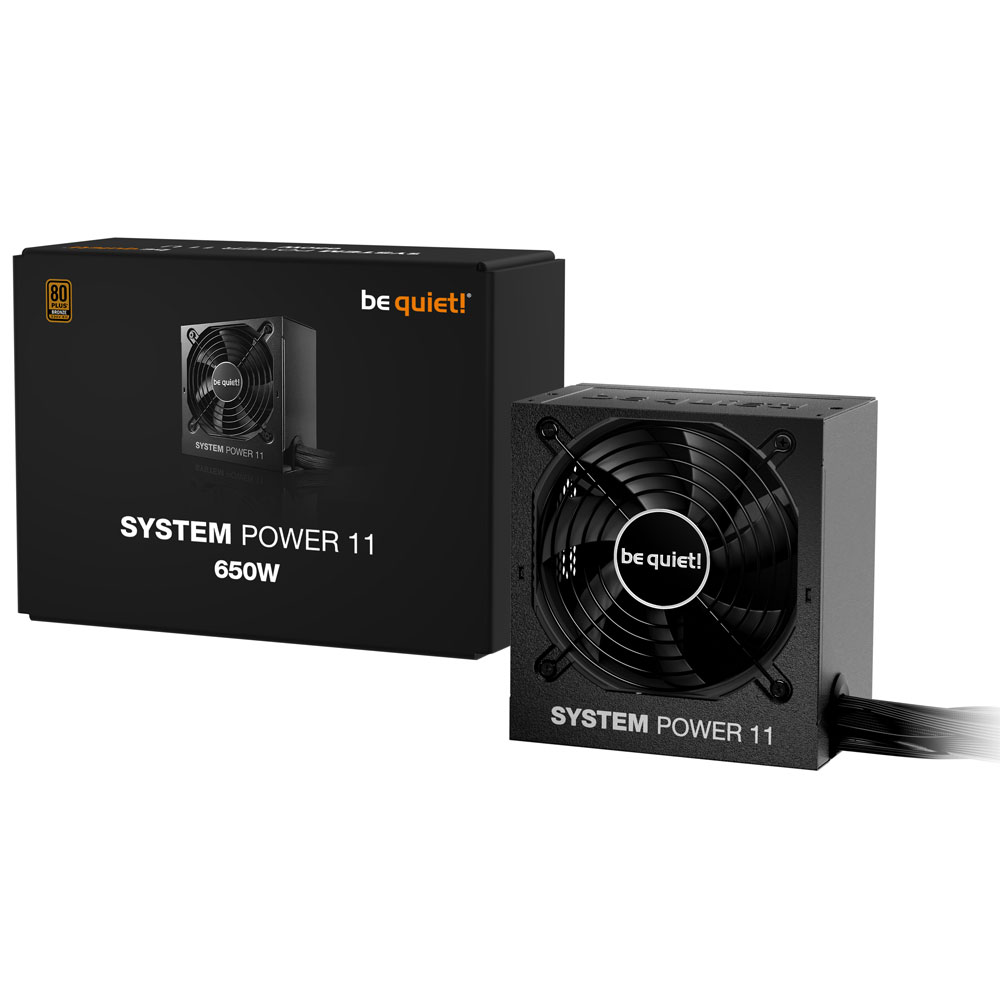

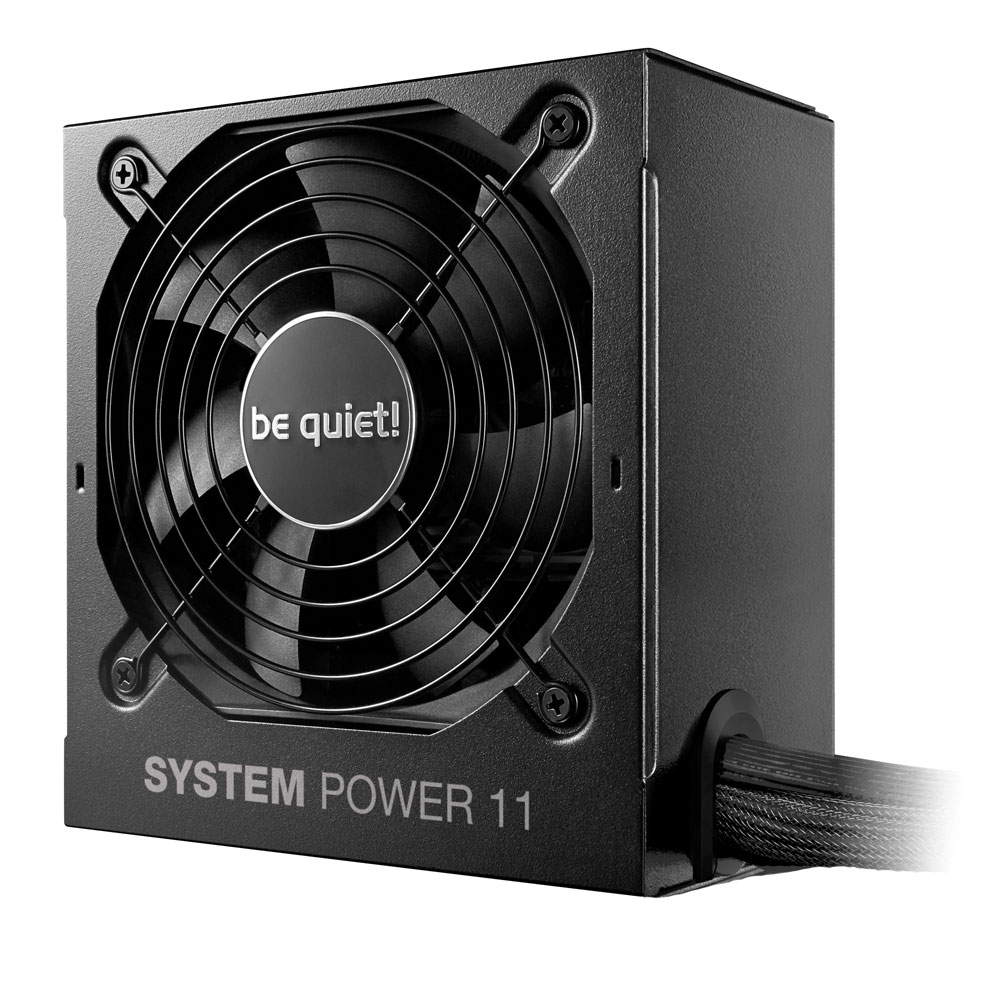

Be Quiet! 650W System Power 11 Power Supply 80Plus Bronze BP011EU

£42.00
(£50.40 inc VAT)
ATX V3.x
Short description:
650W ATX Power Supply, 80Plus Bronze
Includes 12v-2x6
16426
+
Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Proven Reliability, Quiet Operation

System Power 11 650W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 650W offers even at entry-level.
  • ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Temperature-controlled 120mm quality fan reduces system noise
  • Rock-solid stability with a strong 12V-rail
  • Tight voltage regulation using DC-to-DC technology
  • One PCIe 5.1 12V-2x6 450W and 2 PCIe 6-2 connectors
  • Stand-by drain of less than 0.15 watts
  • 80 PLUS® Bronze efficiency (up to 89.7%)
Dimensions W D H
150mm 140mm 86mm
ATX Spec ATX v3.1 / EPS12v v2.92
Efficency 80+ Bronze
230V, 2% load: 63.9%
230V, 10% load: 84.4%
230V, 20% load: 88.6%
230V, 50% load: 89.7%
230V, 100% load: 86.7%
Fan 10% load: 10.9 dB(A)
20% load: 10.9 dB(A)
50% load: 11.8 dB(A)
100% load: 30.9 dB(A)

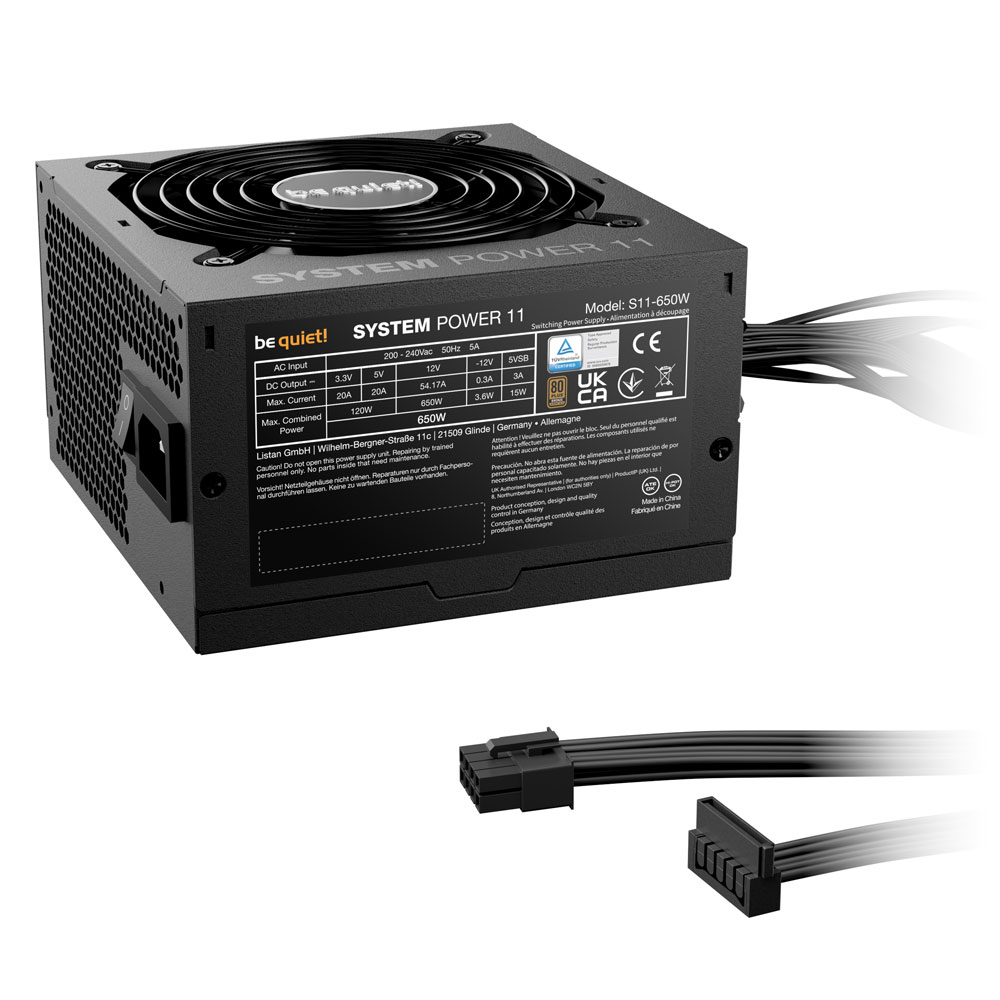

Connectors Molex Floppy SATA
1 0 5
PCI-E M.board AUX
2 x 6/8Pin
1 x 12V-2x6 (Max 450W)
20/24  1 x 4/8 Pin + 1 x 4 Pin
Output Current +3.3v +5v +12v
20A 20A 54.17A
-12v -+5vsb 12v Rails
0.3A 3A 1
+3.3v & 5v Power 120W
+12v Power 650W
-12v Power 3.6W
+5vsb Power 15W
Total Power 650W
Input Voltage 230V Only
Modular Fixed Cables
Motherboard Cable Lengths 55cm for 24pin, 60cm for 4/8pin
Future-Proof Your System

Fulfills all ATX 3.1 specifications
System Power 11 650W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. It handles power excursions up to double its rated power with ease. This makes the PSU versatile and the perfect choice for systems of today and the ones to come.

Very Quiet Operation

High-quality fan for low noise
System Power 11 650W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.

High Performance For Your System

Proven reliability for CPU and GPU
System Power 11 650W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.

80 PLUS® Bronze Certification

Efficient operation
The 80 PLUS® Bronze certification of System Power 11 650W Bronze with an efficiency rating of up to 89.7% is convincing evidence of this PSU’s power saving operation.

Strong 12V Rail

For a stable PCIe graphics support
System Power 11 650W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
Form Factor:
ATX
Depth / Length:
140mm
ATX Standard:
ATX V3.x
ATX12V Connections:
1 x 8 Pin + 4 Pin
Cable Configuration:
Fixed Cables
Efficiency:
80 Plus Bronze (88%)
GTIN:
4260052191873
MPN:
BP011EU
PCI-E 5.0 12VHPWR 16-pin:
1 x 16-pin 12VHPWR
PCI-E Connections 6/8-pin:
2 x 6/8pin
SATA Power:
5
Wattage:
650W

New features

Manufacturer:
Be quiet!
+
