Key Features
- Supports Intel Core Ultra processors.
- Twin Hybrid 12+1+2 phases VRM solution.
- D5 Bionic Corsa for Infinite Memory Performance.
- AI Perfdrive: Provides optimal and customized BIOS preset profile for users.
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design.
- EZ-Latch Click: M.2 heatsinks with screwless design.
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage: 3 x M.2 slots, including 1 x PCIe 5.0 x4.
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
- Extended Connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort.
Specification

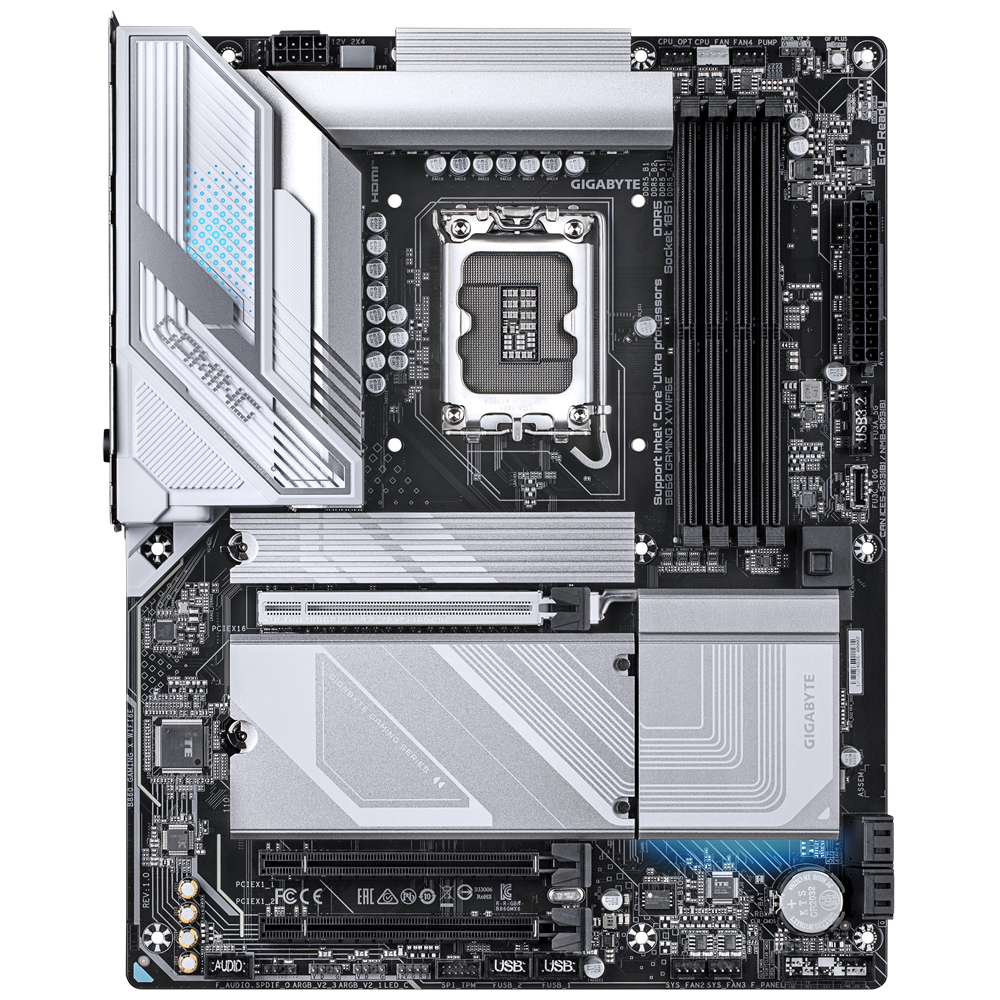

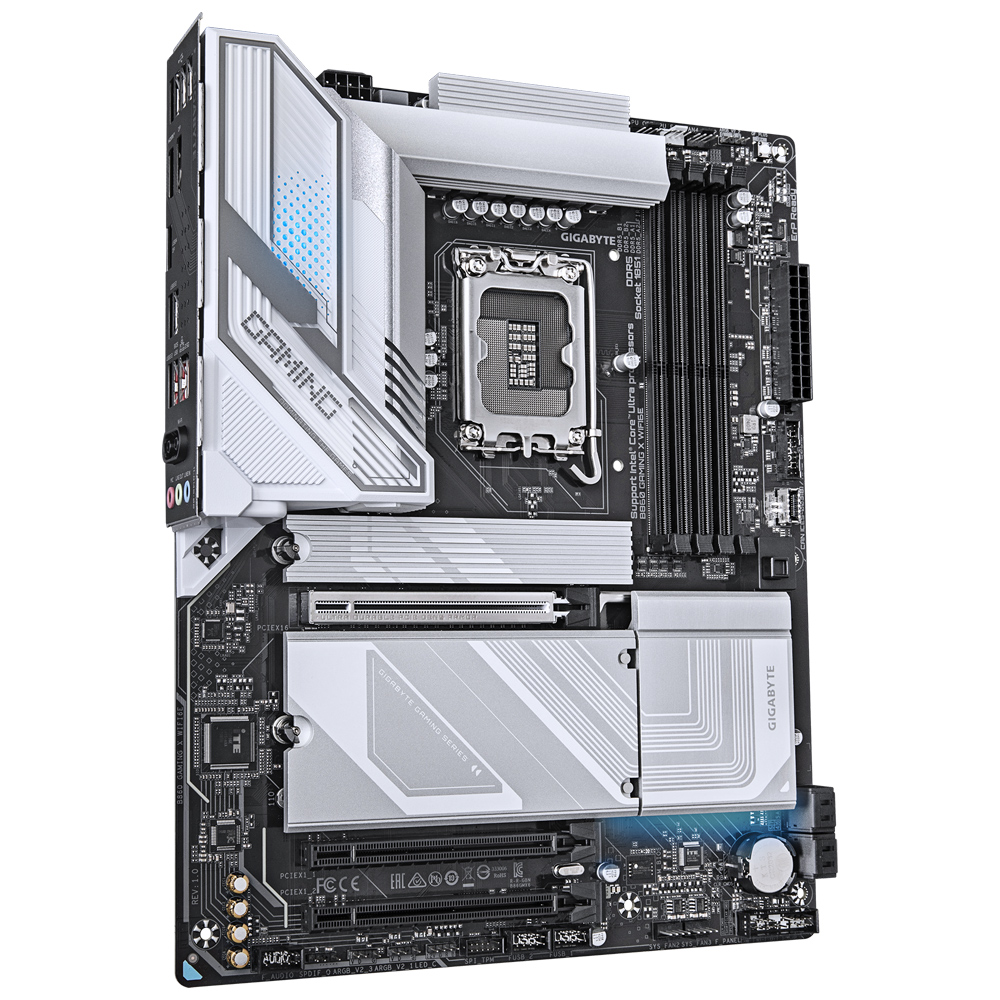

| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| CPU Socket | LGA1851 socket: Support for Intel® Core™ Ultra Processors CPU Support | |
| Chipset | Intel B860 | |
| Memory | Architecture | 4 x DDR5 DIMMs (Dual Channel) non-ECC, un-buffered |
| Capacity | 256GB (64GB single DIMM capacity) | |
| Speed | Up to 9066Mhz(OC) | |
| Extras | Supports Extreme Memory Profile (XMP) | |
| PCI Slots | 0 | |
| PCI-Express x16 | - 1 x PCIe 5.0 x16 Slot (PCIXE16), supports x16 speed* - 2 x PCIe 4.0 x16 Slot (PCIEX1_2/3), supports x1 speed |
|
| PCI-Express x4 | - | |
| PCI-Express x1 | (see above - larger format 16x slots running at x1 speed) | |
| Multi-GPU | - | |

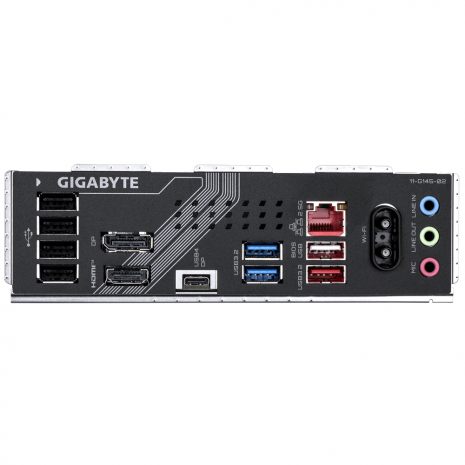

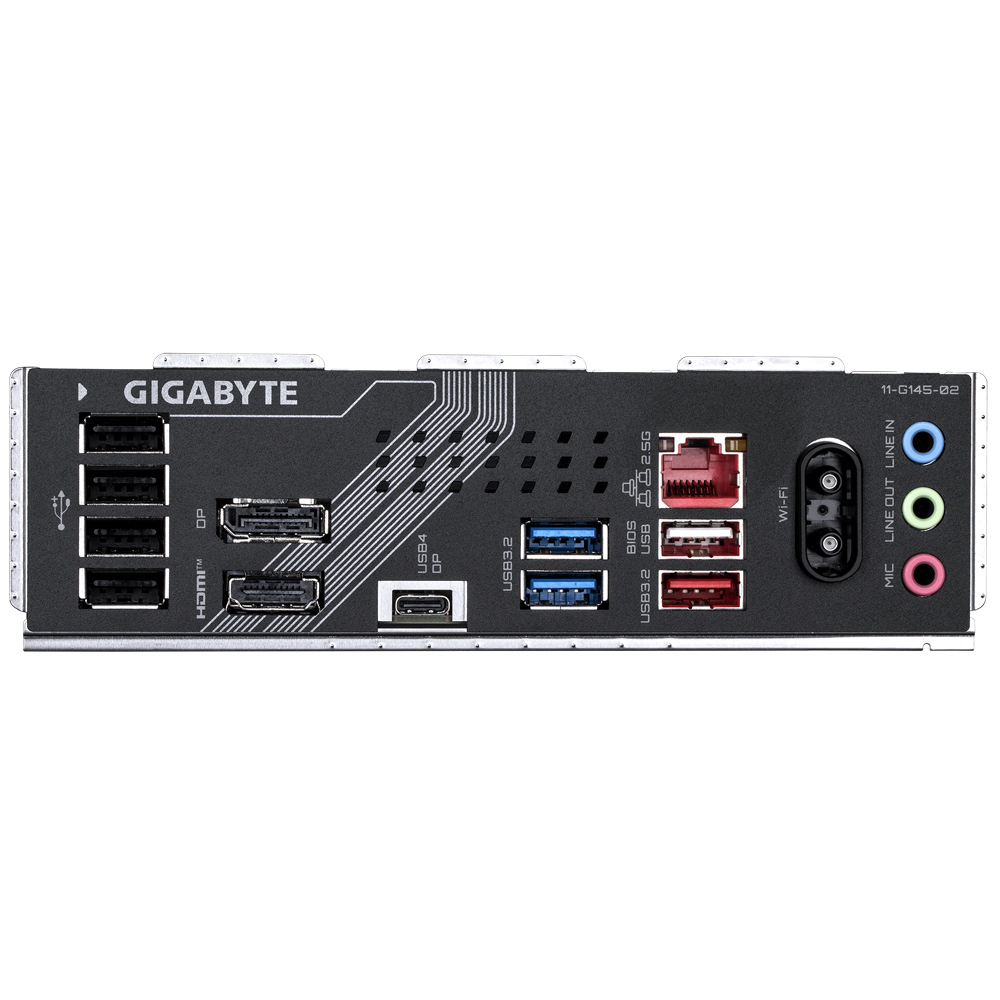

| USB | External | - 1 x USB 4.0 Type C (CPU) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports (Chipset) - 5 x USB 2.0 Ports (Chipset) |
| Internal | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Headers (Support 2 USB 3.2 Gen1 ports) - 1 x USB 3.2 Gen2 Header Type-C (10 Gb/s) (Supports 1 port) |
|
| Audio | - Realtek Audio Codec - Up to 7.1 Supported |
|
| Graphics |
Integrated Intel graphics on processor (Actual support may vary by CPU)
- 1 x DisplayPort 2.1, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI 2.1 max. resolution up to 4K 60Hz |
|
| LAN | - 1 x 2.5G LAN 10/100/1000/2500 Mb/s (Realtek) | |
| Wireless | - Realtek or Intel Wifi - (varies on Revision) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard |
|
| Storage Interfaces | CPU | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset | - 2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) | |
| Notes | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Lighting | 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header |
|
| Fan Headers | 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header |
|
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
|
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Find the full list of features at www.gigabyte.com
Form Factor:
ATX
BTF / Stealth Support:
GTIN:
4719331866532
MPN:
B860 GAMING X WIFI6E
Motherboards
Chipset:
Intel B860
M.2 Ports:
3
Memory Slots:
4
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
2
PCI Express 1x:
0
SATA Ports:
4
Socket Type:
LGA1851
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
