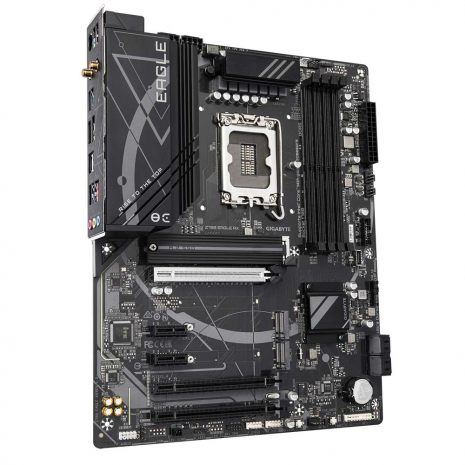

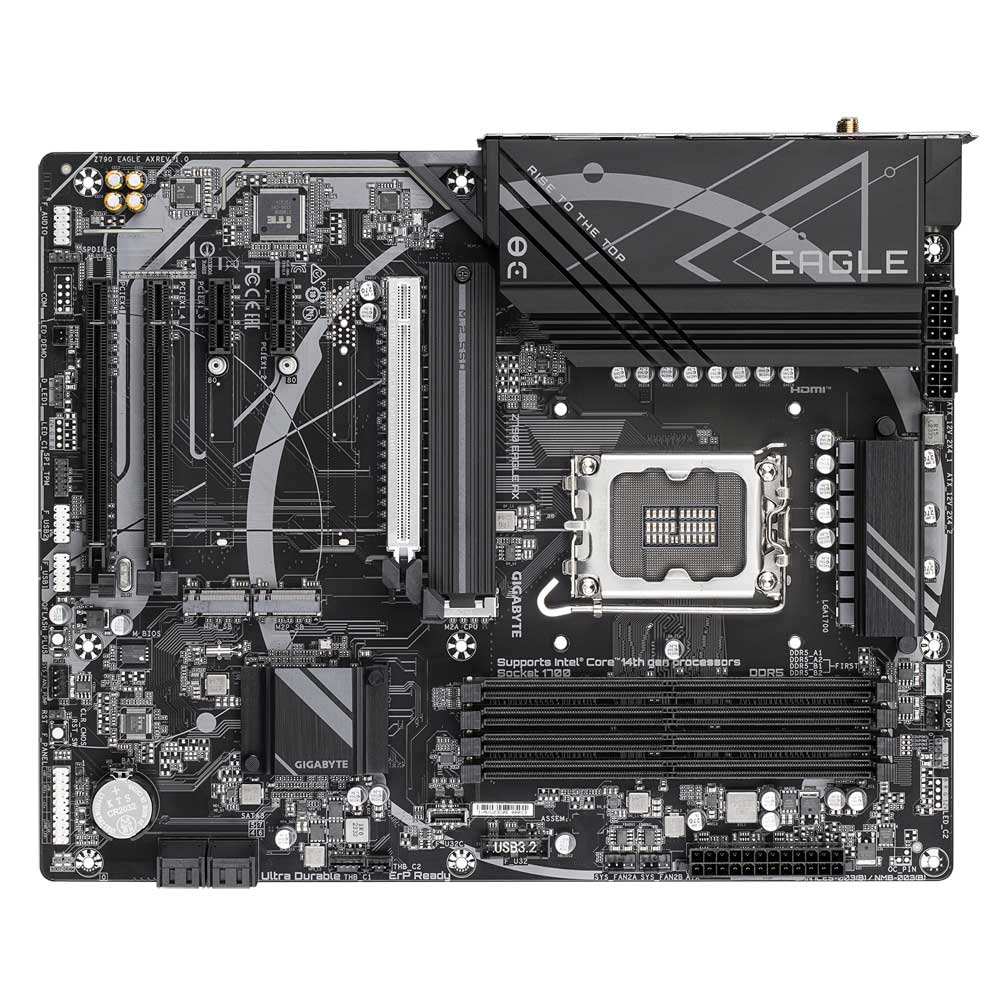

Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance: Twin 12+1+1 Phases Digital VRM Solution
Dual Channel DDR5: 4 x DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage: 3 x PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax

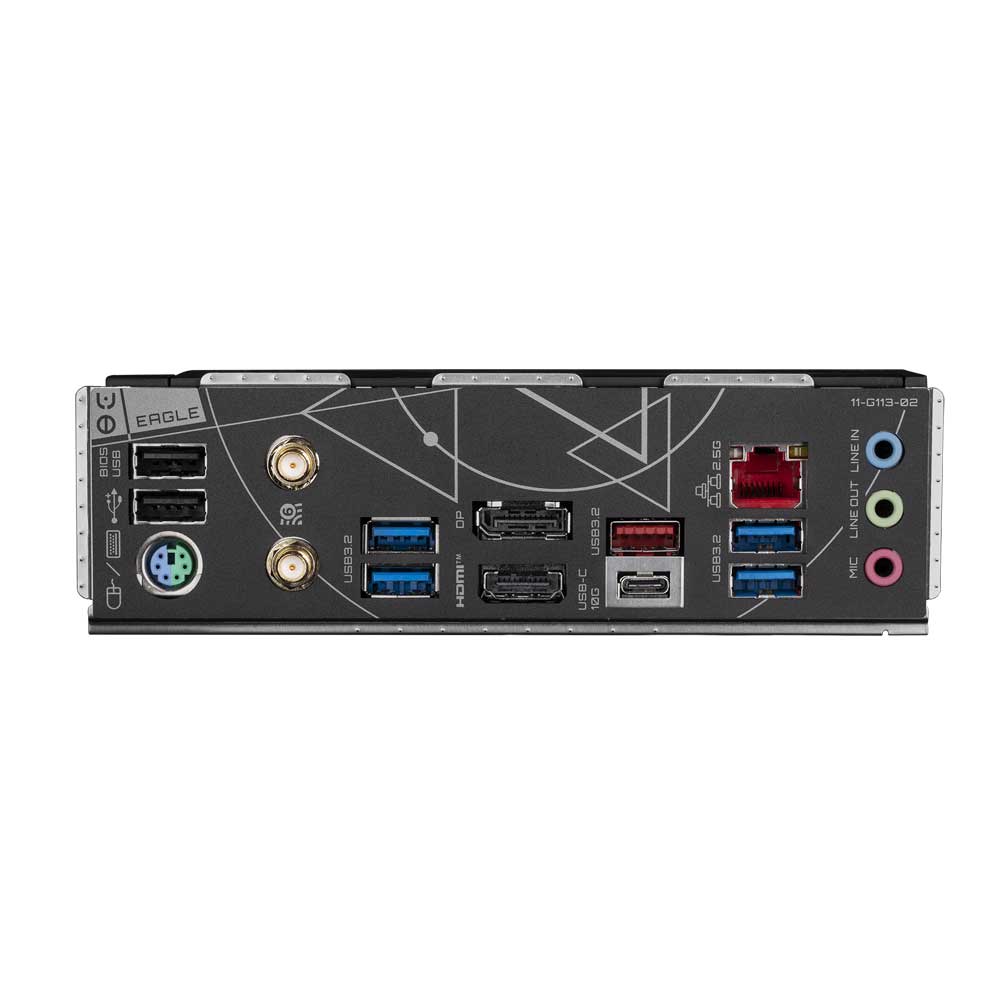

Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
CPU Socket | 12/13/14th Generation Intel® Core™ i9/i7/i5 processors - CPU Support | |
Chipset | Intel® Z790 Express Chipset | |
Memory | Architecture | 4 x DDR5 DIMMs (Dual Channel) |
Capacity | 256GB (64GB single DIMM capacity) | |
Speed | Support for DDR5 7600(O.C.) | |
Extras | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
PCI Slots | - | |
PCI-Express x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) - Graphics card should use this slot! (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) |
|
PCI-Express x4 | - | |
PCI-Express x1 | 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) | |
Multi-GPU | - | |
USB | External | 1 x USB 3.2 Gen 2 Type-C® port - Chipset 1 x USB 3.2 Gen 2 ports - Chipset 4 x USB 3.2 Gen 1 ports - Chipset 2 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs |
Internal | 1 x USB 3.2 Gen 1 Type-C®️ port - Chipset 2 x USB 3.2 Gen 1 ports - Chipset (1 header) 4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs (2 headers) |
|
Audio | Realtek® Audio CODEC High-Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
|
Graphics |
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support - 'F' model CPUs have no graphics) |
|
LAN | 1 x Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
Wireless | Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE (depending PCB Rev) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
|
Storage Interfaces | CPU | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
Chipset | 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
|
Notes | Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|
Lighting | 2 x addressable LED strip headers | |
Fan Headers | 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header |
|
PSU Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
Find the full list of features at www.gigabyte.com
