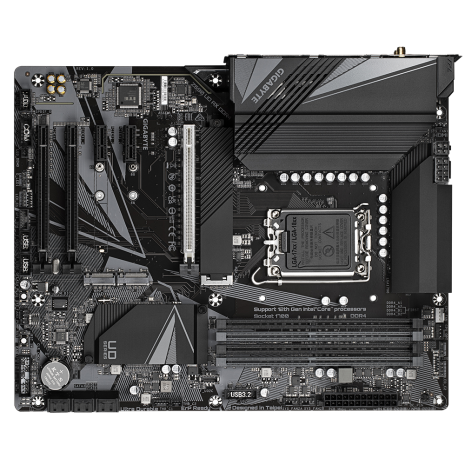

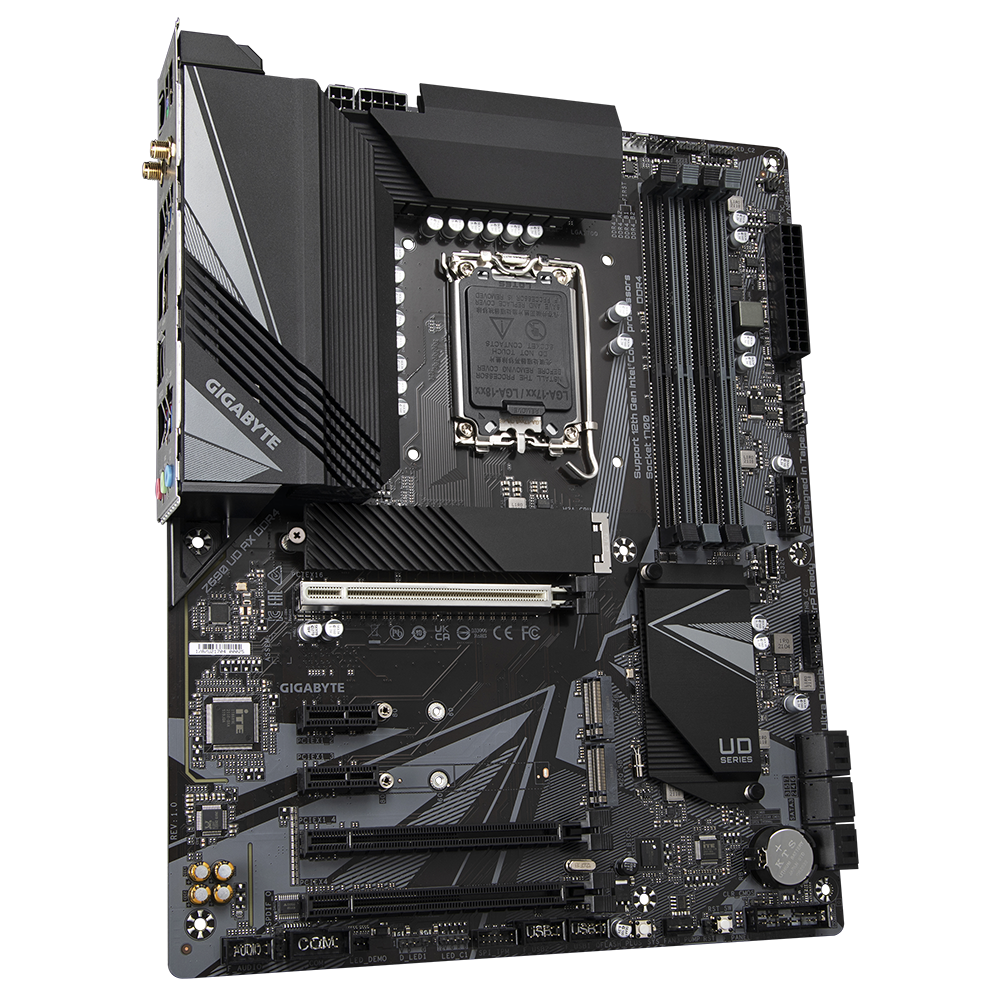

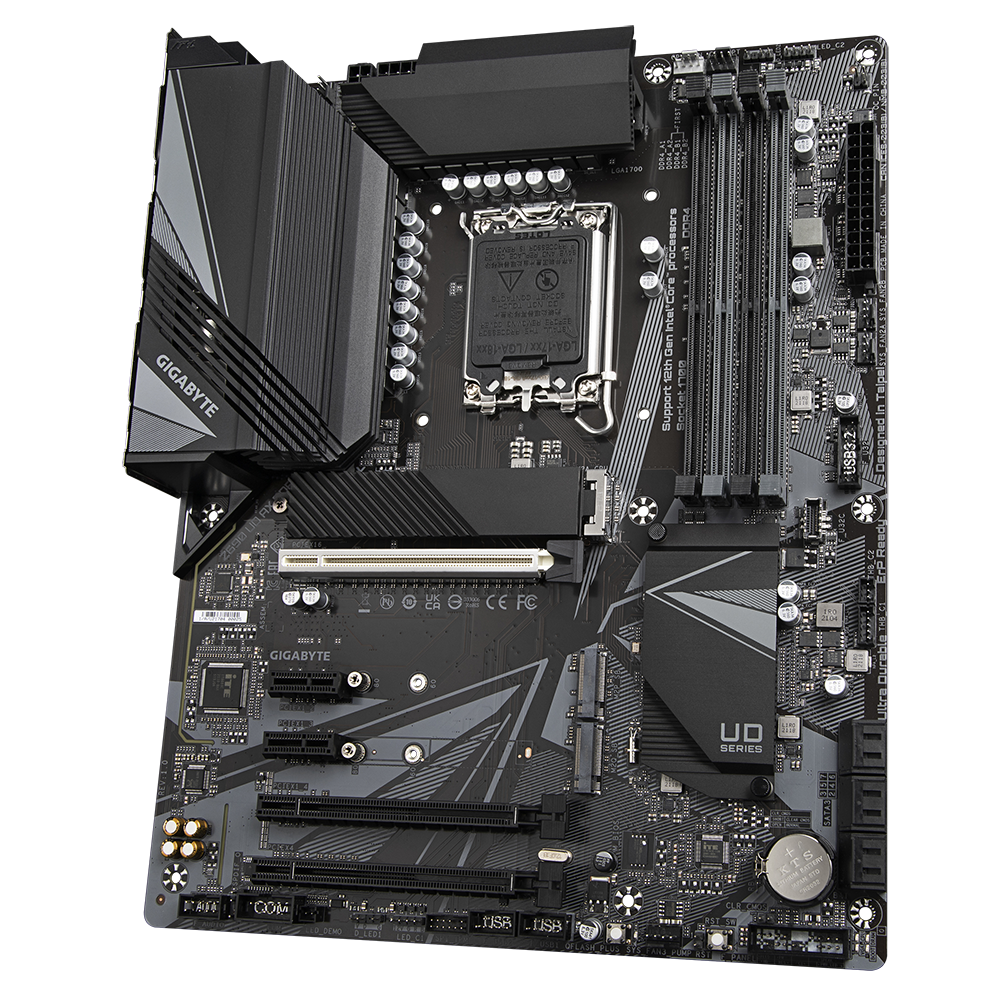

Gigabyte Z690 UD AX DDR4 ATX Motherboard

£170.00
(£204.00 inc VAT)
Crossfire Support
Wireless Support
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support
Short description:

Dual Channel DDR4 Alder Lake

LGA1700, Z690 Chipset

55519
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Intel® Z690 Motherboard with 16*+1+2 Twin Hybrid Phases Digital Power Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI6 802.11ax, Rear USB 3.2 Gen 2x2 Type-C®, Q-Flash Plus

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 16*+1+2 Twin Hybrid Phases Digital Power Design with 60A Power Stage* and Tantalum Polymer Capacitor​
  • Ultra Performance VRM Heatsinks
  • Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna
  • Fast 2.5 GbE LAN with Bandwidth Management
  • 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
  • SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Form Factor ATX Form Factor; 30.5cm x 24.4cm
CPU Socket 12th Generation Intel® Core™ i9/i7/i5 processors
Chipset Intel® Z690 Express Chipset
Memory Architecture 4 x DDR4 DIMMs (Dual Channel)
Capacity 128GB (32GB single DIMM capacity)
Speed 12th Generation Intel® Core™ i9/i7/i5 processors: Up to 5333(O.C.) MHz
Extras Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Slots -
PCI-Express x16 1 x PCI Express x16 slot, running at x16 (PCIEX16) - Graphics card should use this slot!
    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
    (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
PCI-Express x4 -
PCI-Express x1 2 x PCI Express x1 slots
(Slots conform to PCI Express 3.0 standard.)
Multi-GPU Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

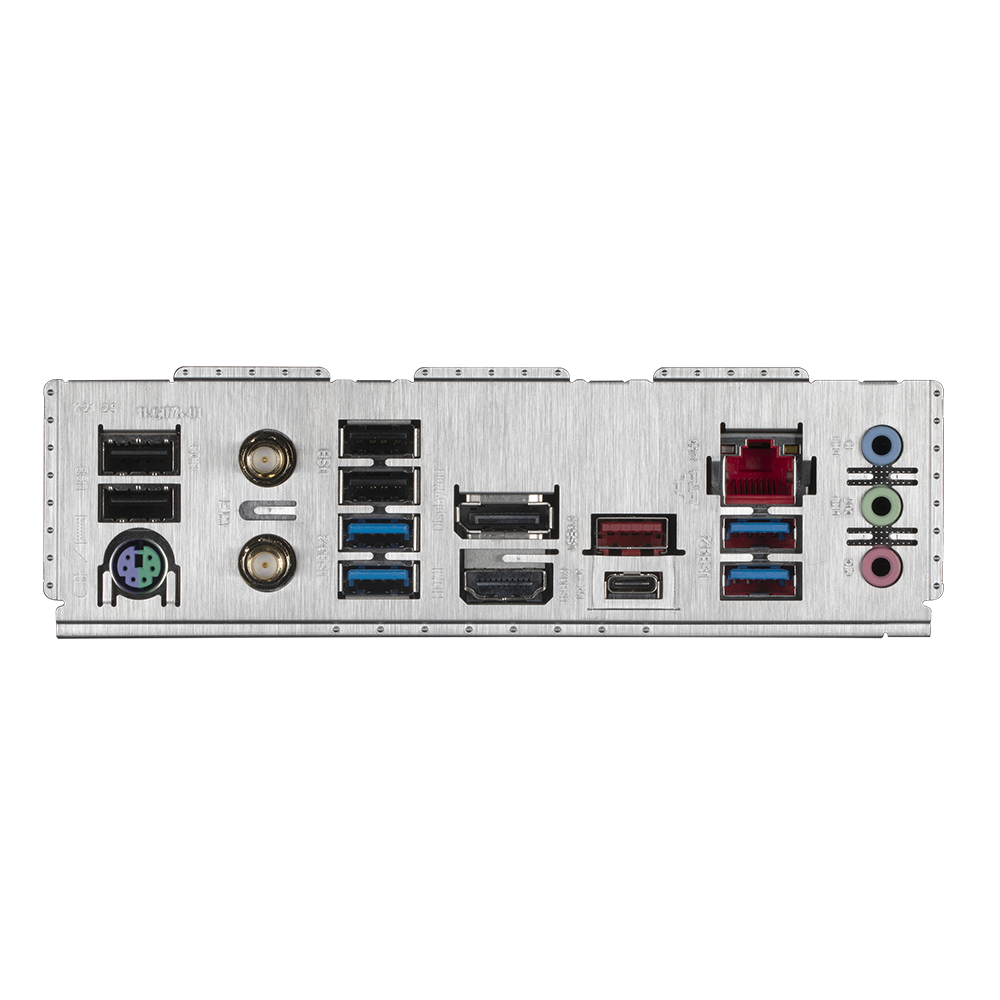

USB External 1 x USB 3.2 Gen 2x2 Type-C® port - Chipset
1 x USB 3.2 Gen 2 ports - Chipset
4 x USB 3.2 Gen 1 ports - Chipset
4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs
Internal 1 x USB 3.2 Gen 1 Type-C®️ port - Chipset
2 x USB 3.2 Gen 1 ports - Chipset
4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs
Audio Realtek® Audio CODEC
High-Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
LAN 1 x Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Intel® Wi-Fi 6 AX2xx  (wil be AX200 / 201 / 211 - depending on current PCB revision - please email us if you need to confirm)
BLUETOOTH 5.2
Storage Interfaces CPU 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
6 x SATA 6Gb/s connectors
Notes Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
Lighting 2 x addressable LED strip headers
2 x RGB LED strip headers
Fan Headers 1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
PSU Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector

Find the full list of features at www.gigabyte.com

Form Factor:
ATX
GTIN:
4719331827625
MPN:
Z690 UD AX DDR4

Motherboards

Chipset:
Intel Z690
M.2 Ports:
3
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
3
PCI Express 1x:
2
SATA Ports:
6
SLI / Crossfire Support:
Crossfire Support
Socket Type:
LGA1700
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+ −
