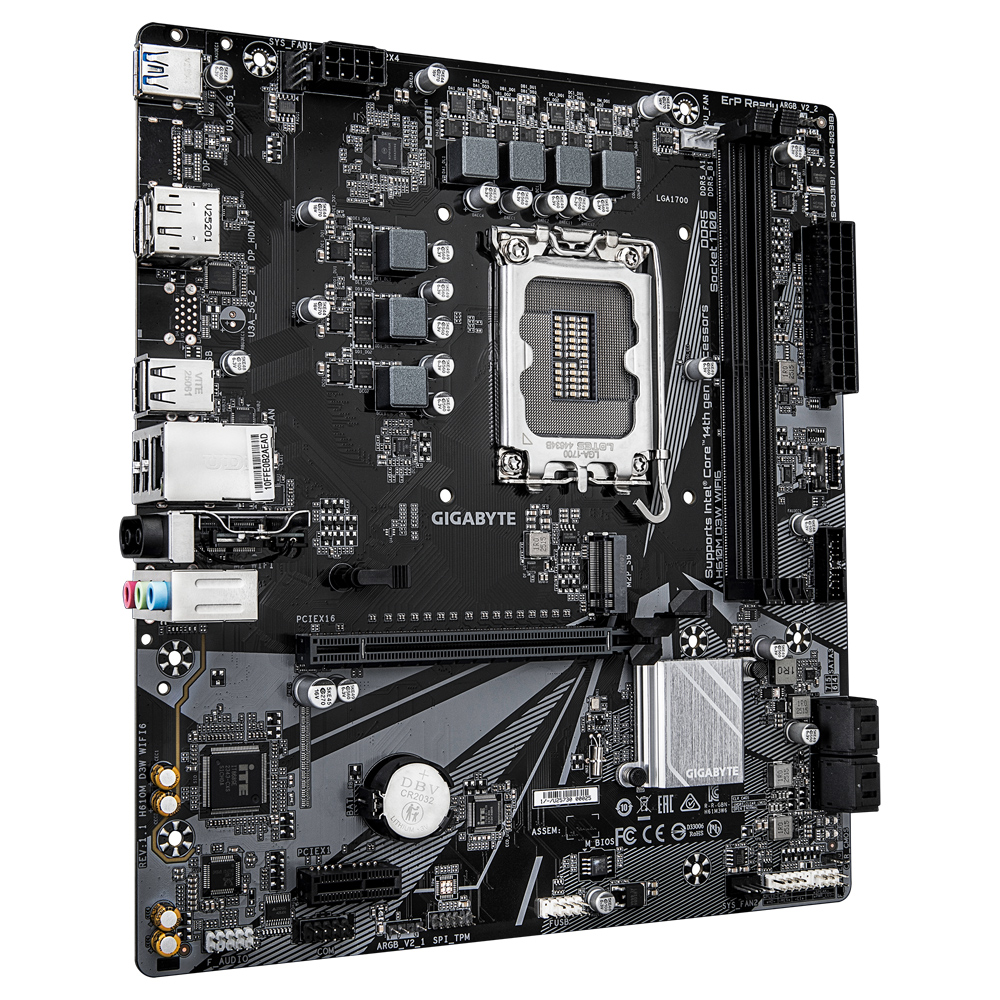

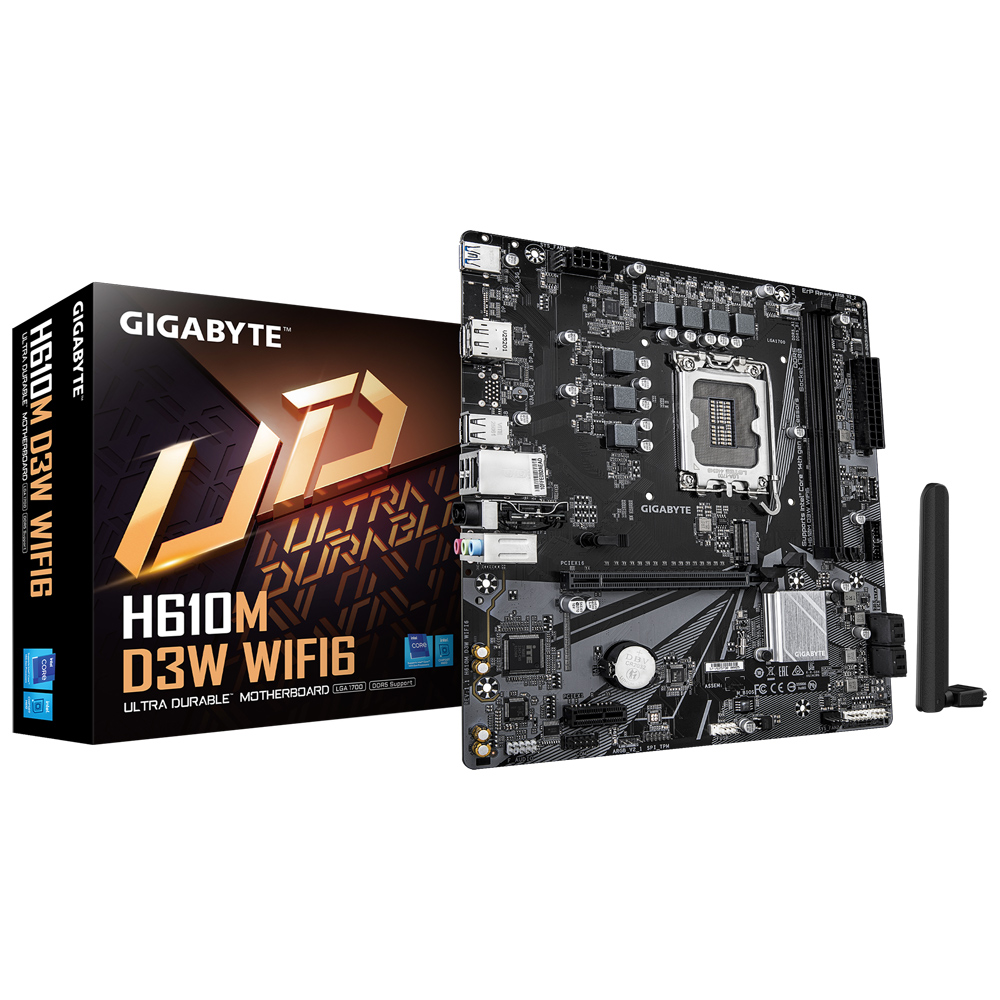

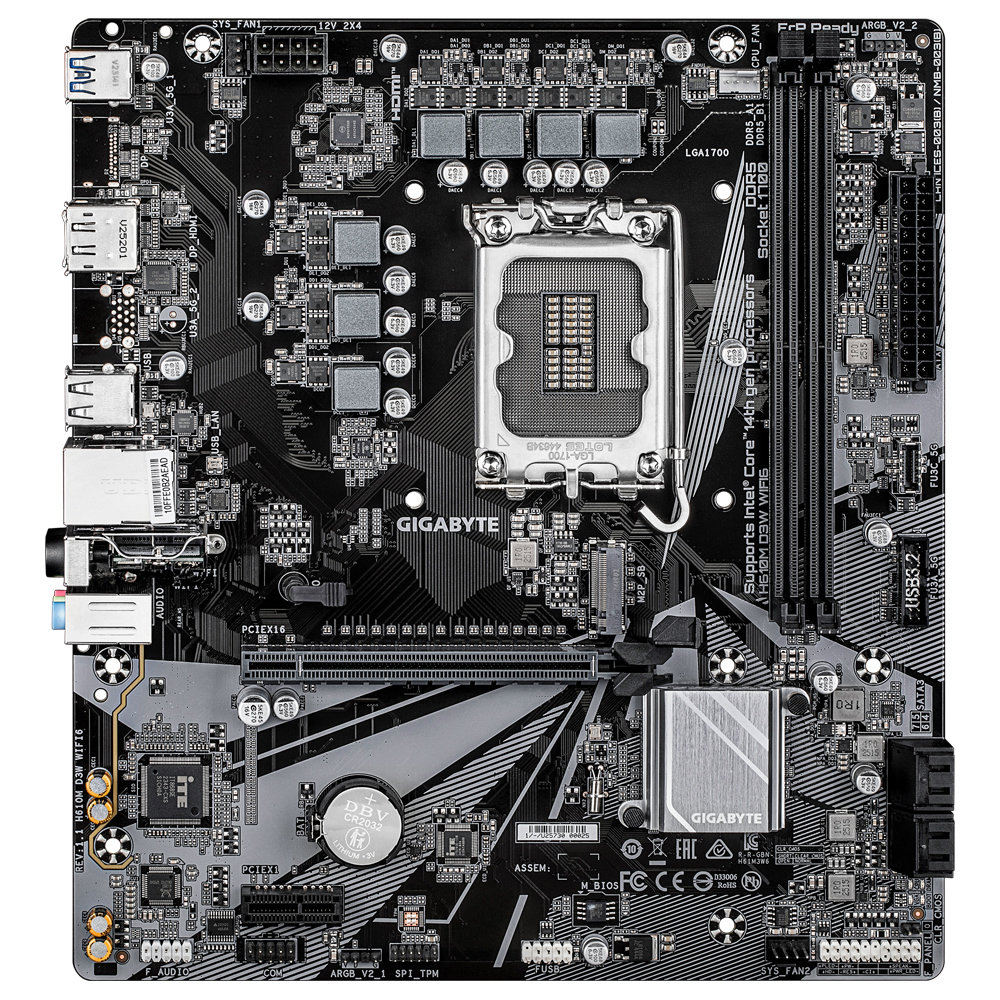

Gigabyte H610M D3W WIFI6 DDR5 MicroATX LGA1700 Motherboard

£72.00
(£86.40 inc VAT)
Wireless Support
Supports Digital RGB
Short description:

Dual Channel DDR5 Alder Lake

LGA1700, H610 Chipset MicroATX

55620
2
+ −

For shippable items by DPD courier:

Note, we do not mail all items - typically the components categories and some peripheral categories are not shipped. Put a postcode in the shipping info tab below to confirm if shipping options are available, but some items may be pickup from our shop in Ayr only.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info
Intel® H610 Motherboard with 5+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Wi-Fi 6 802.11ax, Anti-Sulfur Resistor, Smart Fan 6
  • Supports Intel® Core™ 14th/ 13th/ 12th processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • 5+1+1 Hybrid Digital VRM Design
  • Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
  • NVMe PCIe 3.0 x4 M.2
  • DisplayPort / HDMI for Multiple Display
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
  • Anti-Sulfur Resistors Design

Form Factor Micro ATX Form Factor; 24.4cm x 22cm
CPU Socket LGA1700 socket: Support for 12th / 13th / 14th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors CPU Support
Chipset Intel® H610 Express Chipset
Memory Architecture 2 x DDR5 DIMMs (Dual Channel)
Capacity 128GB (64GB single DIMM capacity)
Speed Up to 5600MT/s (Any 14th gen CPU, or 13th i7 / i9)
Up to 4800MT/s (Other 13th / 12th gen CPU)
Extras Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Slots -
PCI-Express x16 1 x PCI-E x16 - (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
PCI-Express x4 -
PCI-Express x1 1 x PCI Express x1 slot  (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Multi-GPU -

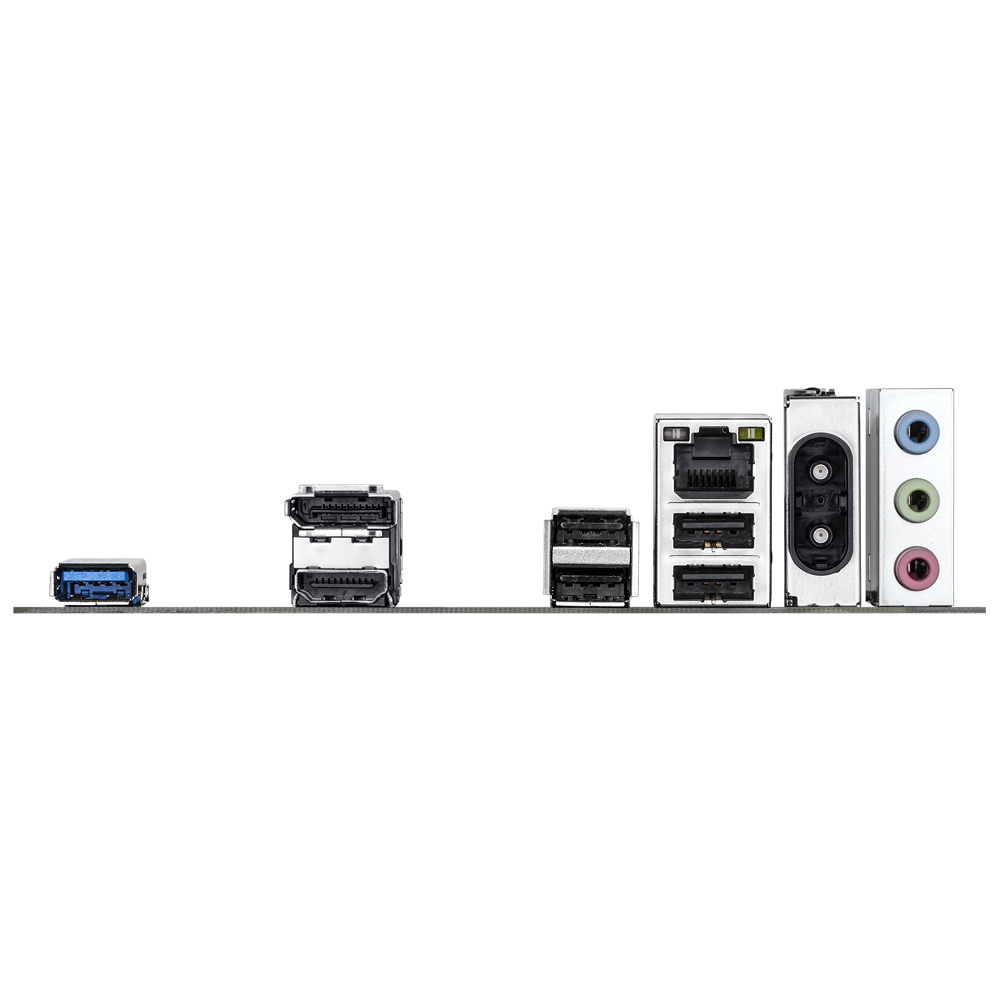

USB External 1 x USB 3.2 Gen1 ports - Chipset
4 x USB 2.0/1.1 ports - Chipset
Internal 1 x USB Type C Gen1 Internal Header
2 x USB 3.2 Gen 1 - Chipset (1 header - Type A Front Panel Style)
4 x USB 2.0/1.1 - Chipset Hub (2 headers)
Audio Realtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Graphics
Integrated Graphics Processor-Intel® HD Graphics support

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support - only available on CPUs without 'F' in the model name.)
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Wireless -
SATA Ports 4 x SATA 6Gb/s port(s)
SATA Express -
M.2 Socket Chipset:
  1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
Lighting 2 x addressable RGB Gen2 LED strip headers
Fan Headers 1 x CPU fan header
2 x system fan headers
PSU Connectors 24pin + 8pin AUX

 Find the full list of features at www.gigabyte.com.

Form Factor:
MicroATX / uATX
BTF / Stealth Support:
GTIN:
4719331877781
MPN:
H610M D3W WIFI6

Motherboards

Chipset:
Intel H610
M.2 Ports:
1
Memory Slots:
2
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
1
SATA Ports:
4
Socket Type:
LGA1700
Wireless Support:
Lighting Headers:
Supports Digital RGB
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+ −
