- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard：To Ensure M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN

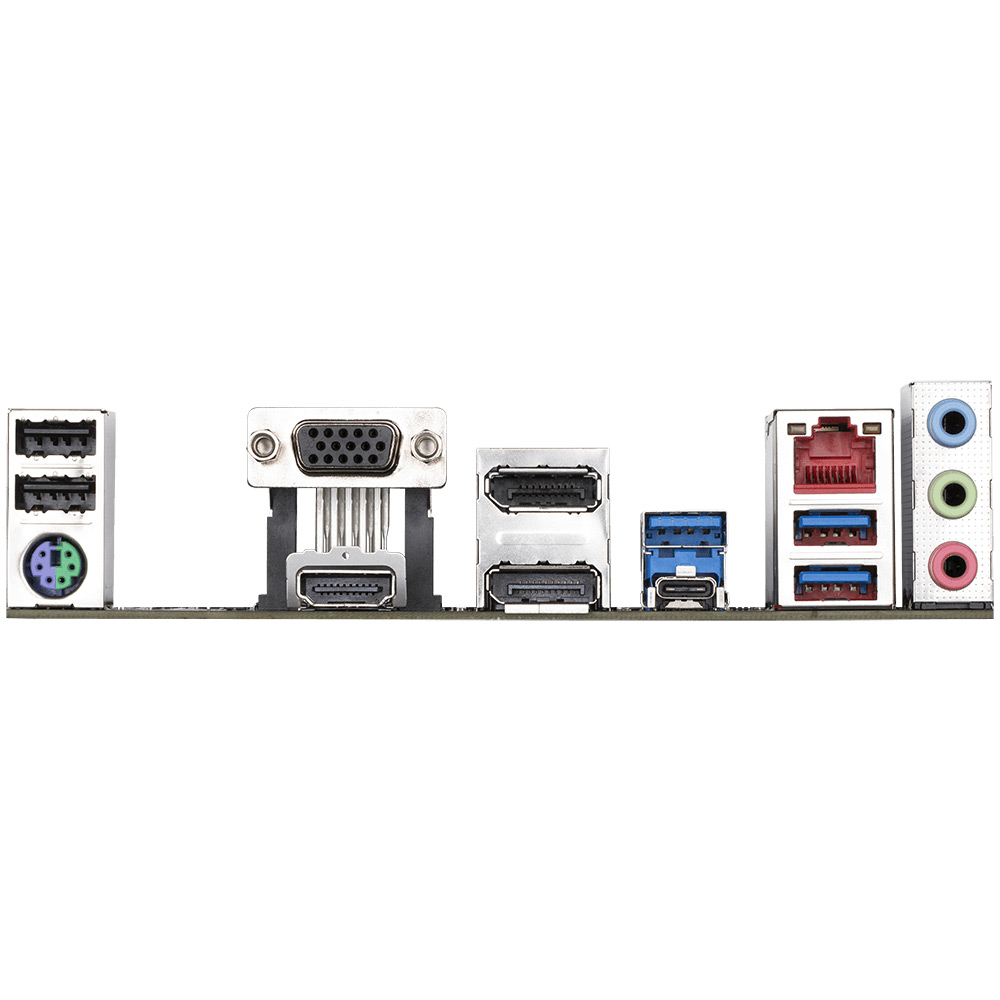

- Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

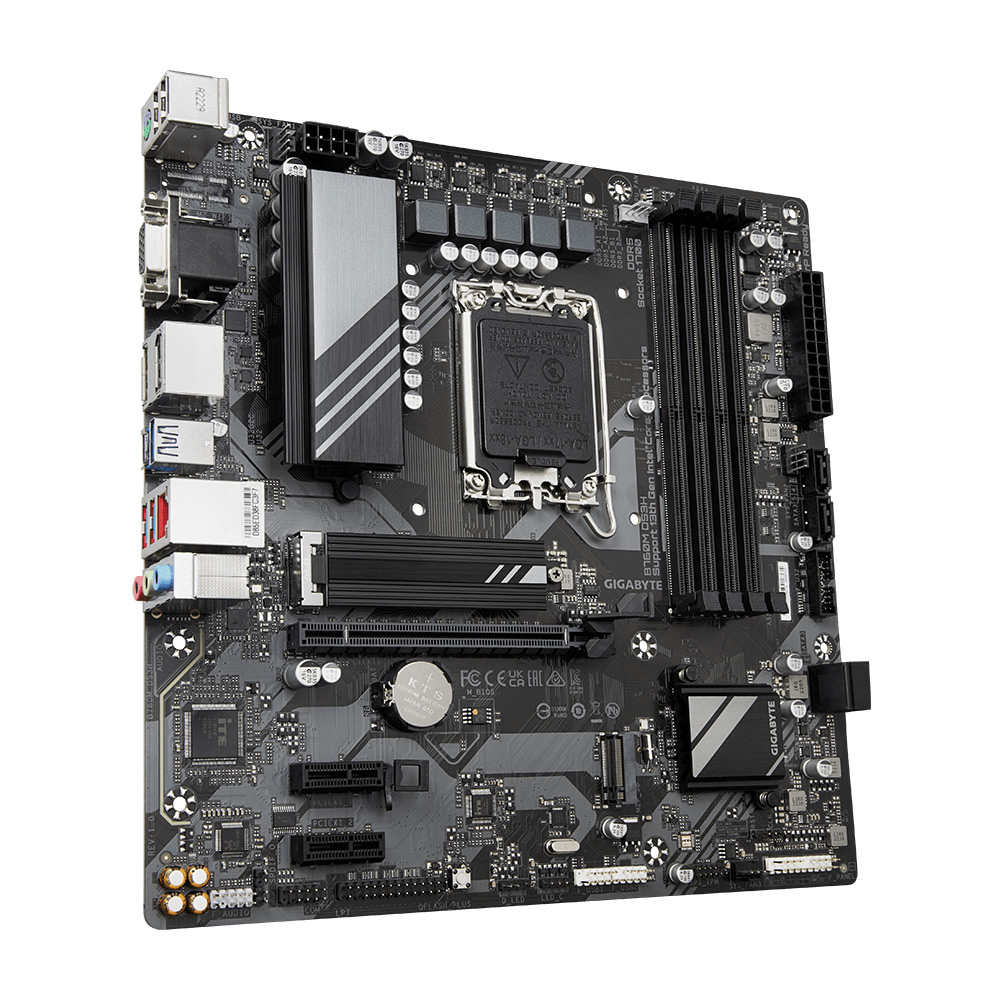

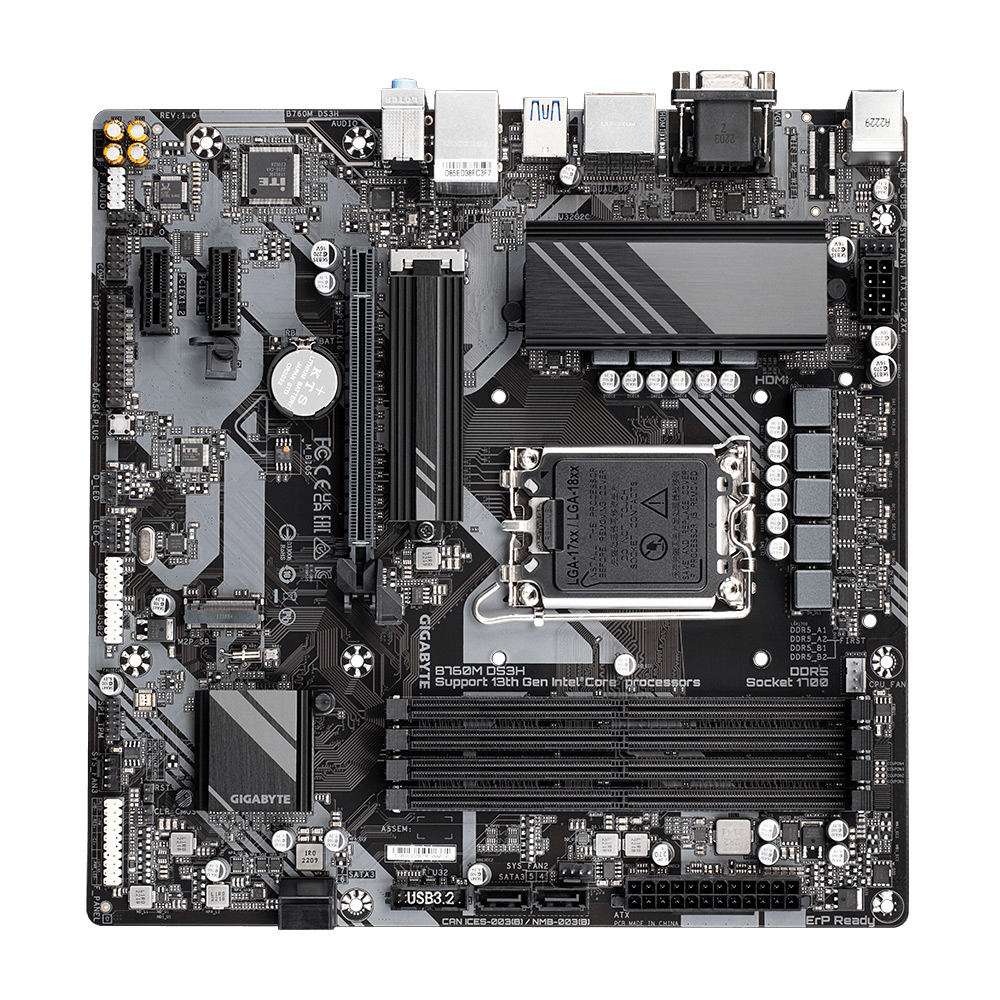

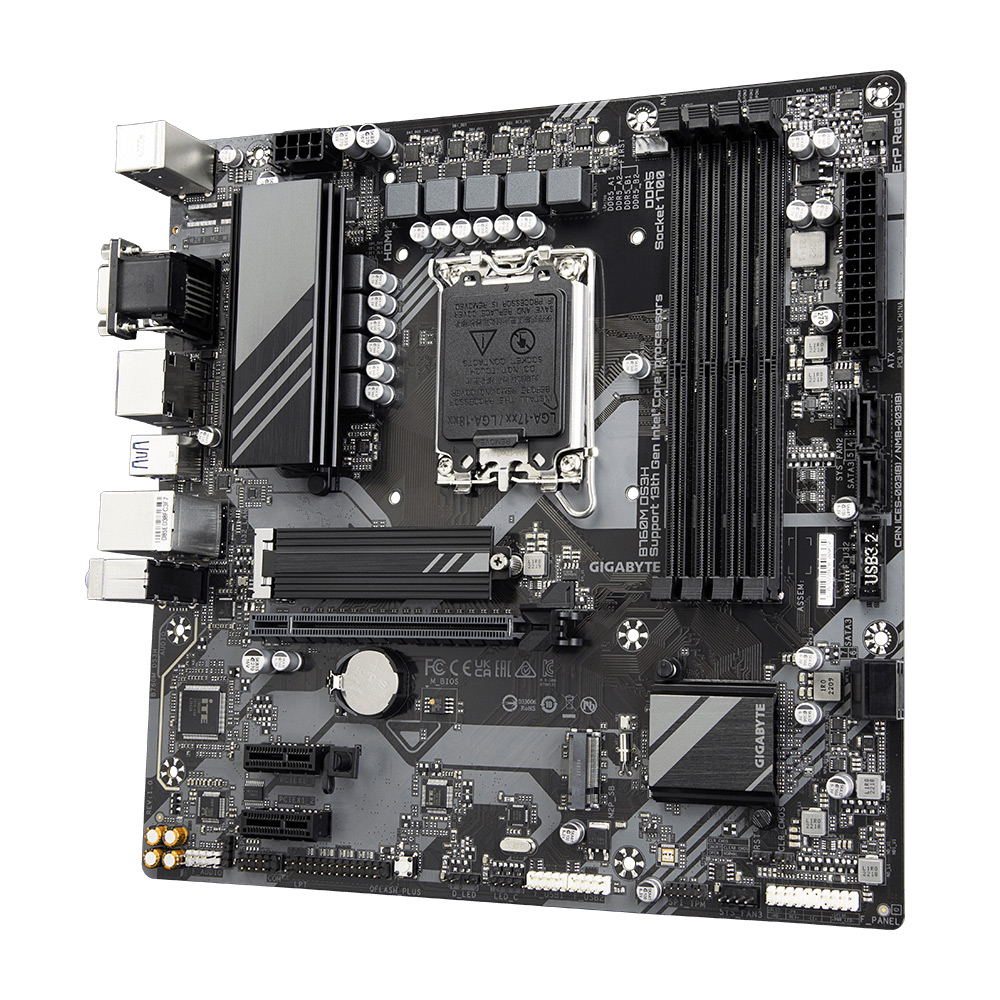

| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| CPU Socket | LGA1700 socket: Support for the 13th and 12th Generation Intel - CPU Support | |
| Chipset | Intel® B760 Express Chipset | |
| Memory | Architecture | 4 x DDR5 DIMMs (Dual Channel) |
| Capacity | 256GB (64GB single DIMM capacity) | |
| Speed | Support for DDR5 up to 7600MT/s (with 13th / 14th gen i7 / i9 CPUs) Support for DDR5 up to 4800MT/s with 13th gen i5/ i3 or any 12th gen CPUs) |
|
| Extras | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| PCI Slots | - | |
| PCI-Express x16 | 1 x PCI Express x16 slot, running at x16 PCIe 4.0 | |
| PCI-Express x4 | - | |
| PCI-Express x1 | 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 | |
| Multi-GPU | - | |
| USB | External | 1 x USB 3.2 Gen2 Type C - Chipset 3 x USB 3.2 Gen1 ports - Chipset 2 x USB 2.0/1.1 ports - Chipset |
| Internal |
2 x USB 3.2 Gen 1 - Chipset (1 header - Type A Front Panel Style) |
|
| Audio | Realtek® Audio codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Graphics |
Integrated Graphics Processor-Intel® HD Graphics support
1 x VGA D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version (HDCP 2.3 on one port) (Graphics specifications may vary depending on CPU support - only available on CPUs without 'F' in the model name.)
|
|
| LAN | 1 x Realtek® 2.5 GbE LAN chip (2500/1000/100 Mbit) | |
| Wireless |
-
|
|
| SATA Ports | 4 x SATA 6Gb/s port(s) | |
| SATA Express | - | |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
| Lighting | 1 x Addressable LED strip header 1 x RGB LED strip header |
|
| Fan Headers | 1 x CPU fan header 3 x system fan headers |
|
| PSU Connectors | 24pin + 8pin AUX | |
Find the full list of features at www.gigabyte.com.
Form Factor:
MicroATX / uATX
BTF / Stealth Support:
GTIN:
4719331851736
MPN:
B760M DS3H
Motherboards
Chipset:
Intel B760
M.2 Ports:
1
Memory Slots:
4
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
2
SATA Ports:
4
Socket Type:
LGA1700
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
