Unparalleled Performance
Specification
| Form Factor | EATX Form Factor; 30.5cm x 26.9cm | |
| CPU Socket | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors | |
| Chipset | AMD X670E | |
| Memory | Architecture | 4 x DDR5 DIMMs (Dual Channel) ECC/non-ECC, un-buffered |
| Capacity | 128GB (32GB single DIMM capacity) | |
| Speed | Up to 6600Mhz(OC) | |
| Extras | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| PCI Slots | 0 | |
| PCI-Express x16 | - 1 x PCIe 5.0 x16 Slot (PCIXE16), supports x16 speed - 1 x PCIe 4.0 x16 Slot (PCIEX4), supports x4 speed - 1 x PCIe 3.0 x16 Slot (PCIEX2), supports x2 speed |
|
| PCI-Express x4 | 0 | |
| PCI-Express x1 | 0 | |
| Multi-GPU | Supports AMD CrossFire™ | |

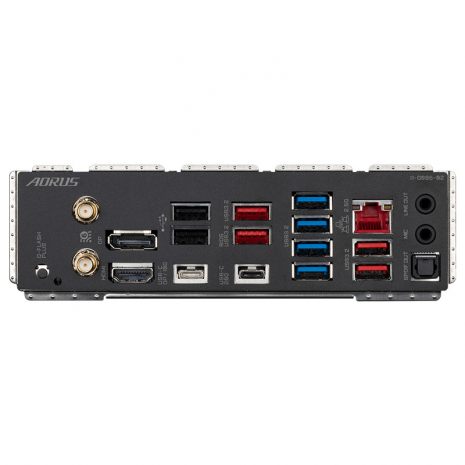

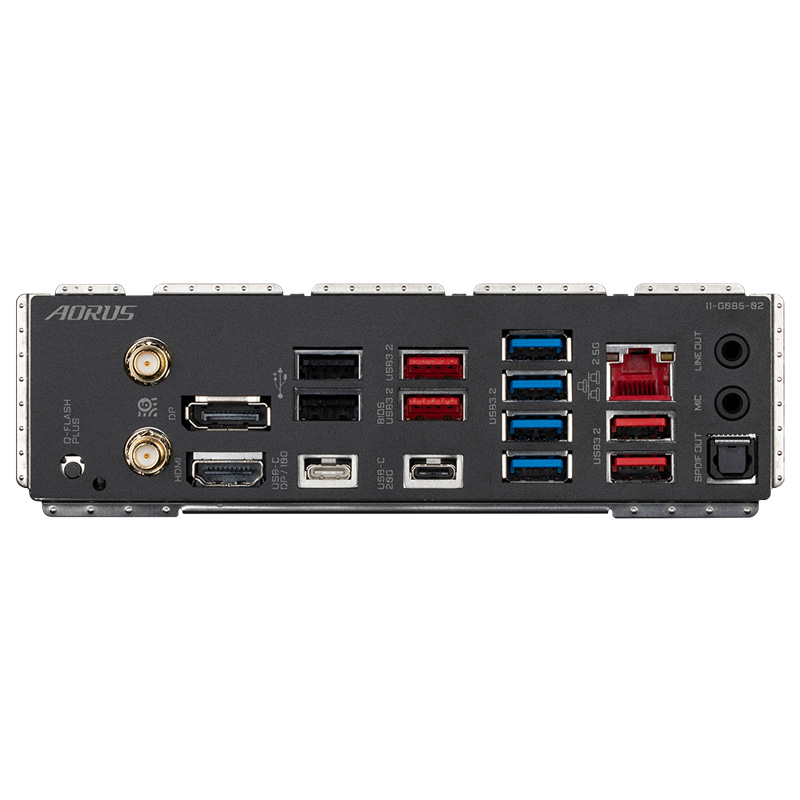

| USB | External | - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports |
| Internal | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x USB 3.2 Gen2x2 Header Type-C (20 Gb/s) (Supports 1 port) |
|
| Audio | - Realtek ALC1220 Audio Codec - DTS:X Ultra Support - Up to 7.1 Supported |
|
| Graphics |
Integrated AMD graphics on processor (Actual support may vary by CPU)
- 1 x HDMI 2.0 max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 resolution up to 4K 120Hz - 1 x USB Type C USB 3.2 Gen 2 supports Displayport output up to 4K 144Hz |
|
| LAN | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel) | |
| Wireless | - AX210 Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band with extended 6GHz band support - Supports Bluetooth 5.3 |
|
| Storage Interfaces | CPU | - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 (M2B_CPU) |
| Chipset | - 2 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) - 6 x SATA3 6.0 Gb/s Connectors |
|
| Notes | Supports RAID 0, 1, 10 for NVME SSD and SATA devices | |
| Lighting | - 3 x RGB LED Header - 2 x Addressable LED Headers |
|
| Fan Headers | - 1 x CPU fan header - 1 x water cooling CPU fan header - 4 x system fan headers - 4 x system fan / pump headers |
|
| PSU Connectors | - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors |
|
Find the full list of features at www.gigabyte.com
Form Factor:
E-ATX
GTIN:
4719331844363
MPN:
X670E AORUS MASTER
Motherboards
Chipset:
AMD X670E
M.2 Ports:
4
Memory Slots:
4
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
3
PCI Express 1x:
0
SATA Ports:
6
SLI / Crossfire Support:
Crossfire Support
Socket Type:
AM5
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
