Key Features
- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital 5+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Fast Networking : GbE LAN

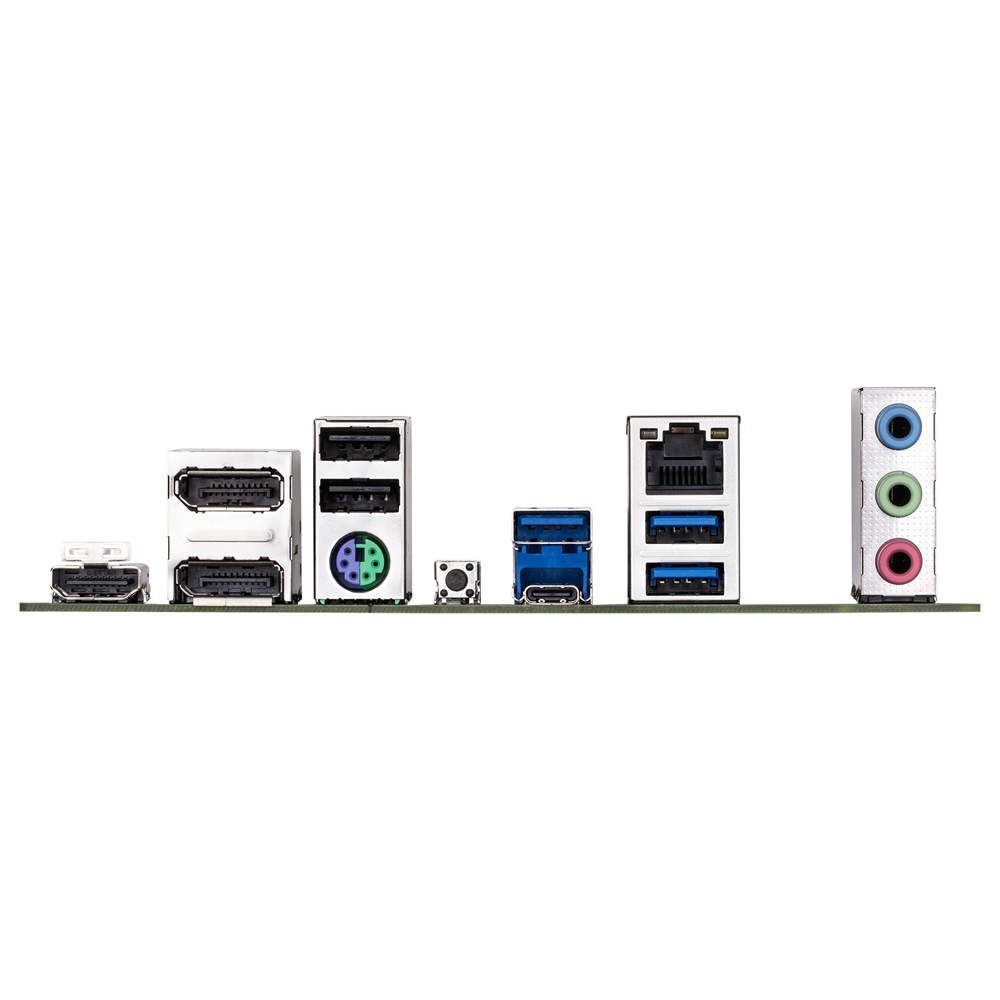

- Extended Connectivity : 2*DP, HDMI
Specification
| Form Factor | MicroATX Form Factor; 24.4cm x 24.4cm | |
| CPU Socket | Supports AMD Socket AM5 Ryzen™ 7000 - 9000 Series Processors | |
| Chipset | AMD B850 | |
| Memory | Architecture | 4 x DDR5 DIMMs |
| Capacity | 256GB (64GB single DIMM capacity) | |
| Speed | Up to 8200Mhz(OC)* | |
| Extras | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules and AMD EXtended Profiles for Overclocking (AMD EXPO™) | |
| PCI Slots | 0 | |
| PCI-Express x16 | - 1 x PCIe 5.0 x16 Slot (PCIXE16), supports x16 speed - 1 x PCIe 3.0 x16 Slot (PCIEX1_1/2/3), supports x4 speed |
|
| PCI-Express x4 | (see above - larger format 16x slots running at x1 speed) | |
| PCI-Express x1 | - | |
| Multi-GPU | - | |
| USB | External | - 1 x USB 3.2 Gen1 Type-C Port (5 Gb/s) - 1 x USB 3.2 Gen1 Type-A Port (10 Gb/s) - 3 x USB 3.2 Gen1 Ports (1 from CPU, 2 from Chipset) - 2 x USB 2.0 Ports (1 from CPU, 1 from Chipset) |
| Internal | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Headers (Support 2 USB 3.2 Gen1 ports) - 1 x USB 3.2 Gen1 Header Type-C (5 Gb/s) (Supports 1 port) |
|
| Audio | - Realtek Audio Codec - Up to 7.1 Supported |
|
| Graphics |
Integrated AMD graphics on processor (Actual support may vary by CPU)
- 2 x DisplayPort 1.4, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI 2.1 max. resolution up to 4K 60Hz |
|
| LAN | - 1 x 1G LAN 10/100/1000 Mb/s (Realtek) | |
| Wireless | - | |
| Storage Interfaces | CPU | - 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs* - 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:* |
| Chipset | - 4 x SATA3 6.0 Gb/s Connectors | |
| Notes | Supports RAID 0, 1, 10 for NVME SSD and SATA devices | |
| Lighting | 1 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header |
|
| Fan Headers | 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header |
|
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
|
*1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* Regarding M.2 Socket Support
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Find the full list of features at www.gigabyte.com
Form Factor:
MicroATX / uATX
BTF / Stealth Support:
GTIN:
4719331867058
MPN:
B850M D3HP
Motherboards
Chipset:
AMD B850
M.2 Ports:
2
Memory Slots:
4
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
1
SATA Ports:
4
Socket Type:
AM5
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
