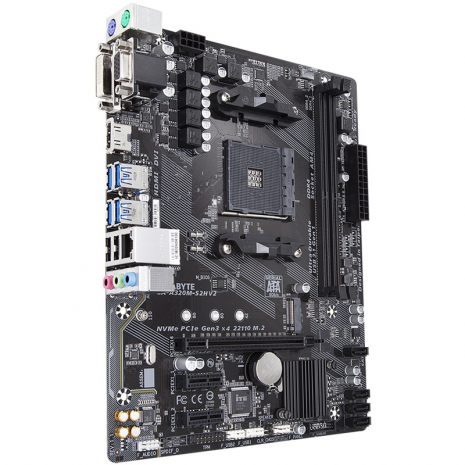

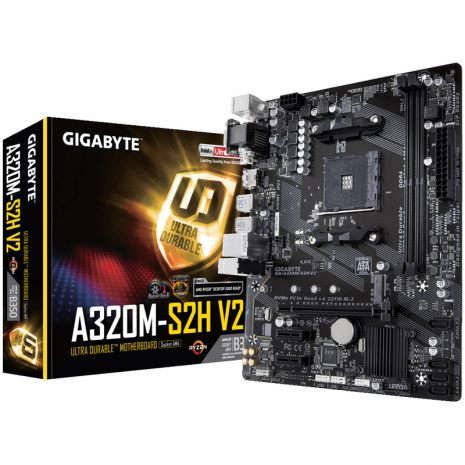

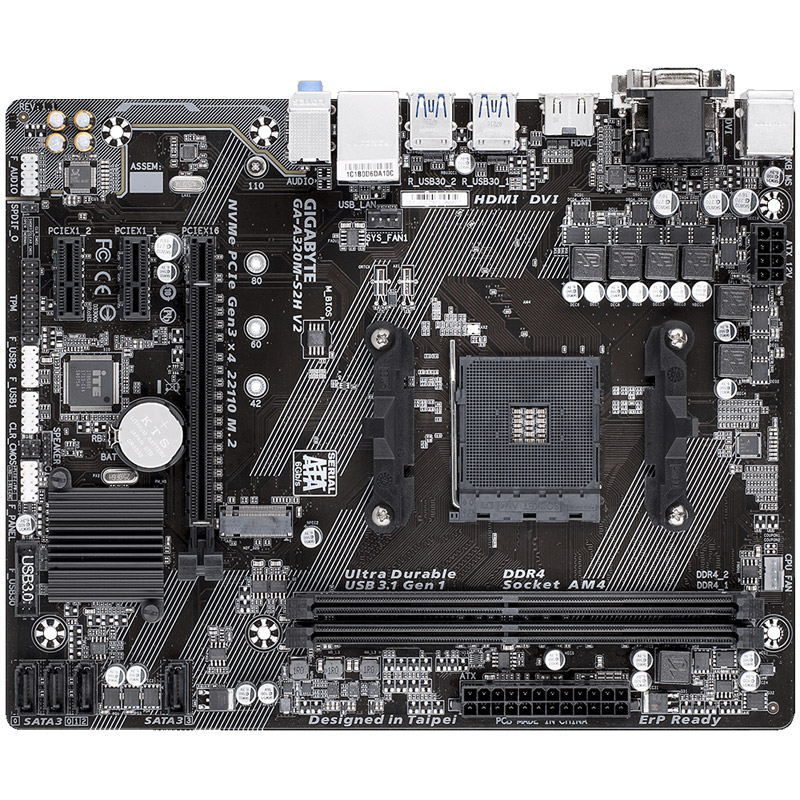

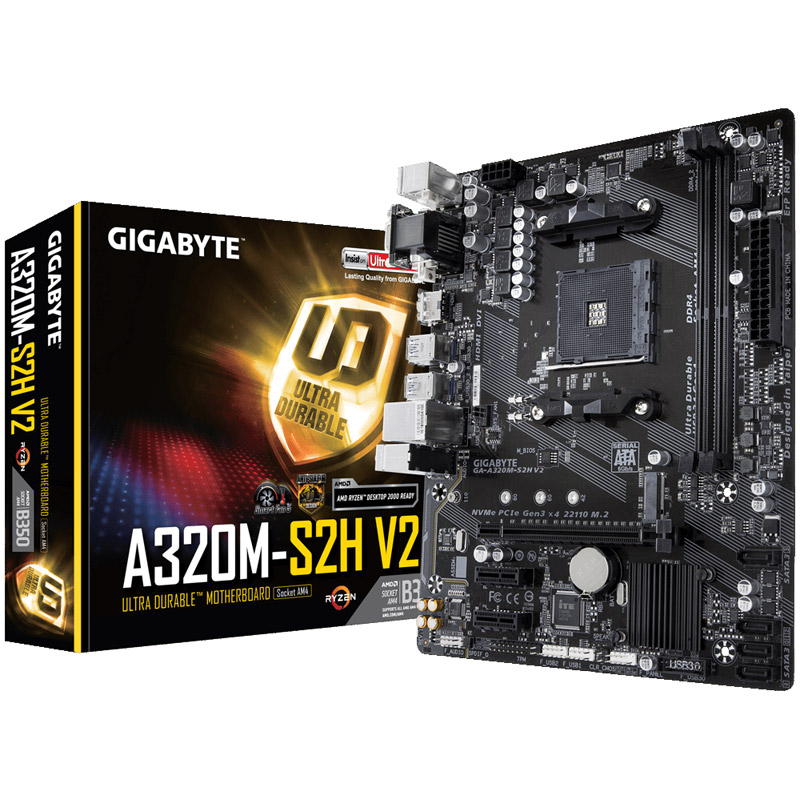

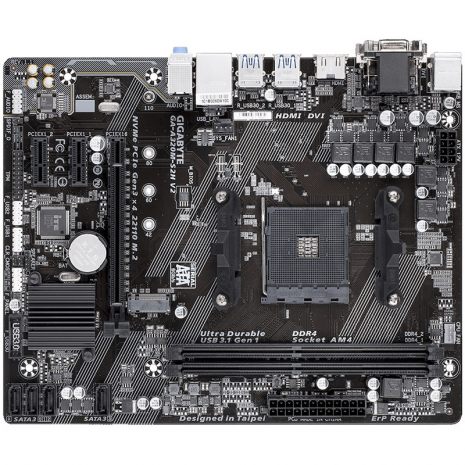

Gigabyte GA-A320M-S2H V2 AM4 MicroATX Motherboard

£41.00
(£49.20 inc VAT)
Short description:

B350 Chipset
USB 3.0

55421
+
Form Factor MicroATX Form Factor 24.4 cm x 19.5cm
CPU Socket AM4 for AMD Ryzen and 7th Gen A-Series / Athlon CPUs (CPU Support)
Chipset AMD B350 (not a typo, A320 S2H V2 does use a B350 chipset even though the name suggests otherwise!)
Memory Slots 2 x DDR4, up to 32GB, Dual Channel
Memory Speed Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
* Actual support may vary by CPU.
PCI Slots 0
PCI-Express 16x 1 x PCI Express x16 slot, running at x16 3.0
PCI-Express 4x 0
PCI-Express 1x 2 x PCIe x1 2.0
Multi-GPU -

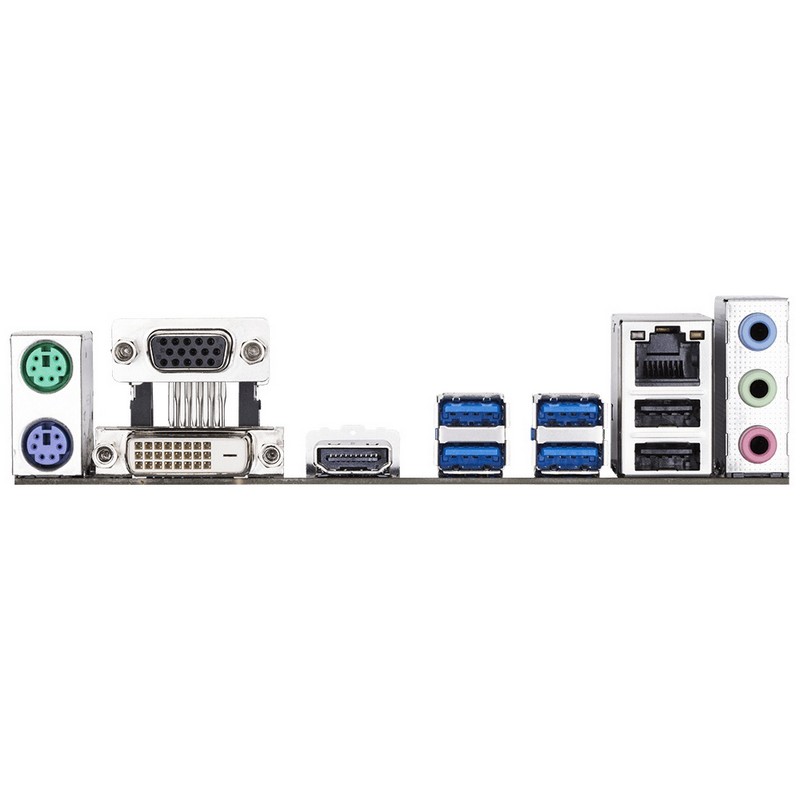

USB Ports Chipset

2 x USB 3.0 ports Internal
2 x USB 2.0/1.1 ports Rear, 4 Internal

CPU

4 x USB 3.0 Ports Rear
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
Analogue Outputs
Graphics 1 x VGA D-Sub Port Max 1920 x 1200
1 x DVI-D Port Max 1920 x 1200
1 x HDMI Port Max 4096 x 2160 @ 24Hz HDMI 1.4
* Graphics Support only on Supported Processors eg APU models. Ryzen non-APU processors don't support internal graphics (only Ryzen models ending in G have graphics)
LAN Realtek GBE LAN Chip
Wireless -
SATA Ports 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
SATA Express -
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
* Only Ryzen series CPUs Support PCIe Storage
Lighting Yellow LEDs
Fan Headers 1 x CPU fan header
1 x System fan header
PSU Connectors 24pin + 8pin AUX



  • Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • GIGABYTE™ UEFI BIOS
  • All New GIGABYTE™™ APP Center, Simple and Easy Use
Form Factor:
MicroATX / uATX
GTIN:
04719331804725
MPN:
GA-A320M-S2H V2

Motherboards

Chipset:
AMD B350
M.2 Ports:
1
Memory Slots:
2
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
2
SATA Ports:
4
Socket Type:
AM4
Wireless Support:
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+
