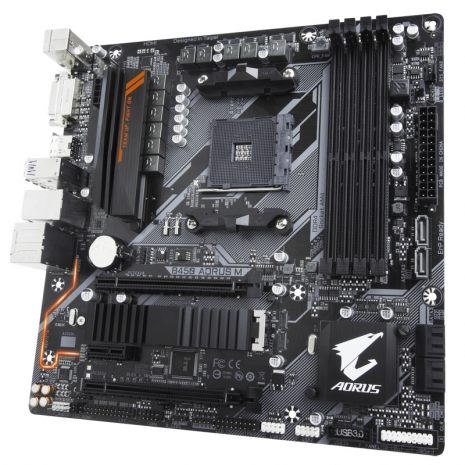

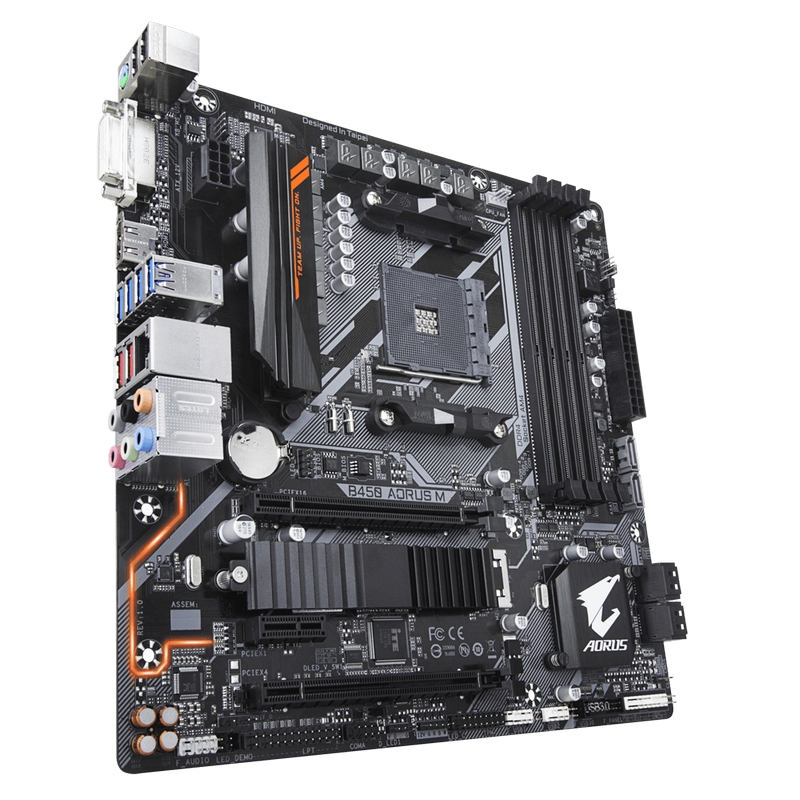

Gigabyte B450 AORUS M MicroATX Motherboard

£72.00
(£86.40 inc VAT)
Crossfire Support, 2 x Digital RGB, 2 x RGBW Headers
Short description:

B450 Chipset

55414
+
AMD B450 AORUS Motherboard with Hybrid Digital PWM, M.2 with Thermal Guard, GIGABYTE Gaming LAN with 25KV ESD Protection, Anti-sulfur Design, CEC 2019 ready

Form Factor MicroATX Form Factor; 24.4cm x 24.4cm
CPU Socket AM4 for Ryzen / Ryzen 2 (CPU Support)
Chipset AMD B450
Memory Slots 4 x DDR4, up to 64GB, Dual Channel
Memory Speed DDR4 2133-3200 Non-ECC
PCI Slots 0
PCI-Express 16x 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI-Express 4x 0
PCI-Express 1x 1 x PCIe 2.0 x1
Multi-GPU Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB Ports Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Audio Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel
Graphics 1 x HDMI 2.0, 1 x DVI-D Outputs (Supported processors only eg APU series or Ryzen with Vega 'G')
LAN 1 x Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless -
SATA Ports 6 x SATA 6Gb/s port(s)
SATA Express -
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Lighting 1 x CPU cooler LED strip/RGB LED strip header
1 x RGB (RGBW) LED strip header
2 x Digital LED Strip Headers
RGB Illumination around audio circuit
Fan Headers 1 x CPU fan header
2 x system fan headers
PSU Connectors 24pin + 8pin AUX



  • Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • HDMI, DVI-D Ports for Multiple Display
  • Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Smart Fan 5 Features 5 Temperature Sensors and 3 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • CEC 2019 Ready, Save Power with a Simple Click
Form Factor:
MicroATX / uATX
GTIN:
04719331803858
MPN:
B450 AORUS M

Motherboards

Chipset:
AMD B450
M.2 Ports:
1
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
2
PCI Express 1x:
1
SATA Ports:
6
SLI / Crossfire Support:
Crossfire Support
Socket Type:
AM4
Wireless Support:
Lighting Headers:
2 x Digital RGB, 2 x RGBW Headers
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+
