Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
CPU Socket | AM4 - CPU Support | |
Chipset | AMD X570 | |
Memory | Architecture | 4 x DDR4 DIMMs (Dual Channel) |
Capacity | 128GB (32GB single DIMM capacity) | |
Speed | Up to 5133(O.C.) MHz | |
Extras | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
PCI Slots | - | |
PCI-Express x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
|
|
PCI-Express x4 | - | |
PCI-Express x1 | 2 x PCI Express x1 slots, integrated in the Chipset, supporting PCIe 4.0(Note)/3.0 (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. |
|

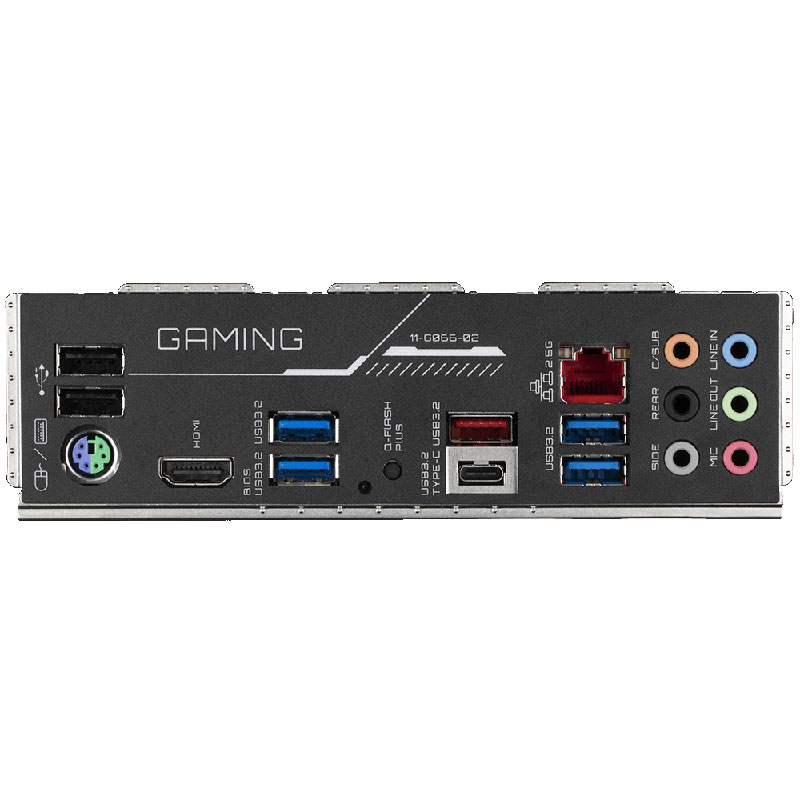

USB | External | 4 x USB 3.2 Gen 1 Type-A ports (blue) - CPU 1 x USB 3.2 Gen 2 Type-C®️ port - Chipset 1 x USB 3.2 Gen 1 Type-A ports (red) - Chipset 2 x USB 2.0/1.1 ports - Chipset |
Internal | 1 x USB 3.2 Gen 2 Type-C®️ port - Chipset 2 x USB 3.2 Gen 1 Type-A ports - Chipset 4 x USB 2.0/1.1 ports - Chipset |
|
Audio | Realtek® Audio codec High-Definition Audio 2/4/5.1/7.1-channel |
|
Graphics |
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
|
LAN | 1 x Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
Wireless | - | |
Storage Interfaces | CPU | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs |
Chipset | 2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: |
|
Notes | Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. |
|
Lighting | 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header |
|
Fan Headers | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header |
|
PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
