GIGABYTE X570 motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest AMD Ryzen™ 3000-series CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
* Doubled from 5 phases with current balancing.
• Shop Open - 10am-5.30pm Monday to Saturday

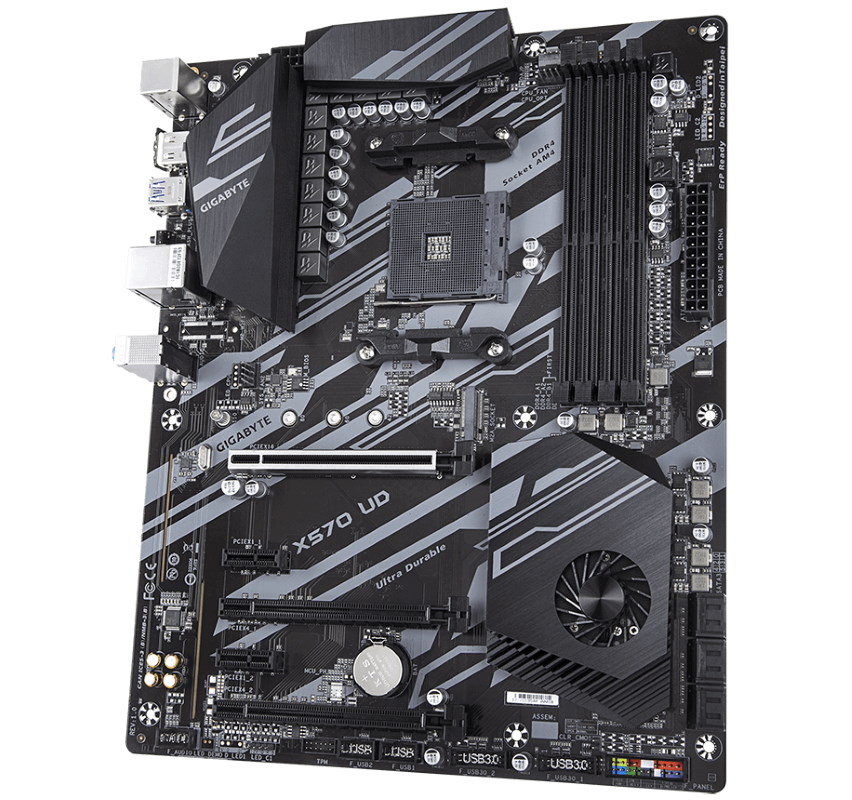

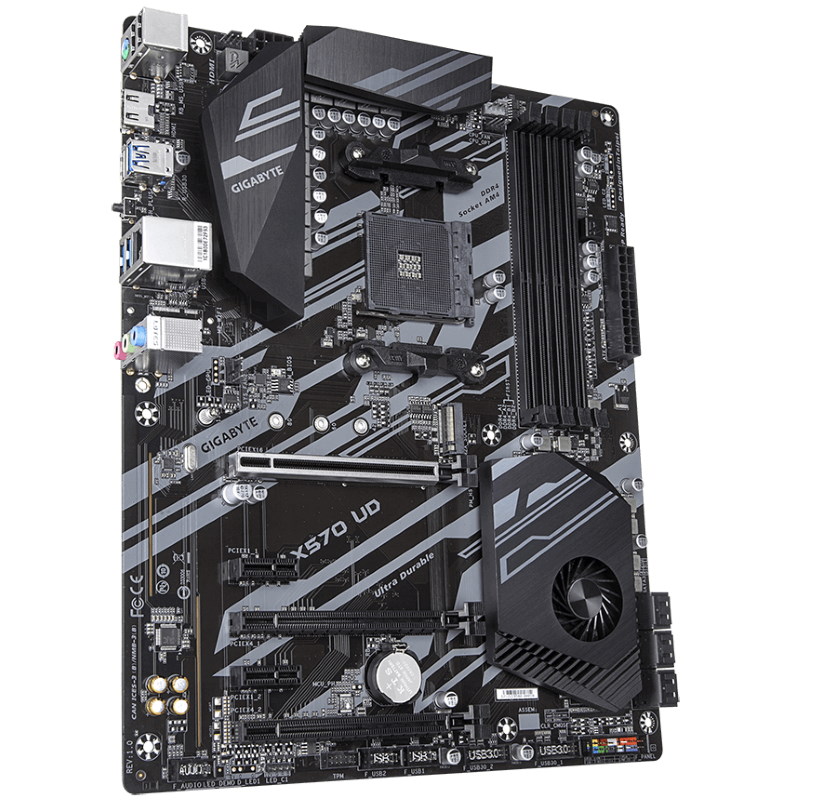

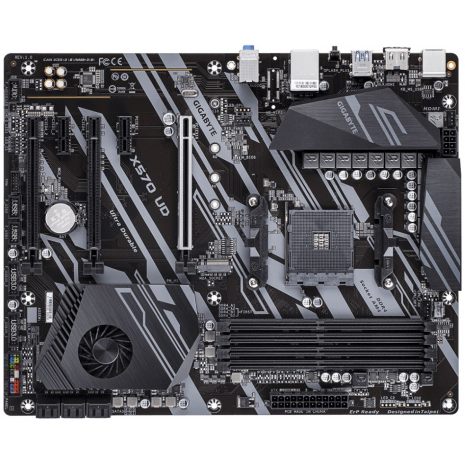

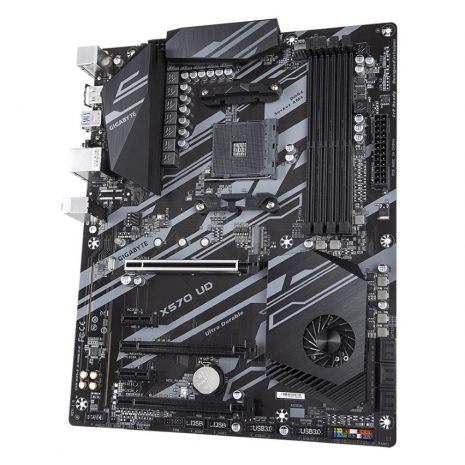

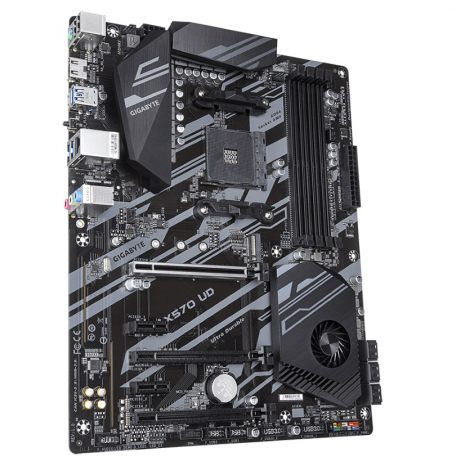

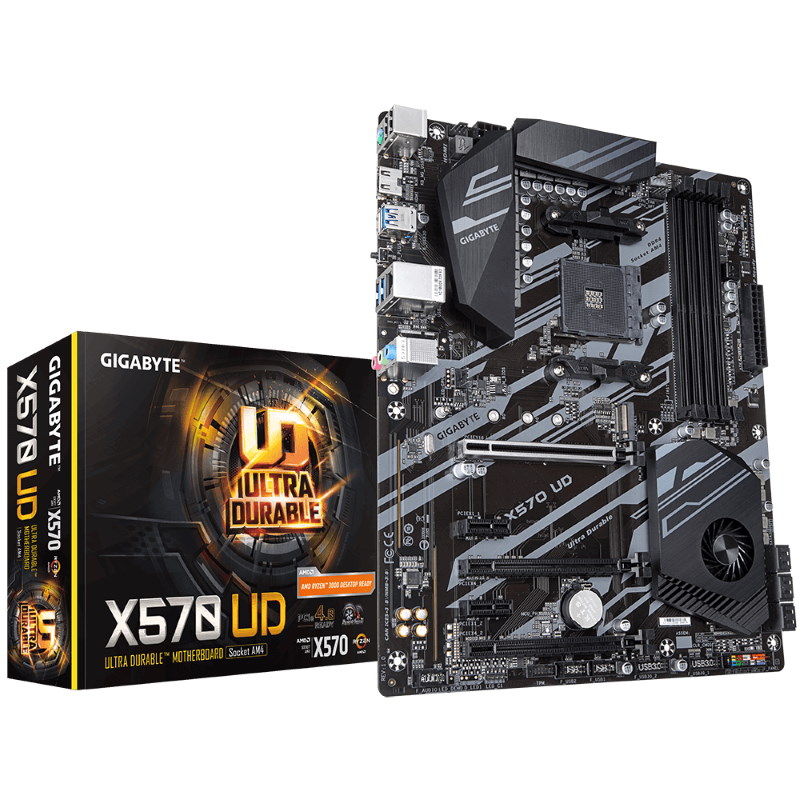

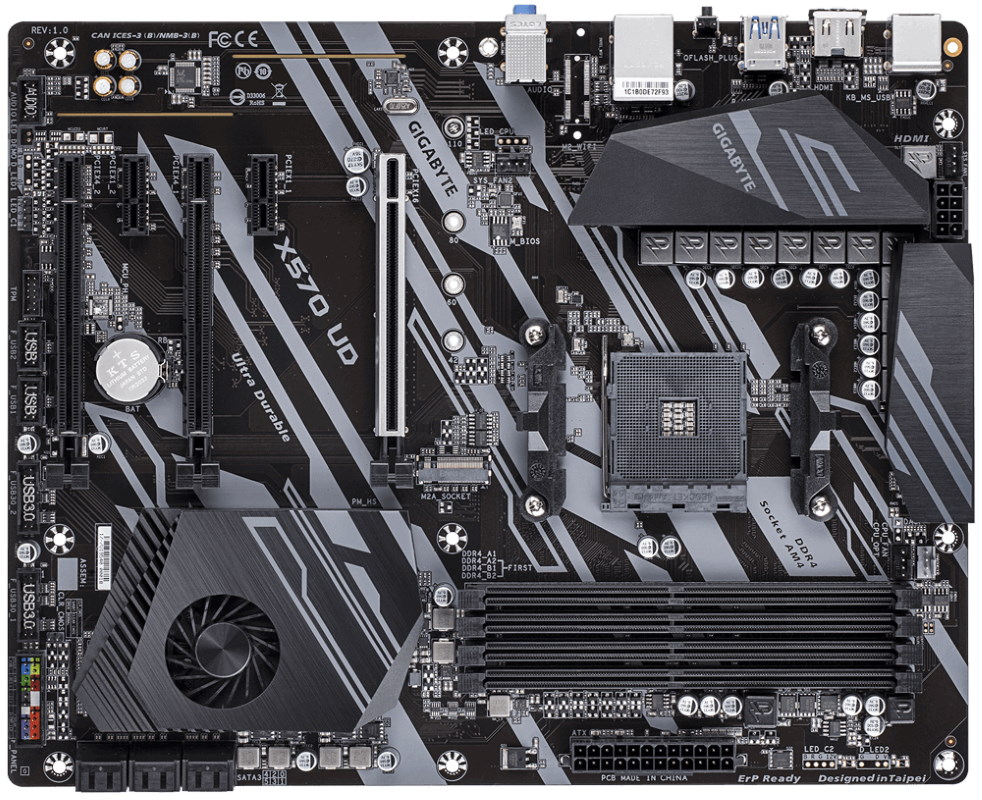

AMD X570 UD Motherboard with 10+2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, PCIe 4.0 x4 M.2 Connector, PCIe 4.0 x16 Slot Armor with Ultra Durable™ Design, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0
Features:
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+2 Phases Digital VRM Solution
- Advanced Thermal Design with Enlarge Heatsink
- Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GIGABYTE Gaming GbE LAN with Bandwidth Management
- Supports RGB Light Strip in Full Colors
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Featured HDMI 2.0 support
- Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
Specifications
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| CPU Socket | AM4 |
| Chipset | X570 |
| Memory Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB, Dual Channel |
| Memory Speed | Ryzen 3rd Gen: DDR4 2133-4000 MHz (OC) Ryzen 2nd Gen: DDR4 2133-3200 MHz (OC) |
| PCI Slots | 0 |
| PCI-Express 16x | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 Note - PCIe 4.0 requires 3rd Generation Ryzen CPU |
| PCI-Express 4x | 0 |
| PCI-Express 1x | 2 x PCIe 4.0/3.0 x1 Note - PCIe 4.0 requires 3rd Generation Ryzen CPU |
| Multi-GPU | Supports 2 Way CrossFireX Technology |

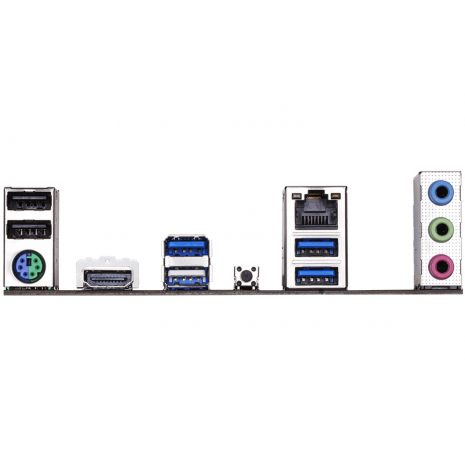

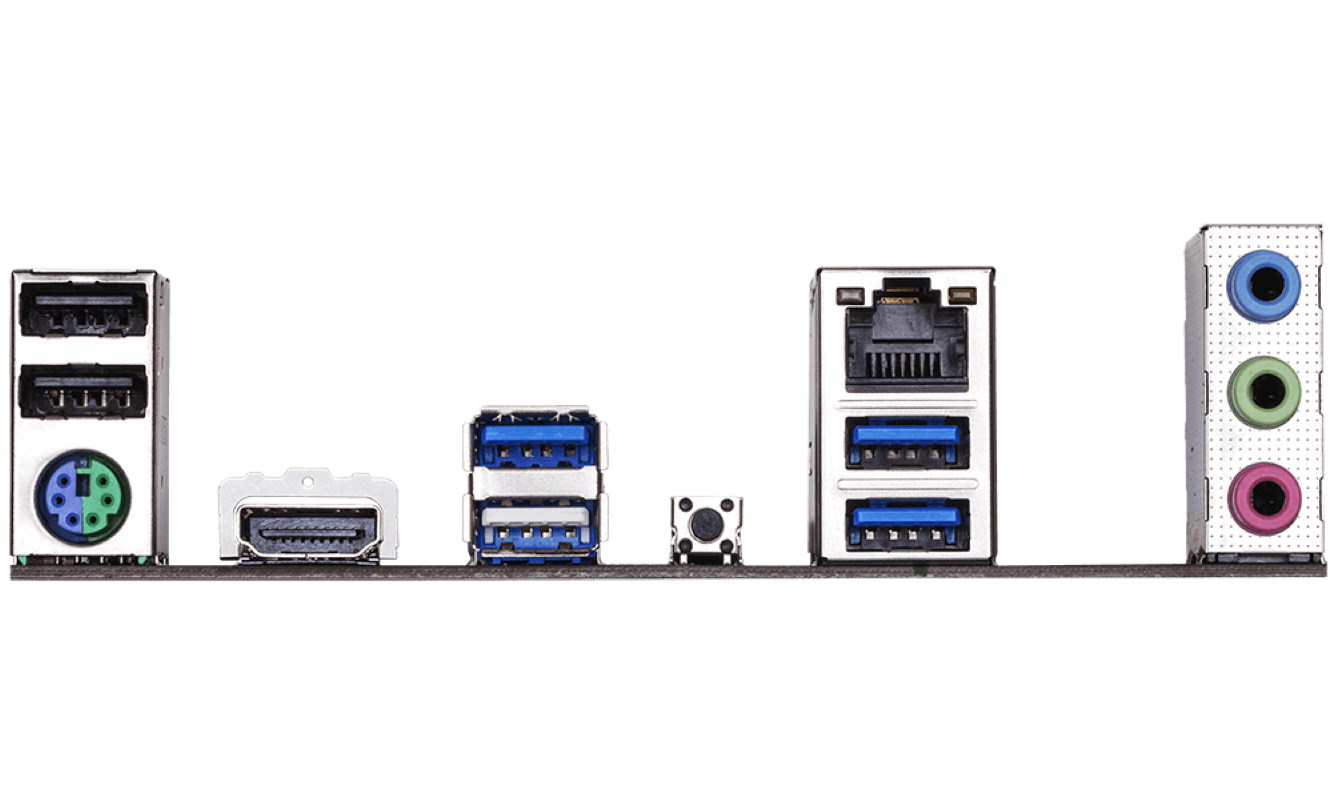

| USB Ports | 4 x USB 3.2 Gen 1 ports 2 x USB 2.0 Ports USB Headers 4 x USB 3.2 Gen 1 4 x USB 2.0 |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel |
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only. |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Wireless | - |
| SATA Ports | 6 x SATA 6Gb/s port(s) |
| SATA Express | - |
| M.2 Socket | 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 4.0/3.0 x4) Note - PCIe 4.0 requires 3rd Generation Ryzen CPU |
| Lighting | 1 x RGB LED strip header |
| Fan Headers | 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers |
| PSU Connectors | 24pin + 8pin AUX |
GET READY FOR AMD RYZEN 3000-SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 interfaces on select boards, refined audio,and high speed of Ethernet , to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
AMD StoreMI Technology
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors
10*+2 Phases Digital VRM Design with Lower RDS(on) MOSFET
Optimized for AMD 3000 series CPU
Form Factor:
ATX
GTIN:
4719331806743
MPN:
X570 UD
Motherboards
Chipset:
AMD X570
M.2 Ports:
1
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
2
PCI Express 1x:
2
SATA Ports:
6
SLI / Crossfire Support:
Crossfire Support
Socket Type:
AM4
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
