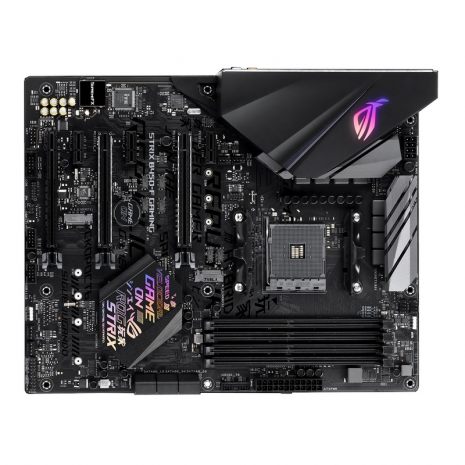

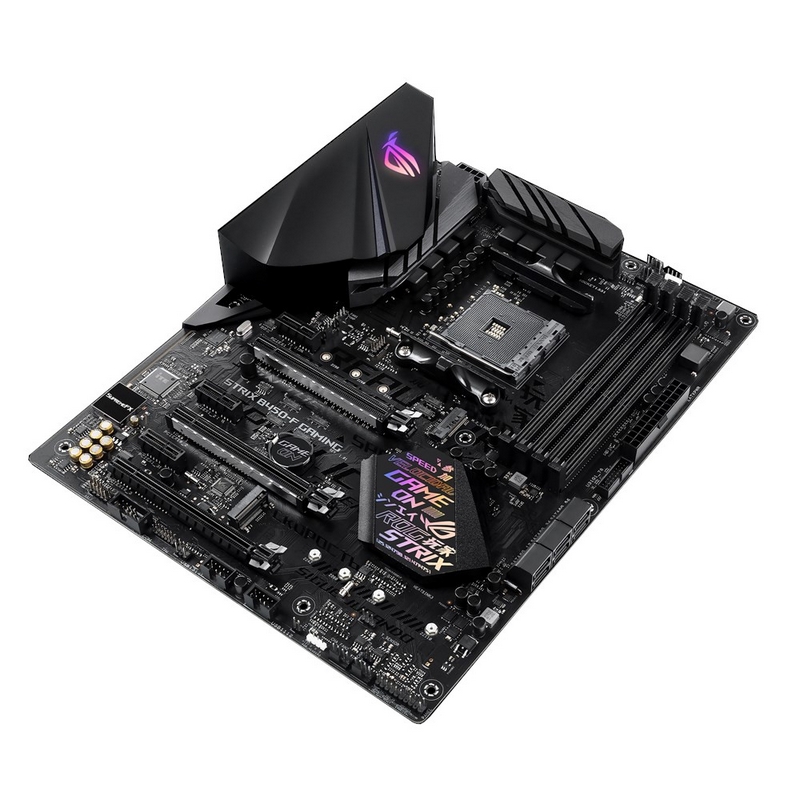

AMD AM4 B450 ATX gaming motherboard with DDR4 3200MHz support, SATA 6Gbps, HDMI 2.0, dual NVMe M.2, USB 3.1 Gen 2, and Aura Sync RGB LED lighting
- AM4 socket: Ready for AMD Ryzen™ processors
- Fast memory and storage: Dual-channel DDR4 3200MHz (OC) and NVM Express® RAID supported.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
- Gaming networking: Intel Gigabit Ethernet, plus ASUS LANGuard and GameFirst technologies.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
- Gamer’s Guardian: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
| Form Factor | ATX Form Factor; 30.5 x 24.4cm |
| CPU Socket | AM4 for Ryzen / Ryzen 2 (CPU Support) |
| Chipset | AMD B450 |
| Memory Slots | 4 x DDR4, up to 64GB, Dual Channel |
| Memory Speed | DDR4 2133-3200 Non-ECC |
| PCI Slots | 0 |
| PCI-Express 16x | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1 |
| PCI-Express 4x | 0 |
| PCI-Express 1x | 3 x PCIe 2.0 x 1 |
| Multi-GPU | AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors Supports AMD 3-Way CrossFireX™ Technology |
| USB Ports | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input 2/4/5.1/7.1-channel Analogue + Optical Outputs |
| Graphics |
1 x HDMI 2.0b, 1 x DisplayPort 1.2 Outputs (Supported processors only eg APU series or Ryzen with Vega 'G')
|
| LAN | 1 x Intel GbE LAN chip (10/100/1000 Mbit) |
| Wireless | - |
| SATA Ports | 6 x SATA 6Gb/s port(s) |
| SATA Express | - |
| M.2 Socket | 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 (second M.2 Socket only on Ryzen 1st / 2nd gen without graphics) |
| Lighting | 2 x Aura RGB Strip Headers RGB Aura Sync - LED logos on motherboard |
| Fan Headers | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector |
| PSU Connectors | 24pin + 8pin AUX |
Form Factor:
ATX
GTIN:
04718017080279
MPN:
ROG STRIX B450-F GAMING
Motherboards
Chipset:
AMD B450
M.2 Ports:
2
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
3
PCI Express 1x:
3
SATA Ports:
6
Socket Type:
AM4
Wireless Support:
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Asus
