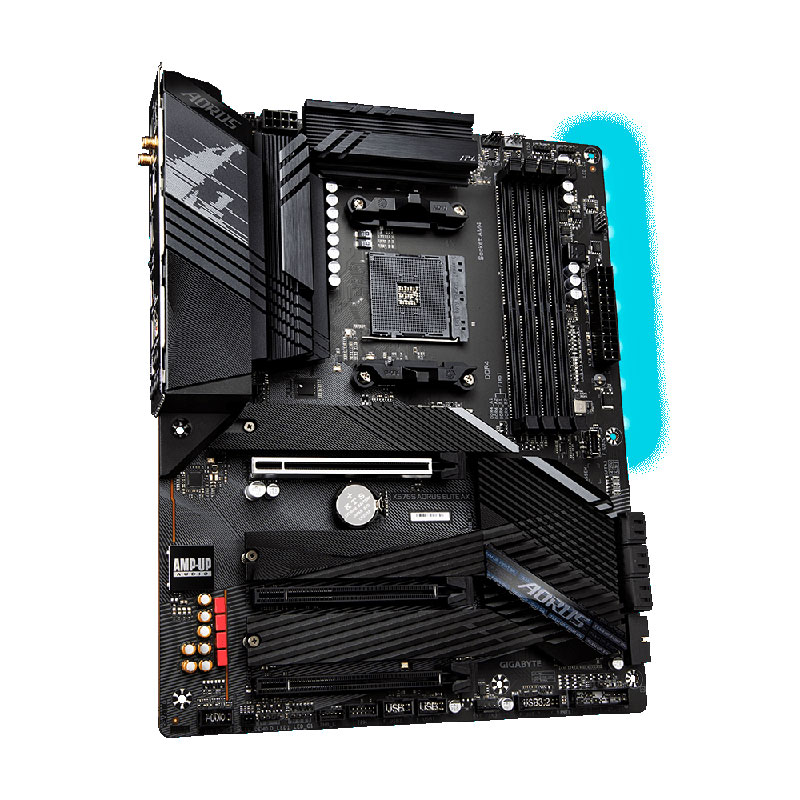

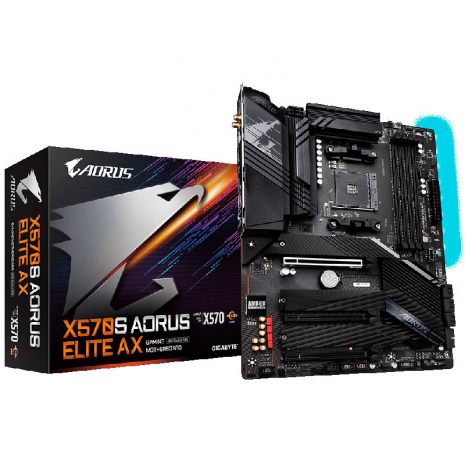

Gigabyte X570S Elite AX Motherboard
GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.
Key Features
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- AMD WiFi 6E 802.11ax & BT 5.2
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
- Fast 2.5GbE LAN with Bandwidth Management
- SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
- AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specification
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| CPU Socket | AMD Socket AM4; AMD Ryzen™ 5000 Series/G-Series AMD Ryzen™ 4000 G-Series AMD Ryzen™ 3000 Series/G-Series AMD Ryzen™ 2000 Series/G-Series |
|
| Chipset | AMD X570 | |
| Memory | Architecture | 4 x DDR4 DIMMs (Dual Channel) |
| Capacity | 128GB (32GB single DIMM capacity) | |
| Speed | Up to 5400(O.C.) MHz | |
| Extras | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| PCI Slots | - | |
| PCI-Express x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x4 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode * The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode. (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. |
|
| PCI-Express x4 | - | |
| PCI-Express x1 | - | |
| Multi-GPU | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies (Note) For AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only |
|

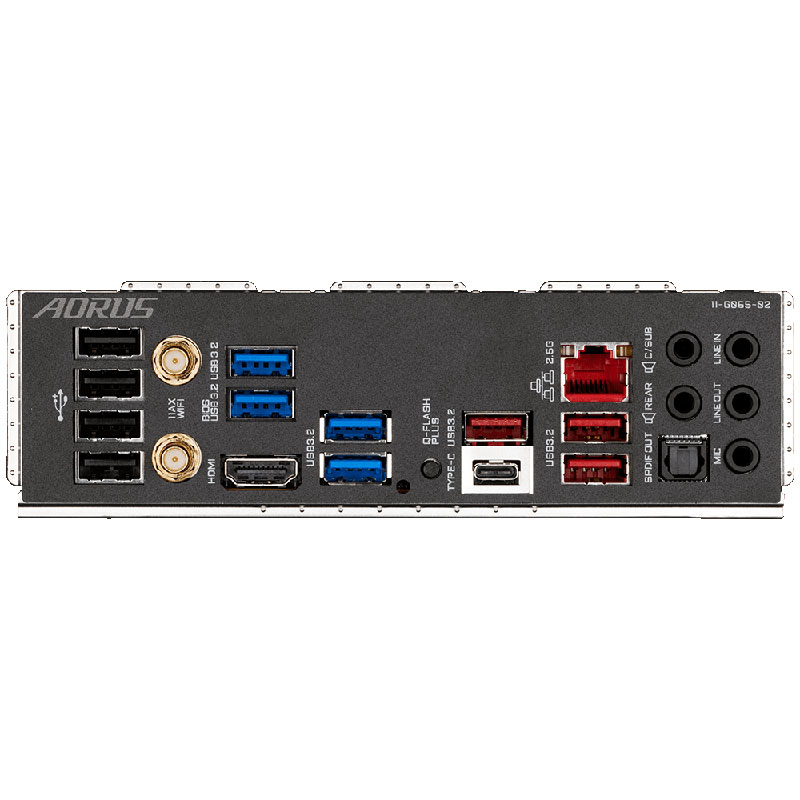

| USB | External | 4 x USB 3.2 Gen 1 Type-A ports (blue) - CPU 1 x USB 3.2 Gen 2x2 Type-C®️ port - Chipset + ASMedia®️ USB 3.2 Gen 2x2 Controller 3 x USB 3.2 Gen 2 Type-A ports (red) - Chipset 4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs |
| Internal | 1 x USB 3.2 Gen 2 Type-C®️ port - Chipset 4 x USB 3.2 Gen 1 Type-A ports - Chipset 4 x USB 2.0/1.1 ports - Chipset + 2 USB 2.0 Hubs |
|
| Audio | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High-Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Graphics |
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
|
| LAN | 1 x Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | AMD Wi-Fi 6E RZ608 (MT7921K) - Wi-Fi a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - Bluetooth 5.2 - Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
|
| Storage Interfaces | CPU | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs |
| Chipset | 2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: |
|
| Notes | Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. |
|
| Lighting | 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header |
|
| Fan Headers | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header |
|
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
|
Find the full list of features at www.gigabyte.com
Form Factor:
ATX
GTIN:
4719331823528
MPN:
X570S AORUS ELITE AX
Motherboards
Chipset:
AMD X570
M.2 Ports:
3
Memory Slots:
4
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
3
PCI Express 1x:
0
SATA Ports:
6
Socket Type:
AM4
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
