From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.
Optimized for the PCIe Gen5 interface, SPATIUM M570 PRO SSD reaches read/write speeds up to 12,400/11,800 MB/s, allowing for rapid data transfer and shortened game load times.
SUPERCHARGED WITH
PCIe 5.0
Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.8 times faster read/write speeds compared to the previous generation SSDs.
TAKING GIANT LEAPS
The SPAITUM M570 PRO delivers immense performance and capabilities that effortlessly handle even the most extreme gaming or productivity workflows, representing a significant advancement over PCIe 3.0 and SATA technologies.
COOL & SILENT
TOWERING PERFORMANCE

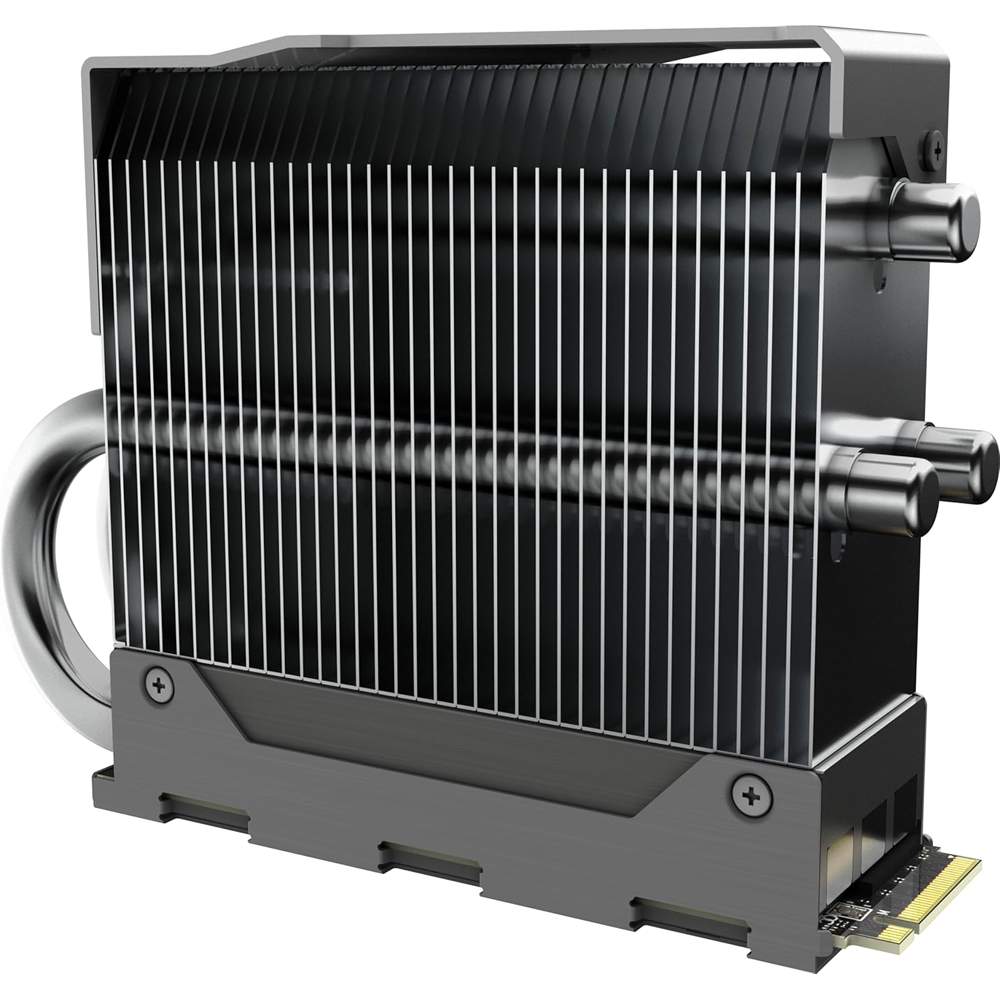

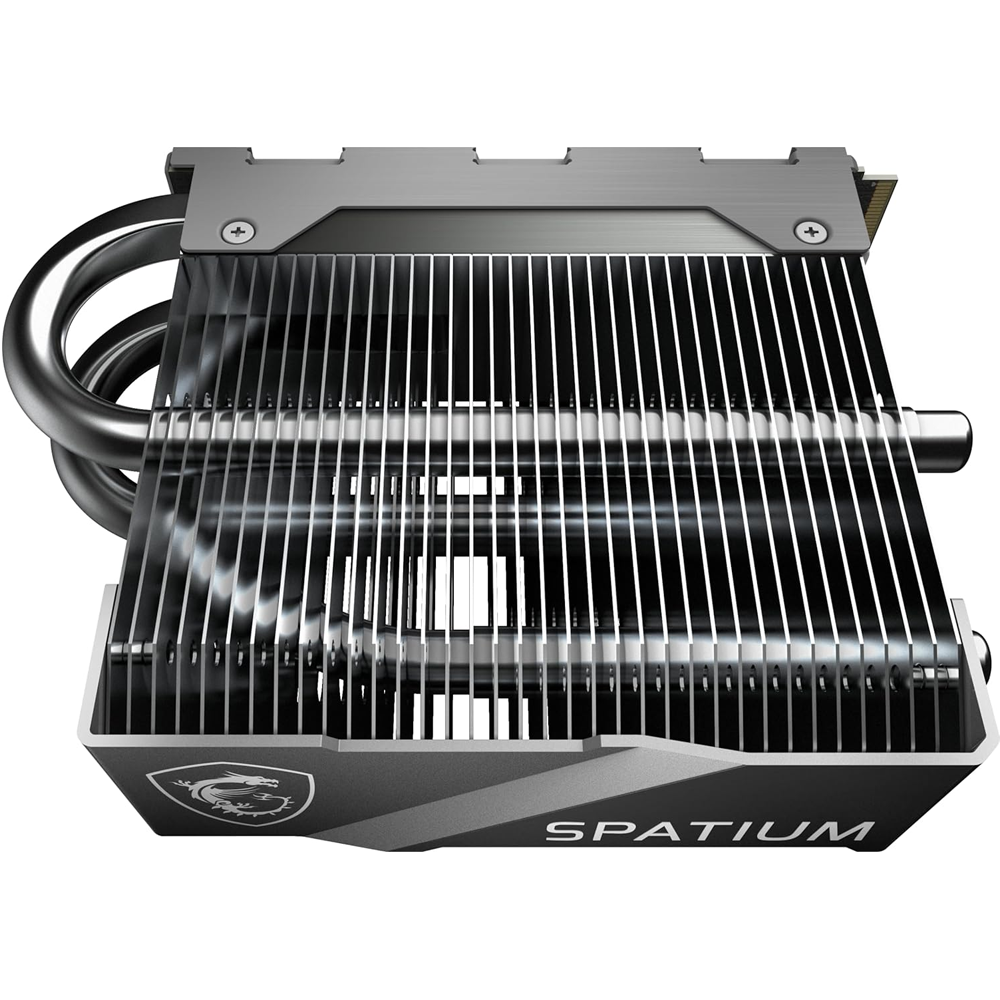

FROZR is a new enthusiast passive SPATIUM SSD thermal solution designed with well-pathed Core Pipes and an optimal surfaced heatsink under a stylish cover, silently sustaining maximum storage while reducing temperatures by up to 20° C
The FROZR Heatsink is designed for the standard M.2 size of 22 x 80mm which seamlessly accommodates most graphics card backplates, preventing interference in the gap between the SSD and graphics cards.
FULFILL UNLIMITED POTENTIAL
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.
A THOROUGH SHORTCUT WITHDIRECTSTORAGE
DirectStorage accelerates loading times in gameplay and high-resolution rendering, enhancing system performance by enabling hardware decompression directly from NVMe drives to GPUs and freeing up CPU resources for multitasking.
BUILT TO WIN
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.
CREATE. PRODUCE. DONE.
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.
SPATIUM M570 PRO PCIe 5.0 NVMe M.2 FROZR
- PCIe Gen5x4 interface and complies with the NVMe NVMe 2.0 standard
- Enthusiast passive SSD thermal design silently reducing temperatures by up to 20° C
- Sequential Read speeds up to 12,400MB/s and Write speeds up to 11,800MB/s
- Built-in data security and error-correction capabilities
- 5-Year Warranty
| SPATIUM M570 PRO PCIe 5.0 NVMe M.2 FROZR 2TB | |
|---|---|
| Model Name | SPATIUM M570 PRO PCIe 5.0 NVMe M.2 FROZR |
| Capacity | 2TB |
| Controller | PHISON E26 |
| Flash Memory | 3D NAND |
| DRAM Cache | 4GB LPDDR4 |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen5x4, NVMe 2.0 |
| Compatibility | PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1 |
| Dimensions | 94.80mm (L) x 24.00mm (W) x 71.65mm (H) Recommended installation space: up to 22 x 110 mm available |
| Sequential Read up to (MB/s) | 12,400 |
| Sequential Write up to (MB/s) | 11,800 |
| Maximum Operating Power (W) | 11.5 |
| Idle Power PS3 (mW) | 144 |
| Low Power L1.2 (mW) | 85 |
| Operating Temperatures | 0°C – 70°C |
| Storage Temperatures | -40°C – 85°C |
| Terabytes Written (TBW) | 1400 |
| Mean Time Between Failure (MTBF) | Up to 1,600,000 Hours |
| Limited Warranty | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. |
| Advanced Features | TRIM (Performance Optimization, OS Support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) AES256/OPAL 2.0 (Encryption, Data Security) |
