Interface | PCI Express 16x 3.0 |
Chipset | NVIDIA Quadro P620 |
Memory | 2GB GDDR5 |
Core Clock | Base Clock 1266Mhz Boost Clock 1354MHz |
CUDA Cores | 512 |
Memory Clock | 1252MHz (Effective 5008MHz) |
VGA (Max Res) | via Optional Adapter |
DVI (Max Res) | via Optional Adapter |
HDMI (Max Res) | via Optional Adapter |

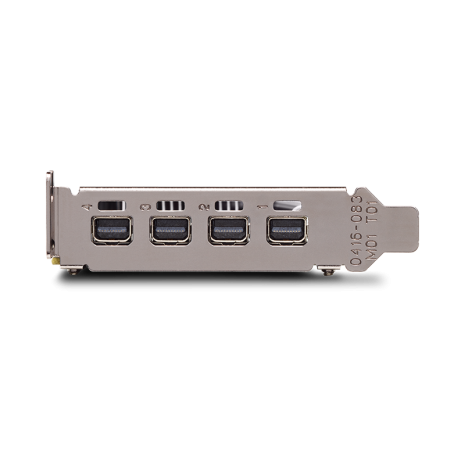

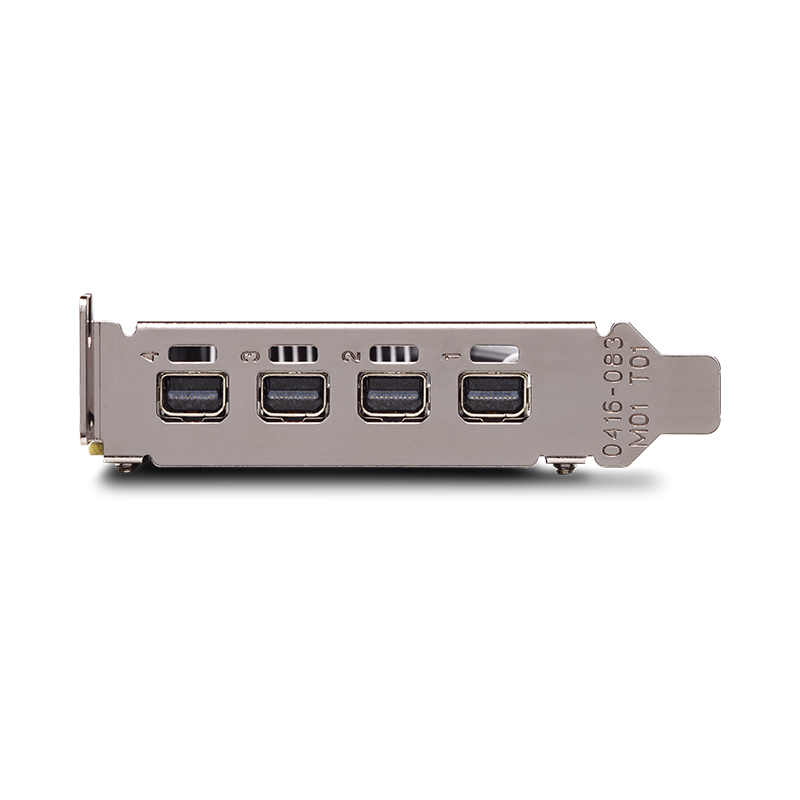

DisplayPort | 4 Mini Displayport 1.4 + 4 DP Adapters IncludedHDR 5120 x 2880 at 60Hz (30-bit color) |
Cooling | Single Quiet Fan |
HDCP | Yes |
H.264 Decoding | H.264 / HEVC HDR Support |
Software | Drivers |
Power Connection | None - 40W Power Draw |
Card Length | 145mm |

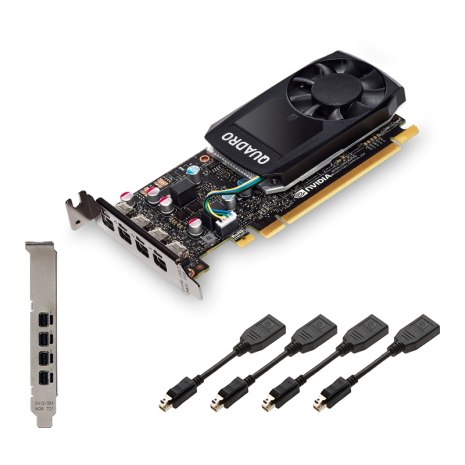

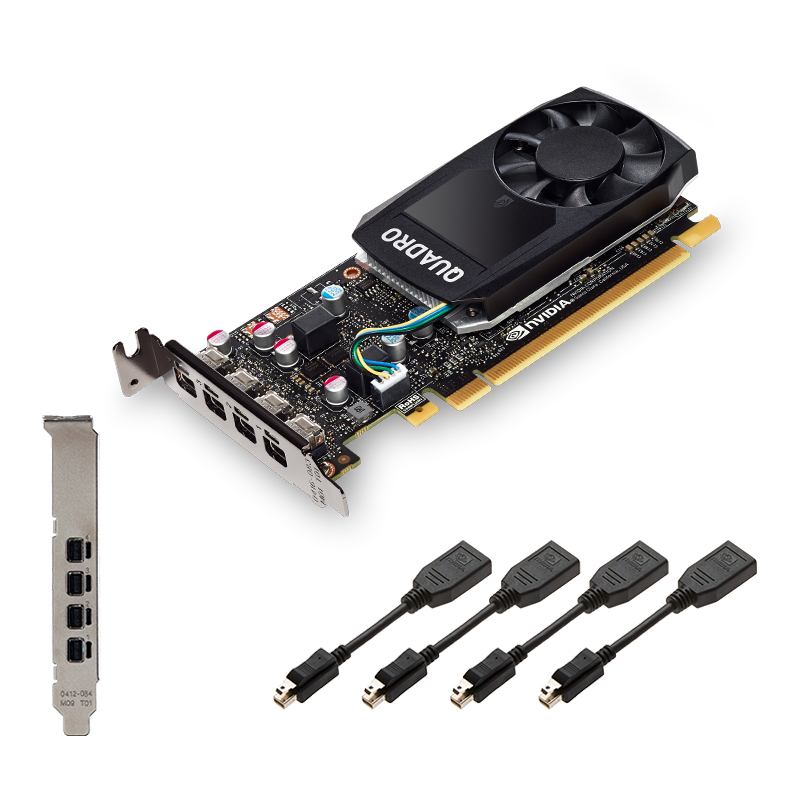

Mounting | 1 Slot Mounting, Full Height and Low Profile Adapters Included |

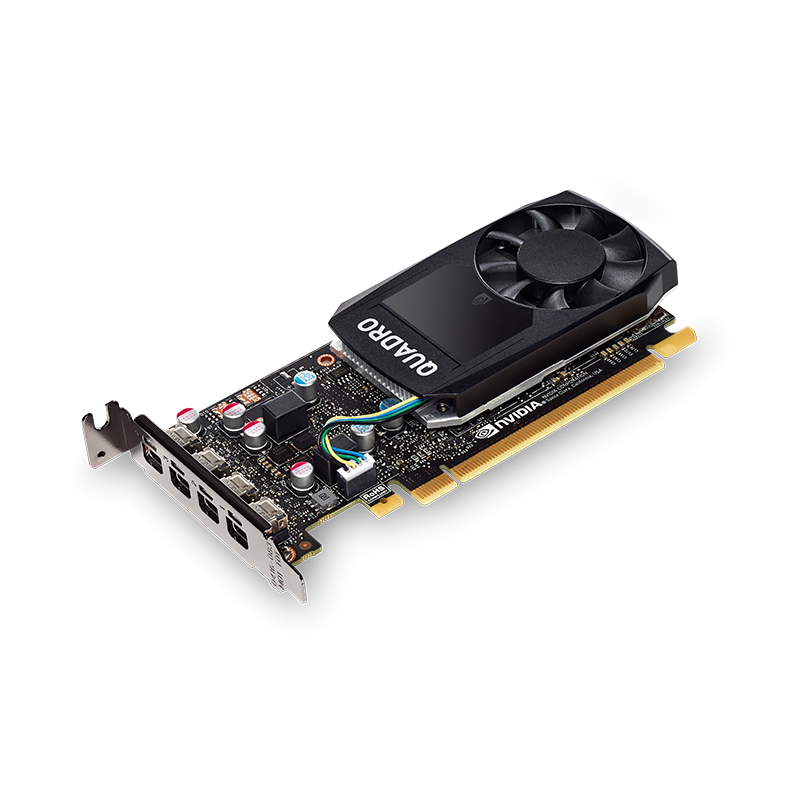

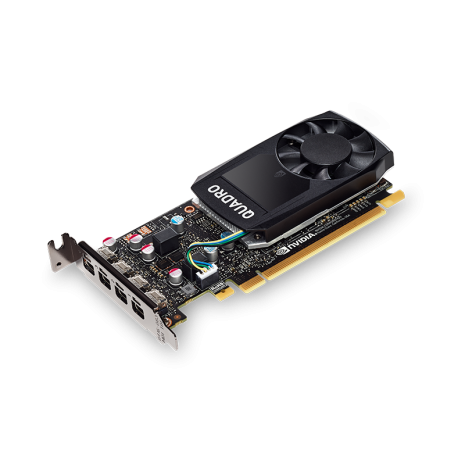

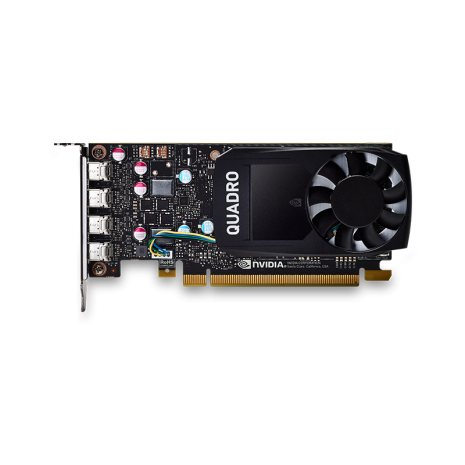

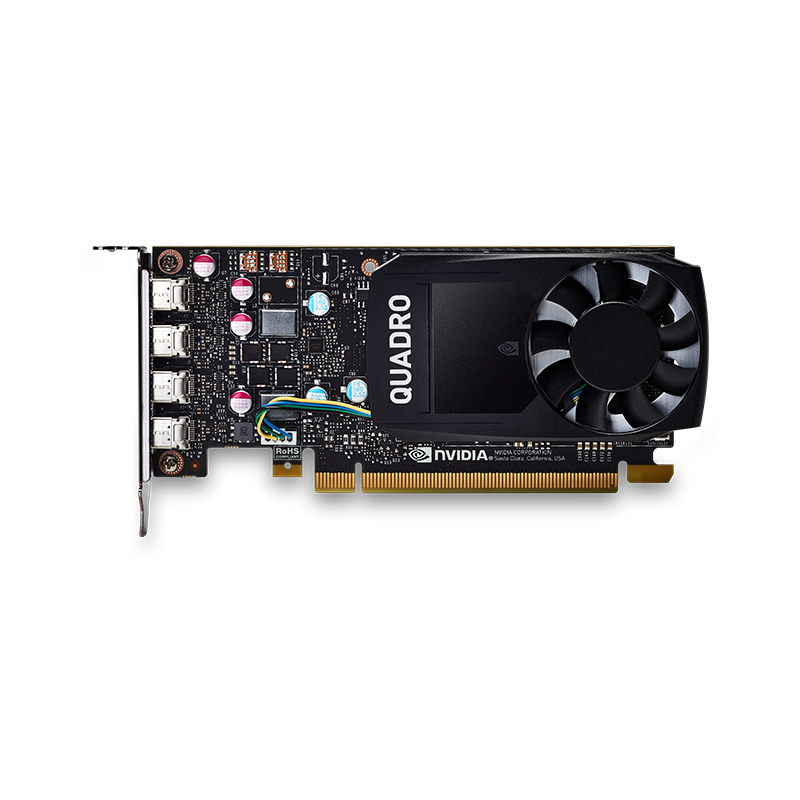

The NVIDIA Quadro P620 combines a 512 CUDA core Pascal GPU, large on-board memory and advanced display technologies to deliver amazing performance for a range of professional workflows. 2GB of ultra-fast GPU memory enables the creation of complex 2D and 3D models and a flexible single-slot, low-profile form factor makes it compatible with even the most space and power-constrained chassis. Support for four 4K displays (4096 x 2160 at 60Hz) with HDR color gives you an expansive visual workspace to view your creations in stunning detail.
Professionals are increasingly looking to lower the total cost of their computing solutions. Today’s modern multi-application workflows require users to evaluate the impact of workstation functionality and performance against cost to ensure that any savings achieved by lower cost computing solutions will not result in schedule impacts and business loss.
