| Interface | PCI Express 16x 3.0 (uses 4x) |
| Chipset | NVIDIA GeForce GT 1030 |
| Memory | 2GB GDDR5 |
| Core Clock | Base Clock 1228MHz Boost Clock 1506MHz |
| CUDA Cores | 384 |
| Memory Clock | 3004MHz (DDR 6008MHz) |
| VGA (Max Res) | Not Supported |
| DVI (Max Res) | - |
| HDMI (Max Res) | 1 x HDMI 2.0b |
| DisplayPort | 1 x DisplayPort 1.4 |
| Cooling | Fan-Cooled Heatsink |
| HDCP | Yes |
| H.264 Decoding | PureVideo HD |
| Software | Drivers |
| Power Connection | None - 30W Power Draw Recommend 300W PSU |
| Card Length | 153mm |

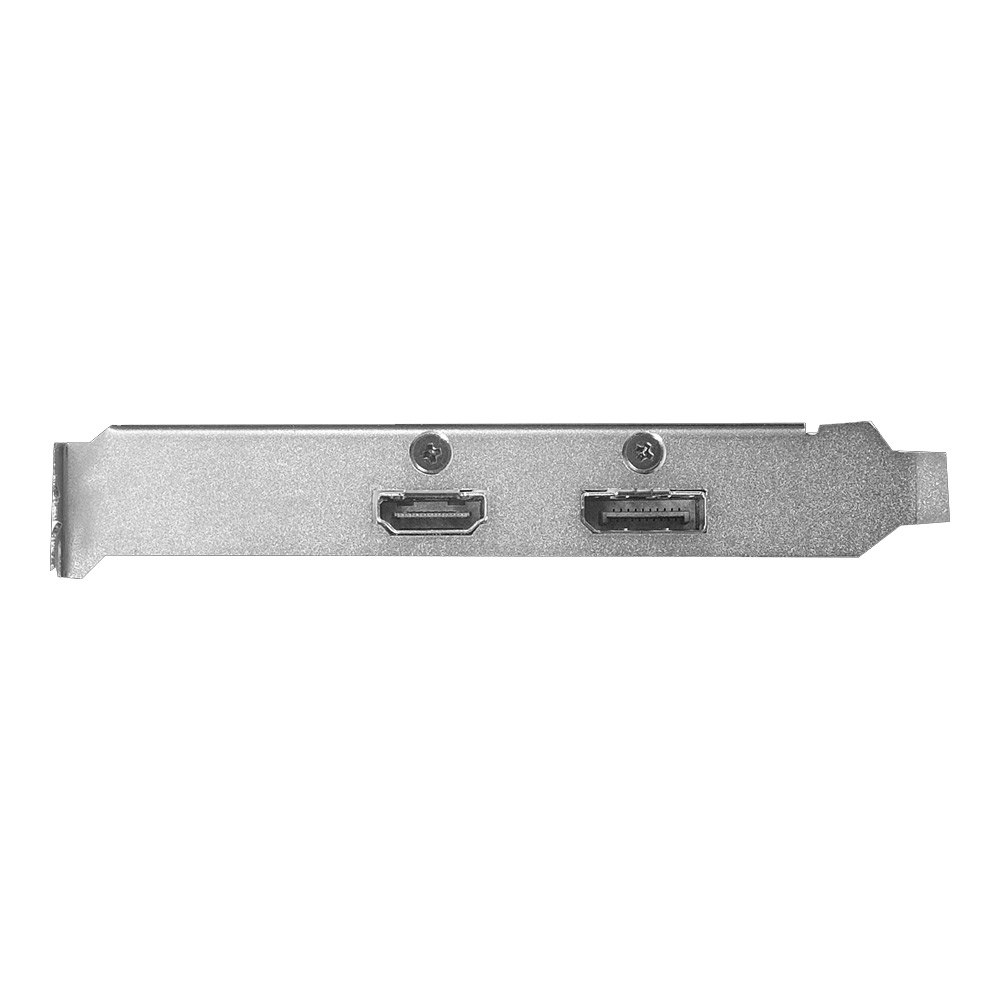

| Mounting | 2 Slot Mounting, Full Height + Half Height / Low Profile Brackets Included |
