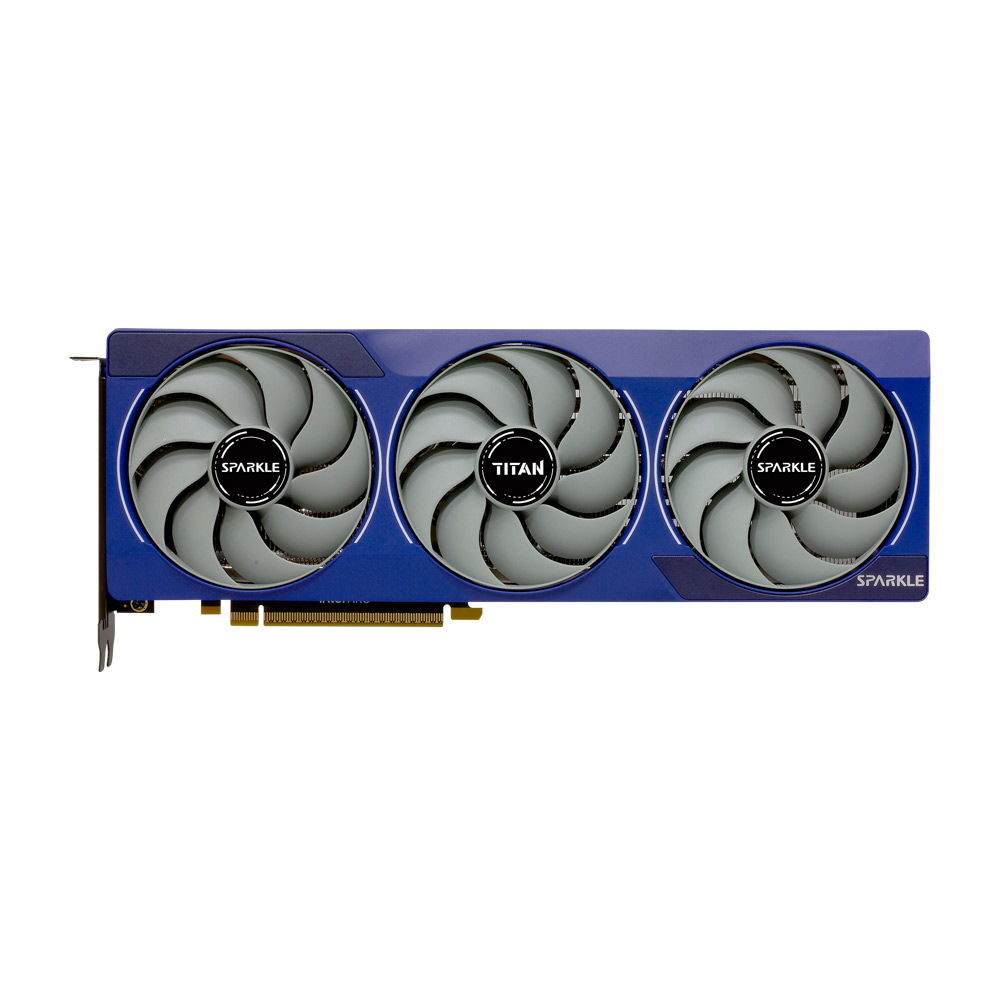

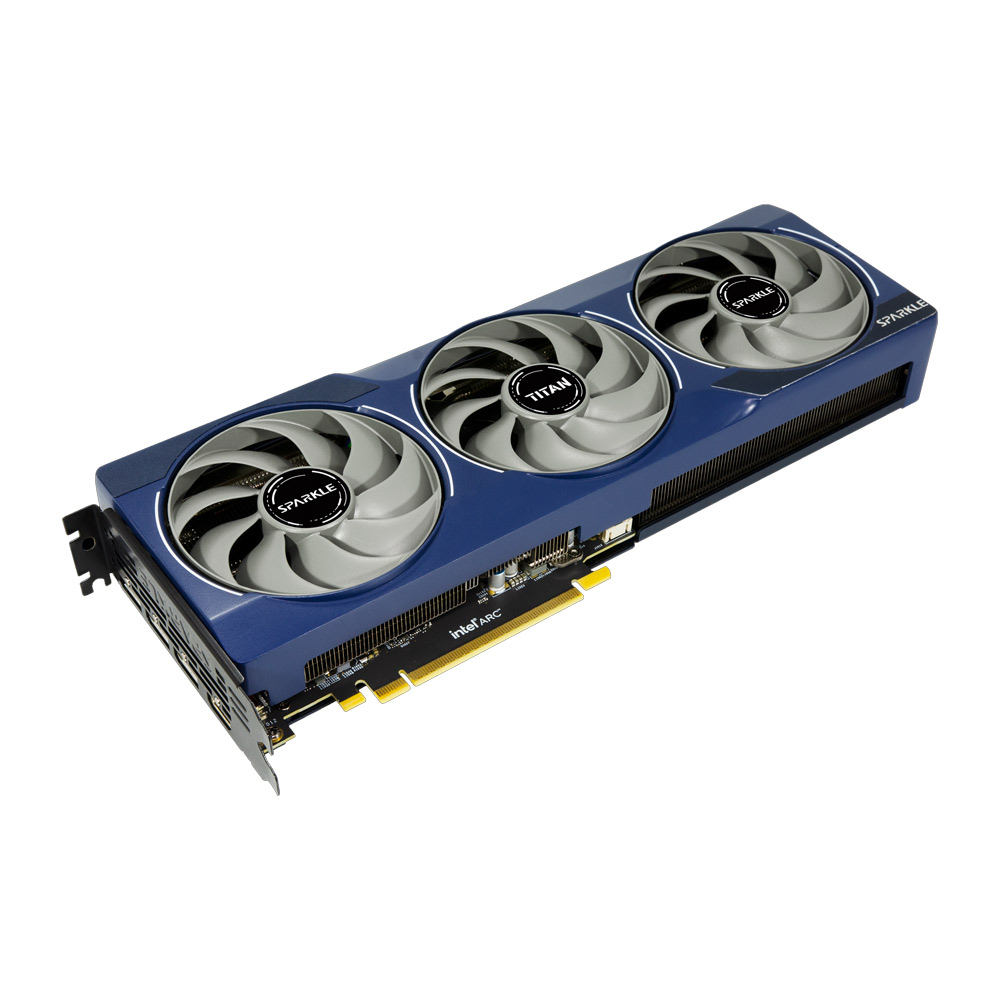

Sparkle Intel Arc B580 TITAN OC 12GB DDR6 Graphics Card

£224.17
(£269.00 inc VAT)
Short description:

12GB GDDR6 RAM, PCI-E 4.0 Graphics Card

53764
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Shop / local sales only - not available for delivery

The SPARKLE Intel® Arc™ B580 TITAN OC offers high-resolution gaming with Intel XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. New TITAN series equipped TORN 2.0 Cooling with triple customized AXL fans, 2.2-slot design and full metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup

Key Features

  • TORN Cooling 2.0
  • Metal Backplate, Pre Installed
  • Ray Tracing
  • Variable Rate Shading (VSR)
  • DirectX 12 Ultimate
  • Vulkan 1.3
  • OpenGL 4.6
  • OpenCL 3.0
  • Adaptive Sync
  • AV1 Encode / Decode
  • VP9 Bit stream & Decoding
  • Intel Deep Link Hyper Compute
  • Intel Deep Link Hyper Encode
  • Intel Deep Link Stream Assist.

Specifications

Interface PCI Express 8x 4.0
Chipset Intel Arc B580
Memory 12GB GDDR6
Core Clock 2740Mhz Boost Clock
Memory Clock 192-Bit (456GB/s Bandwidth)
Cores Xe-Core: 20
Ray Tracing Units: 20
Intel® XMX Engines: 160
VGA (Max Res) -
DVI (Max Res) -

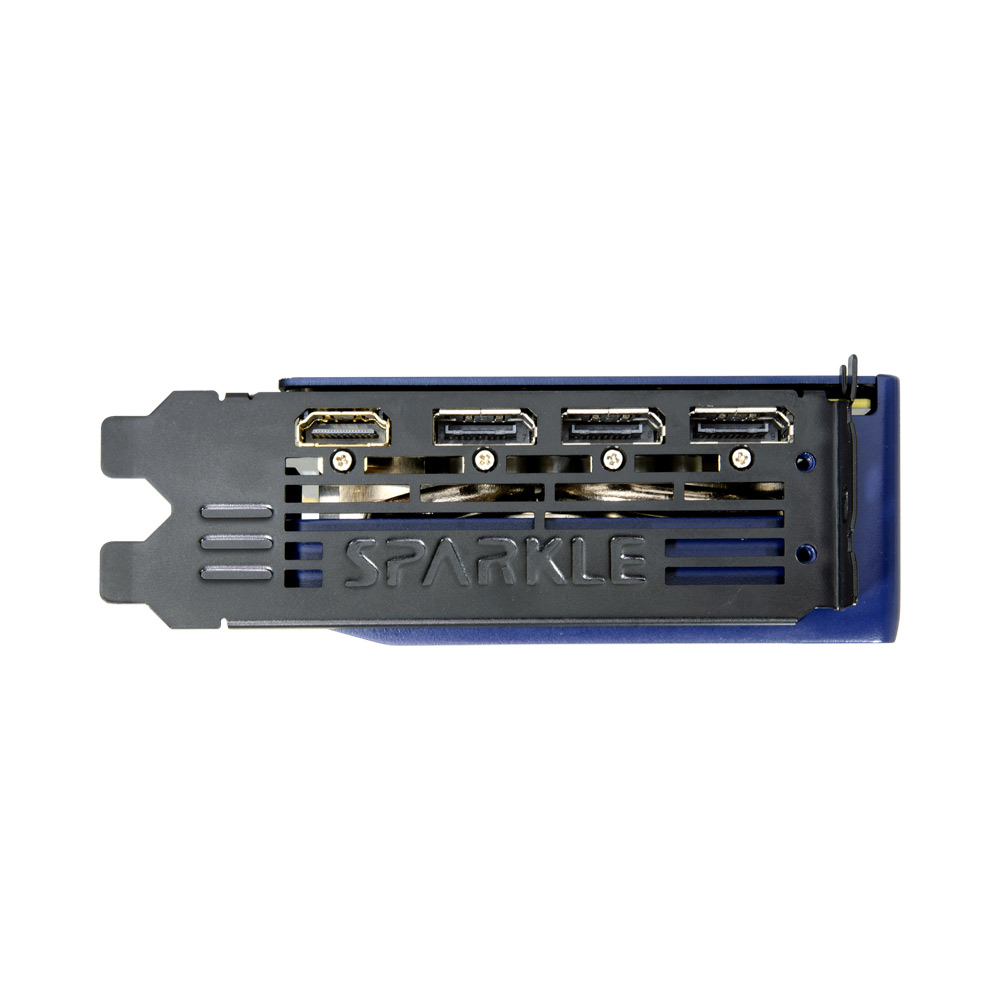

HDMI (Max Res) 1 x HDMI 2.1 (7680 x 4320 @ 120Hz Max)
DisplayPort (Max Res) 3 x DisplayPort 2.1 (7680 x 4320 @ 60Hz Max)
Cooling Triple Fan
Codecs AV1 Encode / Decode
VP9 Bitstream & Decoding
Software
Power Connection 1 x 8pin PCI-E Connection, 600W or higher PSU Recommended
Card Dimensions 315mm length, 117mm height, 44mm thickness
Mounting 2.2 Slots
Requirements Needs Ryzen 3000 series or Intel 10th gen or greater with Resizable BAR enabled.
PCI Express 4.0 recommended

Full spec here https://www.sparkle.com.tw/en/B580-TITAN

GPU Series:
ARC B580
Card Length:
315
Displayport:
3
DVI Ports:
0
Fanless:
GTIN:
4711342290771
HDMI Ports:
1
Low Profile :
MPN:
SB580T-12GOC
VRAM:
12GB

New features

Manufacturer:
Sparkle
+ −
