Core/Memory
- Boost Clock / Game Clock* / Base Clock / Memory Speed
Boost: up to 1925 MHz / Up to Game: 1815 MHz / Base: 1670 MHz /14Gbps - 8GB GDDR6
- DisplayPort x 3 / HDMI x 1
TORX Fan 3.0
- Dispersion fan blade: Steep curved blade accelerating the airflow
- Traditional fan blade: Provides steady airflow to massive heat sink below
Afterburner Overclocking Utility
- Kombustor: The latest DirectX versions benchmark supporting.
- Predator: In-game video recording.
AMD Radeon FreeSync
- Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
Great gaming experiences are created by bending the rules. The all new RDNA powered Radeon RX 5700 series for exceptional performance and High-fidelity gaming. Take control with Radeon RX 5700 series and experience powerful, accelerated gaming customized for you.
Specifications
| Chipset | Radeon™ RX 5700 XT |
| Cores | 2560 Units of NAVI 10 XT Cores |
| Clock Speeds | Boost: Up to 1925 MHz Game: Up to 1815 MHz Base: 1670 MHz (Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.) |
| Memory | 8GB GDDR6 |
| Memory Speed | 14Gbps |

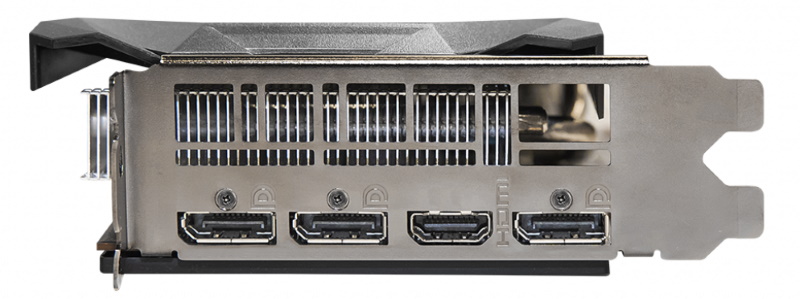

| Output | DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
| Power Consumption | 225W |
| Power Connectors | 8-pin x 1 + 6-pin x 1 |
| Recommended PSU | 750W |
| Dimensions | 232 x 126 x 46 mm |
| Weight | 794g |
Game Fidelity Accelerated
High-performance RDNA architecture was engineered to greatly enhance features like Radeon Image Sharpening, FidelityFX, and VR technologies3 for maximum performance and jaw-dropping gaming experiences.
Immersive Gaming Dynamics
Get the competitive advantage with dramatically reduced input lag with Radeon Anti-Lag, get stutter-free, tear-free gaming with AMD Radeon FreeSync1 technology, and the latest Radeon Software for incredibly responsive and insanely immersive gameplay.
The New Gaming RDNA Architecture
Radeon RX 5700 series features new compute units, new instructions better suited for visual effects, and multi-level cache hierarchy for greatly reduced latency and highly responsive gaming.
UPGRADED DESIGN FOR COOLER PERFORMANCE
The upgraded MECH series feature an imposing appearance and enhanced cooling performance, bringing the temperature down 11% more compared to the reference cooling.

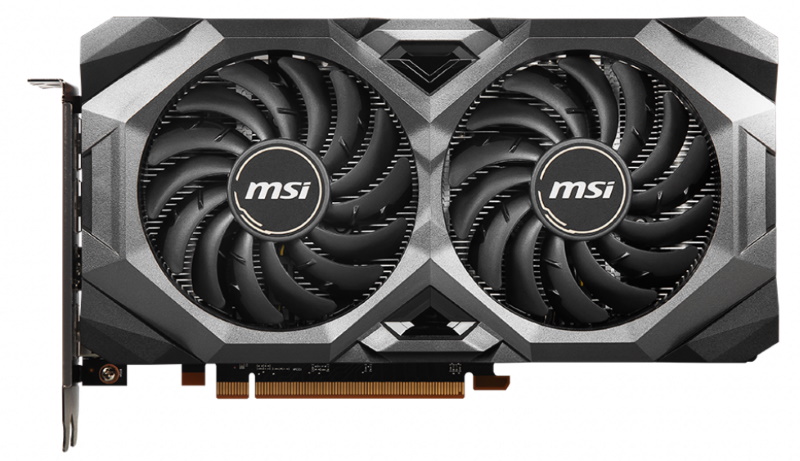

TORX FAN 3.0
A brand new version of the iconic MSI TORX fan pushes the limits of thermal performance yet further than before. The new trims clearly visible on the traditional fan blade create a focused airflow which in turn is pushed down by the dispersion fan blades for increased static pressure.
COOLING STARS AT THE BASE
6mm copper heatpipes with an optimized layout increase the cooling efficiency using a direct contace design.

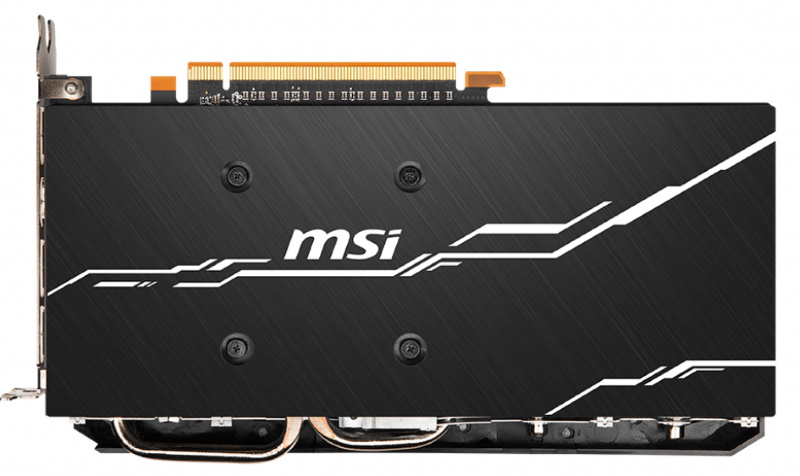

STRONG BACKPLATE
A sturdy backplate helps to strengthen the graphics card and complements the design to look even better.
