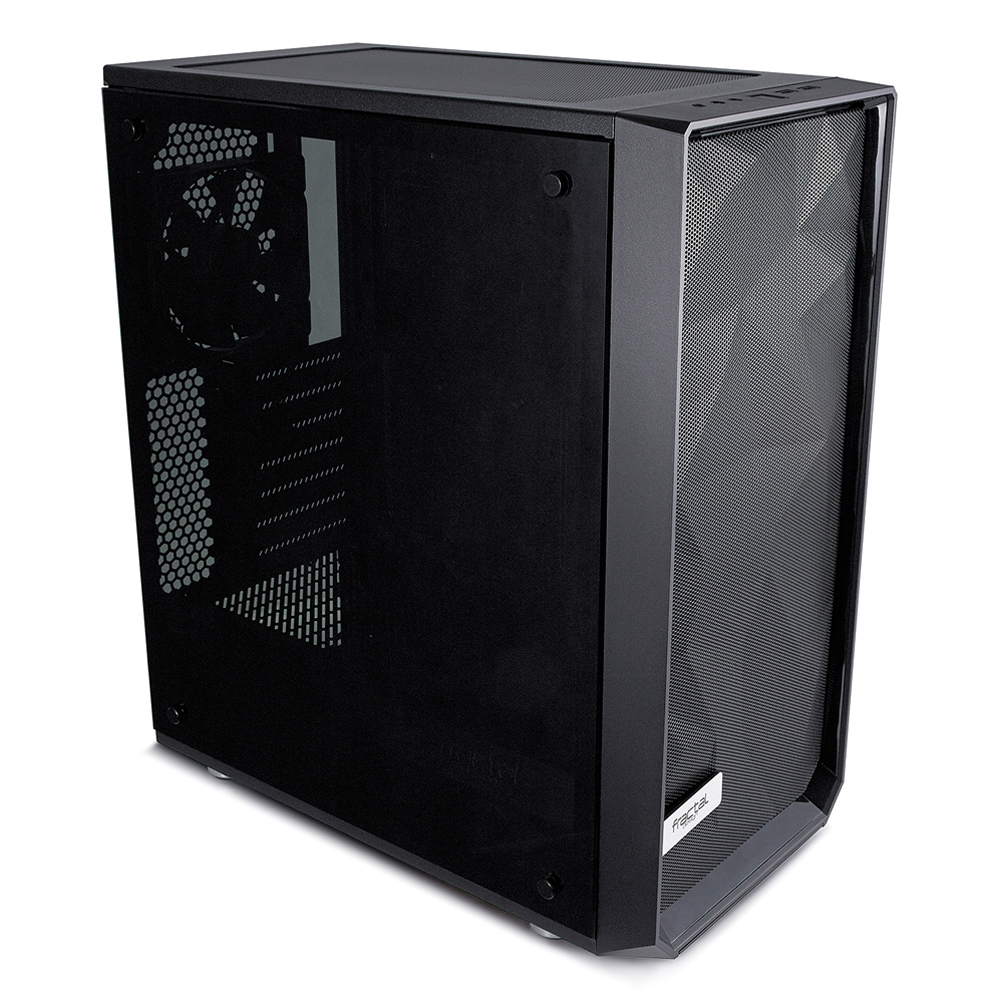

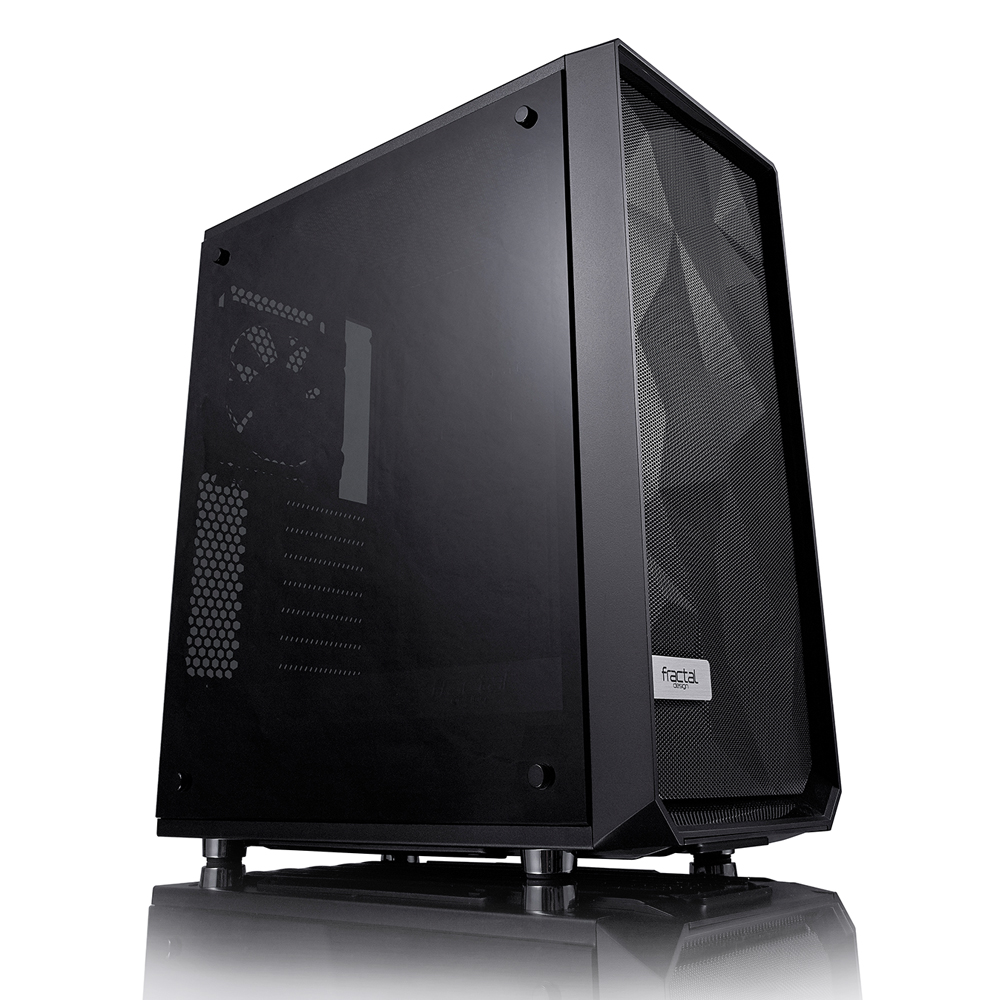

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C TG Dark Tint carves a space uniquely its own as a new force in high-airflow design. Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.
An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C TG Dark Tint has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
When performance is top priority and compromise is not an option, Meshify has you covered in style.
| Dimensions | W | D | H |
| 212mm | 395mm | 440mm | |
| Weight | 6.5kg | ||
| Front Fan | 3 x 120mm / 2 x 140mm Mounts 1x Dynamic X2 GP-12 Fan included |
||
| Rear Fan | 1x Dynamic X2 GP-12 Fan included | ||
| Top / Bottom Fan | 1 x 120mm Mount | ||
| Radiator Support | Front: 120/240/360mm 140/280mm Top: 120/240mm (max component height on motherboard 40mm) Rear: 120mm (max width 125mm) |
||
| 5"1/4 Bays | 0 | ||
| 3"1/2 Bays | 2 x 3"1/2, | ||
| 2"1/2 Bays | 3 x 2"1/2 | ||
| Motherboard | ATX, Micro-ATX, ITX | ||
| Power Supply | ATX Supported, up to 175mm Length | ||
| Material | Steel, Plastic, Mesh | ||
| CPU Cooler | Max Height 172mm | ||
| Window | Tempered Glass Side Panel | ||
| Graphics Support | Max 315mm length with front fan installed | ||
| Vertical Graphics | No | ||
| Expansion Slots | 7 Horizontal | ||
| Hubs | - | ||
| Connectors | USB 3.0 x 2 Mic / Audio |
||
Streamlined high-airflow design- The performance and capacity of a larger tower in a remarkably compact mid-tower size

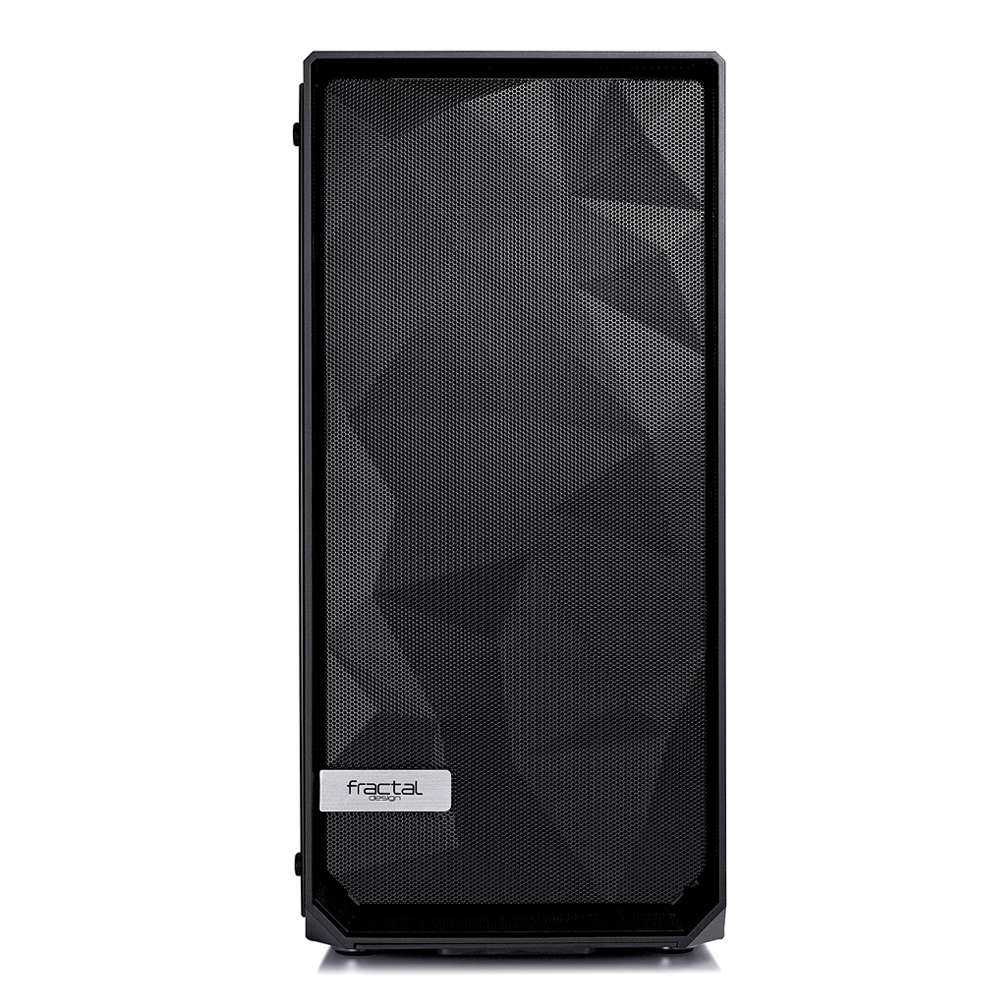

- Newly designed angular mesh front panel maximizes air intake
- Tinted tempered glass side panel for a clean looking exterior with full interior visibility
- Distinctive new styling with stealthy black-on-black aesthetic
- Flexible storage options with room for up to 5 drives
- Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
- Two pre-installed Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise

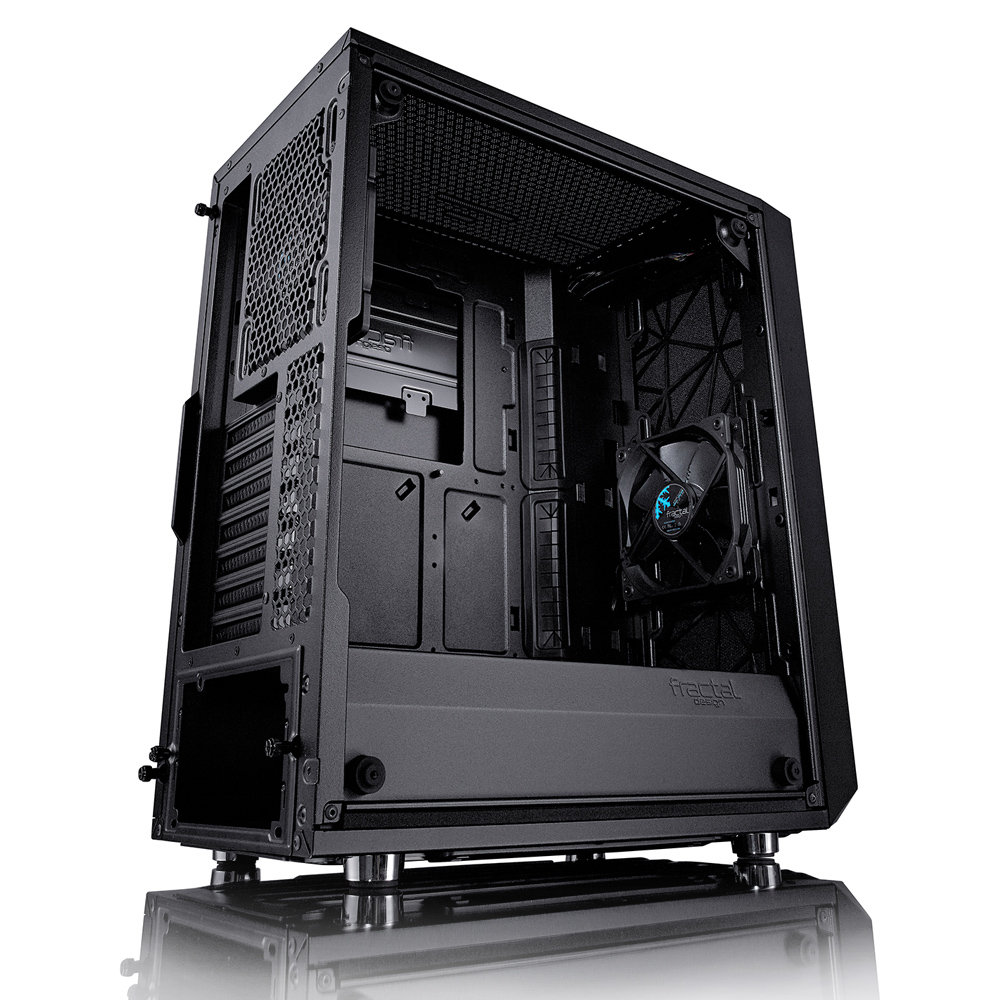

- Open interior layout creates an unobstructed airflow path from front intake to rear exhaust

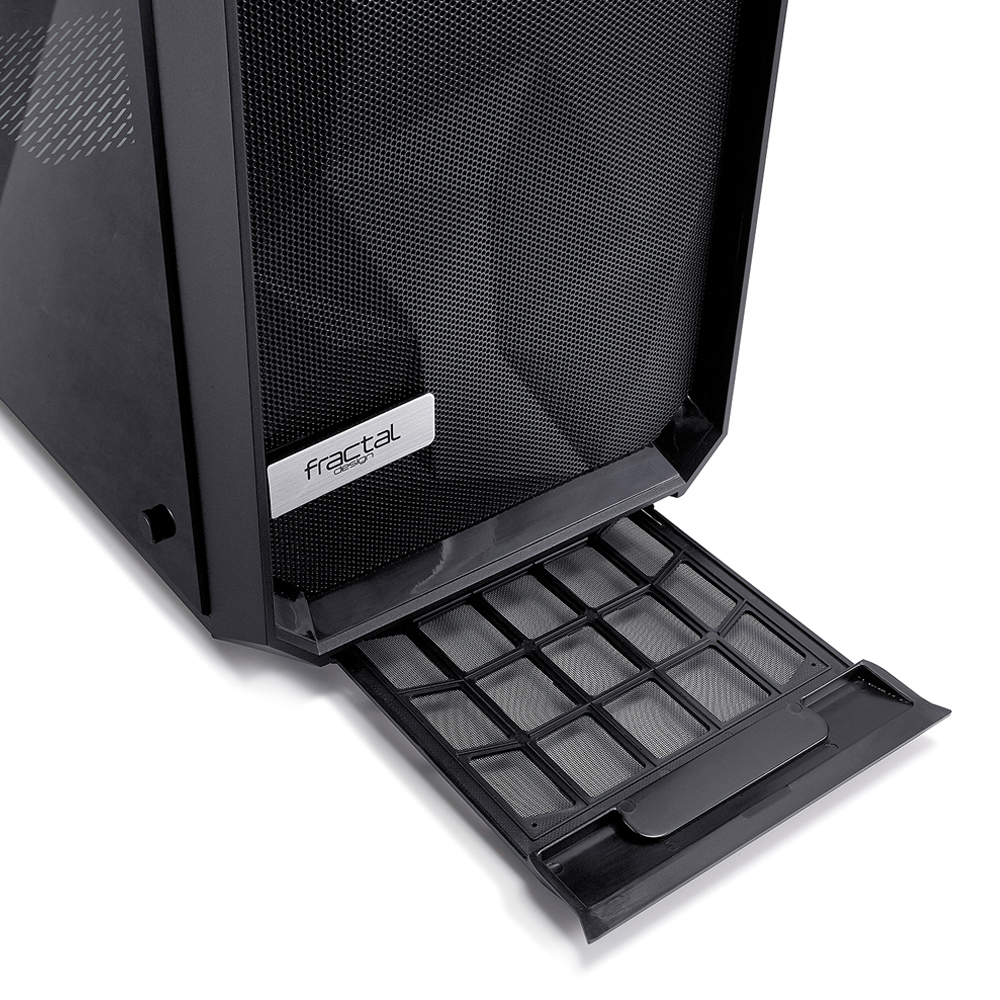

- Easy-to-clean filters on the front, top, and base with full PSU coverage and convenient front access
- Full-length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
- Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
