DeepCool CH160 Ultra-Portable White Micro Tower Mini-ITX

£45.00
(£54.00 inc VAT)
Short description:
Mini-ITX Compatible Case
No Fans Included, Glass Left Side
01075
1
+ −

For shippable items by DPD courier:

Note, we do not mail all items - typically the components categories and some peripheral categories are not shipped. Put a postcode in the shipping info tab below to confirm if shipping options are available, but some items may be pickup from our shop in Ayr only.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

CH160

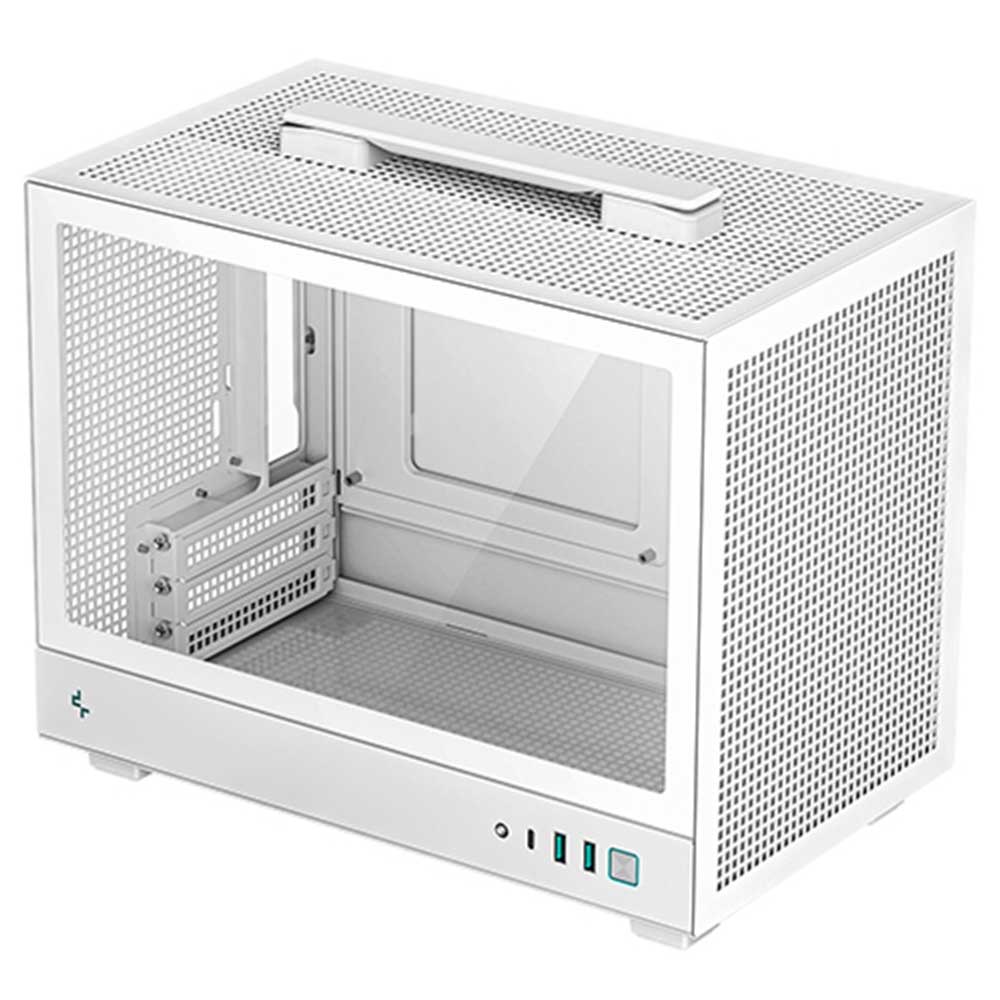

The CH160 is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.

HIGH AIRFLOW PANELS

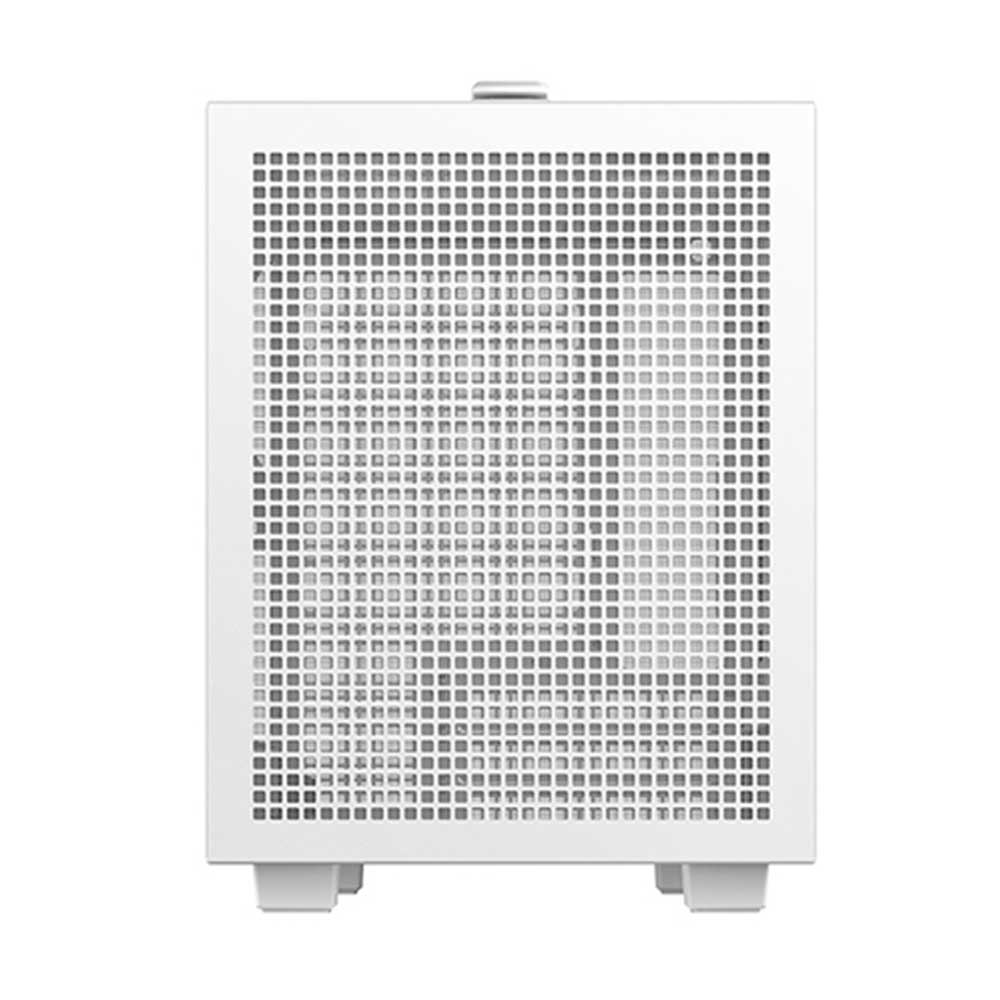

Mesh panels surround the CH160 from numerous sides and create a high-airflow, small-form-factor case like no other.

FULL SIZED AIR COOLING!
Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 can support giant air coolers up to 172mm in height!

NO ADDED GPU LATENCY!
Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!

FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 can support any of them up to 140mm.

QUALITY OF LIFE IMPROVEMENTS

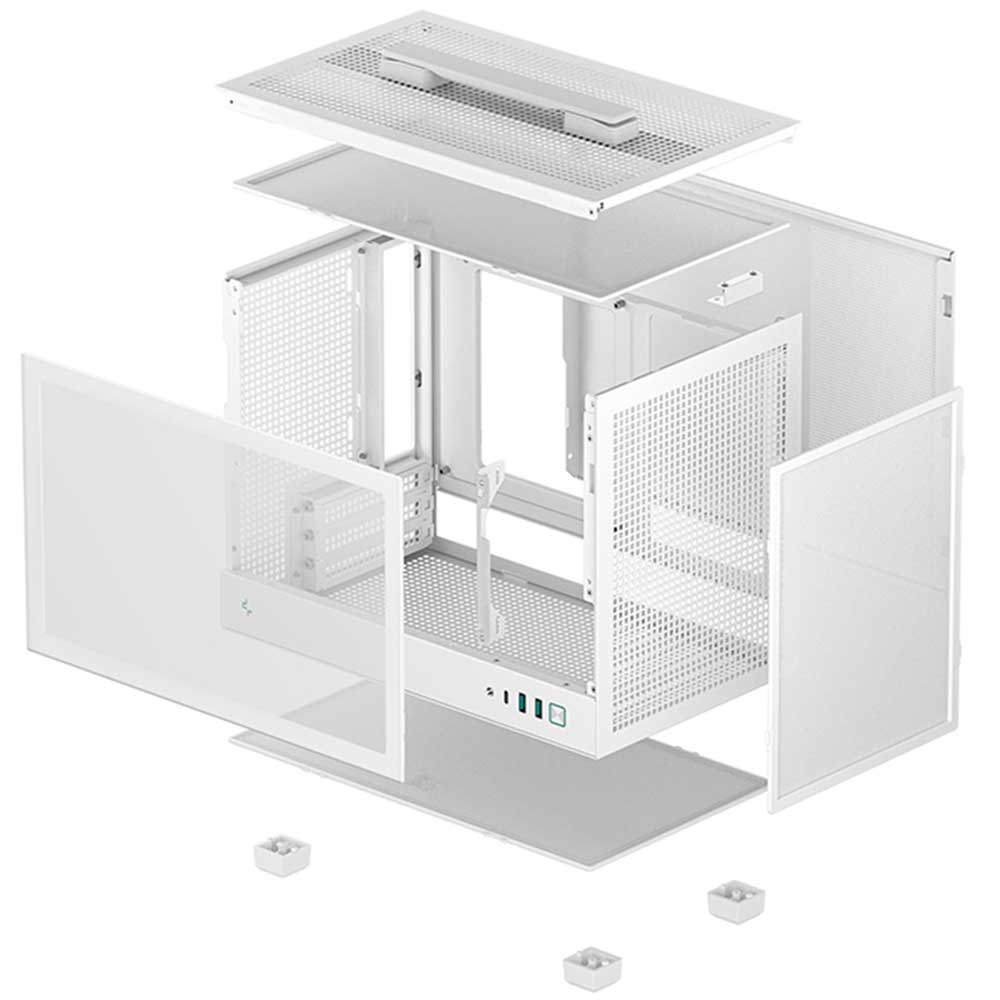

Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 makes everything a little easier.

Note - Fans are not included in this case. Note the graphics card support versus power supply size to avoid conflicts - check before purchasing!

Specification

Dimensions W D H
200mm 336mm 283.5mm
Weight 3.3kg
Fan Support Front - 1 x 120mm Mount (only if no 2.5 / 3.5" storage installed)
Rear - 1 x 120mm Mount
Top - 2 x 120mm Mounts
Fans Incl. None
Radiator Support None
5¼" Bays -
3½" Bays 1 x 3"1/2 (uses front fan location)
2½" Bays Above bay supports 1 x 2"1/2 (if no 3"1/2 or fan fitted)
Motherboard Mini ITX
Power Supply ATX Max Depth 140mm or SFX / SFX-L - note, ATX PSU Limits graphics card size
Material ABS+SPCC+Tempered Glass
CPU Cooler Max Height 172mm
Window Glass Left Side
Graphics Support Length: SFX/SFX-L: 305mm Nax or with ATX: 230mm Max
Height: 138mm
Width: 65mm (3 Slots)
Vertical Graphics  No
Expansion Slots 3
Hubs -
Connectors 2 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2 Type C
1 x Headphone/Microphone jack
Colour:
White
Width:
200mm
Depth / Length:
336mm
Height:
284mm
Case Front USB 2.0:
0 x USB 2.0 Ports
Case Front USB 3.0:
2 x USB 3.0 Ports
Case Front USB Type C:
1 x USB Type C 10Gbps+ Port
BTF / Stealth Support:
Case Max Cooler Height:
172mm
GTIN:
6933412774440
MPN:
R-CH160-WHNGI0-G-1

New features

Manufacturer:
Deepcool

Cases

Case Form Factor:
Mini ITX
Graphics Card Support:
305mm
Case Window:
Tempered Glass Side
Case Lighting:
None
Case Slim Optical Bay:
Case 5"1/4 Bays:
0
Case 3"1/2 Bays:
1
Case Dedicated 2"1/2 Bays:
0
+ −
