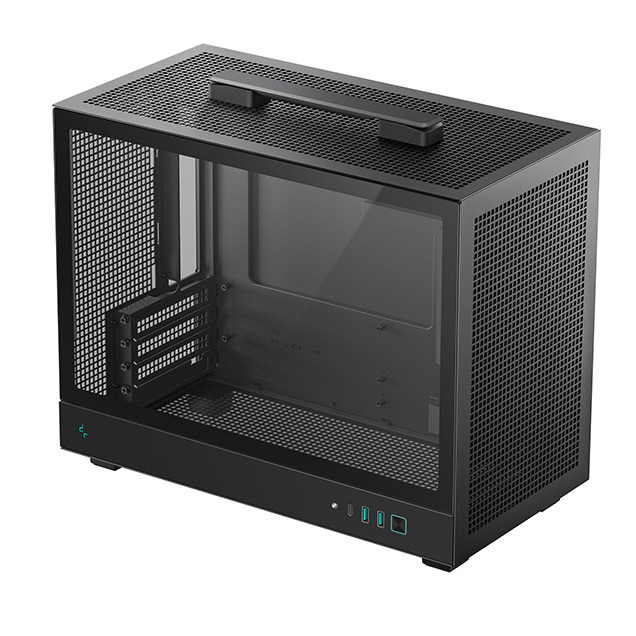

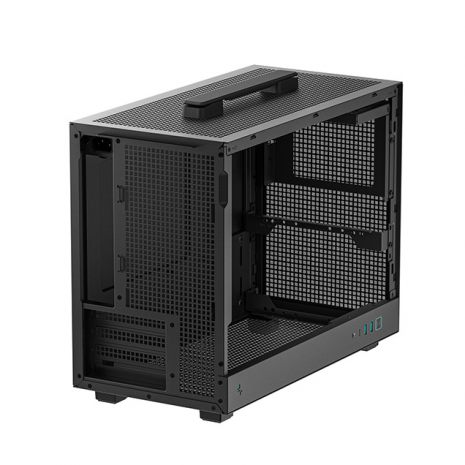

DeepCool CH160 PLUS Portable Black Micro Tower MicroATX

£45.00
(£54.00 inc VAT)
Short description:
Micro ATX Compatible Case
No Fans Included, Glass Left Side
01115
1
+ −

For shippable items by DPD courier:

Note, we do not mail all items - typically the components categories and some peripheral categories are not shipped. Put a postcode in the shipping info tab below to confirm if shipping options are available, but some items may be pickup from our shop in Ayr only.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

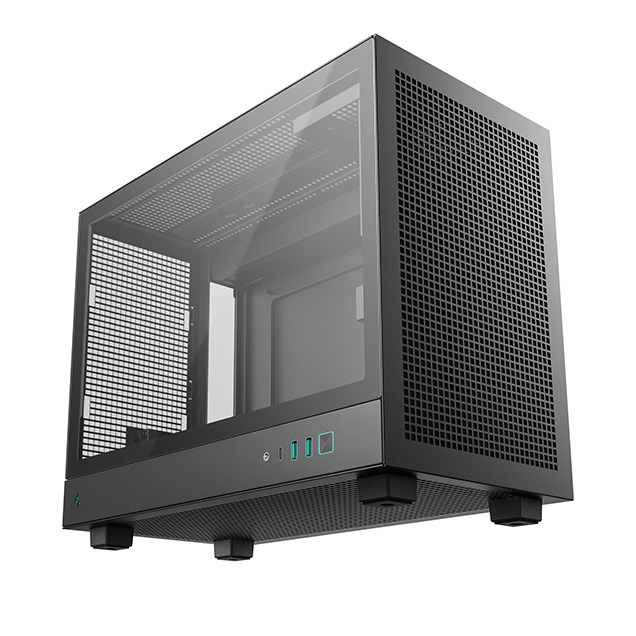

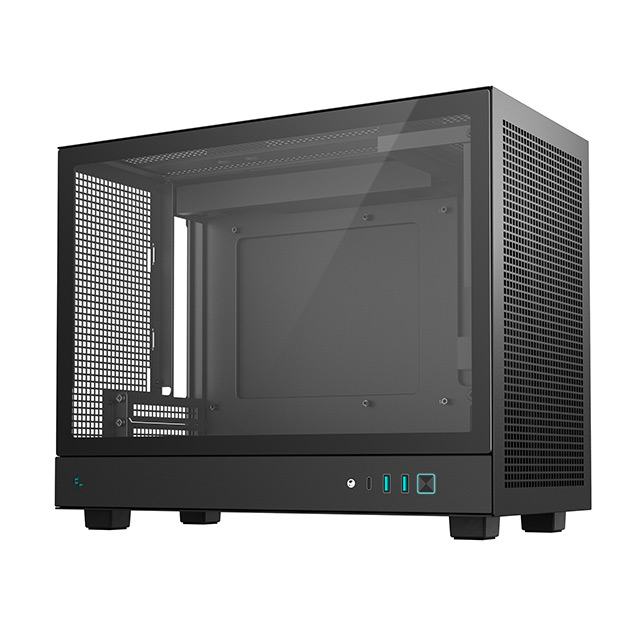

The CH160 PLUS retains the clean, compact aesthetic of the original CH160, while expanding support for Micro-ATX motherboards and 240mm liquid cooling.

BUILT TO BREATH

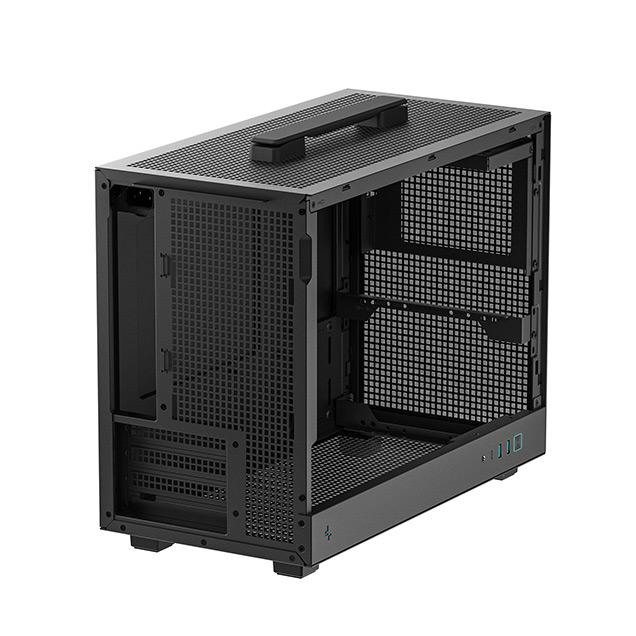

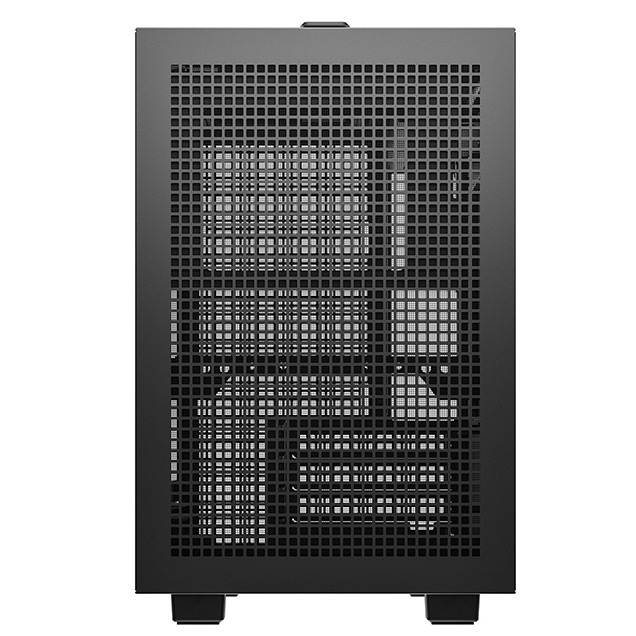

Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need.

NOW WITH LIQUID COOLING!
Liquid cooling is now part of the experience, with support for up to a 240mm radiator on top.

BUILT TO FIT MORE
With minimal growth in size, it expands compatibility with support for Micro-ATX motherboards, GPUs up to 342mm (328mm with front fan installed), and full-sized ATX PSUs up to 140mm. A fourth expansion slot opens the door to more powerful builds.

CUSTOMIZE WITH PURPOSE
Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.

CONVENIENCE IN EVERY DETAIL

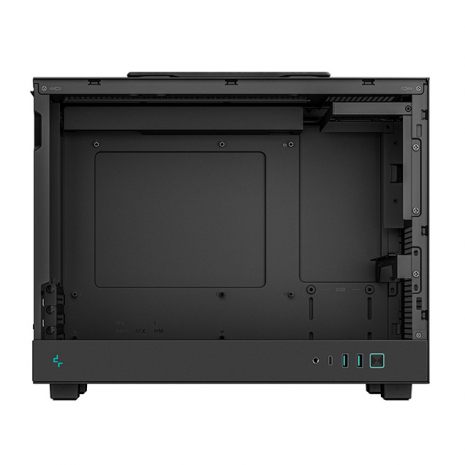

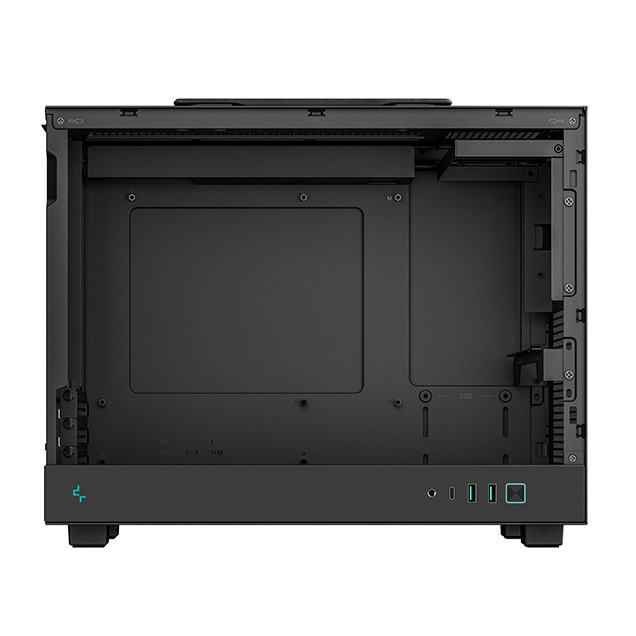

Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on three sides keep maintenance simple and your build clean.

Note - Fans are not included in this case. Note the graphics card support versus power supply size to avoid conflicts - check before purchasing!

Specification

Dimensions W D H
195mm 375mm 323.5mm
Weight 4.2kg
Fan Support Front - 1 x 120/140mm Mount (only if SFX PSU used, not with ATX)

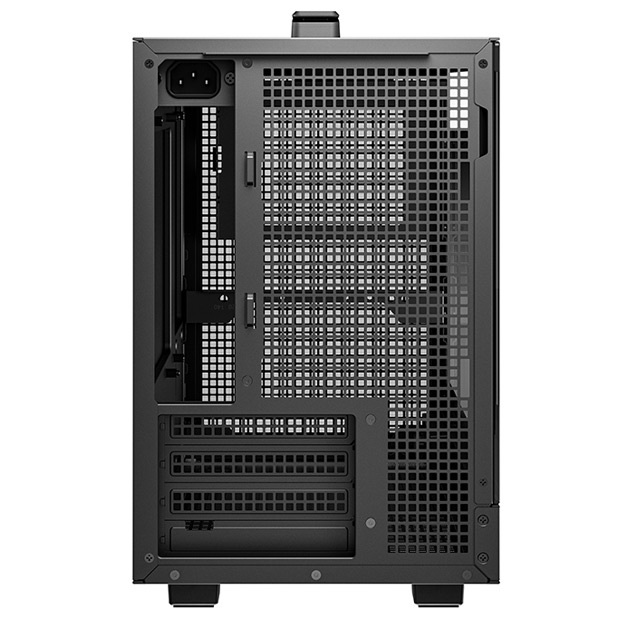

Rear - 1 x 120mm Mount
Top - 2 x 120mm Mounts
Fans Incl. None
Radiator Support Rear - 120mm Supported
Top - 120 / 240mm Supported
5¼" Bays -
3½" Bays 1 x 3"1/2

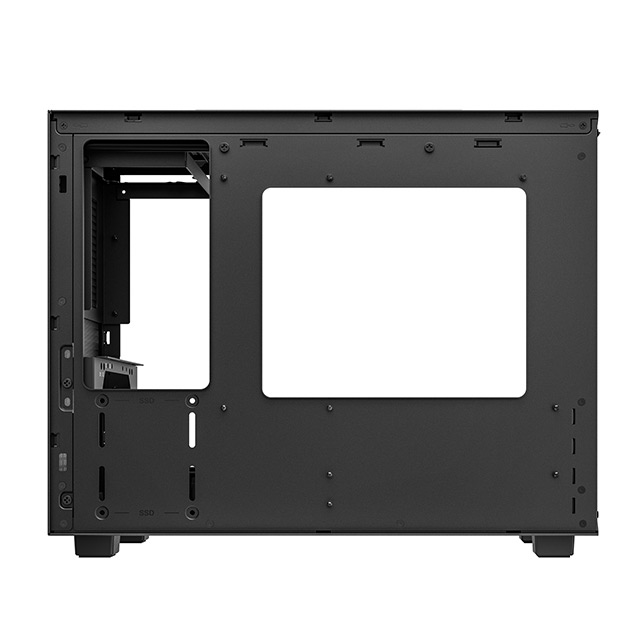

2½" Bays 1 x 2"1/2 Deducted, or Above bay supports 1 x 2"1/2 (if no 3"1/2 fitted)
Motherboard Micro ATX
Power Supply ATX Max Depth 140mm or SFX / SFX-L -
Material ABS+SPCC+Tempered Glass
CPU Cooler Max Height 164mm
Window Glass Left Side
Graphics Support 342mm Maximum (328mm with front fan installed)
Vertical Graphics No
Expansion Slots 4
Hubs -
Connectors 2 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2 Type C
1 x Headphone/Microphone jack
Colour:
Black
Width:
195mm
Depth / Length:
375mm
Height:
323mm
Case Front USB 2.0:
0 x USB 2.0 Ports
Case Front USB 3.0:
2 x USB 3.0 Ports
Case Front USB Type C:
1 x USB Type C 10Gbps+ Port
BTF / Stealth Support:
Case Max Cooler Height:
164mm
GTIN:
6933412765356
MPN:
R-CH160-BKNGM0-G

New features

Manufacturer:
Deepcool

Cases

Case Form Factor:
MicroATX / uATX
Graphics Card Support:
328mm
Case Window:
Tempered Glass Side
Case Lighting:
None
Case Slim Optical Bay:
Case 5"1/4 Bays:
0
Case 3"1/2 Bays:
1
Case Dedicated 2"1/2 Bays:
1
+ −
